John Boos 43PB20-2D30 Pro-Bowl Compartment Sinks
Description

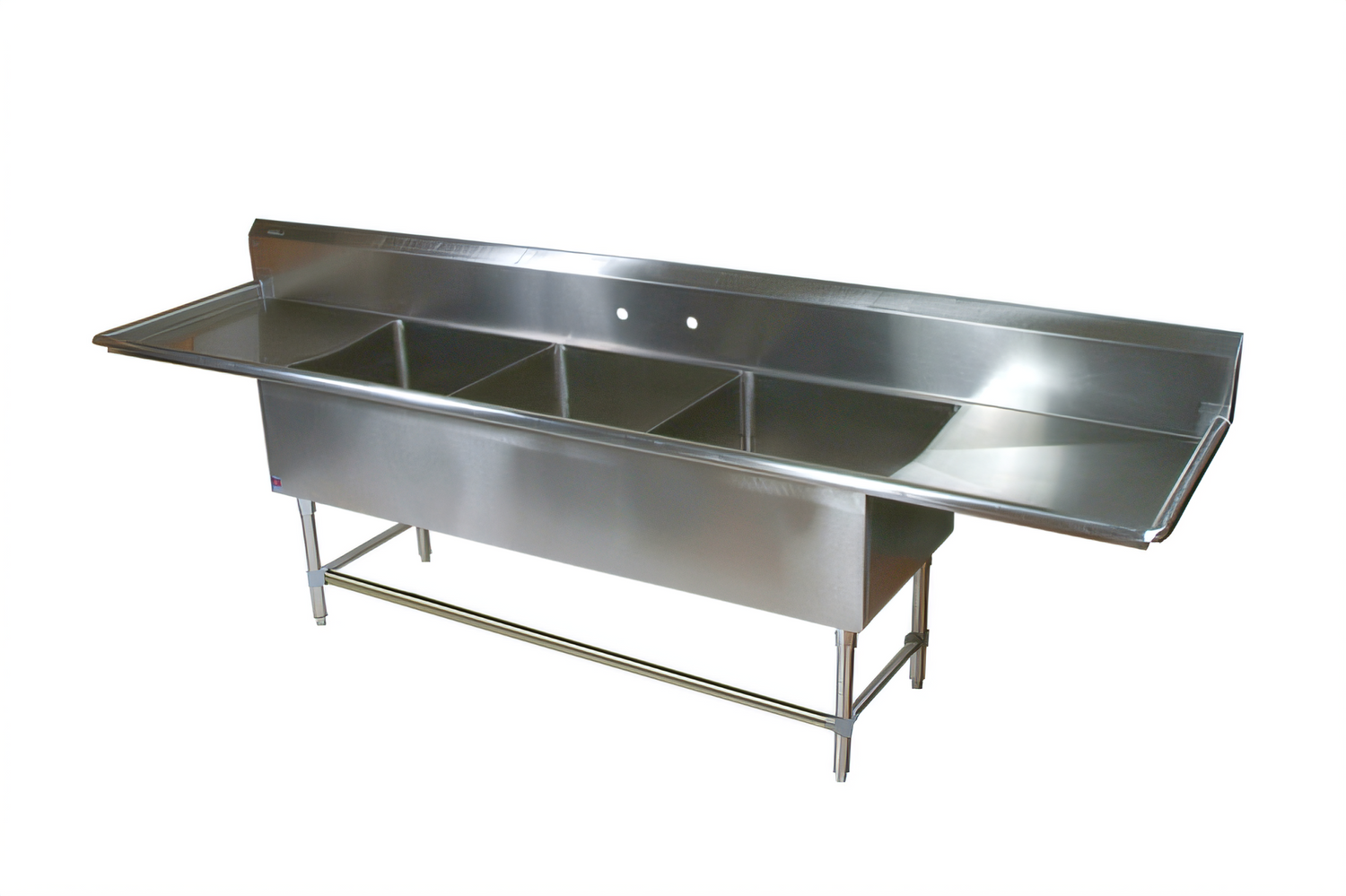

John Boos “Pro-Bowl” 3-Compartment Sink w/ Dual 30″ Drainboards – 123-1/4″ W
Model 43PB20-2D30 • Heavy-Duty 14 GA Type 300 Stainless SteelEngineered for high-volume food-service environments, the John Boos Pro-Bowl sink delivers ample workspace, rock-solid durability and NSF-certified sanitation in one streamlined unit. Triple 20″ square bowls keep the wash-rinse-sanitize sequence moving, while generous 30″ drainboards on both sides provide landing zones for dirty and clean wares alike.
Key Features
- Overall footprint: 123-1/4″ W × 25-1/2″ D × 44-1/16″ H

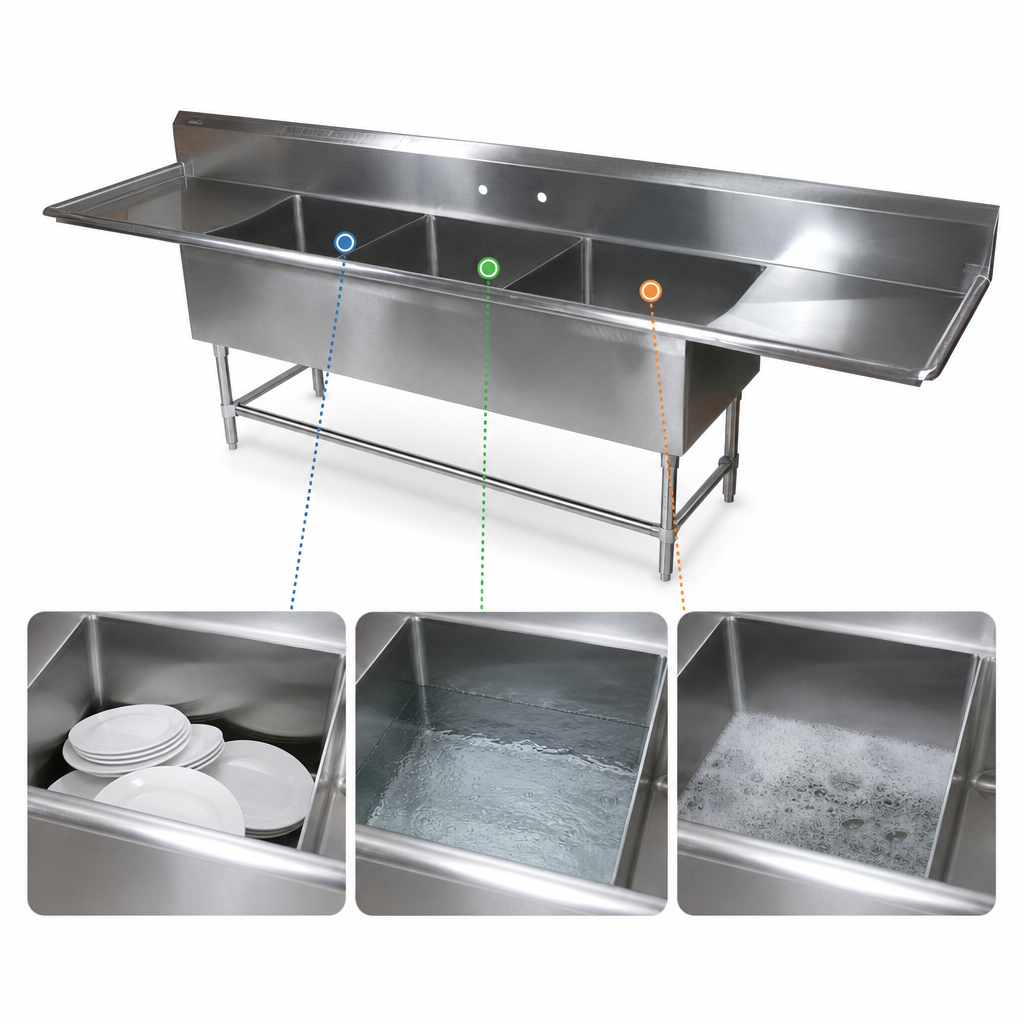

- (3) 20″ W × 20″ F-B × 12″ D compartments – 5/8″ radius coved corners for fast clean-up
- (2) 30″ integral drainboards, left & right
- 10″ boxed backsplash with 45° top edge & 2″ return to wall
- Splash-mount faucet holes on 8″ centers (1 set)
- 3-1/2″ die-stamped drain openings – accommodates standard basket strainers
- 14 GA #4-satin type 300 stainless steel top & bowls
- 1-5/8″ O.D. stainless legs with adjustable bullet feet
- Stainless front & 1-1/4″ O.D. side bracing – fully adjustable
- Bull-nosed outer edges for operator safety
- Ships knocked-down (KD) for lower freight cost; simple field assembly
- NSF & CSA-Sanitation listed
At-a-Glance Specifications
| Compartments | 3 |
|---|---|
| Bowl Size (W × F-B × D) | 20″ × 20″ × 12″ |
| Drainboards | (2) 30″ – left & right |
| Overall Width | 123-1/4″ |
| Overall Depth | 25-1/2″ |
| Overall Height | 44-1/16″ (top of backsplash) |
| Backsplash Height | 10″ |
| Faucet Mount | 8″ centers, splash-mount |
| Drain Opening | 3-1/2″ diameter |
| Material Thickness | 14 gauge |
| Stainless Grade | Type 300 series |
| Approx. Ship Weight | 188 lb. |
Why John Boos?
- Made in the USA since 1887
- TIG-welded seams polished to match adjacent surfaces
- Industry-leading lead times & responsive customer support
- Extensive menu of factory accessories: end splashes, overshelves, pot racks & more
Need faucets, lever wastes or other accessories? Chat with our team and we’ll configure a complete, ready-to-install package for your kitchen.
