John Boos 43PB20-1D24L Pro-Bowl Compartment Sinks
$2,943.46
Unit price
/
Unavailable
Description

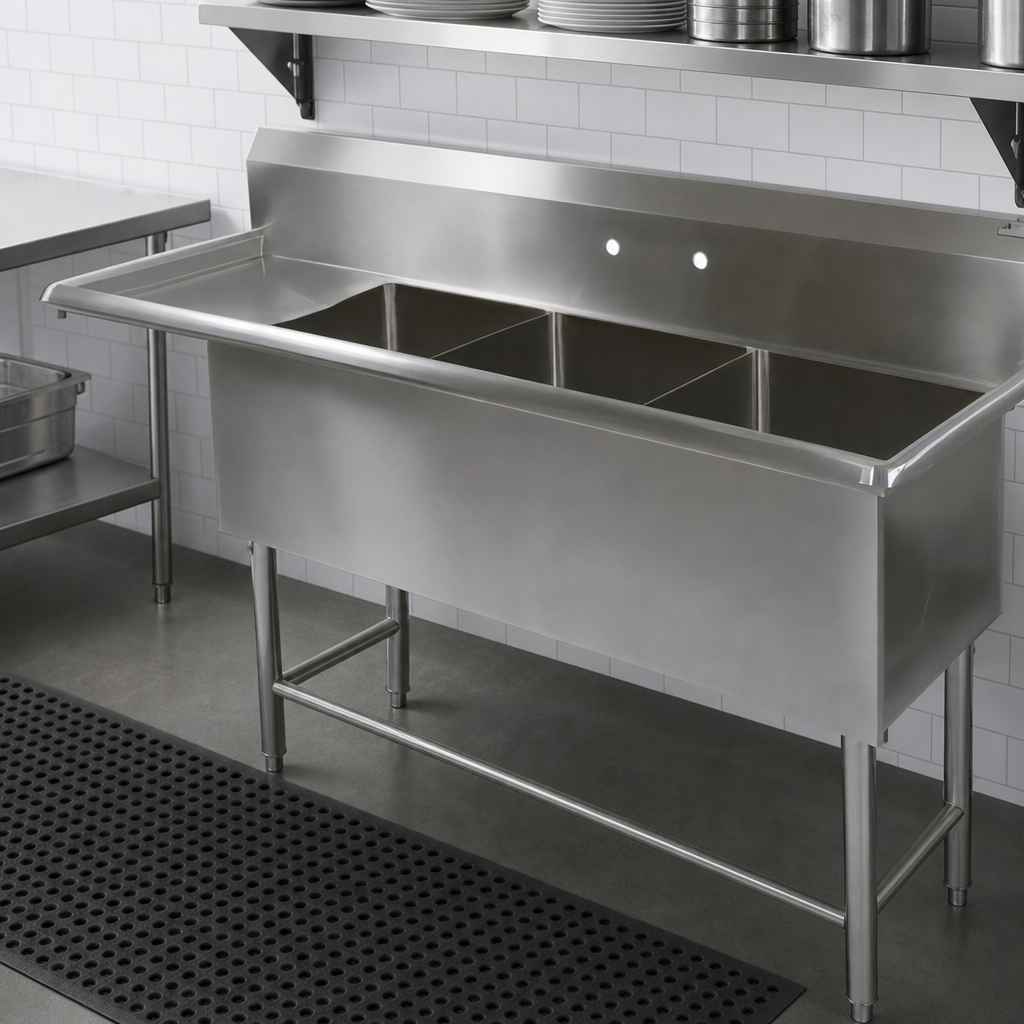

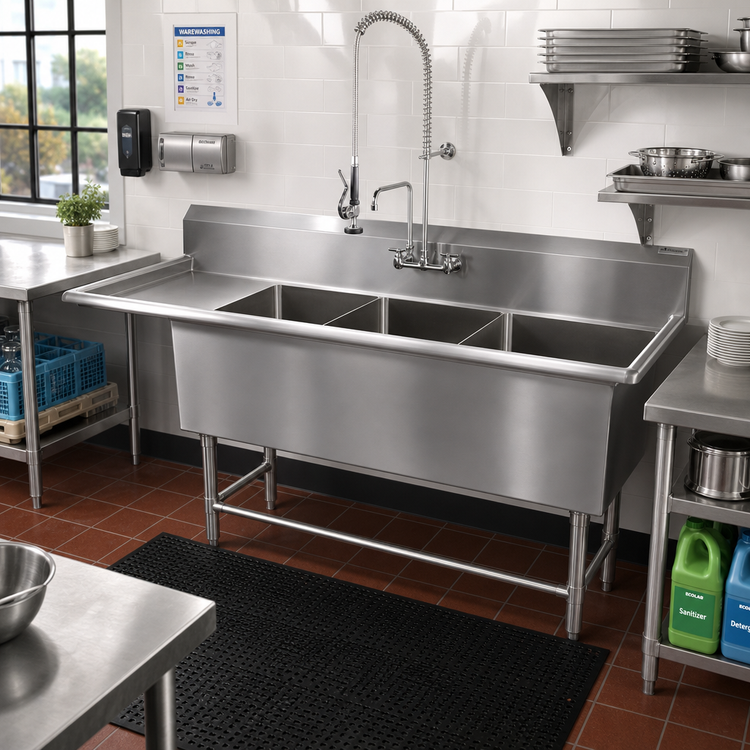

John Boos Pro-Bowl 3-Compartment Sink w/ 24" Left Drainboard – 88"
Model 43PB20-1D24L · 14 ga Type 300 Stainless Steel · NSF & CSAEngineered for the toughest back-of-house environments, the John Boos Pro-Bowl sink combines heavy-duty construction, thoughtful ergonomics, and the legendary durability food-service professionals have trusted since 1887.
Key Features
- Overall size: 88-3/16" W × 25-1/2" D × 44-1/16" H (to top of backsplash)
- (3) 20" W × 20" F-B × 12" D bowls — ideal for wash, rinse & sanitize workflow
- 24" left-hand drainboard with positive pitch for fast, sanitary draining
- 14 ga type 300 stainless steel top, bowls & backsplash with #4 satin finish
- 10" boxed backsplash with 45° top & 2" return guards walls from splashes
- Splash-mount 8" O.C. faucet holes (1" dia.) ready for most commercial faucets
- 3-1/2" die-stamped drain openings accept standard basket drains or lever wastes
- TIG-welded seams; exposed welds ground & polished for seamless sanitation
- 1-5/8" round stainless steel legs with adjustable front/side bracing
- 1" adjustable stainless bullet feet keep the sink level on uneven floors
- Knock-Down (KD) design ships economically and fits through tight doorways
- NSF & CSA-Sanitation listed — meets or exceeds health-code requirements
At-a-Glance Specifications
| Manufacturer | John Boos & Co. |
|---|---|
| Series / Model | Pro-Bowl – 43PB20-1D24L (Left Drainboard) |
| Compartments | 3 |
| Bowl Size (each) | 20" W × 20" F-B × 12" D |
| Drainboard | 24" W (left side) |
| Overall Dimensions | 88-3/16" W × 25-1/2" D × 44-1/16" H |
| Backsplash Height | 10" |
| Material / Gauge | 14 ga Type 300 stainless steel |
| Faucet Holes | (1) set, 8" centers, 1" dia. |
| Drain Openings | 3-1/2" dia., die-stamped |
| Legs & Feet | 1-5/8" SS legs, adj. front & side bracing, 1" bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Configuration | Knock-Down (assembly required) |
Looking for a right-hand drainboard or different bowl depth? Contact us for custom Pro-Bowl configurations and accessories.
Note: Faucet, drains, and other accessories are sold separately.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
88.19in
Depth
25.5in
Shipping Weight
158.0lbs
Overall Length
85" - 96"
Sink Depth (rim - drain)
12"
Splash Height
10"
Compartment Width (side - side)
20"
Drainboards
with left-hand drainboard
Base Construction
stainless steel
Compartment (front - back)
20"
Top Stainless Series
300 series
Base Type
legs with front & side crossrails
Top Gauge
14 gauge
Specifications
Pro-Bowl Sink, 3-compartment, 88-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12" deep compartments, (1) 24" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 14/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
