John Boos 43PB16204-2D30 Pro-Bowl Compartment Sinks
John Boos 43PB16204-2D30 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

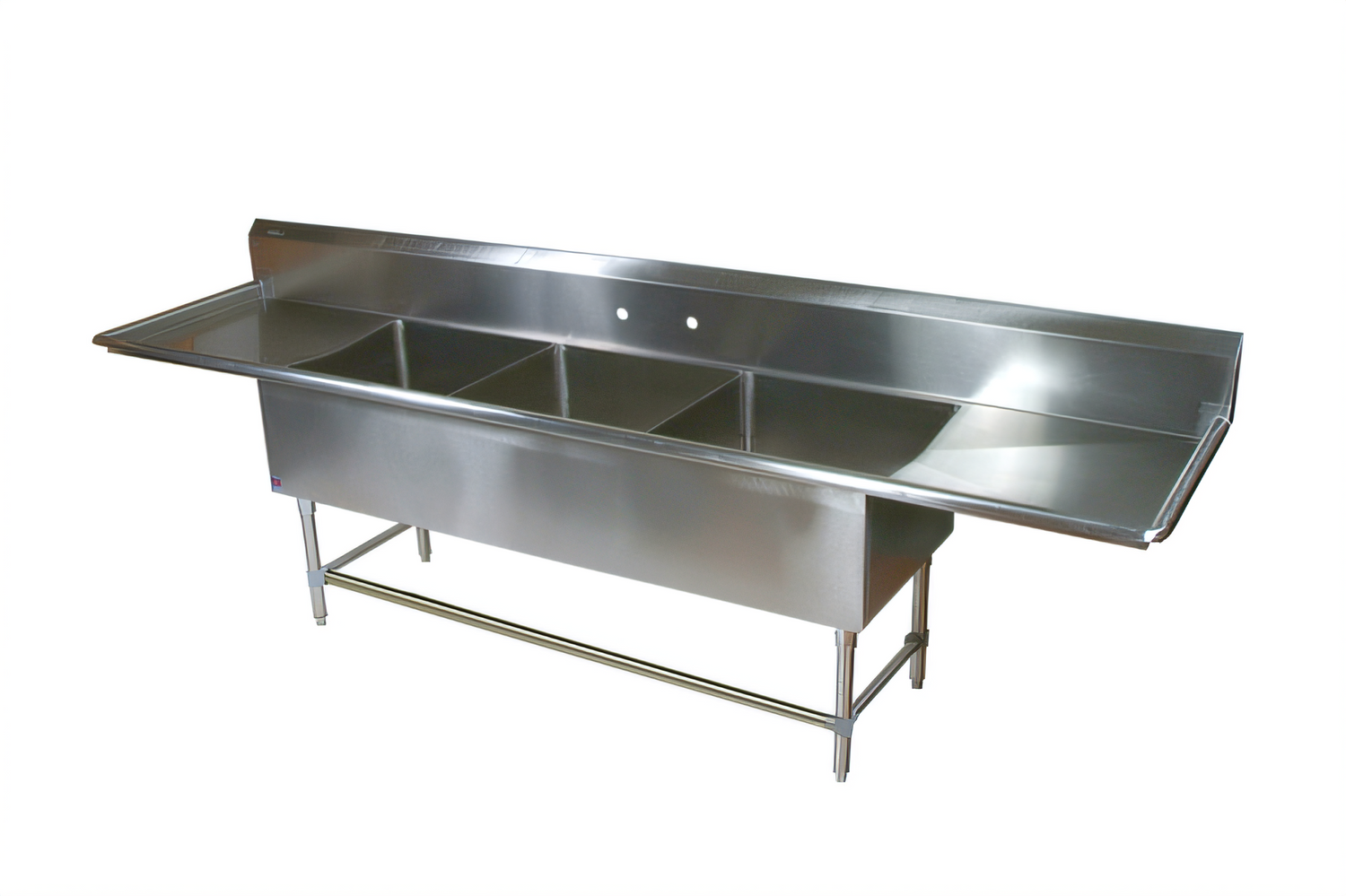

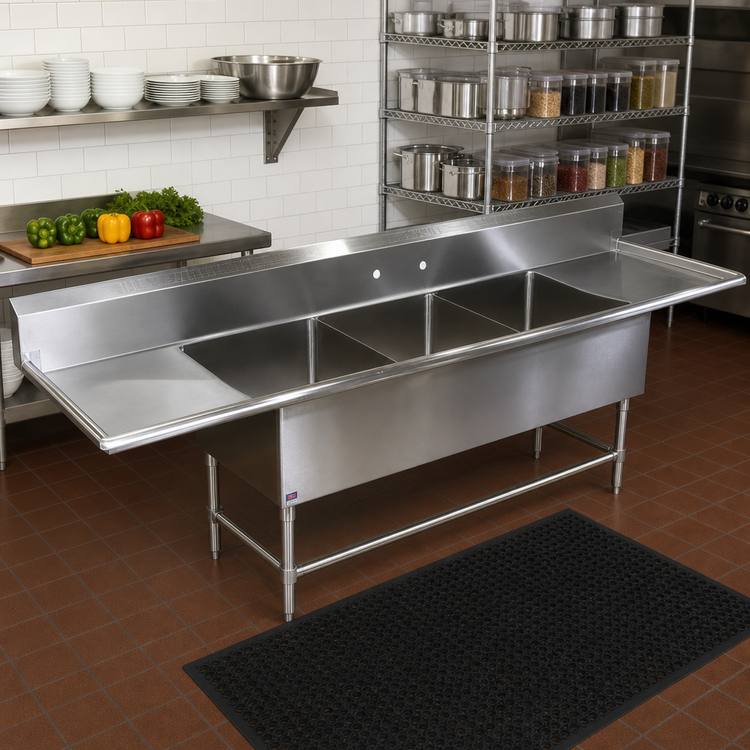

Pro-Bowl 3-Compartment Sink w/ Dual 30" Drainboards
John Boos Model 43PB16204-2D30Built for the busiest commercial kitchens, the John Boos Pro-Bowl sink combines heavy-duty 14 gauge stainless steel construction with operator-friendly details that speed up ware-washing and prep workflows. Three generous 16" x 20" x 14" bowls handle high-volume soaking and washing, while full-size 30" drainboards on both sides provide ample landing space for clean or soiled wares. A 10" boxed backsplash, pre-punched for an 8" OC faucet, keeps water in the work zone and off your walls.
Key Advantages
- Rugged 14 GA type 300 stainless steel top & bowls with #4 satin polish

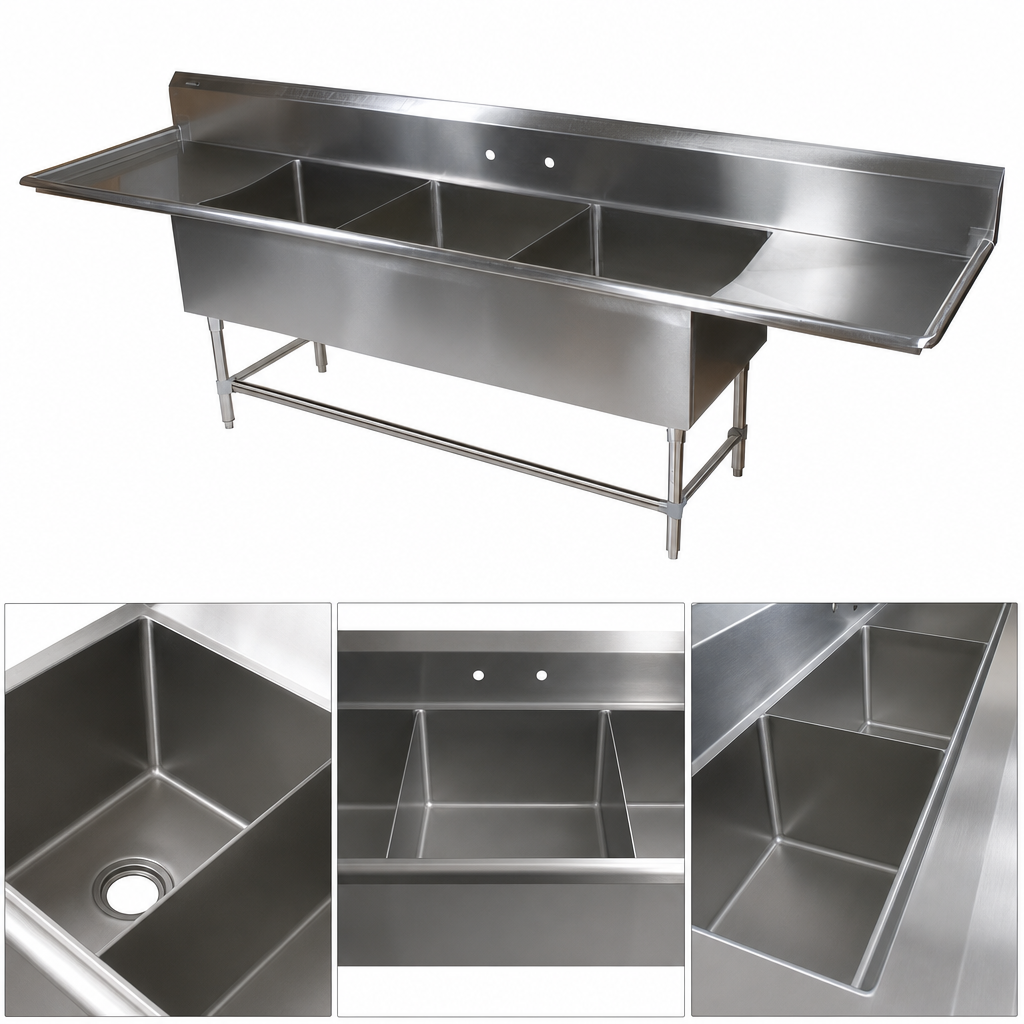

- (3) coved-corner bowls – each 16" W x 20" F/B x 14" D for easy cleaning & maximum capacity
- (2) full-length 30" drainboards (left & right) with pitched surfaces for fast drainage
- 10" high boxed backsplash with 2" return and 45° sanitary top edge
- Pre-drilled 8" on-center splash-mount faucet holes (1" Ø)
- 3-1/2" die-stamped drain openings—ready for standard basket strainers or lever wastes
- 1-5/8" Ø all-stainless legs with adjustable front & side bracing for rock-solid stability
- Adjustable stainless bullet feet make leveling simple on uneven floors
- All exposed welds are TIG-welded & polished to match adjacent surfaces
- Bull-nosed outside edges for a smooth, snag-free profile
- Ships knocked-down (KD) for easier on-site handling & doorway access
- NSF & CSA-Sanitation listed for code-compliant installation
At-a-Glance Specs
Overall dimensions | 111-1/4" W x 25-1/2" D x 44-1/16" H (to top of backsplash) |
---|---|
Working height | 36-5/16" to sink roll |
Bowls | (3) 16" W x 20" F/B x 14" D |
Drainboards | (2) 30" – left & right |
Backsplash | 10" H boxed, 2" return, 45° top |
Faucet mounting | (1) set, 8" centers, 1" Ø holes |
Drain openings | 3-1/2" die-stamped (per bowl) |
Material / finish | 14 GA type 300 SS, #4 satin |
Legs & bracing | 1-5/8" Ø SS legs, 1-1/4" Ø adjustable SS side/front bracing |
Feet | Adjustable stainless bullet feet |
Shipping weight | ≈ 177 lb |
Certifications | NSF, CSA-Sanitation |
Care & Maintenance
Maintain the sink’s protective stainless finish by cleaning daily with a non-chloride cleanser such as Bar Keepers Friend, rinsing thoroughly, and wiping dry with a soft towel. Avoid abrasive pads, steel wool, or bleach to prevent scratching and corrosion.
