John Boos 43PB14314-2D24 Pro-Bowl Compartment Sinks
John Boos 43PB14314-2D24 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

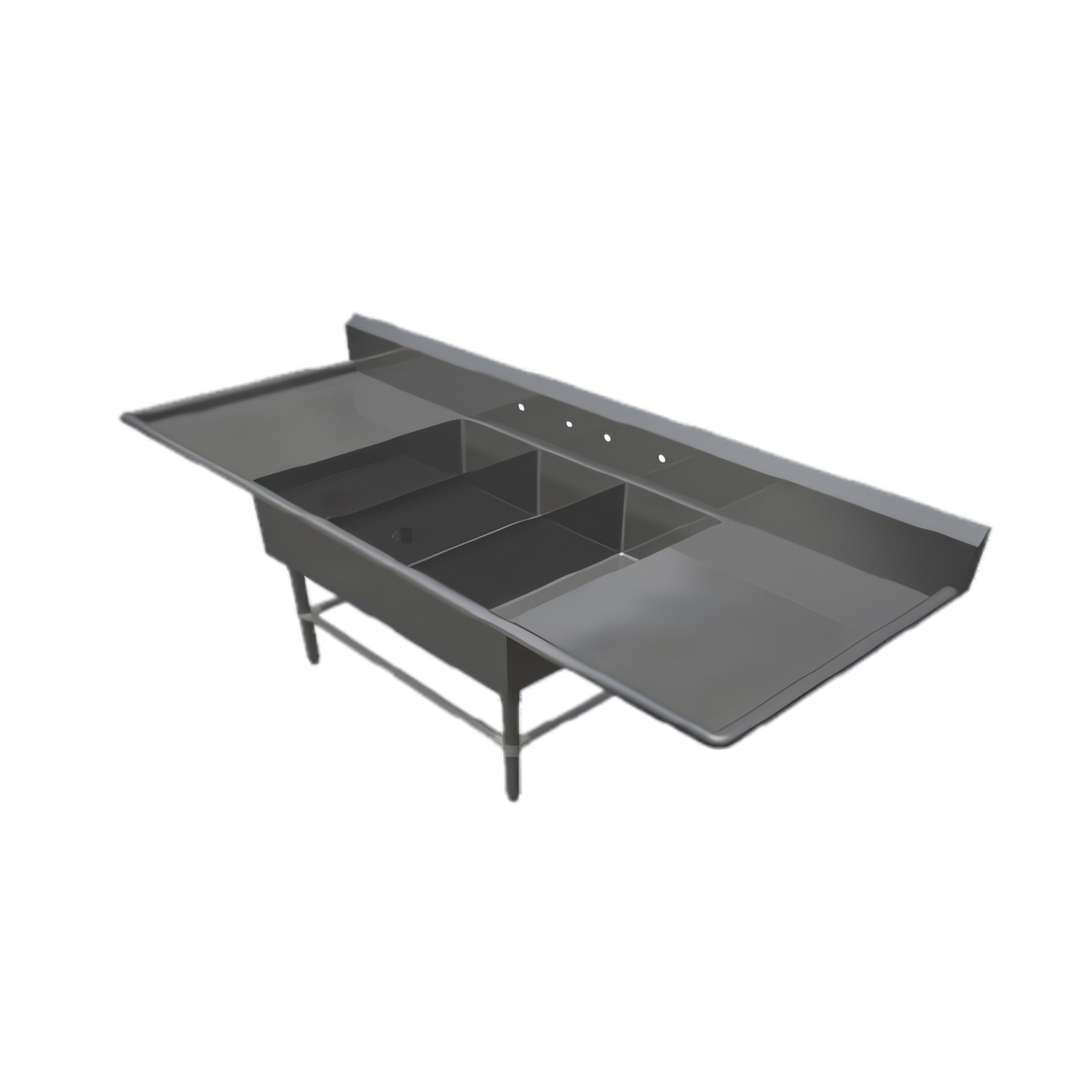

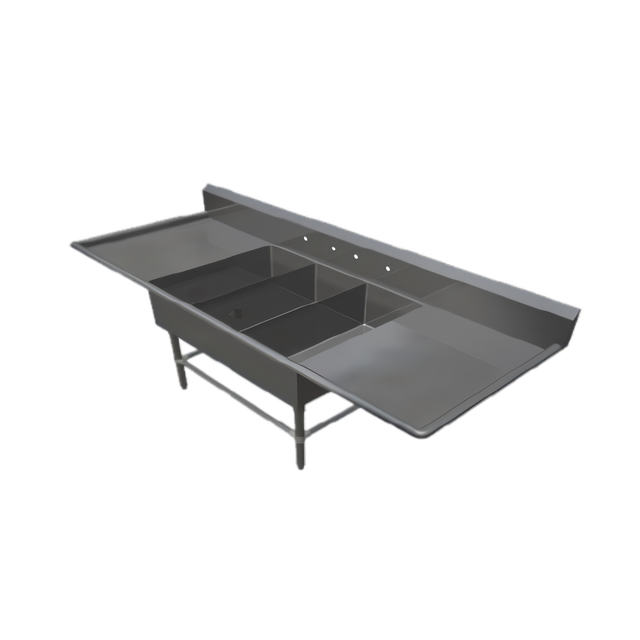

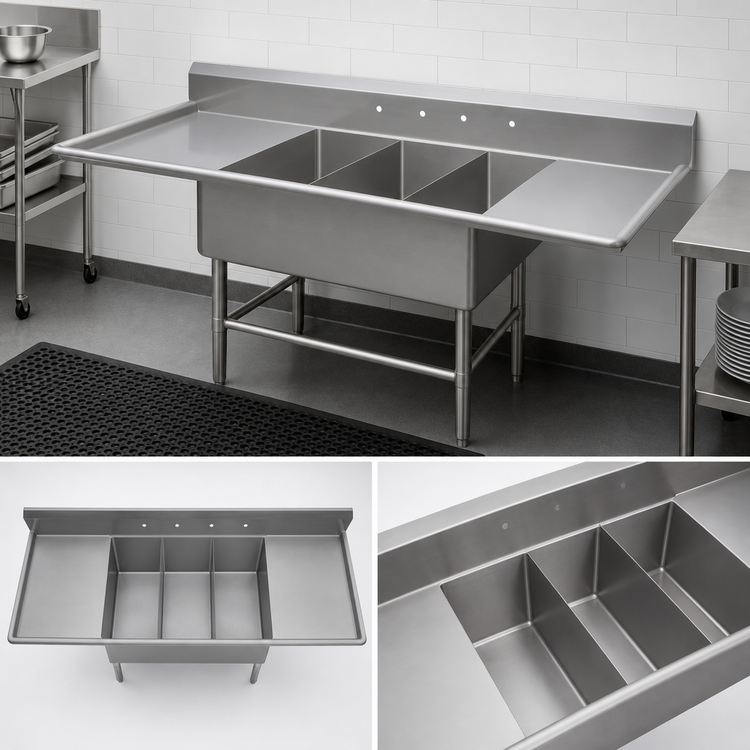

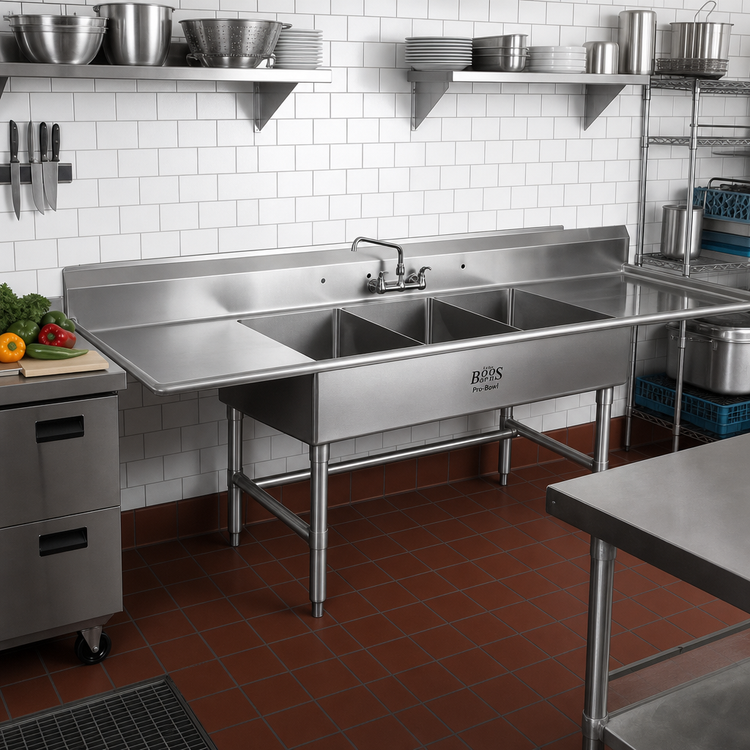

Pro-Bowl 93" 3-Compartment Platter Sink with Dual 24" Drainboards
John Boos Model 43PB14314-2D24 | 14-Gauge Type 300 Stainless SteelDesigned for the toughest commercial kitchens, this Pro-Bowl platter sink pairs extra-deep wash wells with roomy drainboards so you can power through high-volume prep, warewashing and sanitizing in one efficient station.
Key performance features

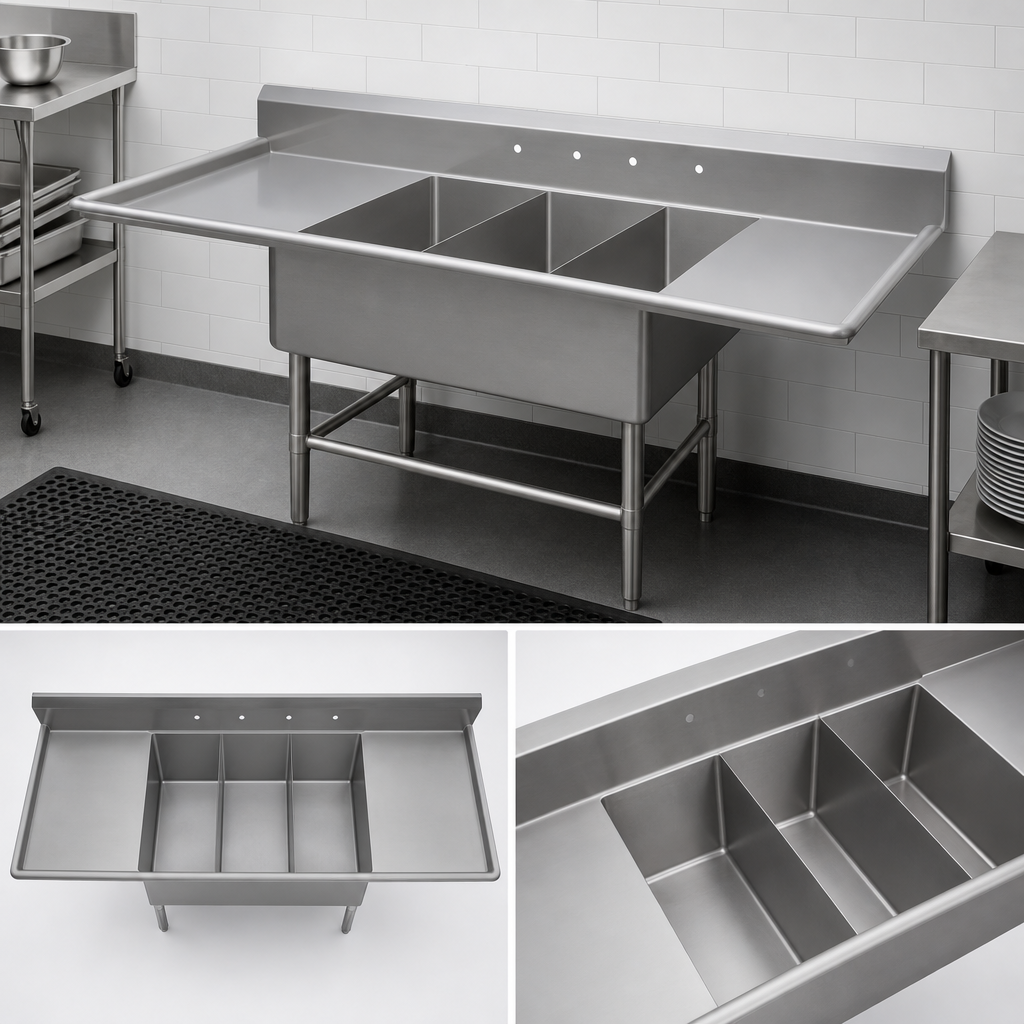

- Three 14" W × 31" F/B × 14" D compartments easily accommodate sheet pans, stock pots and bulky utensils.
- Generous 24" drainboards on both left and right keep dirty and clean wares organized.
- One-piece 10" boxed backsplash with 2" return and 45° top protects surrounding walls.
- Splash-mount faucet punchings (8" on-center, 1-1/8" Ø) accept most commercial faucets.
- 3-1/2" die-stamped drain openings fit standard basket strainers or disposer flanges.
- Heavy-duty 14GA Type 300 stainless steel with #4 satin polish resists dents, corrosion and chemicals.
- 1-5/8" O.D. stainless steel legs with adjustable bullet feet and 1-1/4" O.D. front & side bracing for rock-solid stability.
- 5/8" radius coved bowl corners plus bull-nosed front edge for safer, faster cleaning.
- TIG-welded construction; exposed welds are polished to match adjacent surfaces.
- NSF and CSA-Sanitation listed for worry-free code compliance.
Technical specifications
Overall size (W × D × H) | 93-1/4" × 36-1/2" × 43" |
---|---|
Compartments | 3 |
Compartment interior | 14" × 31" × 14" |
Drainboard length | 24" left & 24" right |
Backsplash | 10" boxed, 2" return, 45° top |
Faucet holes | 1 set, 8" centers, 1-1/8" Ø |
Drain openings | 3-1/2" die-stamped |
Material / gauge | 14GA Type 300 stainless steel, #4 satin finish |
Legs & bracing | 1-5/8" O.D. legs, 1-1/4" O.D. adjustable bracing, 1" bullet feet |
Weight | ≈ 210 lb (ships KD) |
Certifications | NSF, CSA-Sanitation |
Optional accessories (sold separately)
- Right, left or double end-splashes
- Splash-mount faucets & add-a-faucets
- Pre-rinse units & lever-waste drains
- Stainless overshelves or pot racks
Care & maintenance tips
- Clean daily with a soft cloth or sponge and a non-chloride, non-abrasive cleanser.
- Always scrub and wipe in the direction of the stainless steel grain.
- Rinse thoroughly and dry after each use to preserve the protective passive film.
- Avoid steel wool, wire brushes and cleaners containing bleach or quaternary salts.
Proudly crafted by John Boos & Co. — serving the foodservice industry since 1887.
