John Boos 42PB204-1D30R Pro-Bowl Compartment Sinks
Description

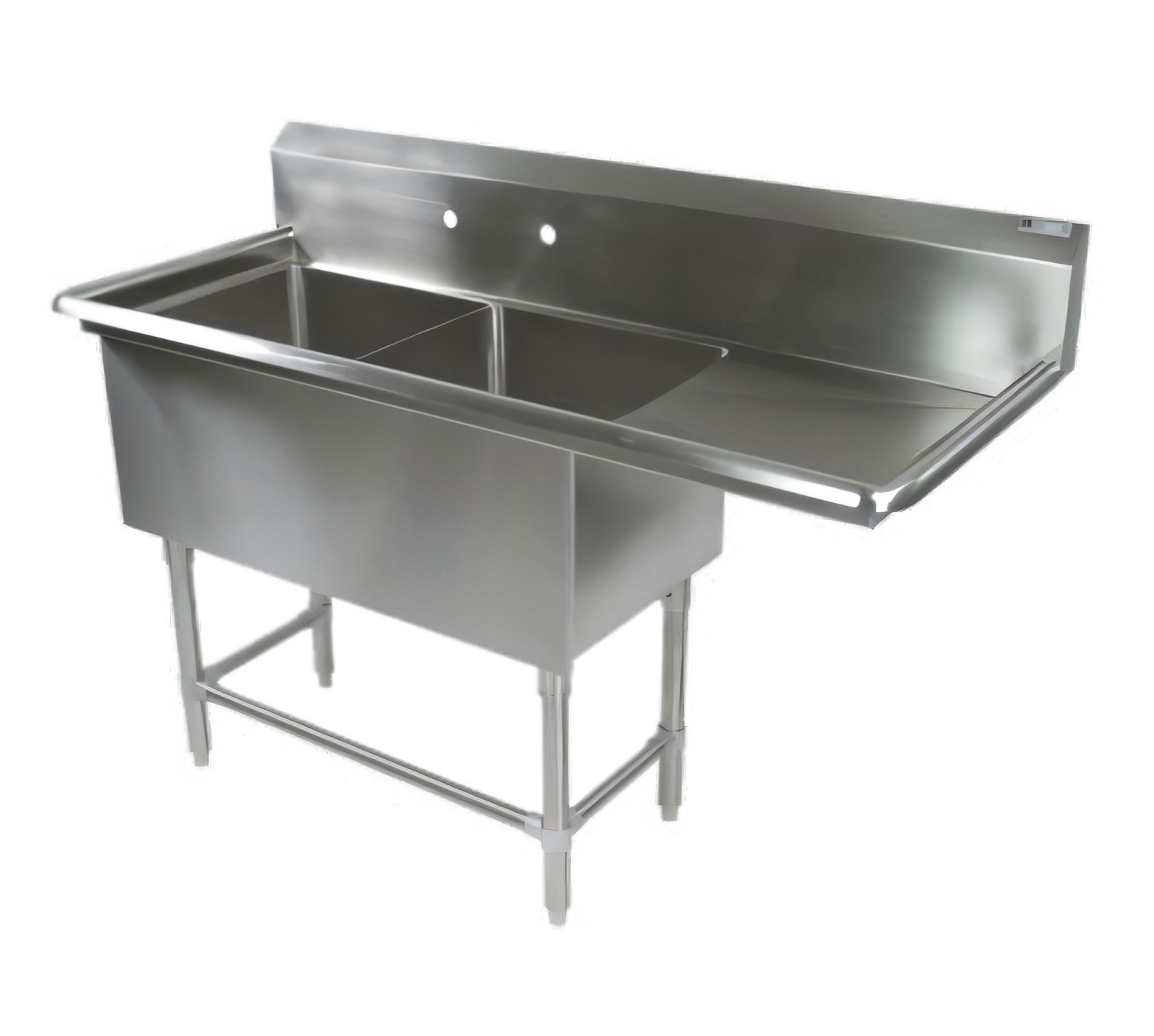

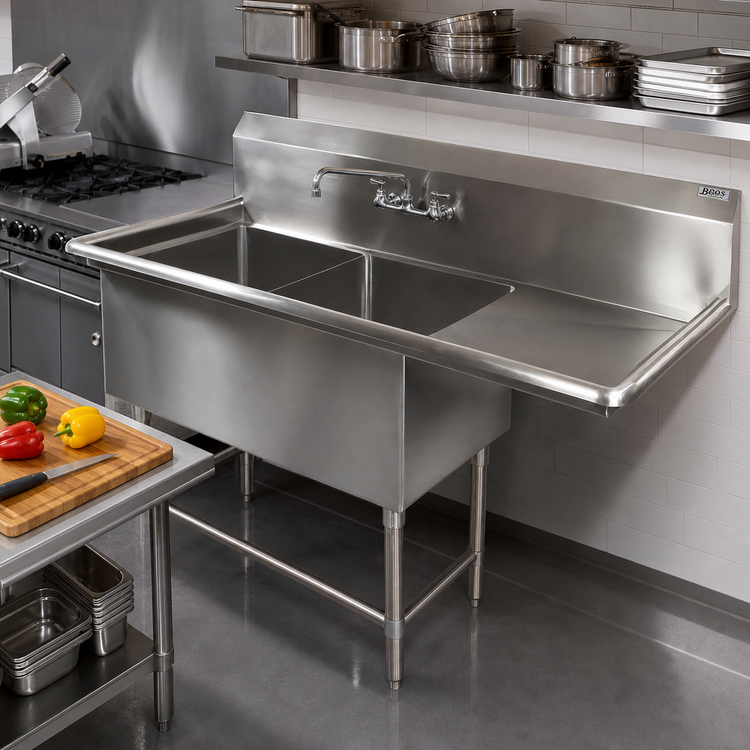

John Boos Pro-Bowl 2-Compartment Sink w/ 30" Right Drainboard – 74-3/16" W
Model 42PB20-1D30R | 14-Gauge Type 300 Stainless SteelEngineered for the rigors of commercial kitchens, the John Boos Pro-Bowl series pairs heavy-duty 14-gauge stainless steel with user-focused ergonomics. Two spacious 20" × 20" × 14" bowls handle oversized cookware, while a generous 30" right-hand drainboard keeps workflow smooth from wash to dry.
Key Features
- 14 GA Type 300 stainless steel top & bowls with #4 satin finish.

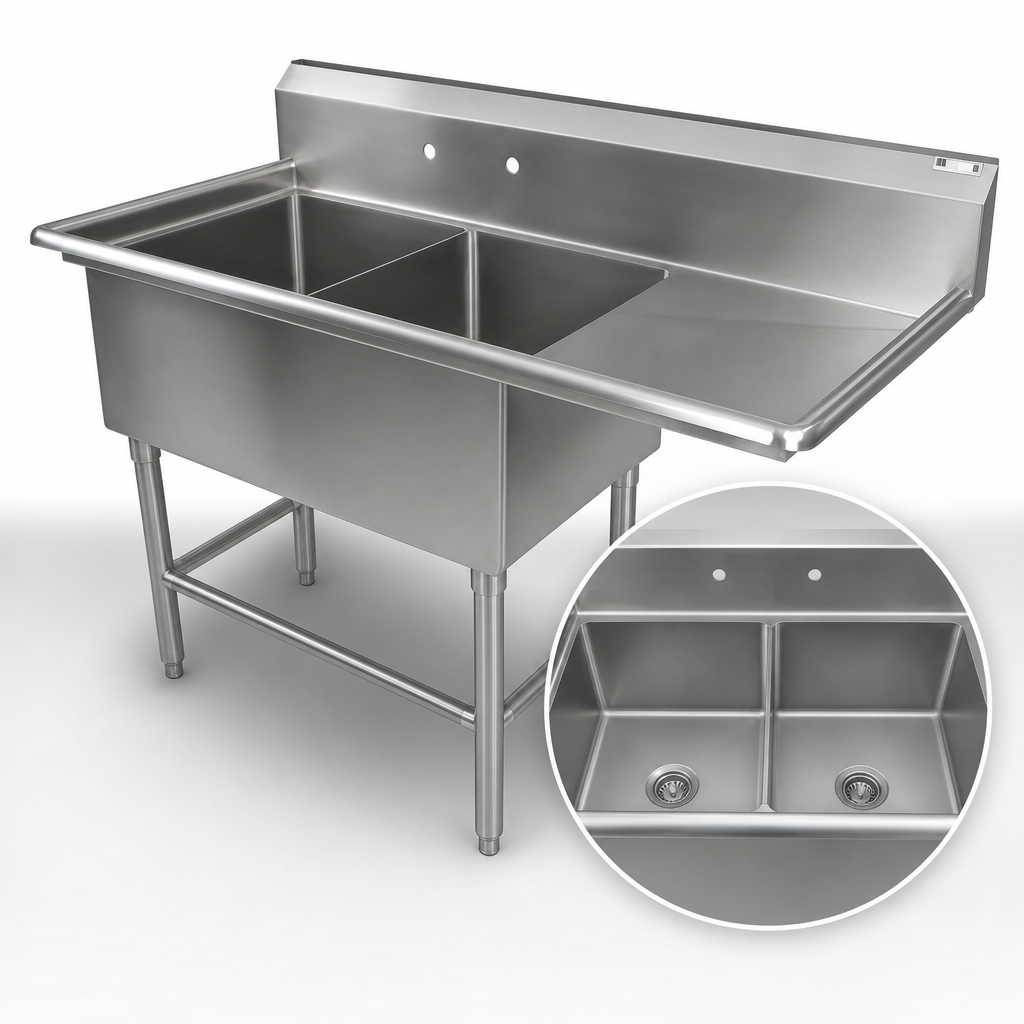

- (2) 20" W × 20" front-to-back × 14" D compartments for high-volume warewashing.
- 30" right-side drainboard provides ample drying & staging space.
- 10" high boxed backsplash with 45° top edge and 2" return protects surrounding walls.
- Pre-punched splash-mount faucet holes on 8" centers (faucet not included).
- 3-1/2" die-stamped drain openings accept industry-standard strainers & disposers.
- Stainless steel 1-5/8" Ø legs with adjustable front & side bracing for rock-solid support.
- 1" adjustable stainless steel bullet feet allow quick leveling on uneven floors.
- All outside corners are bull-nosed for a safe, polished edge.
- Ships knocked-down (KD) for easier transport through tight doorways.
At-a-Glance Specs
| Overall dimensions | 74-3/16" W × 25-1/2" D × 44-1/16" H |
|---|---|
| Compartment size (each) | 20" W × 20" F-B × 14" D |
| Number of compartments | 2 |
| Drainboard | 30" right-hand |
| Backsplash | 10" high, boxed style, 45° top, 2" return |
| Faucet mounting | Splash-mount, 8" on-center holes |
| Material & gauge | 14-GA Type 300 stainless steel (top & bowls) |
| Legs & bracing | Stainless steel legs with adjustable front & side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Drain openings | 3-1/2" diameter, die-stamped |
| Configuration | Ships knocked-down (assembly required) |
| Certifications | NSF & CSA-Sanitation |
Certifications & Compliance
- NSF Certified for food-contact safety.
- CSA-Sanitation Listed—meets stringent public-health standards.
Perfect For
- Restaurant prep & dish rooms
- Catering kitchens & commissaries
- School, hospital & institutional foodservice
- Breweries, bakeries & high-volume production facilities
Need a left-hand drainboard or custom bowl configuration? Reach out to our team—John Boos can build to your exact specifications.
