John Boos 42PB204-1D24L Pro-Bowl Compartment Sinks
Description

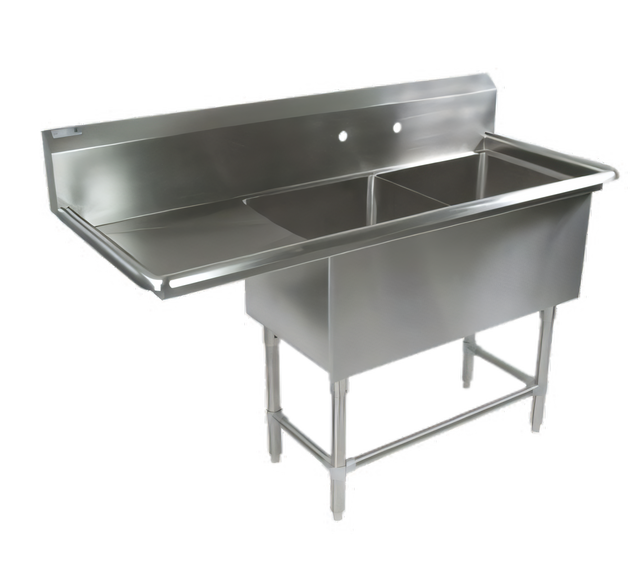

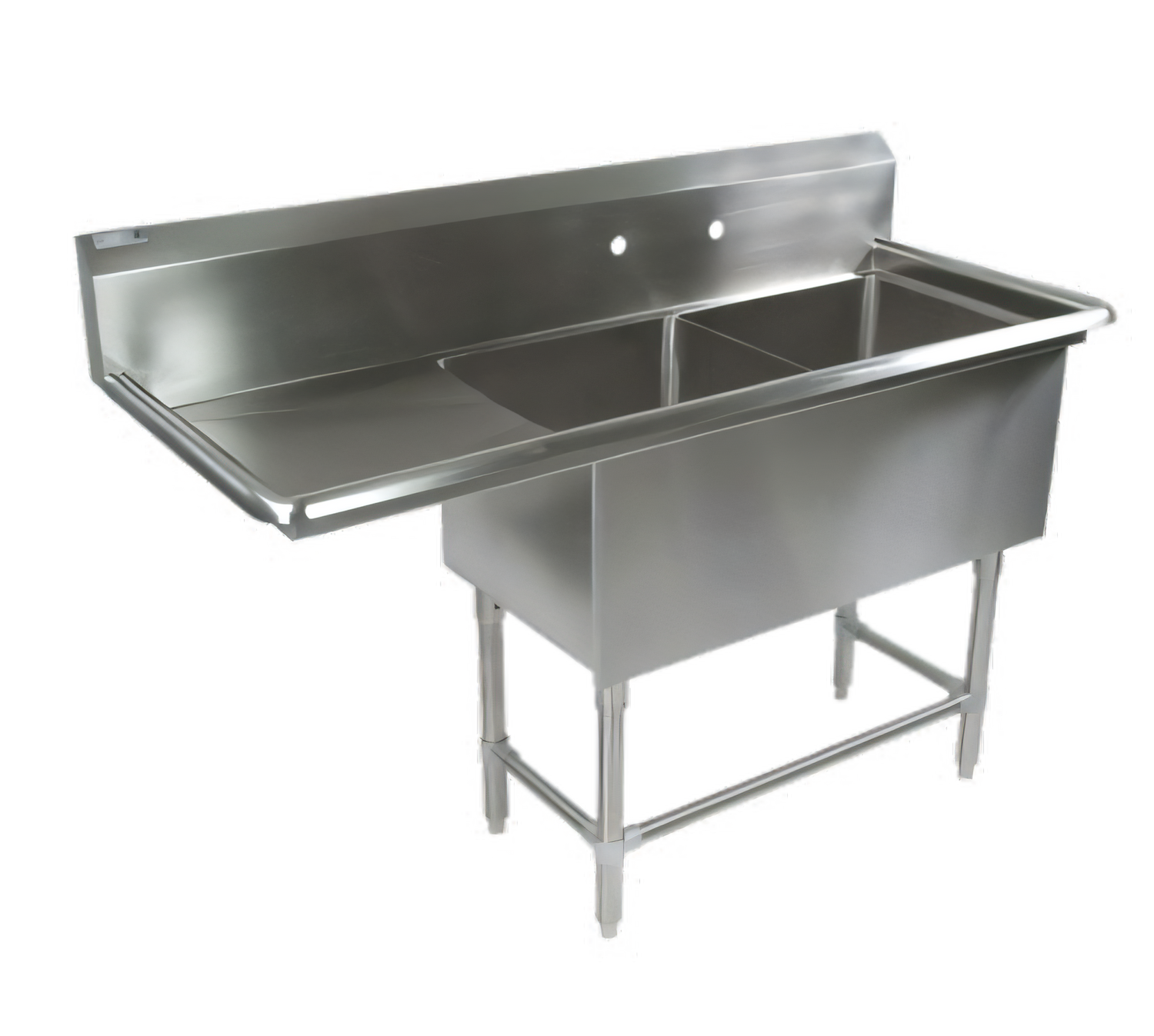

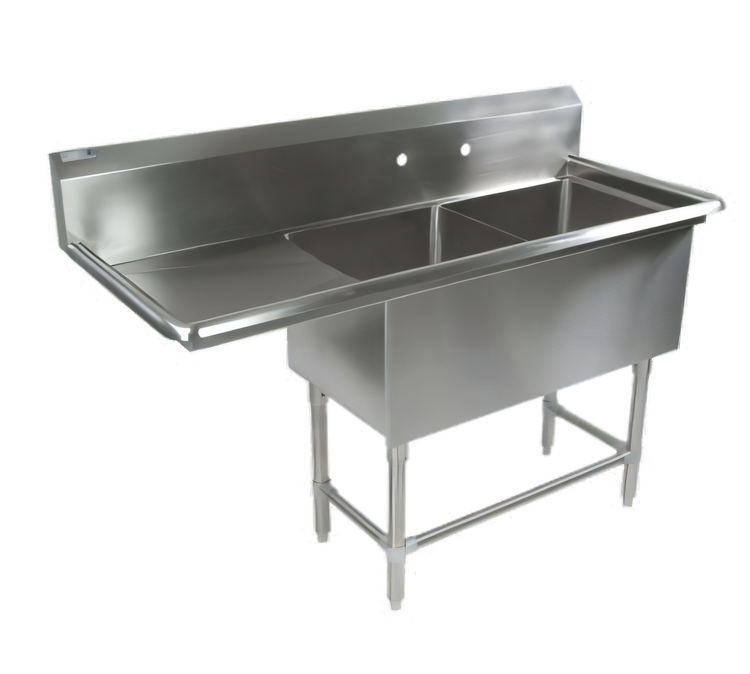

John Boos Pro-Bowl 2-Compartment Sink – 42PB204-1D24L
68-3/16" L x 25-1/2" W x 44-1/16" H • 14 Gauge Type 300 Stainless Steel • 24" Left DrainboardBuilt for the daily grind of commercial kitchens, the John Boos Pro-Bowl 42PB204-1D24L delivers rugged, NSF-listed performance with premium 14-gauge stainless steel, two spacious 20" x 20" x 14" compartments, and an integrated 24-inch left-side drainboard for efficient workflow.
Key Features
- Heavy-duty 14 GA Type 300 stainless steel top, bowls & apron with #4 satin polish.

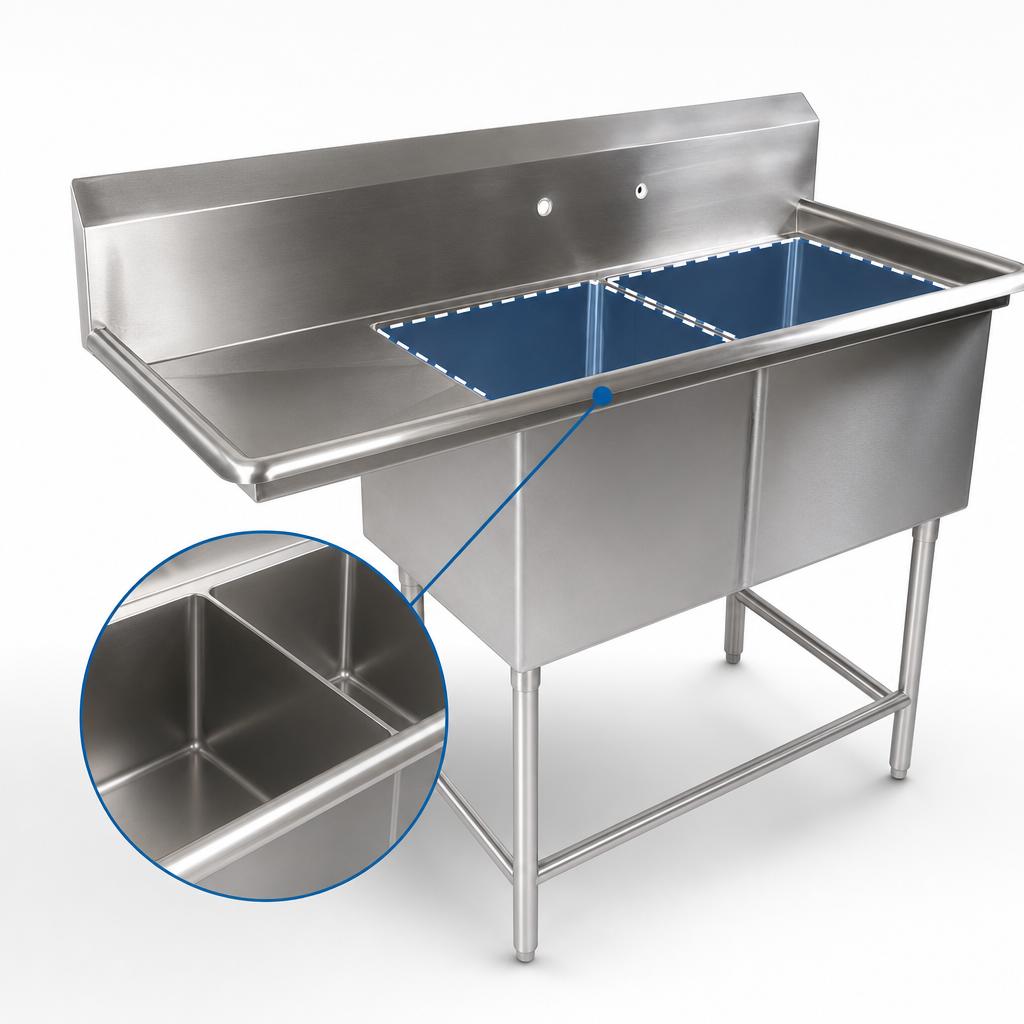

- (2) 20" W x 20" F-B x 14" D compartments with coved 5/8" radius corners for easy cleaning.
- 24" left drainboard slopes toward bowls for fast drainage.
- 10" high boxed backsplash with 45° top & 2" return keeps walls dry.
- Pre-punched splash-mount faucet holes, 8" on-center (faucet not included).
- 3-1/2" die-stamped drain openings fit standard commercial strainers & disposers.
- 1-5/8" O.D. stainless steel legs with adjustable front & side bracing.
- 1" adjustable stainless steel bullet feet for fast levelling on uneven floors.
- Ships knocked-down (KD) to minimize freight costs; simple field assembly.
- Certified NSF & CSA-Sanitation for food-service use.
Dimensions & Specifications
| Model | 42PB204-1D24L (Left Drainboard) |
|---|---|
| Overall Length (L) | 68-3/16" |
| Overall Width (W) | 25-1/2" |
| Overall Height | 44-1/16" (to top of backsplash) |
| Compartment Size (each) | 20" W x 20" F-B x 14" D |
| Drainboard | 24" (left side) |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet Holes | (1) set, 8" centers, 1" dia. |
| Drain Openings | 3-1/2" dia., die-stamped |
| Material | 14 GA Type 300 stainless steel |
| Legs / Bracing | Stainless steel, adjustable front & side bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-Down (KD) |
Need a different drainboard orientation or bowl configuration? Contact us for additional John Boos Pro-Bowl options.
