John Boos 42PB20-2D24 Pro-Bowl Compartment Sinks
Description

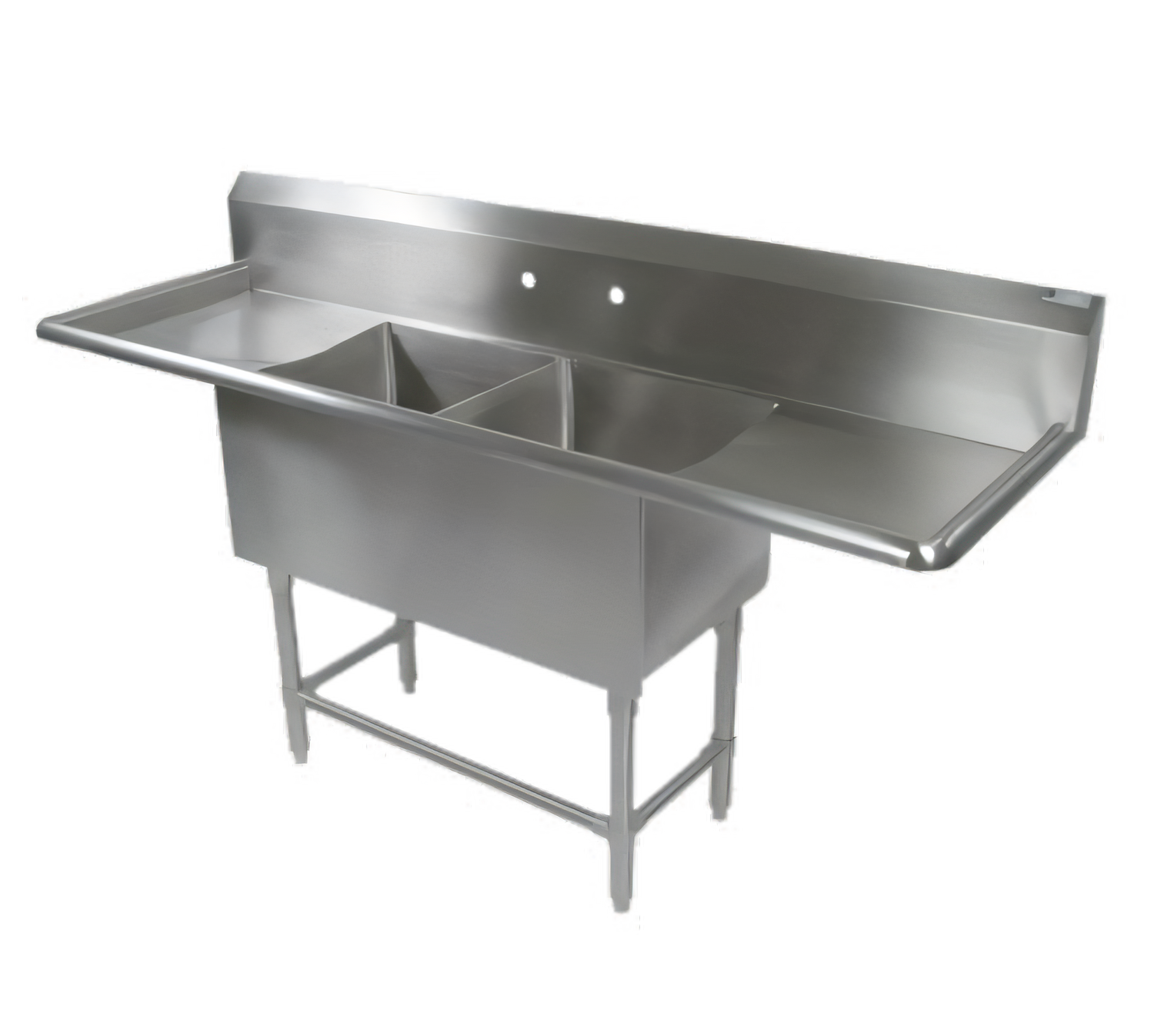

John Boos “Pro-Bowl” 2-Compartment Sink – 91-1/4" x 25-1/2"
Model 42PB20-2D24 | Heavy-Duty 14-Gauge Stainless SteelBuilt for the busiest commercial kitchens, the John Boos Pro-Bowl 42PB20-2D24 delivers rugged strength, generous work space and the hygienic performance food-service pros demand. Two roomy 20" x 20" x 12" bowls sit between full-size 24" drainboards, all fabricated from 14-gauge, type 300 stainless steel with a sleek #4 satin finish.
Top Features

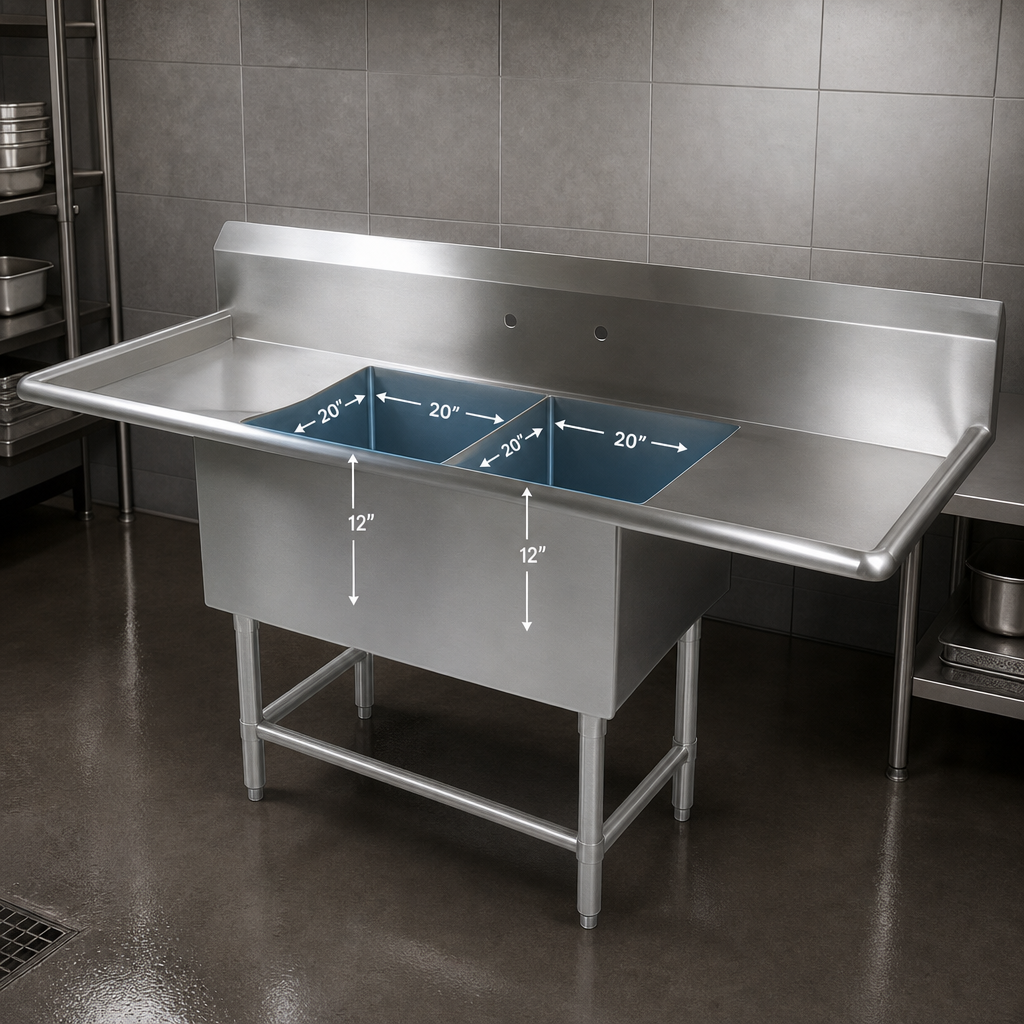

- Two 20" W x 20" F/B x 12" D compartments handle bulky cookware with ease.
- Integrated 24" left & right drainboards keep prep lines moving.
- 10" boxed backsplash with 45° top and 2" return protects walls from splashes.
- Pre-punched 8" on-center splash-mount faucet holes – ready for your choice of faucet.
- 3-1/2" die-stamped drain openings accept standard commercial sink drains.
- 14-gauge, type 300 stainless steel throughout – TIG-welded & polished for a seamless look.
- 1-5/8" Ø stainless steel legs with adjustable bullet feet for rock-solid, level installation.
- Front & side stainless steel bracing adjusts to meet site conditions (knocked-down base ships flat).
- 5/8" radius coved bowl corners speed up cleaning & meet sanitation codes.
- NSF and CSA-Sanitation listed for worry-free health-department approval.
Technical Specifications
| Overall dimensions (W × D × H) | 91-1/4" W × 25-1/2" D × 44-1/16" H |
|---|---|
| Bowl size (each) | 20" W × 20" F/B × 12" D |
| Drainboard length | 24" (left) + 24" (right) |
| Backsplash height | 10" boxed style with 45° top & 2" return |
| Faucet mounting | Splash-mount, 8" on-center holes (1 set) |
| Drain openings | 3-1/2" die-stamped, centered in each bowl |
| Material & finish | 14-ga type 300 stainless steel, #4 satin polish |
| Legs / feet | 1-5/8" Ø stainless legs, adjustable bullet feet |
| Shipping configuration | Knocked-down (KD) base; minor on-site assembly required |
| Certifications | NSF, CSA-Sanitation |
Popular Add-Ons (Sold Separately)
- Commercial swing-spout or pre-rinse faucets (8" centers)
- Lever waste drains & overflow assemblies
- Stainless steel overshelves or pot racks
- End splashes (left, right, or both) for additional splash protection
Need a different bowl size or drainboard length? The Pro-Bowl series offers dozens of configurations – contact us for a custom quote.
