Description

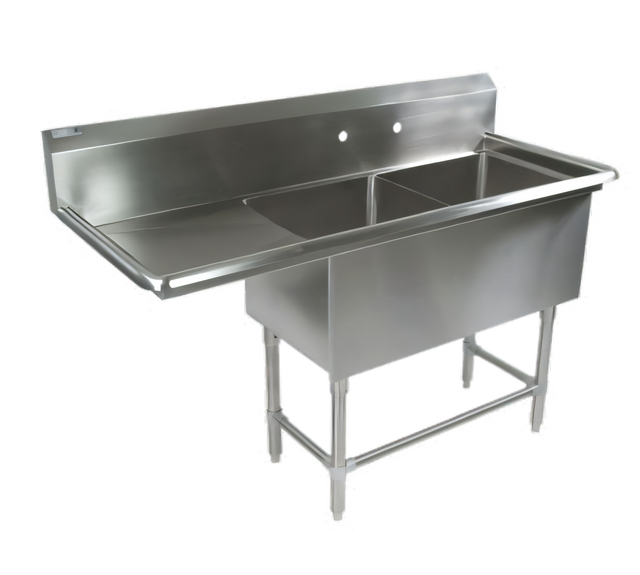

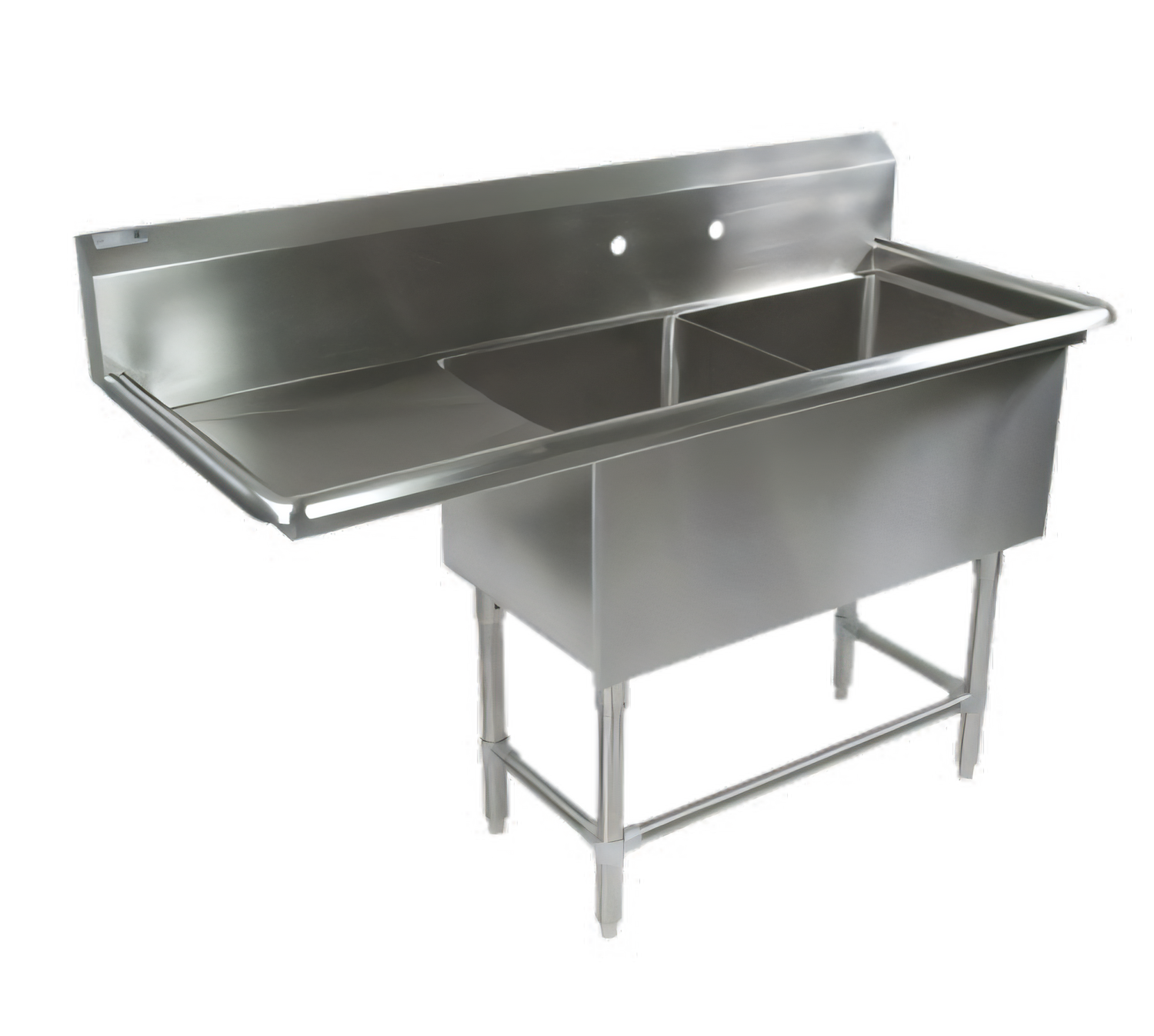

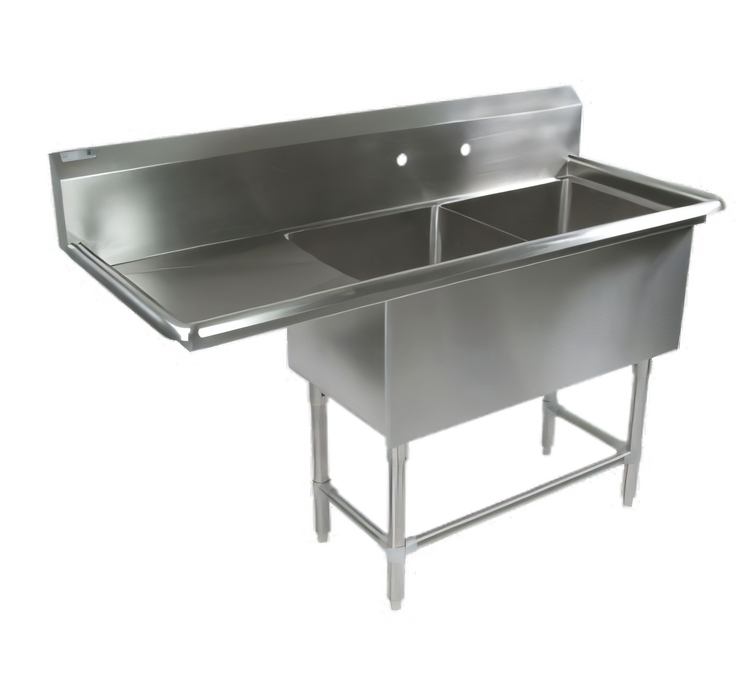

John Boos “Pro-Bowl” 2-Compartment Sink with 30" Left Drainboard
Model 42PB20-1D30L | 74-3/16" W × 25-1/2" D × 44-1/16" HBuilt to thrive in the busiest prep and ware-washing areas, the John Boos Pro-Bowl series delivers uncompromising durability, food-safe sanitation, and ergonomic design. This 74" two-compartment sink provides generous 20" × 20" × 12" bowls for washing and rinsing, plus a roomy 30" left-hand drainboard that keeps workflow moving.
Key Features

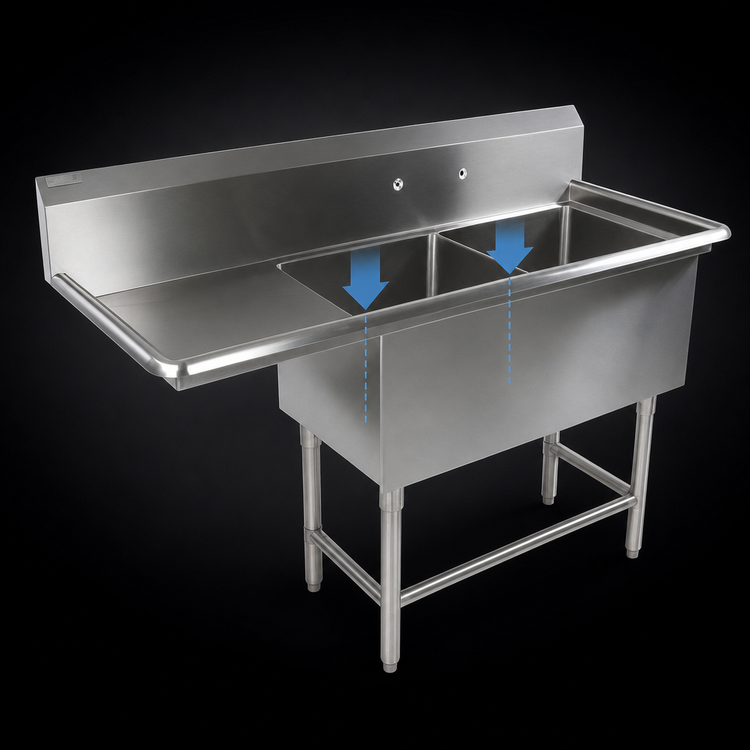

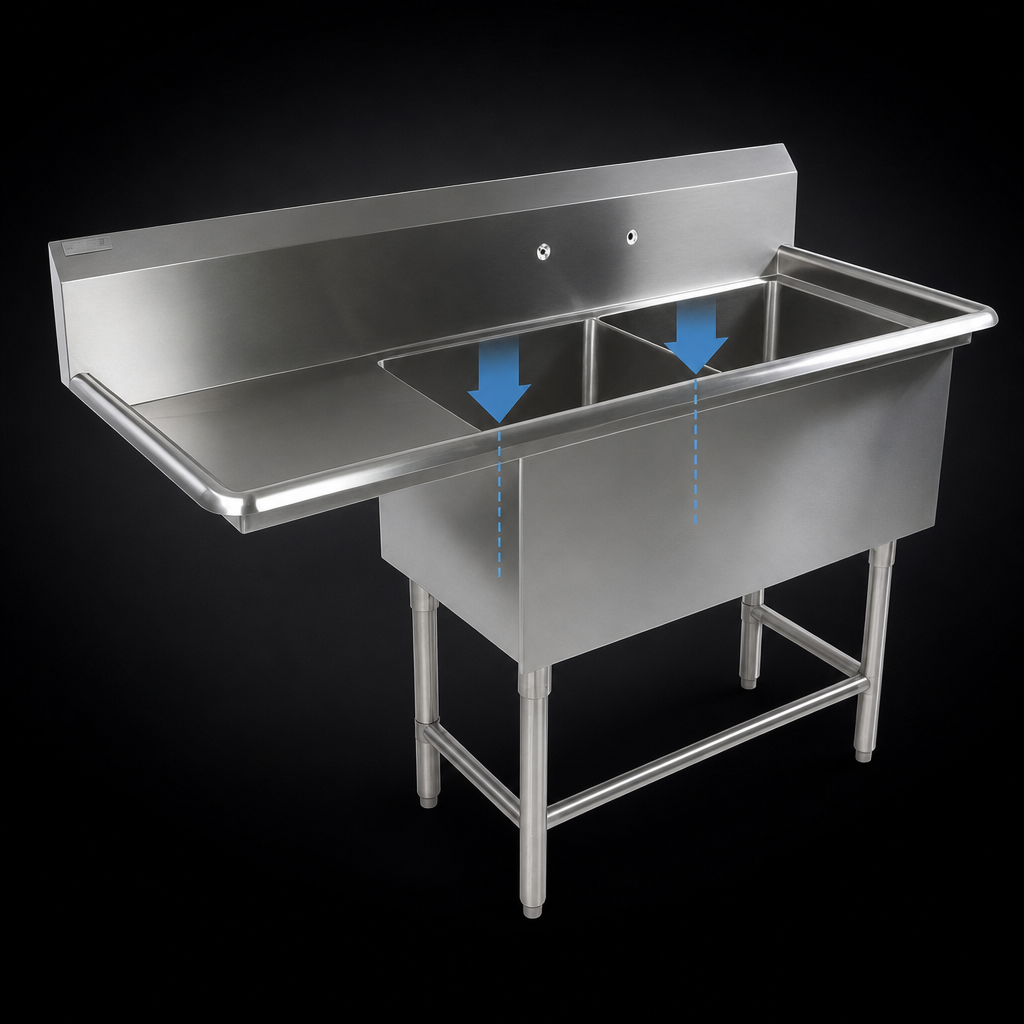

- (2) spacious 20" W × 20" F-to-B × 12" D compartments handle large stock pots and sheet pans
- Integrated 30" drainboard on the left speeds drying and staging
- Heavy-duty 14-gauge Type 300 stainless steel with #4 satin polish resists corrosion & scratches
- 10" boxed backsplash with 2" return and 45° drip-deflecting top protects surrounding walls
- (1) set of splash-mount faucet holes on 8" centers (faucet not included)
- 3-1/2" die-stamped drain openings for secure basket strainer or disposer installation
- 5/8" radius coved bowl corners for quick, thorough cleaning
- TIG-welded seams ground & polished to match surrounding finish
- 1-5/8" Ø stainless steel legs with adjustable front & side bracing
- 1" adjustable stainless steel bullet feet level the sink on uneven floors
- Ships knocked-down (KD) for reduced freight cost & easier site access
- NSF & CSA-Sanitation certified for commercial foodservice use
Technical Specifications
Manufacturer / Series | John Boos & Co. — Pro-Bowl “42PB-1D” |
---|---|
Model No. | 42PB20-1D30L |
Overall Dimensions | 74-3/16" W × 25-1/2" D × 44-1/16" H |
Compartments | 2 bowls — 20" W × 20" F-to-B × 12" D (each) |
Drainboard | 30" L (Left-hand) |
Backsplash | 10" boxed style with 2" return & 45° top |
Faucet Holes | (2) holes, 1" Ø, 8" on-center, splash-mount |
Drain Openings | 3-1/2" Ø die-stamped (one per bowl) |
Material / Gauge | 14-ga Type 300 stainless steel, #4 satin finish |
Legs & Bracing | 1-5/8" Ø stainless legs • 1-1/4" Ø adjustable front & side bracing |
Feet | 1" adjustable stainless steel bullet feet |
Shipping Weight | ≈ 124 lb (knocked-down) |
Certifications | NSF / ANSI 2 & CSA-Sanitation |
All dimensions are nominal. John Boos & Co. reserves the right to improve or modify products without notice.
