John Boos 42PB184-1D24R Pro-Bowl Compartment Sinks
Description

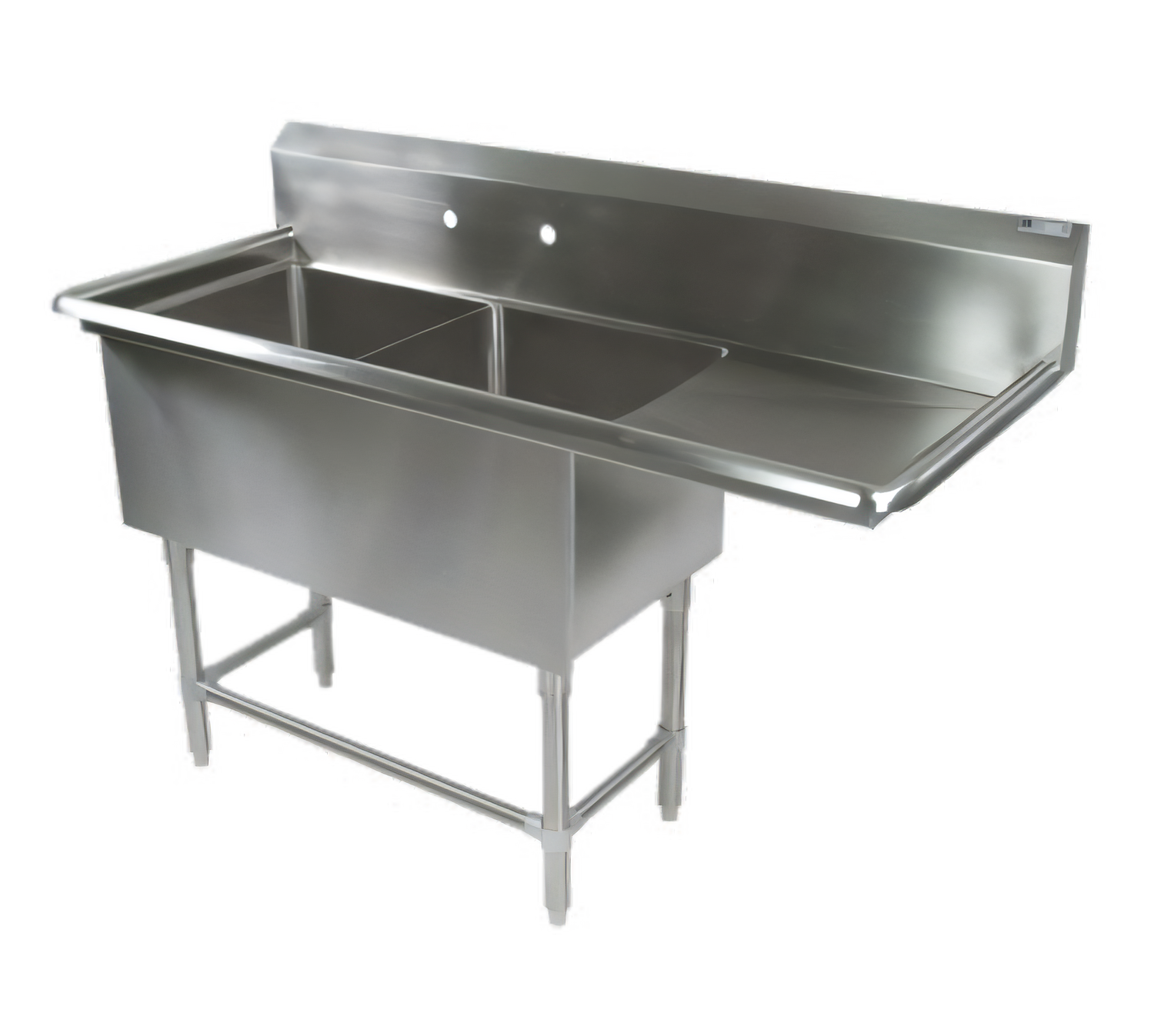

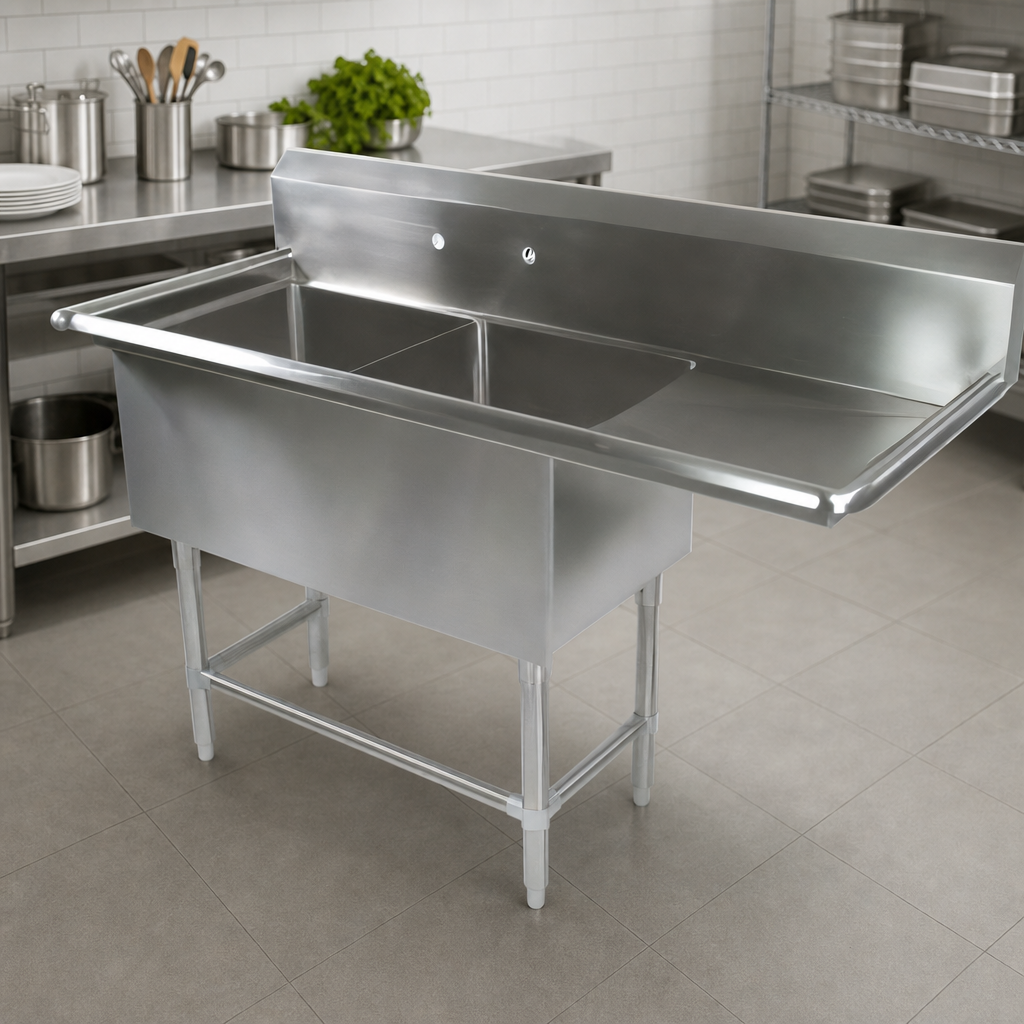

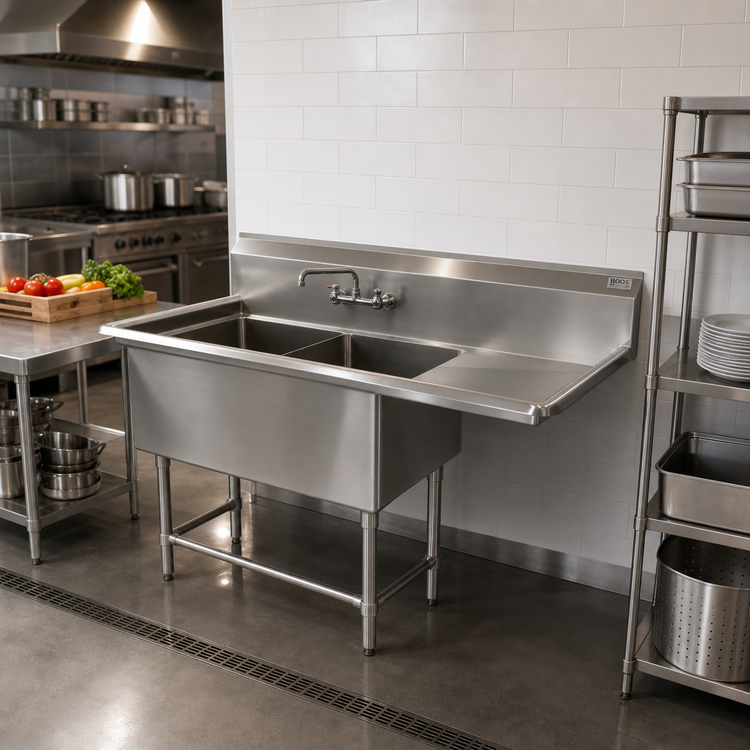

John Boos Pro-Bowl 2-Compartment Sink w/ 24" Right Drainboard
Model 42PB184-1D24R | 14 ga Type 300 Stainless SteelEngineered for high-volume food-service operations, the Pro-Bowl series delivers the rugged durability, sanitary design, and ergonomic workflow professionals demand—all in one space-saving unit.
Key Features
- (2) 18" W x 18" front-to-back x 14" deep compartments for efficient wash & rinse setup.
- Integrated 24" right-hand drainboard accelerates drying and staging.
- 10" boxed backsplash with 45° return contains splashes and protects walls.
- Splash-mount faucet holes—8" on-center—accommodate most commercial faucets (sold separately).
- 3-1/2" die-stamped drain openings accept standard basket strainers & disposers.
- Heavy-duty 14 gauge, type 300 stainless steel top & bowls with #4 satin polish.
- TIG-welded construction; exposed welds blended to match adjacent surfaces.
- 1-5/8" Ø stainless steel legs with adjustable front & side bracing for rock-solid stability.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- All corners coved to a 5/8" radius—no grime-trapping sharp edges.
- NSF & CSA-Sanitation listed; ships knocked-down (KD) to save on freight.
At-a-Glance Specifications
| Overall size (W × D × H) | 64-3/16" × 23-1/2" × 44-1/16" |
|---|---|
| Compartment size | (2) 18" × 18" × 14" |
| Drainboard | 24" right side |
| Backsplash | 10" H boxed, 2" 45° return |
| Faucet holes | (1) set, 8" centers, 1" Ø |
| Material / finish | 14 ga type 300 stainless steel, #4 satin |
| Legs & bracing | Stainless steel legs, adjustable S/S bracing, bullet feet |
| Drain openings | 3-1/2" Ø die-stamped |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-down (assembly hardware included) |
Why Choose John Boos?
- American-made craftsmanship trusted since 1887.
- Thicker 14 gauge steel outlasts typical 16 gauge alternatives.
- Bull-nosed edges & blended welds create a safer, easier-to-clean work surface.
- Full factory support with CAD/Revit files and quick lead times.
Care tip: Clean with a non-chloride stainless steel cleanser and a soft cloth. Avoid steel wool and harsh chemicals to preserve the satin finish.
Need a left-hand drainboard or different bowl size? Explore the complete Pro-Bowl line or contact us for a custom quote.
