John Boos 41PB204-2D30 Pro-Bowl Compartment Sinks
Description

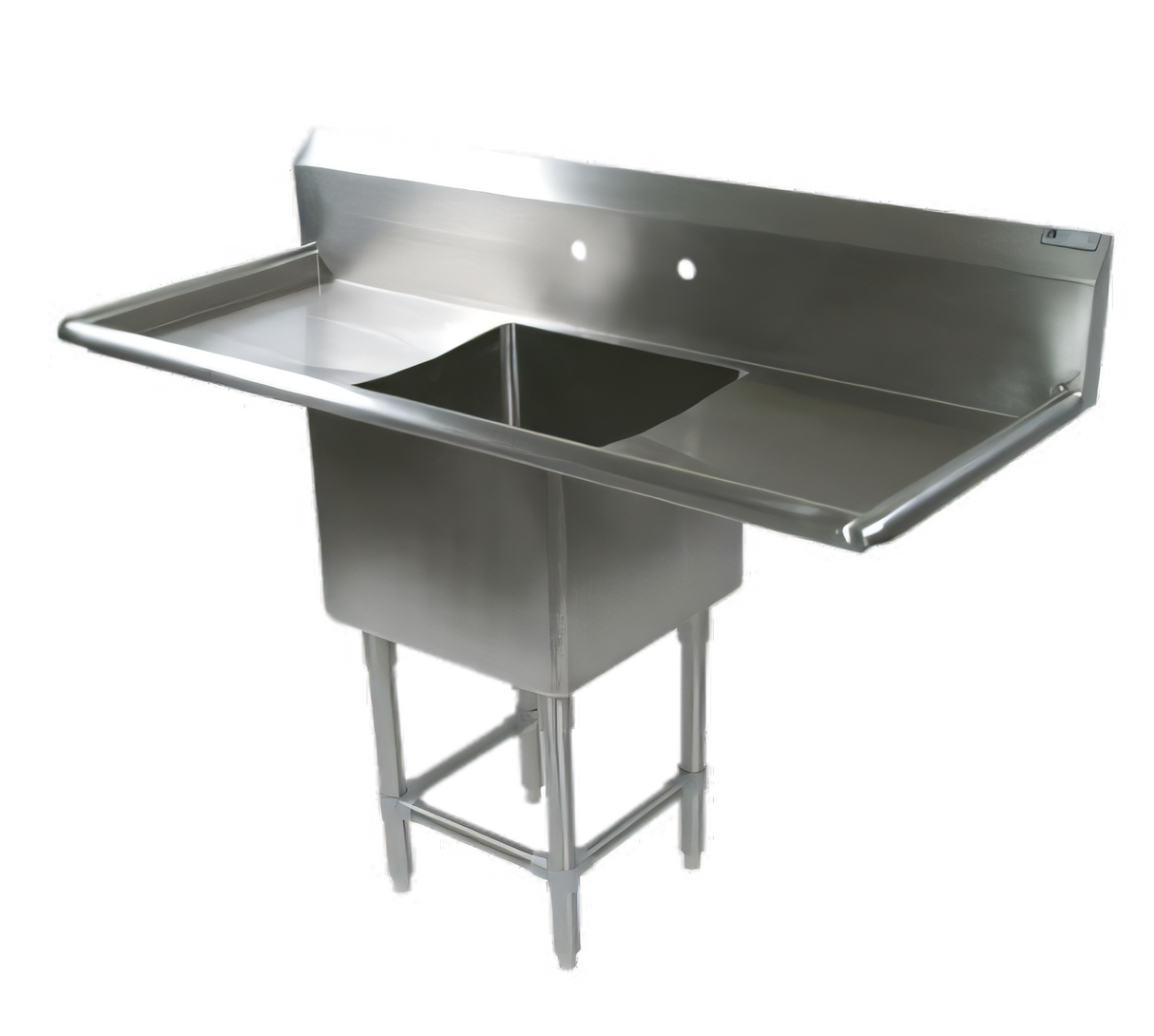

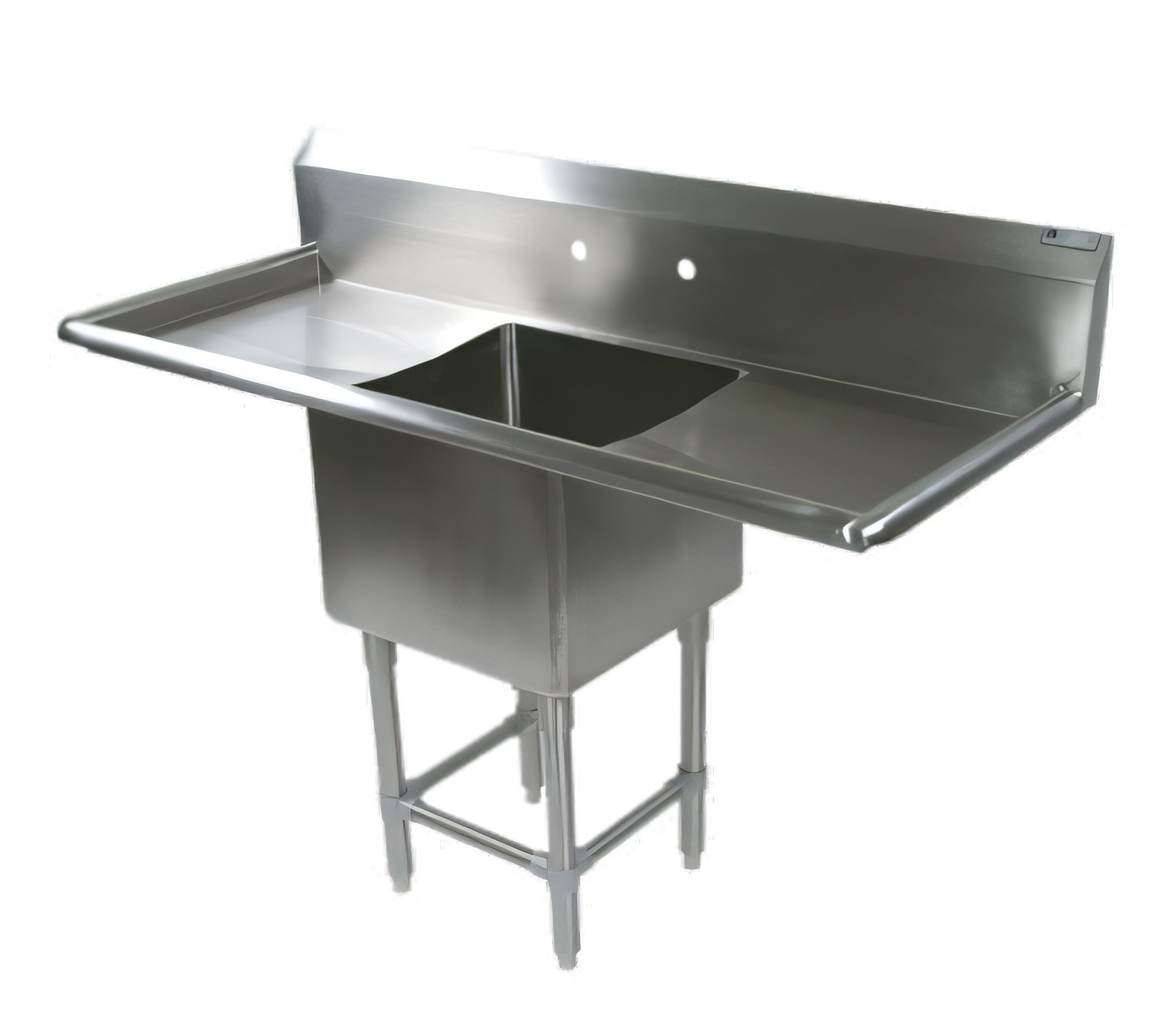

John Boos “Pro-Bowl” 1-Compartment Sink
with Dual 30" Drainboards
83-1/4" W x 25-1/2" D x 44-1/16" H | 14 GA Type 300 Stainless Steel
Built for the fast-paced demands of commercial kitchens, the John Boos Pro-Bowl series delivers uncompromising strength, sanitary performance, and workflow efficiency. This model combines a generously sized 20" × 20" × 14" deep compartment with extra-long 30" drainboards on both the left and right, giving dishrooms, prep areas, and bakeries the space they need to wash, rinse, and air-dry in one continuous station.
Key Features
- Heavy-duty 14-gauge, Type 300 stainless steel top, bowl & drainboards (#4 satin finish).

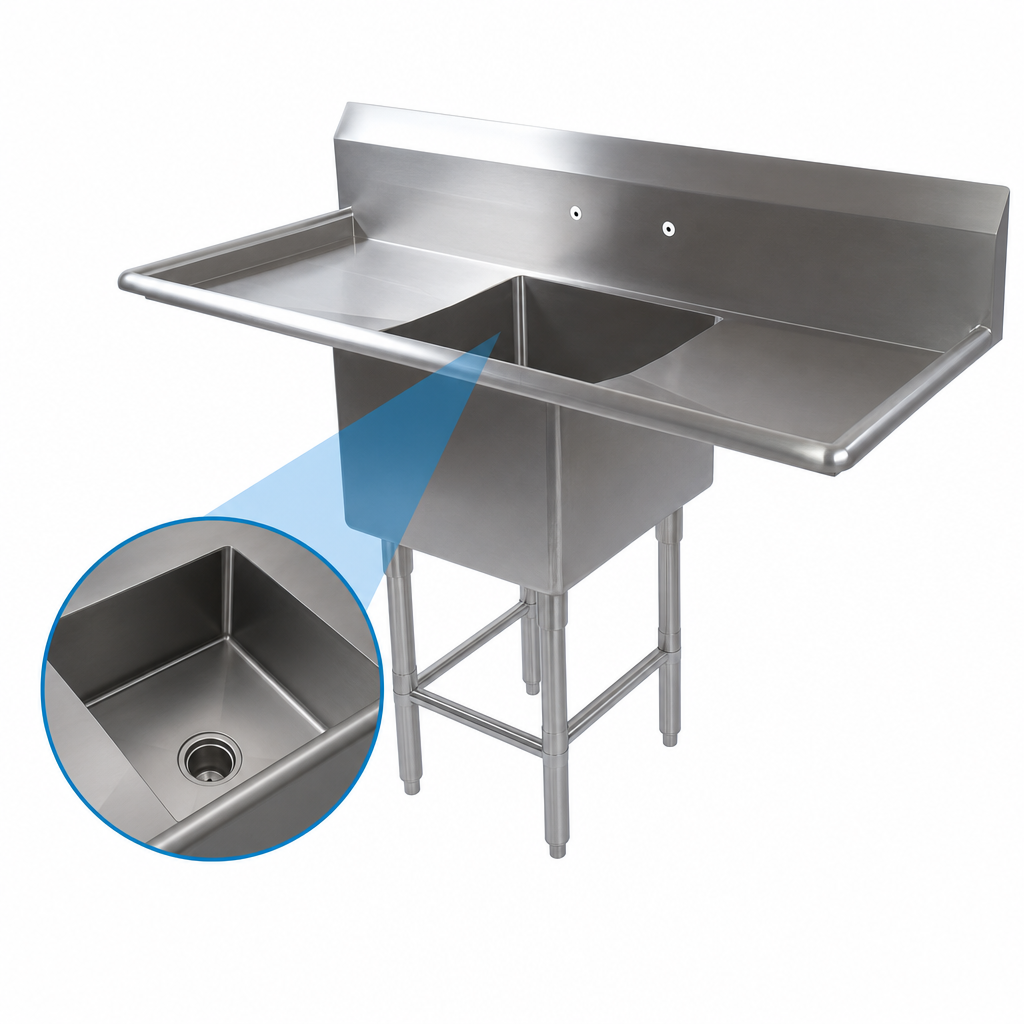

- 20" W × 20" front-to-back × 14" deep coved-corner compartment promotes thorough cleaning.
- (2) oversized 30" drainboards—perfect for high-volume glassware and sheet-pan operations.
- 10" high boxed backsplash with 45° sanitary top edge and 2" return keeps walls dry.
- Splash-mount faucet deck pre-punched on 8" centers; accommodates most commercial faucets or pre-rinse units.
- 3-1/2" die-stamped drain opening—ready for standard basket strainers or lever-waste assemblies.
- Stainless steel base: 1-5/8" O.D. legs with adjustable side & front bracing plus bullet feet for quick leveling.
- Knocked-down (KD) design reduces freight costs and fits through tight doorways—simple field assembly.
- NSF & CSA-Sanitation listed for food-service use.
Specifications at a Glance
| Overall Dimensions | 83-1/4" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
|---|---|
| Bowl Compartment | 20" W × 20" F-B × 14" D, 5/8" radius interior corners |
| Drainboards | (2) × 30" L, left & right — corrugated for rapid draining |
| Backsplash | 10" H boxed style, 45° top, 2" return to wall |
| Faucet Holes | 1" dia., 8" on-center (splash mount) |
| Drain Opening | 3-1/2" dia. die-stamped |
| Material / Finish | 14 GA Type 300 stainless steel / #4 satin |
| Base Construction | Stainless legs, adjustable front & side bracing, 1" stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Ships KD; some assembly required (hardware included) |
Popular Add-Ons (sold separately)
- Pre-rinse faucet or 8"-center swing-spout faucet
- Lever-waste drain or basket strainer
- Wall-mount or cantilever overshelves for pans, cutting boards & smallwares
- Pot rack or utensil bar for increased vertical storage
- End splashes (left, right, or both) to guard against cross-station contamination
John Boos & Co. reserves the right to modify design or dimensions without notice. Please verify cut-out and rough-in data before installation.
