John Boos 41PB20-1D24L Pro-Bowl Compartment Sinks
Description

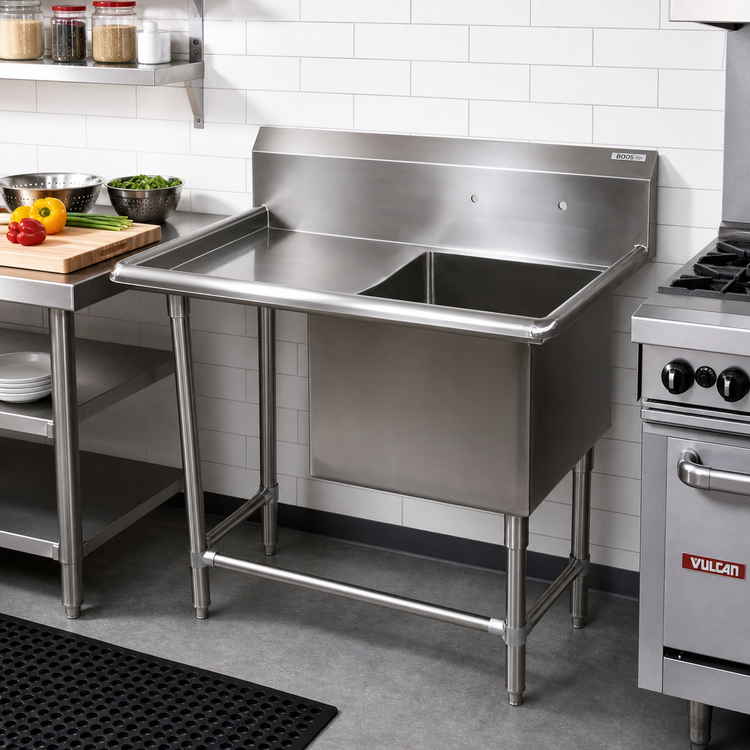

John Boos Pro-Bowl 1-Compartment Sink with 24" Left Drainboard
Model 41PB20-1D24L • 48-3/16" W × 25-1/2" D × 44-1/16" HBuilt for the daily demands of commercial kitchens, the John Boos Pro-Bowl series pairs heavy-duty 14-gauge stainless steel with industry-leading craftsmanship. This single-compartment model delivers a spacious 20" × 20" × 12" bowl, a full 24" left-hand drainboard, and the rugged stability operators expect from America’s premier sink manufacturer.
Key features
- 14-ga Type 300 stainless steel top & bowl with easy-clean #4 satin finish
- (1) 20" W × 20" F/B × 12" D compartment formed for fast drainage to a 3-1/2" die-stamped opening

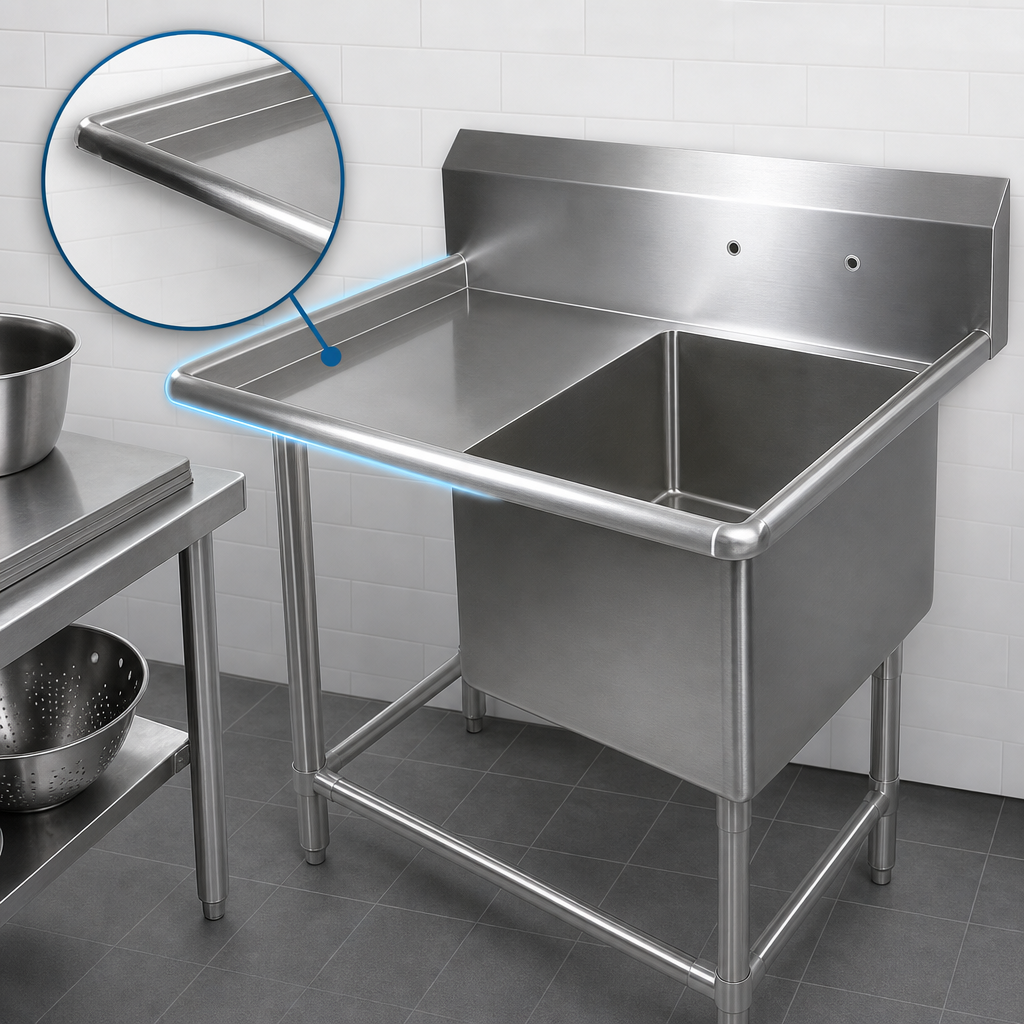

- 24" left drainboard pitched toward the bowl for efficient drying and prep staging
- 10" boxed backsplash with 45° top cap and 2" return keeps walls protected
- Pre-punched 8" on-center splash-mount faucet holes (faucet sold separately)
- 1-5/8" O.D. stainless legs with 1" adjustable bullet feet for a level, rock-solid install
- Adjustable 1-1/4" O.D. front & side bracing adds extra rigidity
- Coved 5/8" radius interior corners and bull-nosed exterior edges promote sanitation and safety
- TIG-welded construction; all exposed welds polished to match adjacent surfaces
- NSF and CSA-Sanitation certified – ready for health-code inspections on day one
- Ships knocked down (KD) to save freight and fit through narrow doorways
Specifications
| Model | 41PB20-1D24L |
|---|---|
| Compartments | (1) 20" W × 20" F/B × 12" D |
| Drainboard | 24" Left side |
| Overall dimensions (W × D × H) | 48-3/16" × 25-1/2" × 44-1/16" |
| Backsplash height | 10" |
| Faucet mounting | Splash-mount, 8" centers |
| Drain opening | 3-1/2" die-stamped |
| Material thickness | 14-gauge (top & bowl) |
| Legs / feet | Stainless steel legs with adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Ship weight | Approx. 76 lb |
| Shipping condition | Knocked down (assembly hardware included) |
Popular add-ons (sold separately)
- 8" center faucets and pre-rinse assemblies
- Lever-style waste drains
- End splashes (right or both sides)
- Stainless overshelves & pot racks for added storage
Need a different drainboard orientation or bowl size? Reach out—our team can quote any John Boos Pro-Bowl configuration fast.
