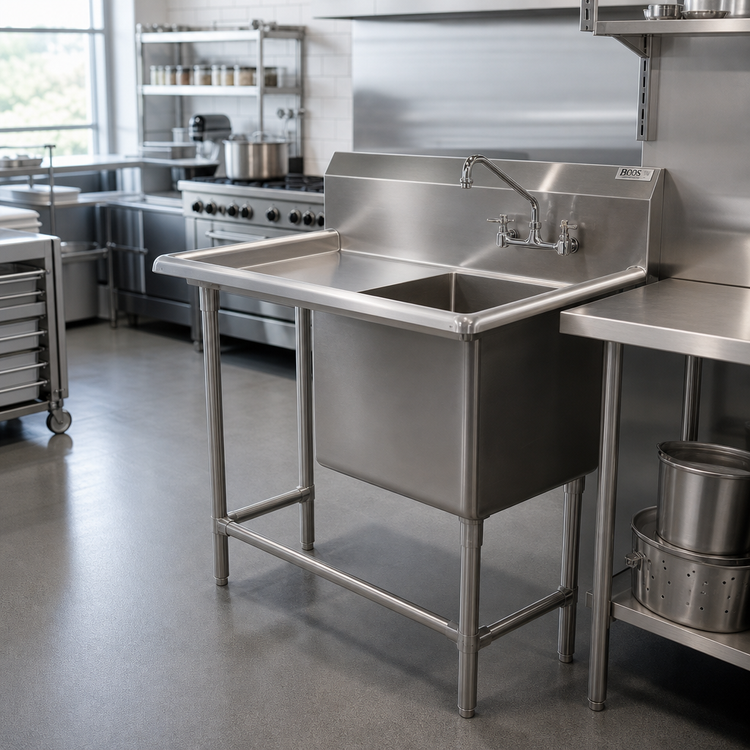

John Boos Pro-Bowl 1-Compartment Stainless Steel Sink with 24" Left Drainboard

44-3/16" W x 25-1/2" D x 44-1/16" H, 14-Gauge 300 Series Stainless Steel

Built for efficient prep and cleanup, this durable floor-model sink combines a single wash compartment, left drainboard, and tall backsplash in one compact station.

  • One-compartment sink with a 24" left drainboard for added workspace.
  • 16" x 20" x 14" deep bowl provides a practical wash area for commercial use.
  • 10" boxed backsplash with a 45° top and 2" return helps protect walls from splashes.
  • 14-gauge 300 series stainless steel top with stainless steel legs offers lasting durability.
  • Adjustable front and side bracing plus bullet feet help support a stable installation.
  • Splash-mount faucet holes and a 3-1/2" drain opening support straightforward setup.

Overall Dimensions:

44.19"W x 25.5"D x 44.06"H

Product Weight:

71.0 lb

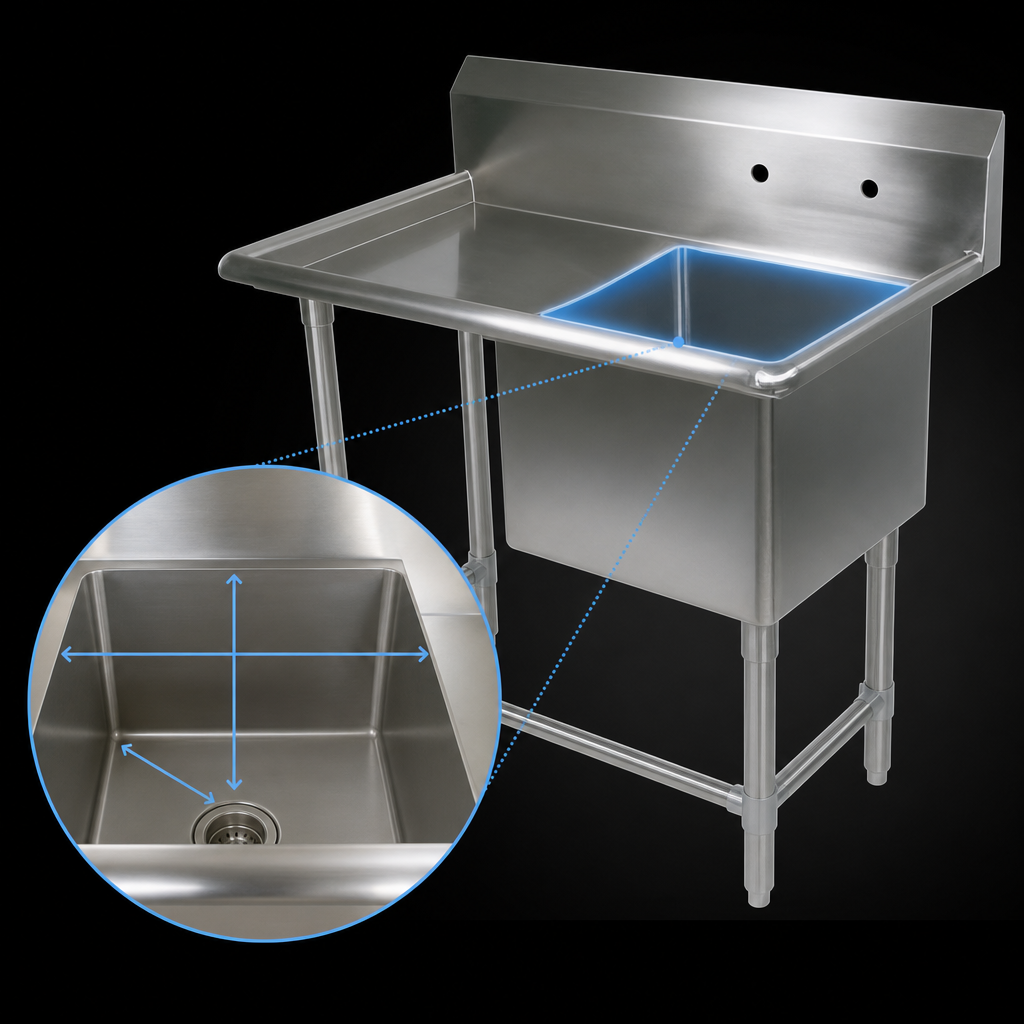

Single Compartment Layout

One 16" W x 20" front-to-back x 14" deep compartment for washing and prep tasks.

Left Drainboard

24" left drainboard adds landing space for draining, staging, or drying items.

Boxed Backsplash

10" backsplash with a 45° top and 2" return helps contain splashes and protect the wall behind the sink.

Stainless Steel Construction

Built with 14-gauge 300 series stainless steel top and stainless steel legs for durability in demanding kitchens.

Stable Support Frame

Adjustable front and side bracing with bullet feet helps level and support the sink during installation.

Faucet Mounting Holes

Includes one set of splash-mount faucet holes with 8" centers.

Drain Opening

3-1/2" die-stamped drain opening for standard drainage setup.

Knock-Down Shipment

Ships KD for easier handling and assembly.

Type Sink
Style 1-Compartment With Left Drainboard
Installation Type Floor Model
Material Stainless Steel
Compartments 1
Compartment Width 16 Inches
Compartment Depth 20 Inches
Drainboard Length 24 Inches
Splash Height 10 Inches
Base Type Legs With Front & Side Crossrails
Top Gauge 14 Gauge
Top Stainless Series 300 Series
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 45 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 71 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This sink has one compartment.
Yes. It includes a 24" left drainboard.
The compartment measures 16" wide x 20" front-to-back x 14" deep.
It has a 10" boxed backsplash with a 45° top and 2" return.
The sink includes one set of splash-mount faucet holes with 8" centers.
No. It ships KD, or knock-down, for assembly.
