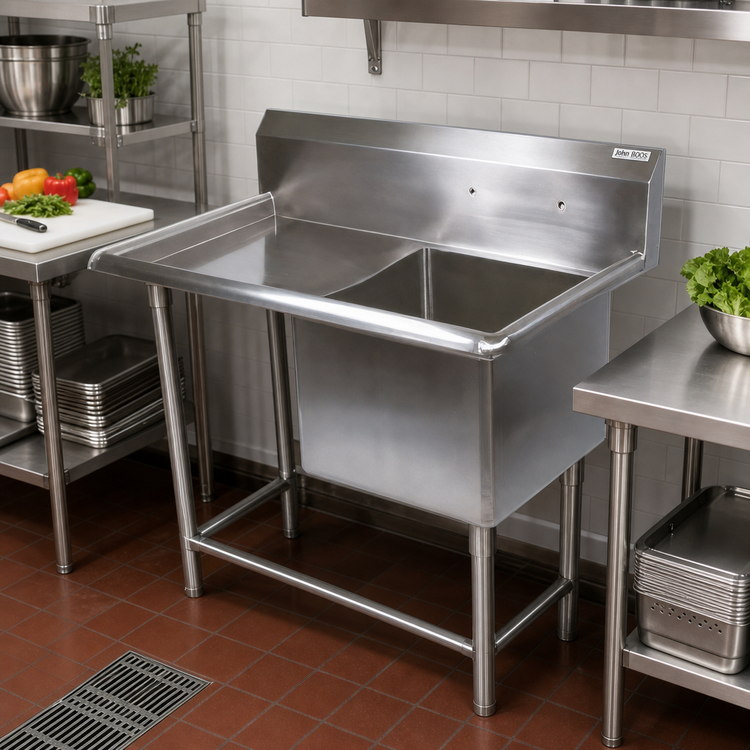

John Boos Pro-Bowl 1-Compartment Stainless Steel Sink with Left Drainboard and 10-Inch Backsplash

16" x 20" x 14" bowl, 14-gauge 300-series stainless steel, stainless steel legs

A durable floor-model prep sink with a left drainboard, boxed backsplash, and heavy-duty stainless steel construction built for busy commercial kitchens.

  • Single-compartment sink with a left-hand drainboard for added prep and drying space.
  • 14-gauge, 300-series stainless steel top and bowl for strength and corrosion resistance.
  • 10-inch boxed backsplash with a 45° top and 2-inch return helps protect the wall.
  • Includes a 16" x 20" x 14" compartment with a 3-1/2" die-stamped drain opening.
  • Stainless steel legs with adjustable front and side bracing provide stable support.
  • Adjustable bullet feet help level the sink on uneven floors.
  • Ships knockdown (KD) for easier transport and assembly.

Overall Dimensions:

38.19"W x 25.5"D x 44.06"H

Product Weight:

66.0 lb

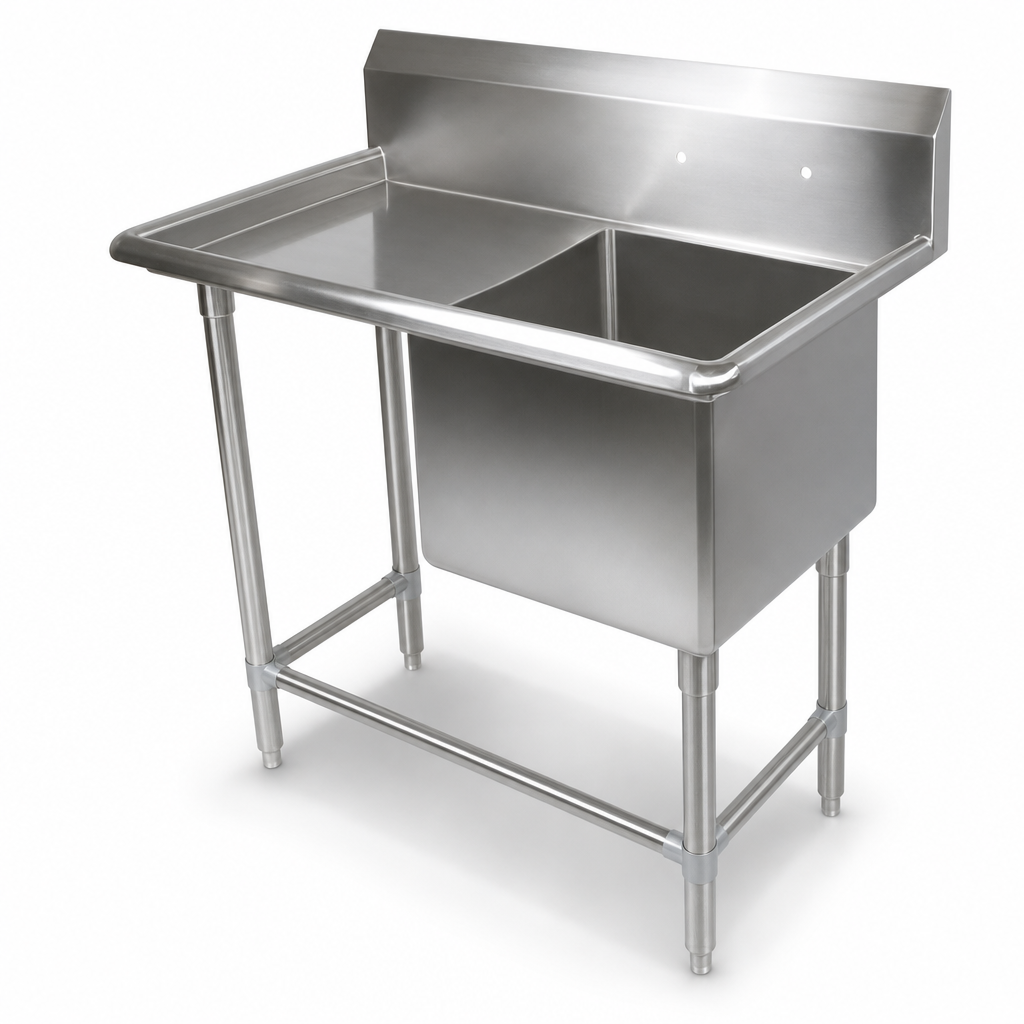

Left-Hand Drainboard

Integrated 18-inch left drainboard provides extra landing space for washing, draining, or staging items.

Single Compartment Bowl

One 16-inch wide by 20-inch front-to-back compartment with a 14-inch depth for general sink tasks.

10-Inch Boxed Backsplash

Tall backsplash with a 45° top and 2-inch return helps contain splashes and protect walls.

14-Gauge 300-Series Stainless Steel

Heavy-duty stainless steel construction offers durability and resistance to corrosion in demanding environments.

Splash-Mount Faucet Holes

One set of faucet holes with 8-inch centers is provided for compatible splash-mount faucets.

3-1/2-Inch Die-Stamped Drain Opening

Standard-size drain opening supports efficient drainage.

Stainless Steel Leg Base

Stainless steel legs with adjustable front and side bracing help maintain stability.

Adjustable Bullet Feet

Bullet feet make it easier to level the sink after installation.

Knockdown Construction

Ships KD for more convenient handling and assembly.

Type Sink
Style 1-Compartment Sink with Left Drainboard
Installation Type Floor Model (With Legs)
Material Stainless Steel
Top Gauge 14 Gauge
Stainless Steel Series 300 Series
Compartments 1
Drainboard Location Left
Drainboard Length 18 Inches
Splash Height 10 Inches
Compartment Width 16 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Drain Opening Size 3-1/2 Inches
Faucet Hole Centers 8 Inches
Base Type Legs with Front and Side Crossrails
Shipping Width 39 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 66 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

The overall size is 38-3/16"W x 25-1/2"D x 44-1/16"H.
The compartment measures 16" wide x 20" front-to-back x 14" deep.
Yes, it includes an 18-inch left-hand drainboard.
It has a 10-inch boxed backsplash with a 45° top and 2-inch return.
It includes one set of splash-mount faucet holes with 8-inch centers.
No, it ships knockdown (KD) for assembly.
