John Boos  |  Pro-Bowl  |  SKU: 3PBPS3224-2D30  |  UPC: 662969682453

John Boos 3PBPS3224-2D30 Pro-Bowl Compartment Sinks

$4,360.19
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

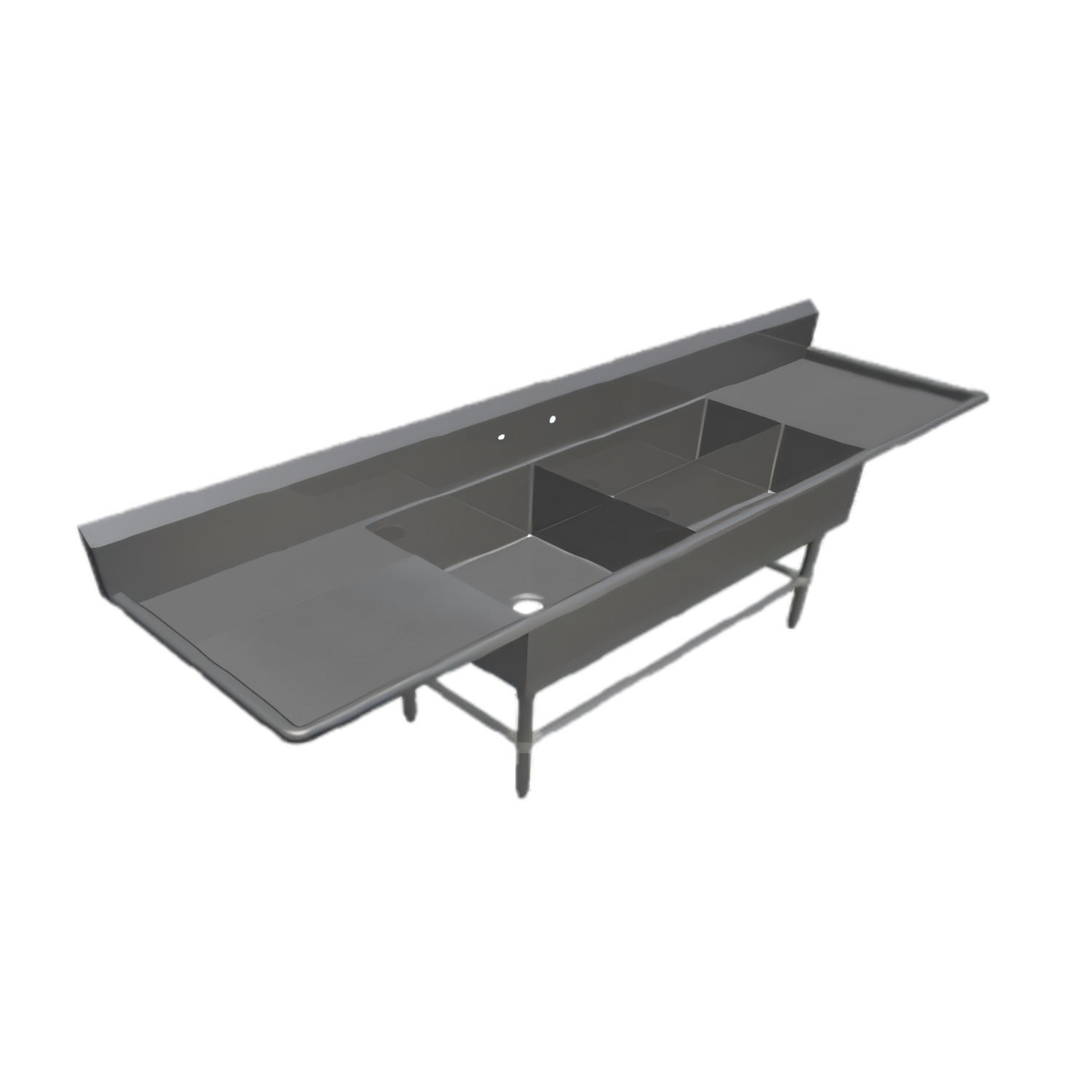

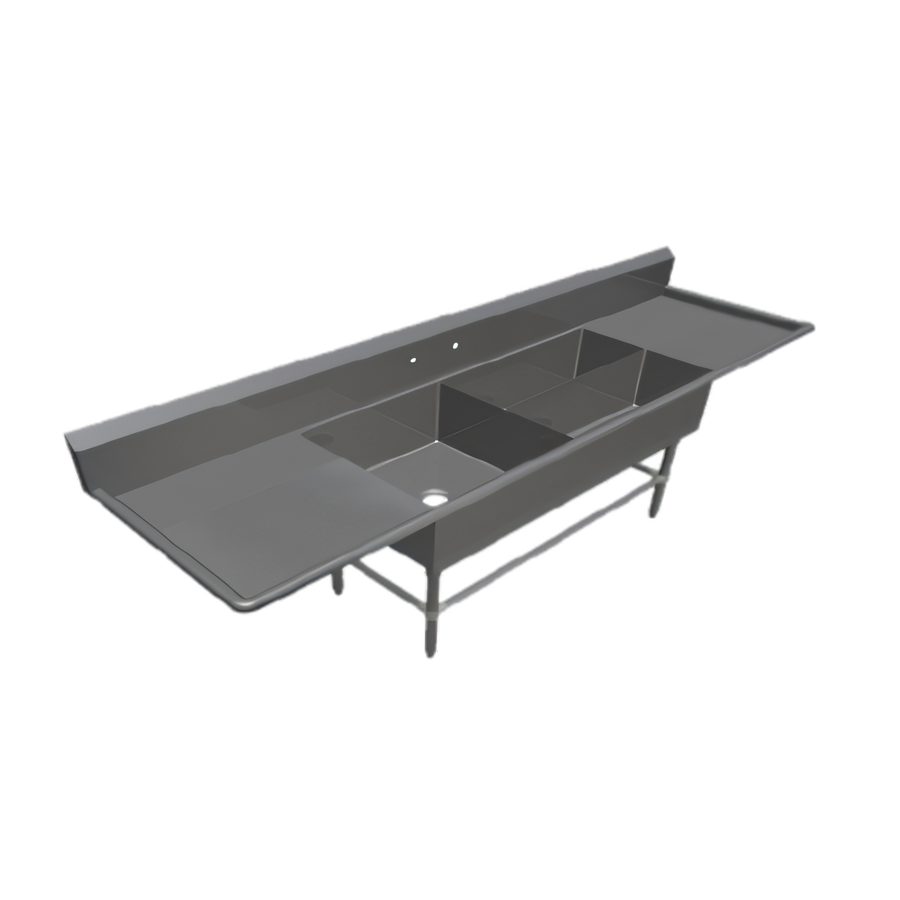

Pro-Bowl 3-Compartment Platter Sink – 119-3/16" W

John Boos Model 3PBPS3224-2D30 | 16-Gauge Type 300 Stainless Steel

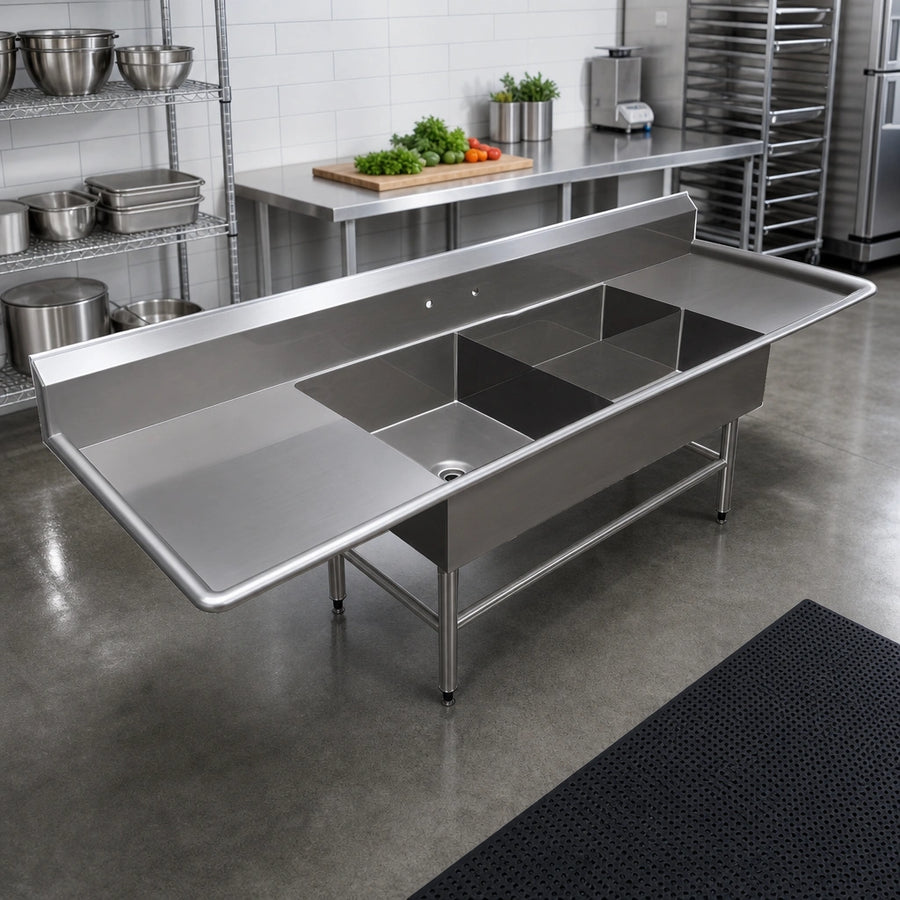

Designed for heavy-duty food-service workflows, the John Boos Pro-Bowl platter sink gives you three generous wash bays, dual 30 inch drainboards, and the rugged reliability operators have trusted since 1887.

Why you’ll love it

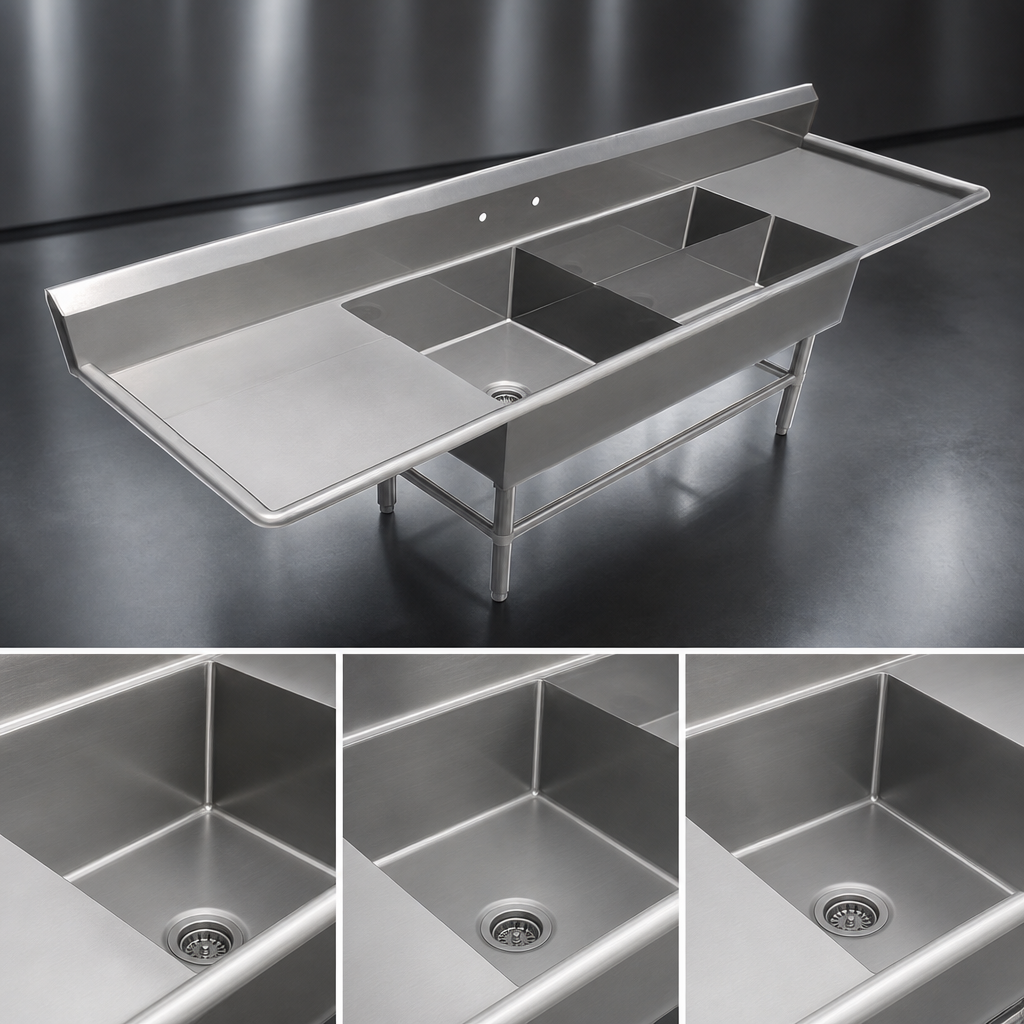

  • Three compartment layout handles platters, sheet pans, and prep ware simultaneously.
  • Center bowl (24" × 24" × 12") is perfect for large pans; two flanking bowls (32" × 12" × 12") speed washing & rinsing.
  • Full-length 30" left & right drainboards keep clean and dirty wares separated.
  • 10" boxed backsplash with 45° top & 2" return protects surrounding walls.
  • Splash-mount faucet holes on 8" centers—ready for your choice of commercial faucet.
  • 3-1/2" die-stamped drain openings fit standard basket strainers or disposers.
  • Food-safe #4 satin finish stainless steel—easy to sanitize and built to last.
  • Stainless legs, adjustable front & side bracing, and 1" bullet feet level perfectly on uneven floors.
  • Ships KD (knocked-down) for lower freight costs and quick on-site assembly.
  • NSF & CSA-Sanitation listed for worry-free code compliance.

Technical specifications

Overall size 119-3/16" W × 29-1/2" D × 43" H (to work surface)
Compartment (1) 24" W × 24" F/B × 12" D
Compartments (2) 32" W × 12" F/B × 12" D each
Drainboards 30" left & right (integral)
Backsplash 10" boxed, 45° top, 2" return
Faucet mounting 1 set, 8" centers, 1-1/8" dia. holes
Drain openings 3-1/2" die-stamped (centered in each bowl)
Material / gauge 16-ga Type 300 (304) stainless steel
Legs & bracing 1-5/8" O.D. stainless legs, 1-1/4" O.D. side & front bracing
Feet 1" stainless adjustable bullet feet
Certifications NSF, CSA-Sanitation

Stainless steel care tips

  • Clean daily with a soft cloth or sponge and a non-chloride detergent.
  • Always wipe in the direction of the polish lines to maintain the satin finish.
  • Avoid abrasive pads, wire brushes, or cleaners containing bleach or quaternary salts.
  • Rinse and dry after each use to preserve the protective chromium oxide layer that keeps your sink rust-free.

For deep cleaning or passivation, use Bar Keepers Friend followed by John Boos Stainless Steel Cleaner.

Popular add-ons (sold separately)

  • Deck-mount or pre-rinse faucets
  • Lever waste drains
  • Drop-on overshelves or pot racks
  • Left, right, or dual end-splashes
Important: Verify local plumbing codes for backflow prevention and waste connection requirements before installation.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

43.0in

Width

119.25in

Depth

29.5in

Shipping Weight

224.0lbs

Base Type

legs with front & side crossrails

Compartment Width (side - side)

24"

Splash Height

10"

Drainboards

with left & right-hand drainboards

Top Gauge

16 gauge

Sink Depth (rim - drain)

12"

Compartment (front - back)

24"

Overall Length

109" - 170"

Base Construction

stainless steel

Top Stainless Series

300 series

Specifications

Pro-Bowl Platter Sink, 3-compartment, 119-3/16"W x 29-1/2"D x 43"H overall size, (1) 24"W x 24" front-to-back x 12" deep compartment, (2) 32"W x 12" front-to-back x 12" deep compartments, (2) 30" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
