Description

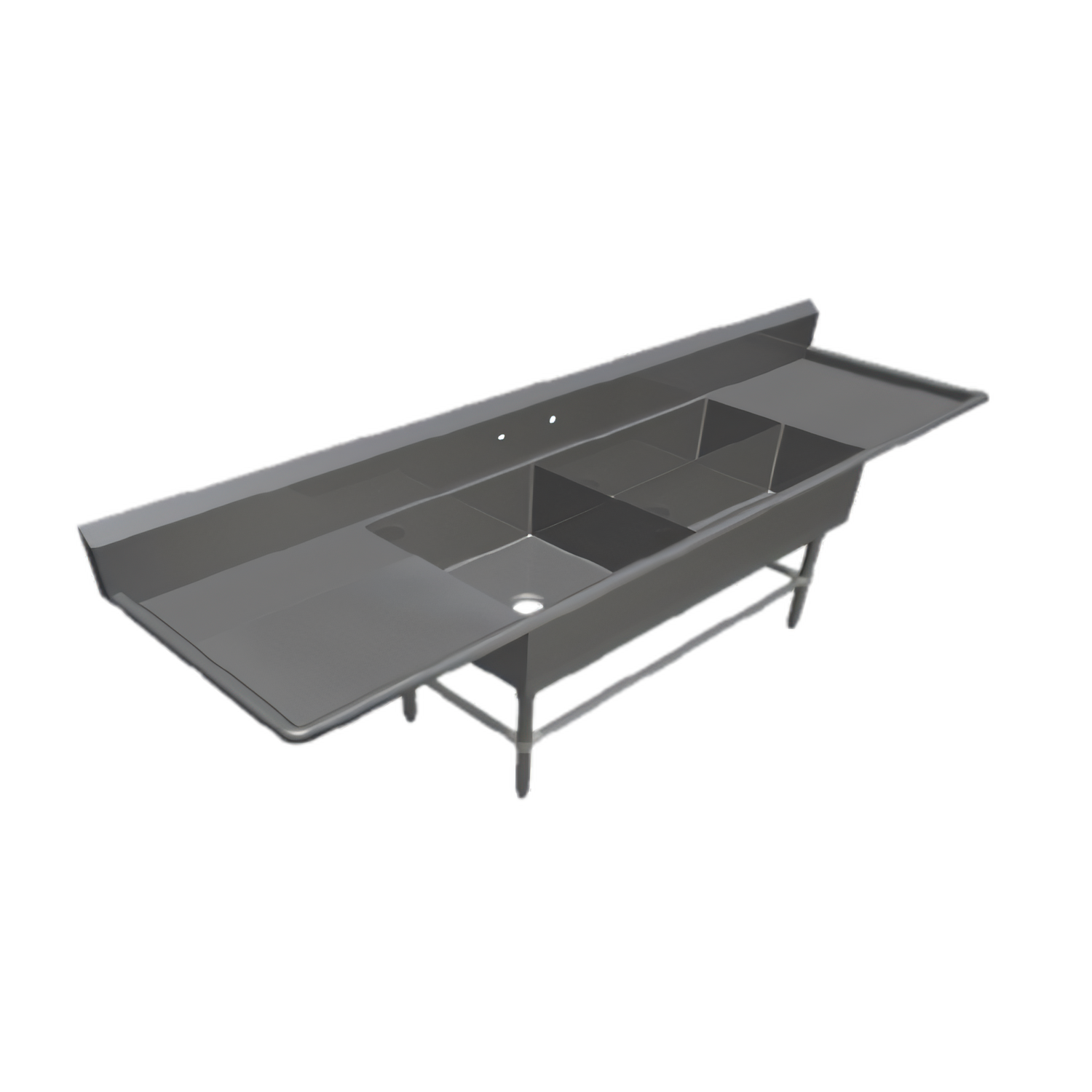

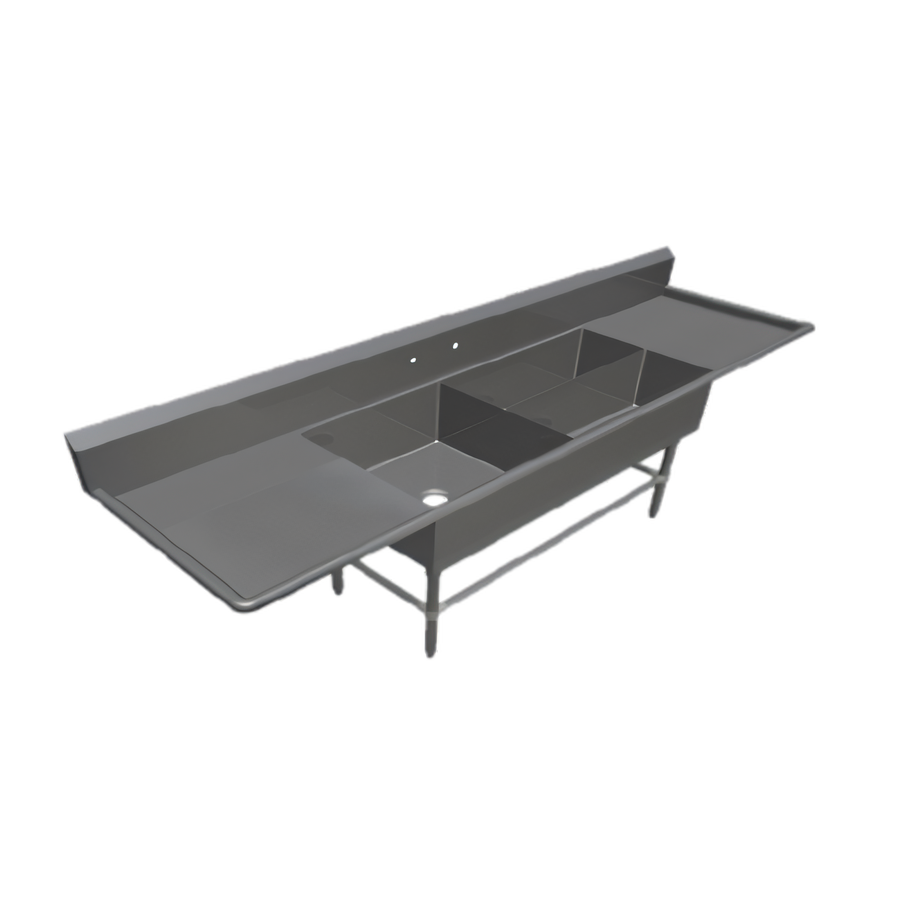

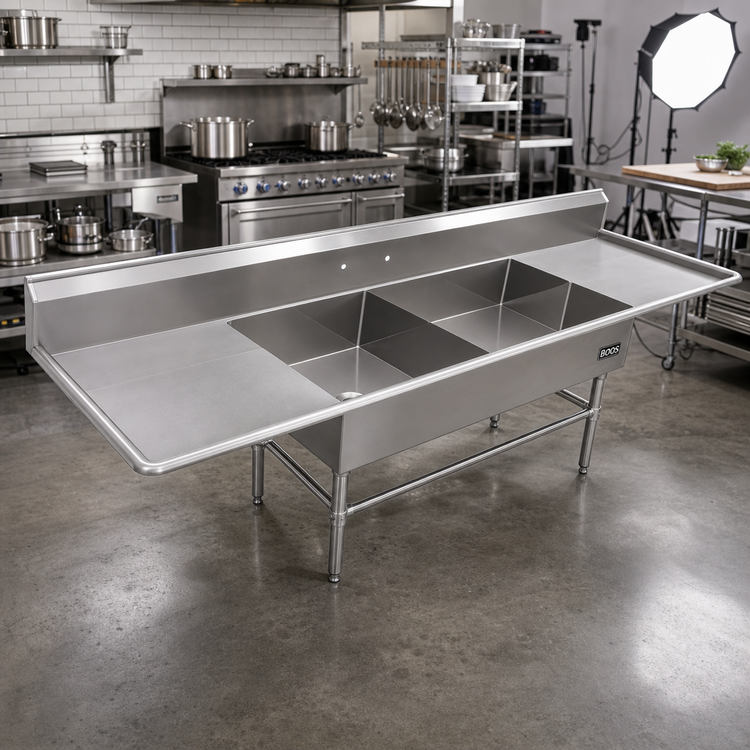

Pro-Bowl Platter Sink – 3 Compartment, Double Drainboard

Model 3PBPS3224-2D24 • John Boos & Co.

Engineered for volume service, the 107 in. John Boos Pro-Bowl platter sink delivers a spacious, easy-to-sanitize work center that keeps warewashing lines moving at peak speed. Heavy-duty 16-gauge, Type 300 stainless steel resists the daily grind of busy restaurants, hotels and institutional kitchens while meeting the latest NSF and CSA sanitation standards.

At-a-Glance Benefits

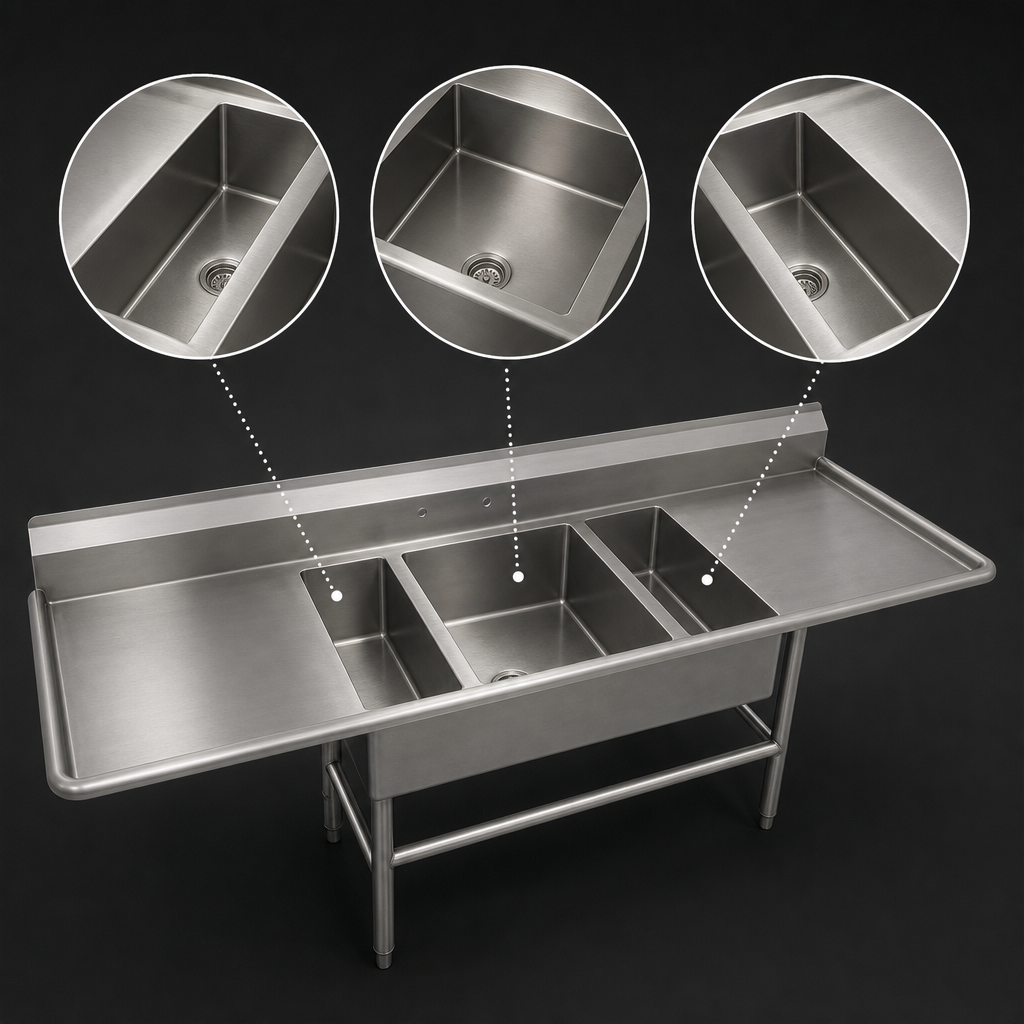

  • Three bowl system streamlines wash / rinse / sanitize cycles
  • Dual 24 in. drainboards provide generous landing & drying space on both sides
  • 10 in. boxed backsplash with 2 in. return & 45° top protects walls from splashes
  • Splash-mount faucet holes pre-punched on 8 in. centers – ready for most commercial faucets
  • 3 ½ in. die-stamped drain openings accept standard strainers & lever-waste assemblies
  • TIG-welded, one-piece top with 5/8 in. radius coved corners for fast, thorough clean-up
  • 1 ⅝ in. Ø stainless steel legs with adjustable front & side bracing add rock-solid stability
  • 1 in. bullet feet level the unit on uneven floors
  • Ships knocked down (KD) to reduce freight cost & ease of access into tight locations

Detailed Specifications

Overall width (left-to-right) 107 3/16 in.
Overall depth (front-to-back) 29 1/2 in.
Overall height (to rim / backsplash) 43 in. to rim • 53 in. to top of backsplash
Bowl 1 (wash) 24 in. W × 24 in. F-B × 12 in. D
Bowls 2 & 3 (rinse/sanitize) 32 in. W × 12 in. F-B × 12 in. D (each)
Drainboards 24 in. left & right
Gauge / material 16-ga. Type 300 stainless steel, #4 satin finish
Certifications NSF • CSA-Sanitation
Assembly Ships KD – legs, bracing & feet field-assembled

Perfect For

  • High-volume restaurants & banquet facilities
  • Resort and hotel kitchens
  • Institutional cafeterias & commissaries
  • Catering operations needing large platter-size bowl capacity

Care & Maintenance Tips

  • Wash daily with mild soap or a non-chloride stainless cleaner, then rinse & wipe dry.
  • Avoid harsh, chloride-based or abrasive cleansers to preserve the protective stainless “passive” film.
  • Use soft cloths or plastic scouring pads; never use steel wool or wire brushes.
  • Apply John Boos Stainless Steel Cleaner regularly to restore the original satin sheen.

Following these guidelines helps prevent pitting, rust and dulling of the finish.

Peace of Mind Included

  • Backed by John Boos’ reputation for quality commercial fabrication since 1887
  • Meets current NSF/ANSI food-service sanitation requirements
  • CSA-Sanitation listed for use throughout North America
Note: This sink ships unassembled to lower freight costs and facilitate delivery through standard doorways. All hardware and instructions are included for fast on-site setup.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

43.0in

Width

107.25in

Depth

29.5in

Shipping Weight

215.0lbs

Overall Length

97" - 108"

Top Stainless Series

300 series

Base Type

legs with front & side crossrails

Compartment (front - back)

24"

Splash Height

10"

Base Construction

stainless steel

Top Gauge

16 gauge

Drainboards

with left & right-hand drainboards

Compartment Width (side - side)

24"

Sink Depth (rim - drain)

12"

Specifications

Pro-Bowl Platter Sink, 3-compartment, 107-3/16"W x 29-1/2"D x 43"H overall size, (1) 24"W x 24" front-to-back x 12" deep compartment, (2) 32"W x 12" front-to-back x 12" deep compartments, (2) 24" left & right drainboards, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped openings, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
