John Boos

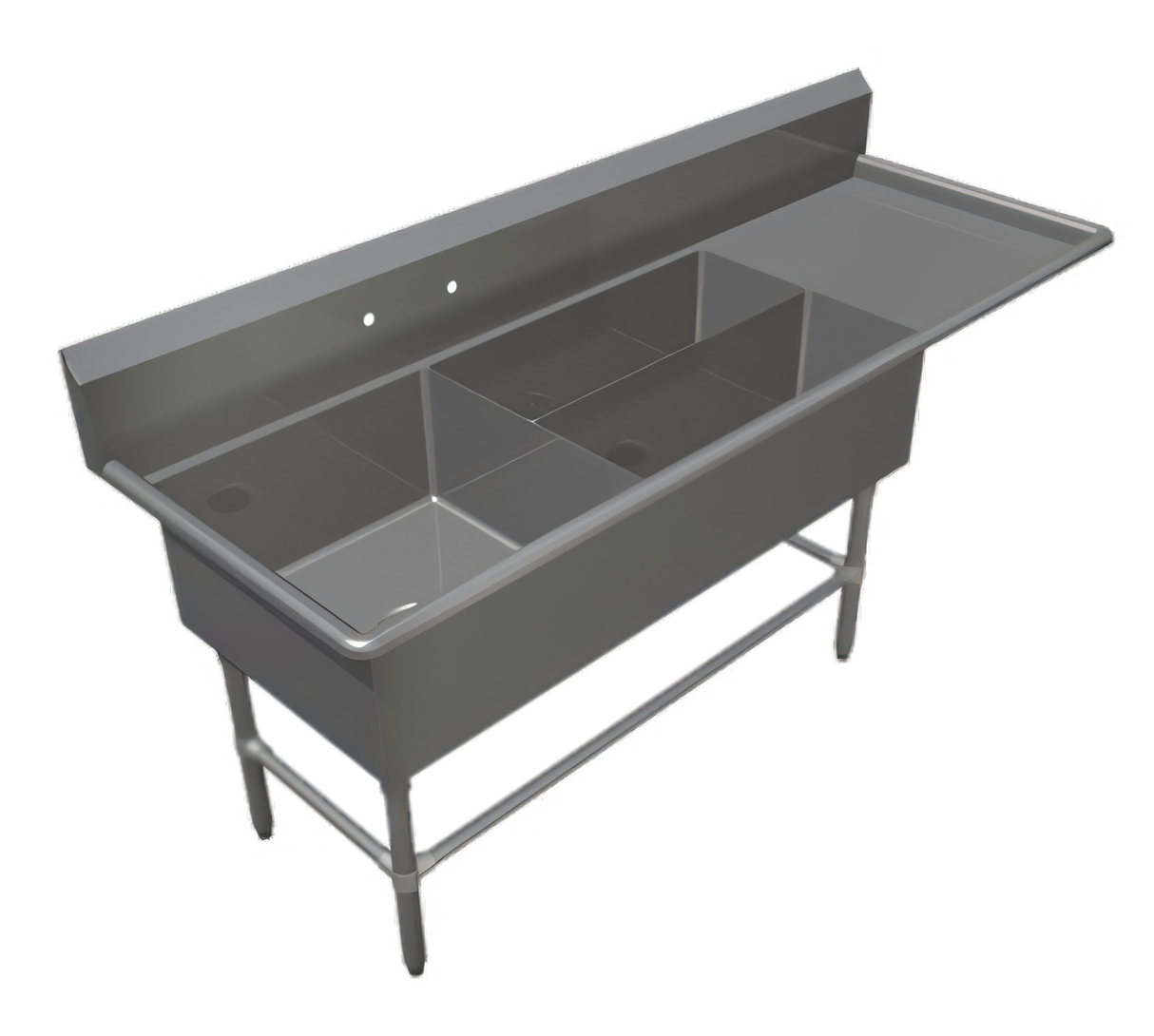

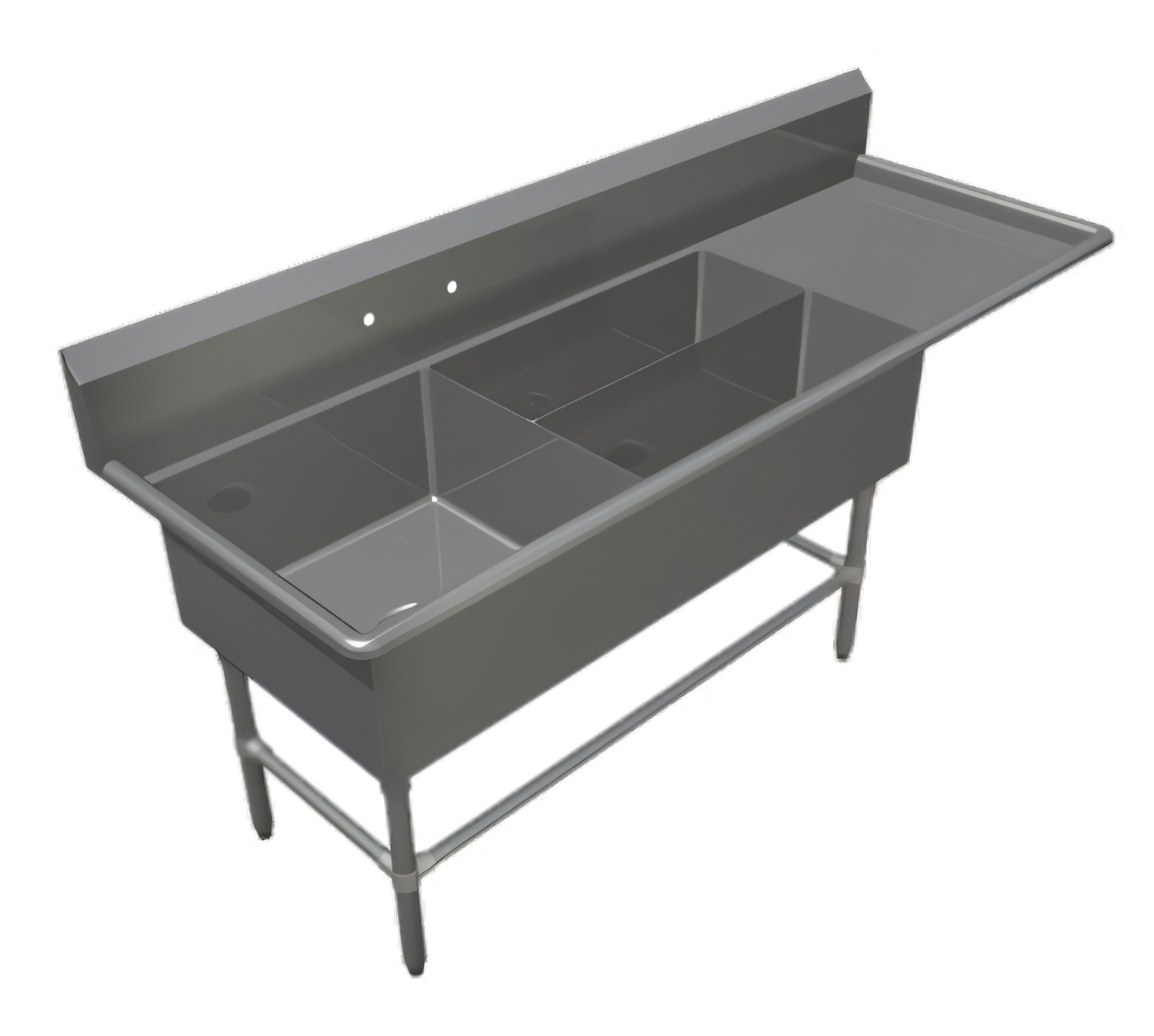

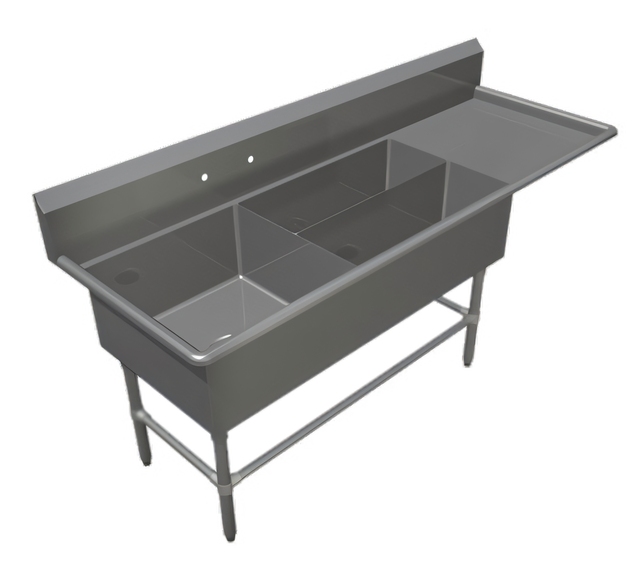

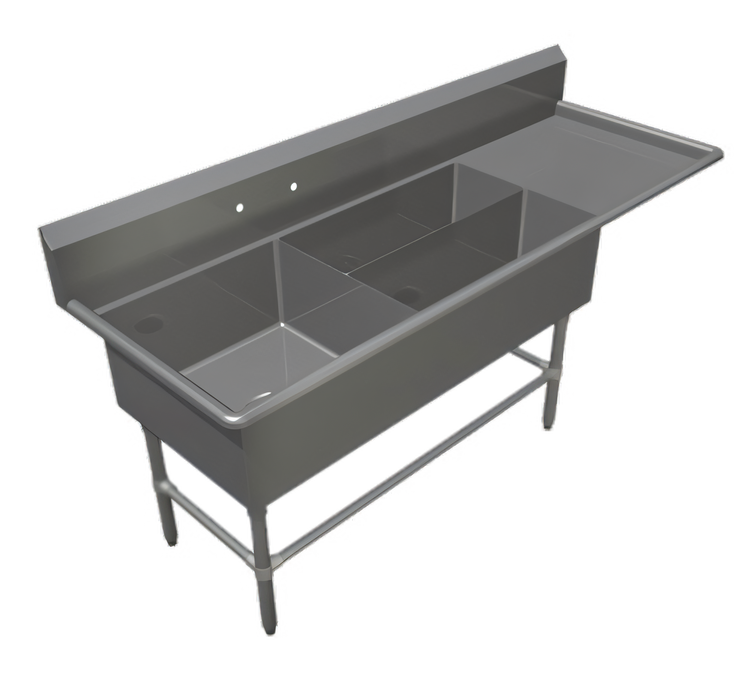

John Boos Pro-Bowl 3-Compartment Stainless Steel Platter Sink with Right Drainboard, 90-3/16 Inch Wide

SKU: 3PBPS3224-1D30R
$3,453.09
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 3-Compartment Stainless Steel Platter Sink with Right Drainboard, 90-3/16 Inch Wide

16 Gauge, 300 Series Stainless Steel, 10-Inch Backsplash

Built for busy dish and prep areas, this three-compartment platter sink adds a roomy right-hand drainboard, heavy-duty stainless construction, and a wall-protecting backsplash in one efficient workstation.

  • Three-compartment platter sink with one 24" x 24" x 12" compartment and two 32" x 12" x 12" compartments.
  • 30-inch right-hand drainboard adds convenient landing and staging space.
  • 10-inch boxed backsplash with a 45° top and 2-inch return helps protect the wall.
  • 16-gauge, 300 series stainless steel top with stainless steel legs for durable commercial use.
  • Includes splash-mount faucet holes on 8-inch centers and 3-1/2-inch die-stamped drain openings.
  • Adjustable front and side bracing plus bullet feet help provide stability and leveling.
  • Ships knockdown for easier handling and assembly.

Overall Dimensions:

90.19"W x 29.5"D x 43.0"H

Product Weight:

204.0 lb

Three-Compartment Platter Layout

Provides one larger 24-inch front-to-back compartment and two 32-inch side-to-side compartments for multi-step sink workflow.

Right-Hand Drainboard

A 30-inch drainboard on the right side offers extra space for drainage, staging, and handling ware.

10-Inch Boxed Backsplash

The tall backsplash includes a 45-degree top and 2-inch return to help reduce splashback and protect the wall.

Stainless Steel Construction

Built from 16-gauge, 300 series stainless steel for durable commercial performance.

Splash-Mount Faucet Holes

Prepared with one set of splash-mount faucet holes on 8-inch centers for faucet installation.

Die-Stamped Drain Openings

3-1/2-inch die-stamped drain openings support standard sink drainage connections.

Stainless Steel Leg Base

Stainless steel legs with adjustable front and side bracing provide support and structural stability.

Adjustable Bullet Feet

Bullet feet help level the sink on uneven floors.

Knockdown Shipping Design

Ships KD to simplify transport and on-site assembly.

Type Platter Sink
Style With Right Drainboard
Installation Type Freestanding
Material 300 Series Stainless Steel
Finish Stainless Steel
Compartments 3
Top Gauge 16 Gauge
Splash Height 10 Inches
Base Type Legs with Front & Side Bracing
Drain Connection Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 91 Inches
Shipping Depth 30 Inches
Shipping Height 43 Inches
Shipping Weight 204 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has 3 compartments.
The sink includes one 24-inch wide by 24-inch front-to-back by 12-inch deep compartment and two 32-inch wide by 12-inch front-to-back by 12-inch deep compartments.
Yes. It includes a 30-inch right-hand drainboard.
The sink has a 10-inch boxed backsplash with a 45-degree top and 2-inch return.
Yes. It includes one set of splash-mount faucet holes with 8-inch centers.
Yes. The sink ships knockdown (KD), so assembly is required.
