John Boos 3PBCS24-2D36 Pro-Bowl Compartment Sinks
John Boos 3PBCS24-2D36 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 3PBCS24-2D36 Pro-Bowl Compartment Sinks
Description

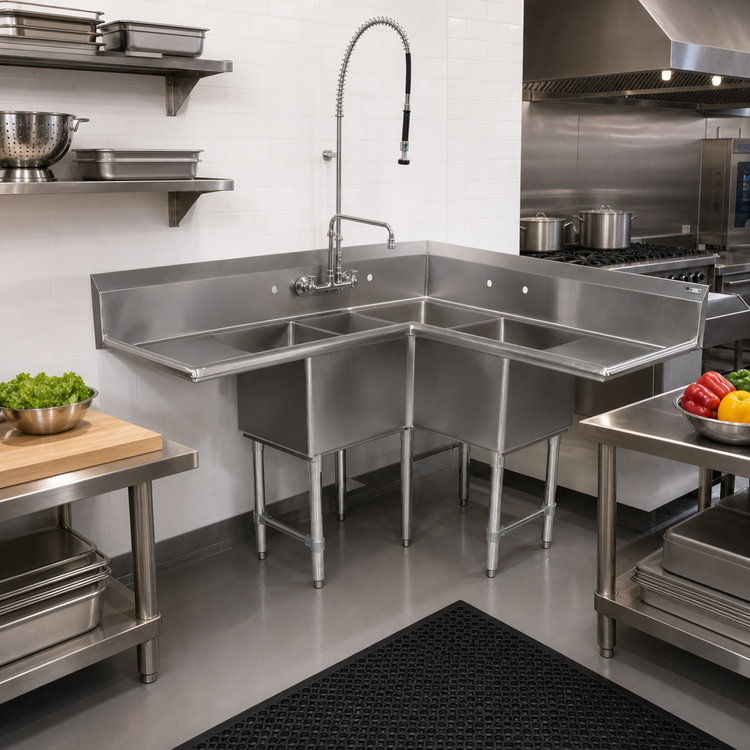

John Boos Pro-Bowl 3-Compartment Corner Sink
88-1/2" W x 88-1/2" D – 36" Left & Right DrainboardsBuilt for high-volume prep and wash stations, the Pro-Bowl corner sink maximizes every inch of back-of-house space while delivering the rugged reliability John Boos is known for. Three generous 24" x 24" x 12" bowls provide dedicated bays for washing, rinsing and sanitizing, and dual 36" drainboards keep workflow moving fast in either direction.
Why You’ll Love It

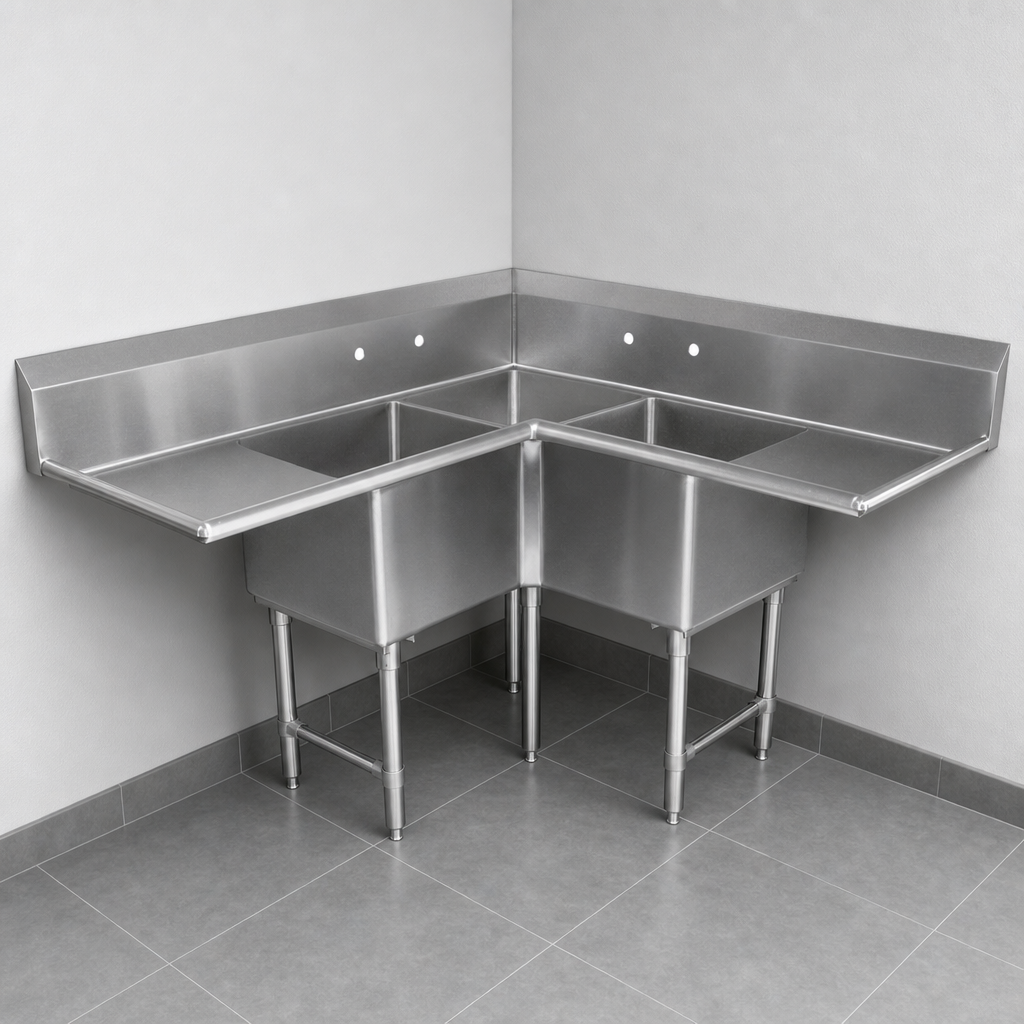

- Space-saving corner configuration opens valuable lineal wall space for other equipment.
- 16 ga, Type 300 stainless steel with #4 satin polish stands up to daily commercial abuse and cleans up beautifully.
- 10" boxed backsplash with 45° top cap and 2" return contains splashes and protects walls.
- (2) sets of 8" on-center splash-mount faucet holes—run hot & cold on either side or add a glass-filler or pre-rinse faucet (sold separately).
- TIG-welded seams are ground and polished to a smooth, sanitary finish.
- 1-5/8" Ø stainless steel legs with front-to-back & left-to-right bracing for rock-solid support.
- Adjustable stainless steel bullet feet simplify leveling on uneven floors.
- NSF & CSA-Sanitation listed for worry-free code compliance.
Technical Specifications
| Overall Footprint (WxD) | 88-1/2" x 88-1/2" |
|---|---|
| Overall Height | 44-1/16" |
| Compartments | 3 @ 24" W x 24" F/B x 12" D |
| Drainboards | 36" Left & 36" Right (integral) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet Holes | (2) sets, 1" openings, 8" on-center |
| Drain Openings | 3-1/2" die-stamped |
| Material & Gauge | 16 ga Type 300 stainless steel |
| Legs / Bracing | Stainless steel, 1-5/8" Ø with 1-1/4" Ø bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
Care & Maintenance
Maintain the passive stainless film by wiping spills promptly and cleaning with non-chloride stainless steel cleaner such as Bar Keepers Friend. Avoid abrasive pads, steel wool, or bleach. Detailed instructions ship with every sink or can be downloaded from the John Boos resource center.
What’s in the Box
- Fully welded corner sink assembly with integral drainboards & backsplash
- Stainless steel legs with cross bracing & adjustable feet
- Installation hardware & owner’s manual
Faucets, drains, and overflow assemblies are sold separately. Choose 8" splash-mount fixtures to fit the pre-drilled holes.
