John Boos 3PBCS24-2D30 Pro-Bowl Compartment Sinks
Description

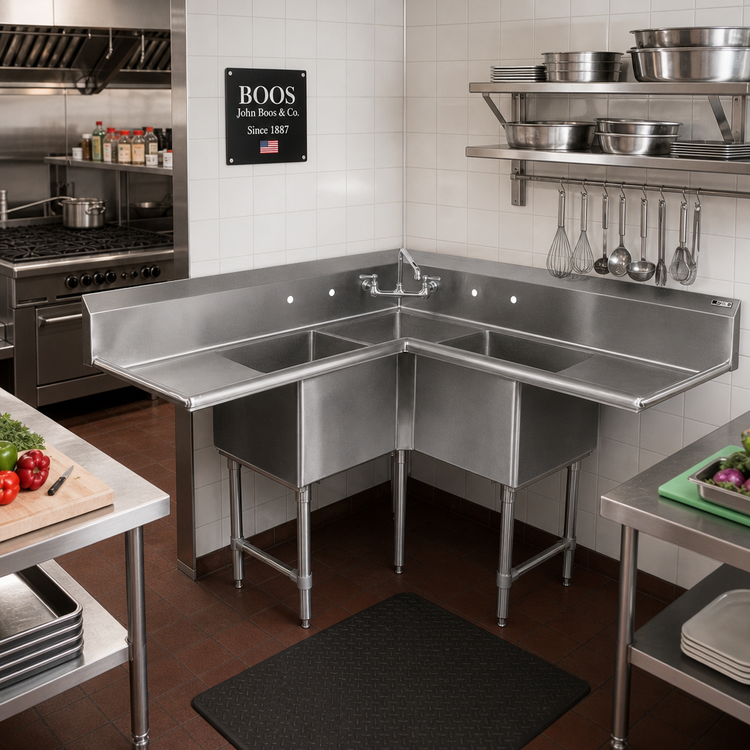

John Boos Pro-Bowl 3-Compartment Corner Sink – 82 1/2"
Model 3PBCS24-2D30 | 16-Gauge Type 300 Stainless SteelBuilt to conquer the toughest back-of-house workflows, the John Boos Pro-Bowl corner sink tucks neatly into any 90-degree space while giving you three full-size wash, rinse and sanitize bowls plus extra-long 30" drainboards on both sides. Heavy-duty stainless construction, coved corners and NSF certification keep your kitchen fast, clean and compliant.
Key features

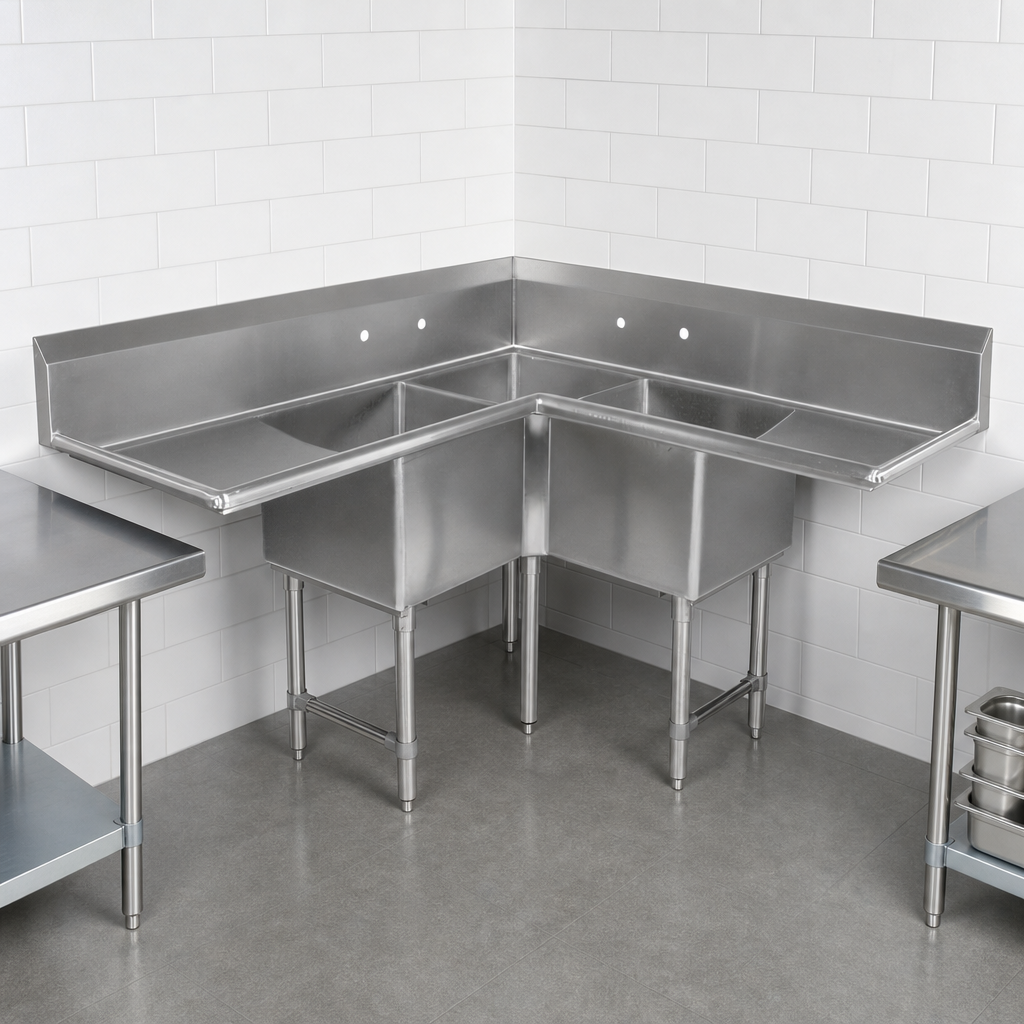

- Space-saving L-shape – 82 1/2" × 82 1/2" footprint fits a standard corner.
- (3) 24" × 24" × 12" deep bowls accommodate sheet pans, stock pots and bus tubs.
- (2) 30" left & right drainboards accelerate drying and staging.
- Rugged 16-ga, Type 300 stainless steel with #4 satin polish for lasting good looks.
- 10" high boxed backsplash with 45° finished top & 2" rear return protects walls.
- (2) sets of 8"-on-center splash-mount faucet holes (1" Ø) – ready for pre-rinse and fill faucets.
- 3 1/2" die-stamped drain openings in every compartment.
- 1 5/8" Ø stainless legs with left-to-right & front-to-back bracing for rock-solid stability.
- Adjustable 1" bullet feet level the unit on uneven floors.
- All exterior edges bull-nosed; 3/4" radius bowl corners speed cleanup.
- NSF & CSA-Sanitation listed; proudly made in the USA by John Boos.
At a glance
| Overall dimensions | 82 1/2" W × 82 1/2" D × 44 1/16" H (to top of backsplash) |
|---|---|
| Working height | Approx. 36 5/16" to sink roll |
| Compartment size | (3) 24" W × 24" F/B × 12" D |
| Drainboards | 30" left & right |
| Backsplash | 10" boxed with 45° top, 2" wall return |
| Faucet holes | (2) sets – 1" Ø, 8" centers (splash mount) |
| Material / gauge | 16-ga Type 300 stainless steel, #4 finish |
| Legs & bracing | Stainless steel – 1 5/8" Ø legs / 1 1/4" Ø bracing |
| Drain openings | 3 1/2" die-stamped |
| Approx. shipping weight | 184 lb |
| Certifications | NSF, CSA-Sanitation |
Faucets, drains and side-splash kits are sold separately.
Care & maintenance
- Clean daily with non-chloride soap or detergent and a soft cloth or sponge.
- Rinse thoroughly and wipe dry; standing water can cause corrosion.
- Avoid abrasive pads, steel wool or cleaners containing chlorides.
- Restore shine with John Boos Stainless Steel Cleaner or Bar Keepers Friend.
