John Boos  |  Pro-Bowl  |  SKU: 3PBCS24-2D24  |  UPC: 662969346447

John Boos 3PBCS24-2D24 Pro-Bowl Compartment Sinks

$5,025.74
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Instructions Care & maintenance
Related Searches
3-compartment Sinks Commercial Plumbing Supplies Commercial Sinks Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

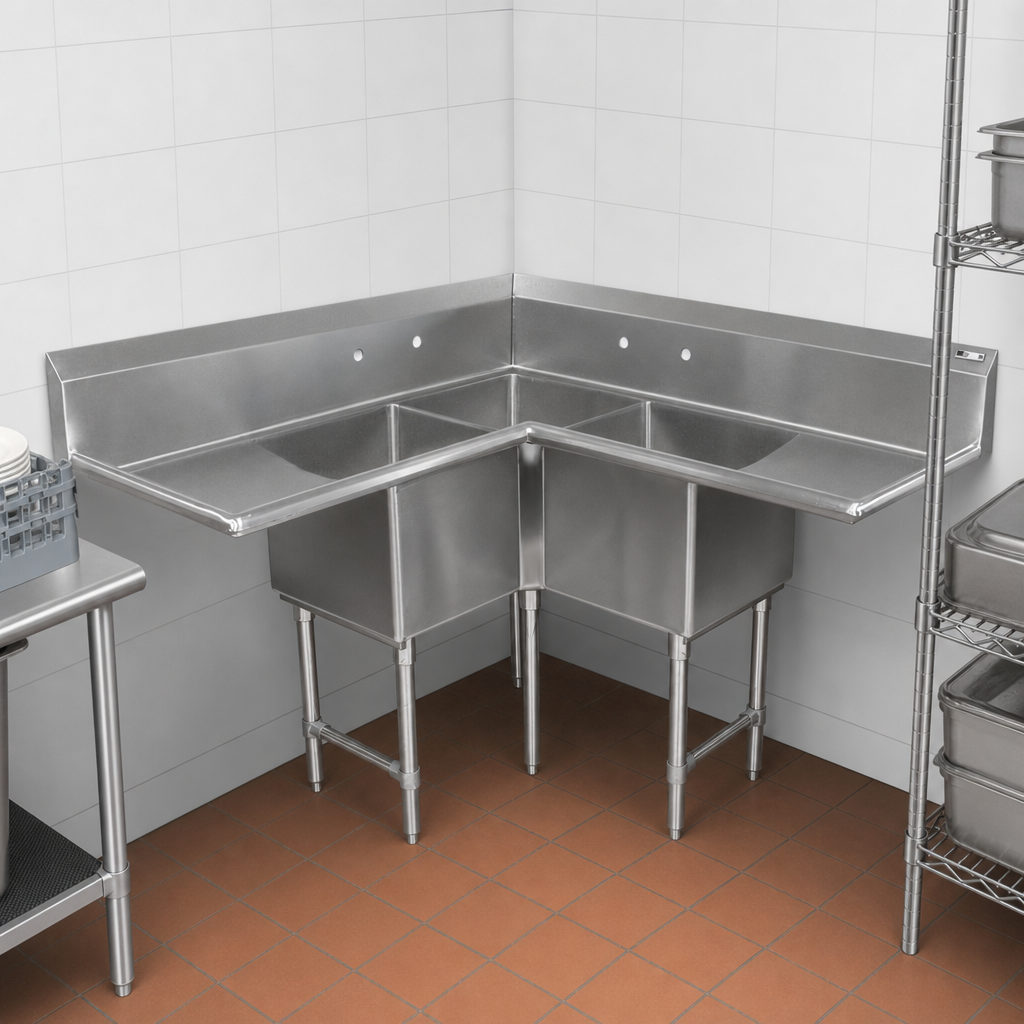

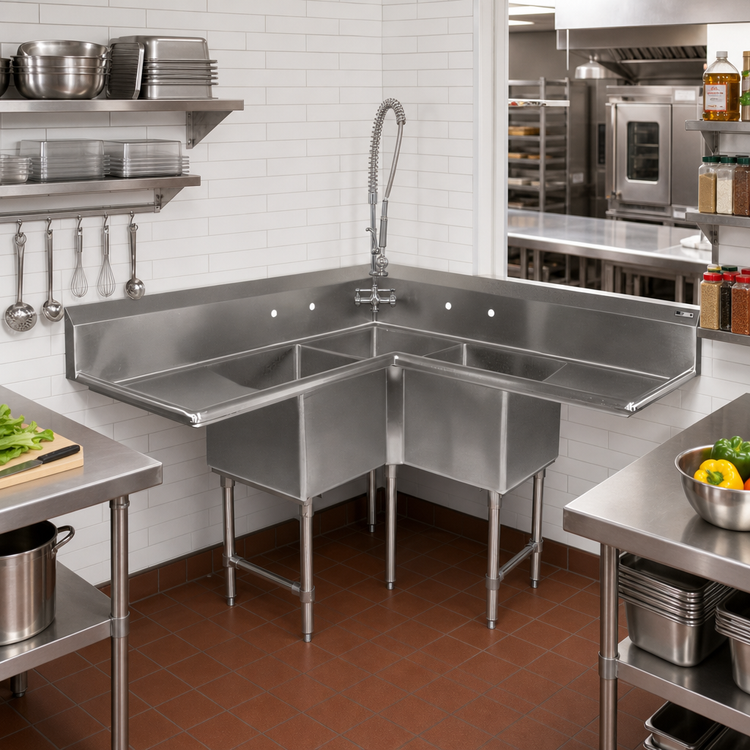

John Boos Pro-Bowl 3-Compartment Corner Sink

76-1/2" W × 76-1/2" D – Dual 24" Drainboards – NSF & CSA-Sanitation

Turn dead-end corner space into a high-capacity ware-washing station. Built from heavy-duty 16-gauge, 300-series stainless steel, the Pro-Bowl corner sink delivers the rugged reliability and food-safety compliance professional kitchens demand.

Key Features
  • Space-saving corner footprint (76-1/2" on each wall) streamlines workflow.
  • (3) roomy 24" W × 24" front-to-back × 12" deep compartments for wash, rinse & sanitize cycles.
  • Left & right 24" drainboards keep clean and dirty wares organised.
  • 16-ga, Type 300 stainless steel with #4 satin polish resists corrosion & cleans up fast.
  • 10" boxed backsplash with 45° top & 2" return protects adjacent walls.
  • (2) sets of 8" on-center splash-mount faucet holes (1" Ø).
  • (3) 3-1/2" die-stamped drain openings ensure positive drainage.
  • 1-5/8" Ø stainless legs with 1-1/4" cross-bracing & 1" adjustable bullet feet for rock-solid stability.
  • All interior & exterior corners are coved/bullnosed for easy sanitising and user safety.
  • NSF/ANSI 2 & CSA-Sanitation listed.
Specifications
Overall size (each side) 76-1/2" W × 76-1/2" D × 44-1/16" H
Working height Approx. 34-1/16" to sink rim / 36-5/16" to apron roll
Compartments (3) 24" W × 24" F-B × 12" D
Drainboards (2) × 24" (left & right)
Backsplash 10" boxed, 2" return, 1" turned-down rear lip
Faucet mounting 8" centers, splash mount (two sets of 1" holes)
Material & finish 16-ga 300-series stainless, #4 satin
Legs / bracing 1-5/8" Ø legs, 1-1/4" Ø cross bracing – stainless steel
Feet 1" adjustable stainless bullet feet
Certifications NSF, CSA-Sanitation
Built-In John Boos Advantages
  • TIG-welded seams; exposed welds ground & polished for a seamless look.
  • All components proudly fabricated in Effingham, Illinois, USA.
  • Over 135 years of trusted foodservice innovation.
Important: Faucets, drains and plumbing fittings are shown for reference only and are sold separately.

Keep your sink looking like new—clean daily with non-chloride cleaners and finish with John Boos Stainless Steel Cleaner.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

76.5in

Depth

29.5in

Shipping Weight

175.0lbs

Splash Height

10"

Compartments

3 compartments

Compartment (front - back)

24"

Top Gauge

16 gauge

Top Stainless Series

300 series

Overall Length

73" - 84"

Compartment Width (side - side)

24"

Base Construction

stainless steel

Sink Depth (rim - drain)

12"

Specifications

Pro-Bowl Corner Sink, 3-compartment, 76-1/2"W x 76-1/2"D x 44-1/16"H overall size, (3) 24"W x 24" front-to-back x 12 deep compartments, (2) 24" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, bracing, & adjustable bullet feet, NSF, CSA-Sanitation
