John Boos 3PBCS204-2D30 Pro-Bowl Compartment Sinks
Description

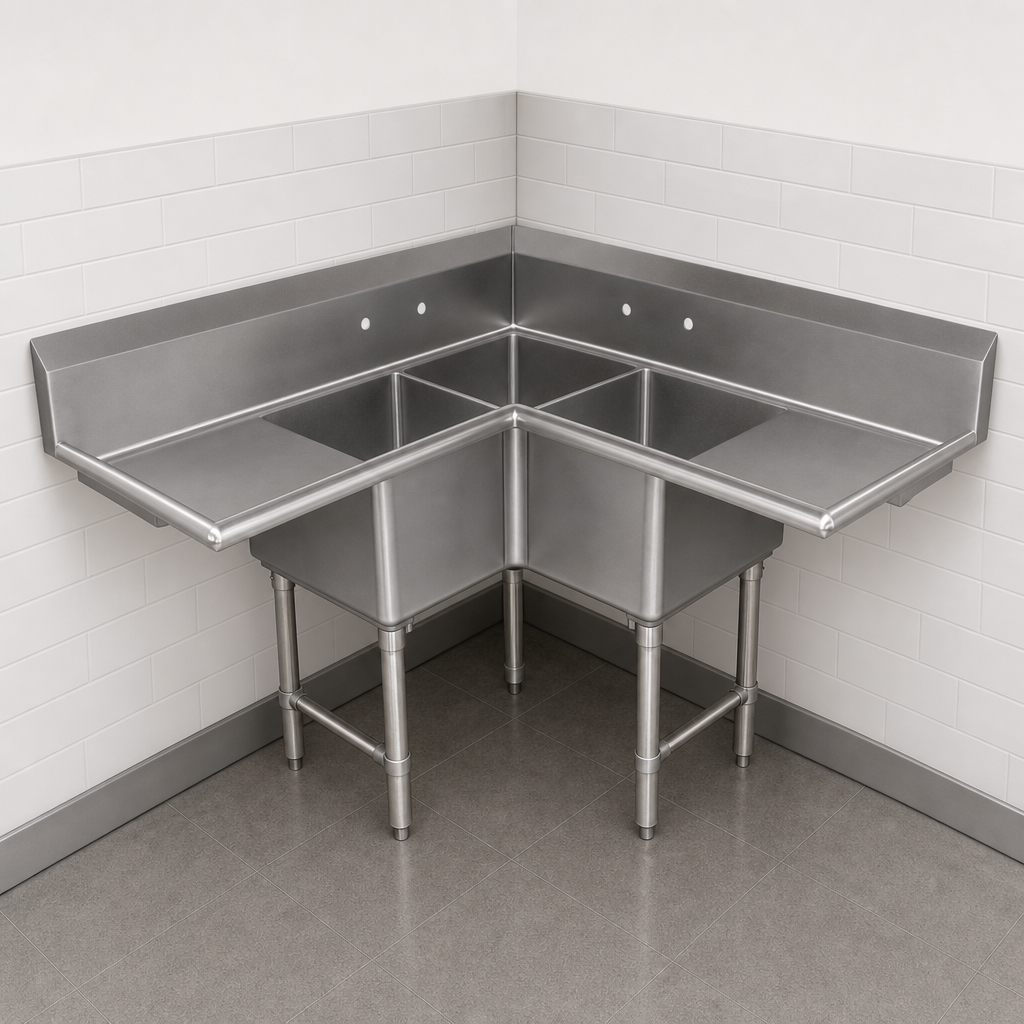

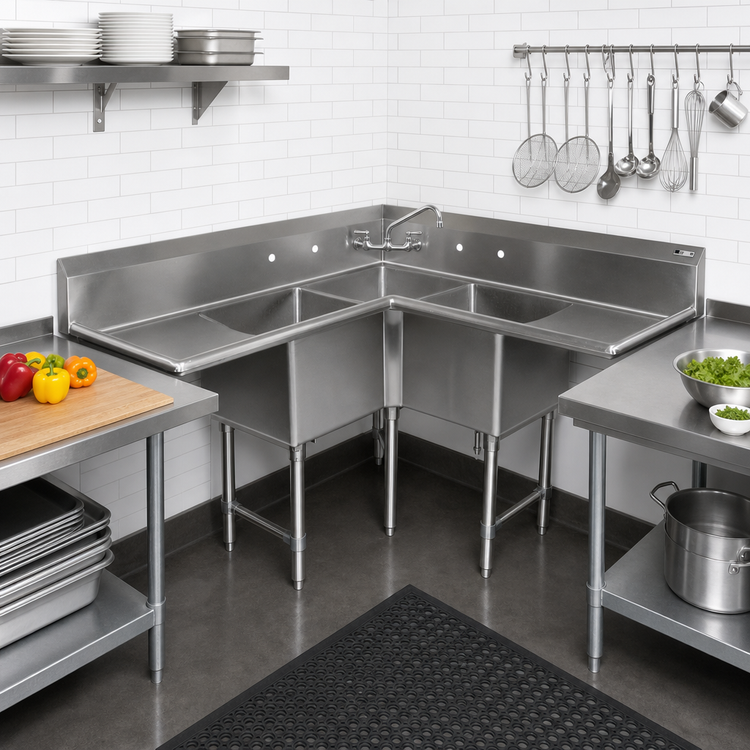

John Boos “Pro-Bowl” 3-Compartment Corner Sink
74-1/2" W × 74-1/2" D × 44-1/16" H • Model 3PBCS20-3-C30Engineered for demanding commercial kitchens, the John Boos Pro-Bowl corner sink maximises every inch of your dish room by tucking a full 3-compartment sink and dual 30" drainboards neatly into a 90° corner. Heavy-duty 16 gauge, type 300 stainless steel and NSF/CSA sanitation listings ensure a lifetime of worry-free performance.
Why You’ll Love It
- Space-saving L-shape keeps wash-rinse-sanitize workflow in a single ergonomic zone.
- (3) large 20" × 20" × 14" deep bowls handle sheet pans, stock pots and more.
- Extra-long 30" left & right drainboards speed drying and staging.
- One-piece TIG-welded top with #4 satin finish cleans up fast and looks professional.
- 10" boxed backsplash with 45° top edge protects walls from splashes.
- (2) sets of splash-mount faucet holes on 8" centers for easy hot/cold hook-up (faucets sold separately).
- 3-1/2" die-stamped drain openings accept industry-standard basket strainers/waste valves.
- 1-5/8" Ø stainless legs with 1-1/4" Ø cross-bracing and adjustable bullet feet keep the unit rock-solid—even on uneven floors.
- Bull-nosed outside edges and ¾" radius interior corners for superior safety and sanitation.
- Fully NSF & CSA-Sanitation certified for code compliance nationwide.
Technical Specifications
| Overall dimensions | 74-1/2" W × 74-1/2" D × 44-1/16" H (to top of backsplash) |
|---|---|
| Working height | 34-1/16" to sink rim • 36-5/16" to rolled edge |
| Bowl interior (each) | 20" W × 20" front-to-back × 14" deep |
| Drainboards | (2) × 30" (left & right) |
| Backsplash | 10" H boxed, 2" return to wall, 45° top |
| Faucet holes | (2) sets, 8" on-center, 1-1/8" Ø (splash mount) |
| Drain opening | 3-1/2" die-stamped (per bowl) |
| Material / finish | 16 GA type 300 stainless steel • #4 satin polish |
| Legs & bracing | Stainless steel 1-5/8" Ø legs • 1-1/4" Ø cross-bracing • 1" adjustable SS bullet feet |
| Certifications | NSF Listed • CSA-Sanitation |
Care & Maintenance
Maintain the stainless steel’s passive protective film by cleaning daily with non-chloride detergents and soft cloths or plastic pads. Avoid harsh, abrasive or chloride-based cleaners. For deep cleaning, John Boos recommends Bar Keepers Friend followed by Boos Block Stainless Steel Cleaner & Polish.
What’s Included
- Corner sink assembly with integral drainboards
- Stainless leg & bracing kit with adjustable feet
Sold Separately
- Faucets, basket strainers or waste valves
- Trap, plumbing fittings and installation hardware
