John Boos

John Boos Pro-Bowl 3-Compartment Corner Sink with Dual 18 Inch Drainboards, 62-1/2 x 62-1/2 Inch Stainless Steel

SKU: 3PBCS204-2D18
GTIN: 662969684938
$5,375.70
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 3-Compartment Corner Sink with Dual 18 Inch Drainboards, 62-1/2 x 62-1/2 Inch Stainless Steel

16/300 Series Stainless Steel, 10 Inch Boxed Backsplash, Splash-Mount Faucet Holes

Designed to maximize corner space, this heavy-duty 3-compartment sink adds dual drainboards and a durable stainless steel build for efficient commercial prep and cleanup.

  • Space-saving corner design fits along two walls while providing a large 62-1/2" x 62-1/2" footprint.
  • Three 20" x 20" x 14" deep compartments support washing, rinsing, and sanitizing.
  • Two 18" drainboards give you added staging space for dishes and prep items.
  • 10" boxed backsplash with a 45° top and 2" return helps protect the wall from splashes.
  • Built from 16/300 stainless steel with stainless steel legs, bracing, and adjustable bullet feet.
  • Includes two sets of splash-mount faucet holes with 8" centers and a 3-1/2" die-stamped drain opening.

Overall Dimensions:

62.5"W x 25.5"D x 44.06"H

Product Weight:

148.0 lb

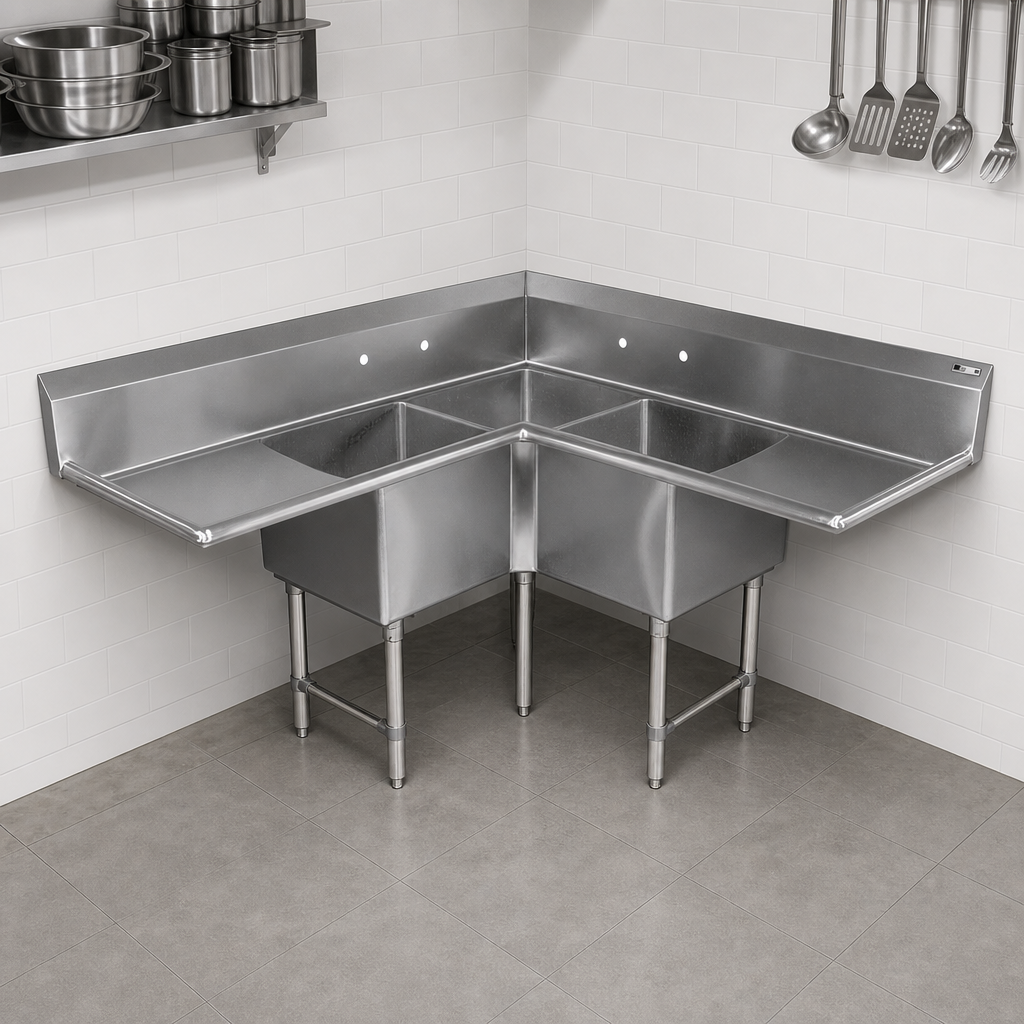

Corner Configuration

Space-saving corner layout is designed to fit against two walls while maximizing usable sink space.

Three Compartment Layout

Includes three 20" W x 20" front-to-back x 14" deep compartments for wash, rinse, and sanitize workflow.

Dual Drainboards

Two 18" left and right drainboards provide extra room for staging dishes, pans, and prep items.

Boxed Backsplash

10" high backsplash with a 45° top and 2" return helps reduce splashes against the wall.

Faucet Mounting

Features two sets of splash-mount faucet holes with 8" centers for faucet installation.

Heavy-Duty Construction

Made from 16/300 stainless steel with stainless steel legs, bracing, and adjustable bullet feet.

Drain Opening

3-1/2" die-stamped drain opening supports standard sink drainage.

Type Sink
Style Corner
Installation Type Floor Model
Material Stainless Steel
Gauge 16 Gauge
Compartments 3
Compartment Width 20 Inches
Compartment Depth 20 Inches
Sink Depth 14 Inches
Drainboards 2
Drainboard Length 18 Inches
Backsplash Height 10 Inches
Faucet Hole Sets 2
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 63 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 148 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

It has 3 compartments.
Each compartment measures 20" wide x 20" front-to-back x 14" deep.
Yes, it includes two 18" drainboards, one on the left and one on the right.
It has a 10" boxed backsplash with a 45° top and a 2" return.
The sink includes two sets of splash-mount faucet holes with 8" centers.
It is made from 16/300 stainless steel and includes stainless steel legs, bracing, and adjustable bullet feet.
