John Boos 3PBCS20-2D36 Pro-Bowl Compartment Sinks
Description

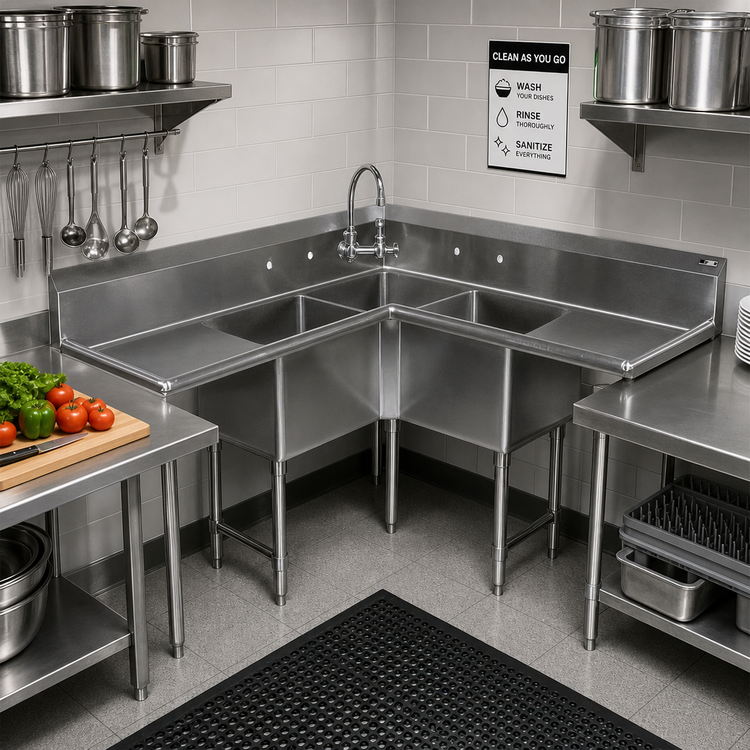

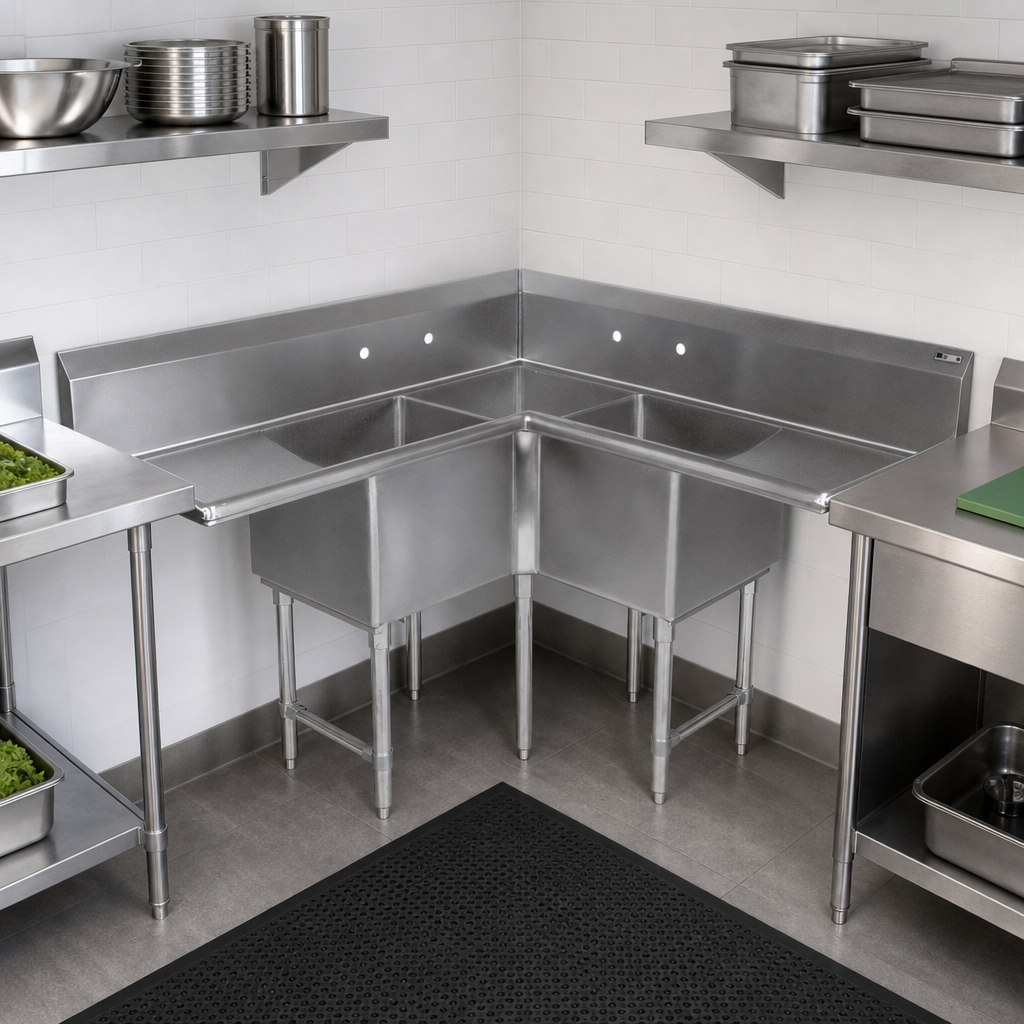

John Boos “Pro-Bowl” 3-Compartment Corner Sink
Model 3PBCS20-2D36-C • 80-1/2″ W × 80-1/2″ D × 44-1/16″ HReclaim valuable corner space while meeting the highest sanitation standards. Built from heavy-duty 16 ga 300-series stainless steel, the John Boos Pro-Bowl Corner Sink keeps prep, wash and rinse tasks flowing smoothly in the busiest commercial kitchens.
Key features
- Smart L-shaped layout turns an unused corner into a full-service dish station.
- (3) 20″ W × 20″ F-B × 12″ D compartments handle wash, rinse & sanitize cycles simultaneously.
- (2) oversized 36″ drainboards—left & right—offer ample landing and drying area.
- 10″ boxed backsplash with 45° top and 2″ return keeps water off walls and floors.
- (2) sets of splash-mount faucet holes, 8″ on-center, accept most commercial faucets.
- 3-1/2″ die-stamped drain openings fit standard basket strainers (sold separately).
- Coved 3/4″ radius bowl corners and #4 satin finish speed up daily clean-up.
- 1-5/8″ Ø stainless legs, front-to-back & left-to-right bracing, and adjustable bullet feet deliver rock-solid stability—extra leg supports included for 36″ drainboards.
- NSF & CSA-Sanitation listed for worry-free code compliance.
Technical specifications
| Overall dimensions | 80-1/2″ W × 80-1/2″ D × 44-1/16″ H (to top of backsplash) |
|---|---|
| Working height | 34 1/16″ (rim) / 36 5/16″ (sink roll) |
| Bowl size (each) | 20″ W × 20″ F-B × 12″ D |
| Compartment count | 3 |
| Drainboards | (2) × 36″, left & right |
| Backsplash | 10″ boxed, 45° top, 2″ return |
| Faucet holes | (4) × 1″ Ø holes, 8″ centers (two sets) |
| Drain opening | 3-1/2″ die-stamped |
| Material & finish | 16 ga Type 300 stainless steel, #4 satin polish |
| Support frame | Stainless legs & 1-1/4″ Ø cross bracing with adjustable SS bullet feet |
| Certifications | NSF | CSA-Sanitation |
Installation notes
- Ships knocked down to reduce freight cost; simple field assembly required.
- Faucets, drains and overflow fittings are not included unless added to order.
- Tolerance on all dimensions: ± 0.500″.
Care & maintenance
For best results, clean daily with a non-chloride stainless steel cleanser and soft cloth. Avoid bleach and abrasive pads to preserve the protective chromium film. See included John Boos Stainless Steel Care Guide for full instructions.
John Boos & Co. reserves the right to change specifications without notice.
