John Boos 3PBCS20-2D24 Pro-Bowl Compartment Sinks
Description

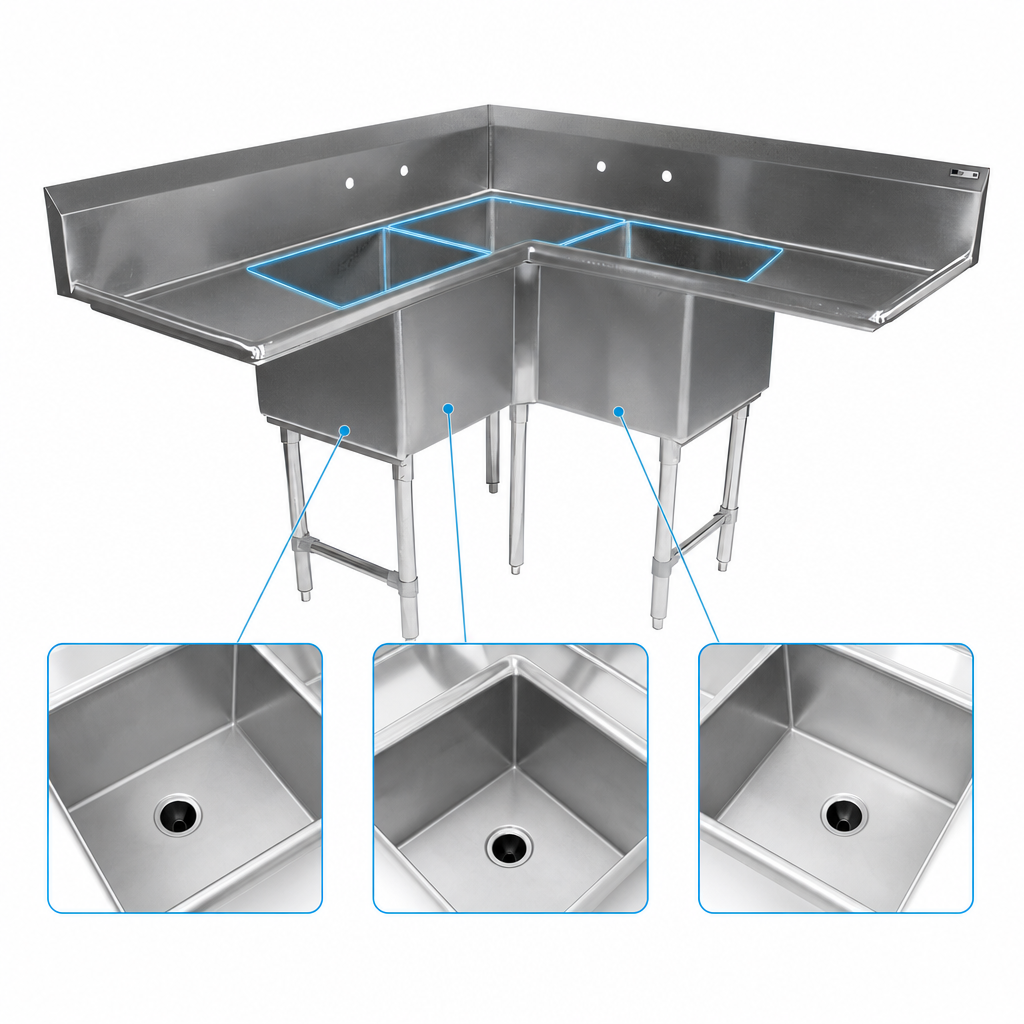

John Boos “Pro-Bowl” 3-Compartment Corner Sink
68-1/2" W × 68-1/2" D × 44-1/16" H • 20" × 20" × 12" Bowls • 24" DrainboardsMaximize every inch of your dish room with the John Boos Pro-Bowl corner sink. Built from heavy-duty 16 ga. type 300 stainless steel, this L-shaped powerhouse delivers three full-size compartments, 24" drainboards on both sides, and a high boxed backsplash—all in one space-saving footprint that tucks neatly into any 90° corner. NSF and CSA-Sanitation certifications mean it is ready for the toughest commercial kitchens the moment it arrives.
Key Features & Benefits
- Space-saving corner design keeps workflow smooth and aisles clear.
- (3) 20" W × 20" F/B × 12" deep compartments handle high-volume ware-washing and prep.
- Dual 24" drainboards (left & right) provide generous landing areas for dirty and clean wares.
- 10" high boxed backsplash with 45° top and 2" return protects walls from moisture and debris.
- (2) Sets of 8" O.C. splash-mount faucet holes allow independent fill & rinse stations.
- 3-1/2" die-stamped drain openings speed installation of standard sink drains & strainers.
- All TIG-welded seams; exposed welds are polished to a smooth, sanitary #4 satin finish.
- Front-to-back & left-to-right tubular bracing adds rock-solid stability—no wobble even when fully loaded.
- 1-5/8" Ø stainless steel legs with adjustable bullet feet level the unit on uneven floors.
- NSF & CSA-Sanitation listed for worry-free code compliance.
Quick Specs
| Model | Pro-Bowl Corner – 3 Compartments |
|---|---|
| Overall Dimensions | 68-1/2" W × 68-1/2" D × 44-1/16" H (to top of backsplash) |
| Working Height | 34-1/16" to deck / 36-5/16" to sink rim |
| Compartments | 3 – each 20" W × 20" F/B × 12" D |
| Drainboards | (2) 24" – left & right |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet Holes | (2) sets of 1" Ø holes, 8" centers, splash-mount |
| Drain Opening | 3-1/2" die-stamped (per bowl) |
| Material | 16 ga. Type 300 stainless steel, #4 satin finish |
| Legs / Feet | 1-5/8" Ø stainless legs with 1" adjustable bullet feet |
| Bracing | 1-1/4" Ø stainless cross-bracing, all-welded |
| Certifications | NSF, CSA-Sanitation |
| Weight | Approx. 147 lb |
Care & Maintenance
Stainless steel is remarkably durable, but it performs best with regular cleaning:
- Wipe down after each shift with clean water and a non-chloride detergent.
- Avoid steel wool or abrasive pads; use plastic scouring pads instead.
- Remove stubborn stains with Bar Keepers Friend, scrubbing in the direction of the polish lines.
- Finish with John Boos Stainless Steel Cleaner to restore a protective sheen.
Following these simple steps keeps the passive protective film intact and prevents corrosion for years of reliable service.
What’s Included
- John Boos Pro-Bowl 3-Compartment Corner Sink
- Stainless steel legs, cross-bracing & adjustable bullet feet (pre-drilled & hardware included)
- Installation & care manual
