John Boos 3PBCS184-2D24 Pro-Bowl Compartment Sinks
Description

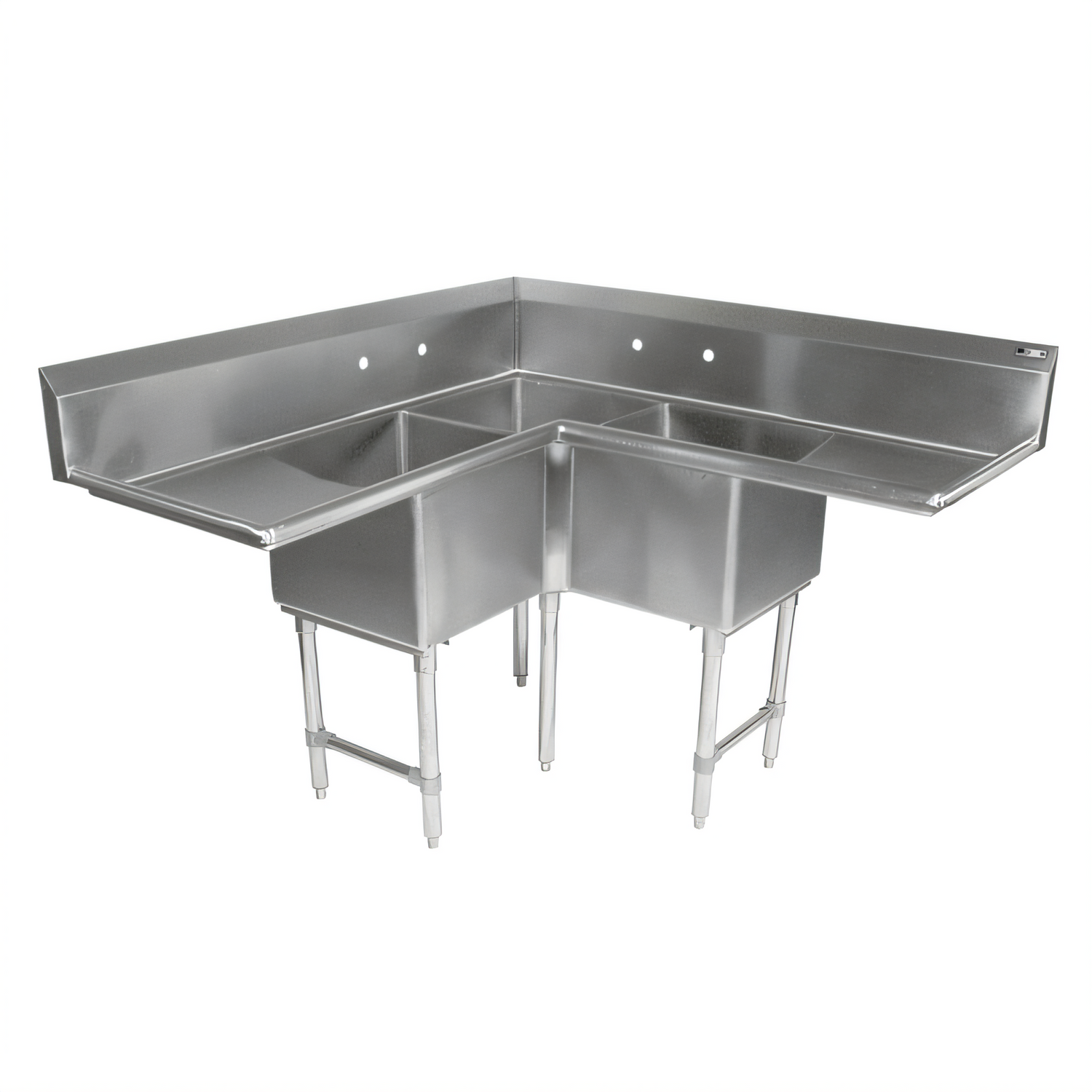

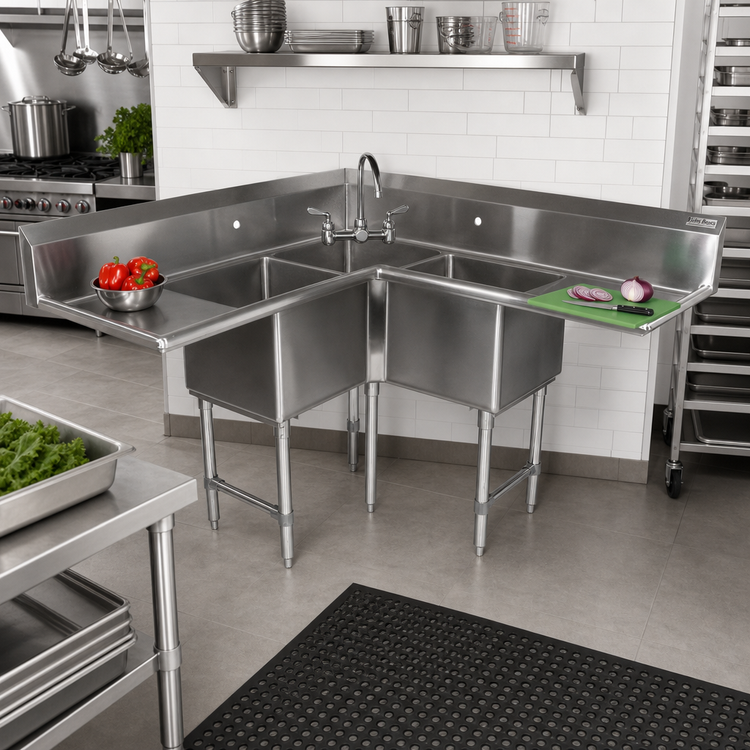

John Boos “Pro-Bowl” 3-Compartment Corner Sink
64-1/2" W × 64-1/2" D with Dual 24" DrainboardsBuilt for high-volume food-service operations that need to maximize every inch of floor space, the NSF-listed Pro-Bowl corner sink tucks neatly into a 90° corner while giving you full three-compartment washing capacity and spacious drainboards on both sides.
Highlights
- Three 18" × 18" × 14" deep bowls for dedicated wash, rinse & sanitize stations.
- (2) 24" integral drainboards—one on each wing—to stage soiled and air-dry clean wares.
- 10" boxed backsplash with 45° sanitary top and 2" return keeps water off walls.
- (2) sets of 8" on-center splash-mount faucet holes for pre-rinse and fill faucets.
- 3-1/2" die-stamped drain openings accept standard basket strainers or disposers.
- 16-gauge, Type 300 stainless steel with #4 satin polish—tough, corrosion-resistant and easy to clean.
- Stainless steel 1-5/8" legs, 1-1/4" cross-bracing and 1" adjustable bullet feet for rock-solid stability.
- All corners coved to a 3/4" radius; bull-nosed edges protect staff and simplify wipe-downs.
- Fully TIG-welded; exposed welds are ground and polished to match adjacent surfaces.
Technical Specifications
| Overall dimensions | 64-1/2" W × 64-1/2" D × 44-1/16" H |
|---|---|
| Working height | 34-1/16" to sink rim (36-5/16" to rolled rim) |
| Compartments | (3) 18" W × 18" F-B × 14" D bowls |
| Drainboards | (2) 24" L—left & right |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet mounting | (2) sets, 8" on-center splash-mount |
| Drain opening | 3-1/2" dia. die-stamped |
| Material / finish | 16 ga. Type 300 stainless, #4 satin |
| Legs & bracing | Stainless 1-5/8" legs, 1-1/4" cross-brace |
| Feet | 1" adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Manufacturer | John Boos & Co., Effingham, IL USA |

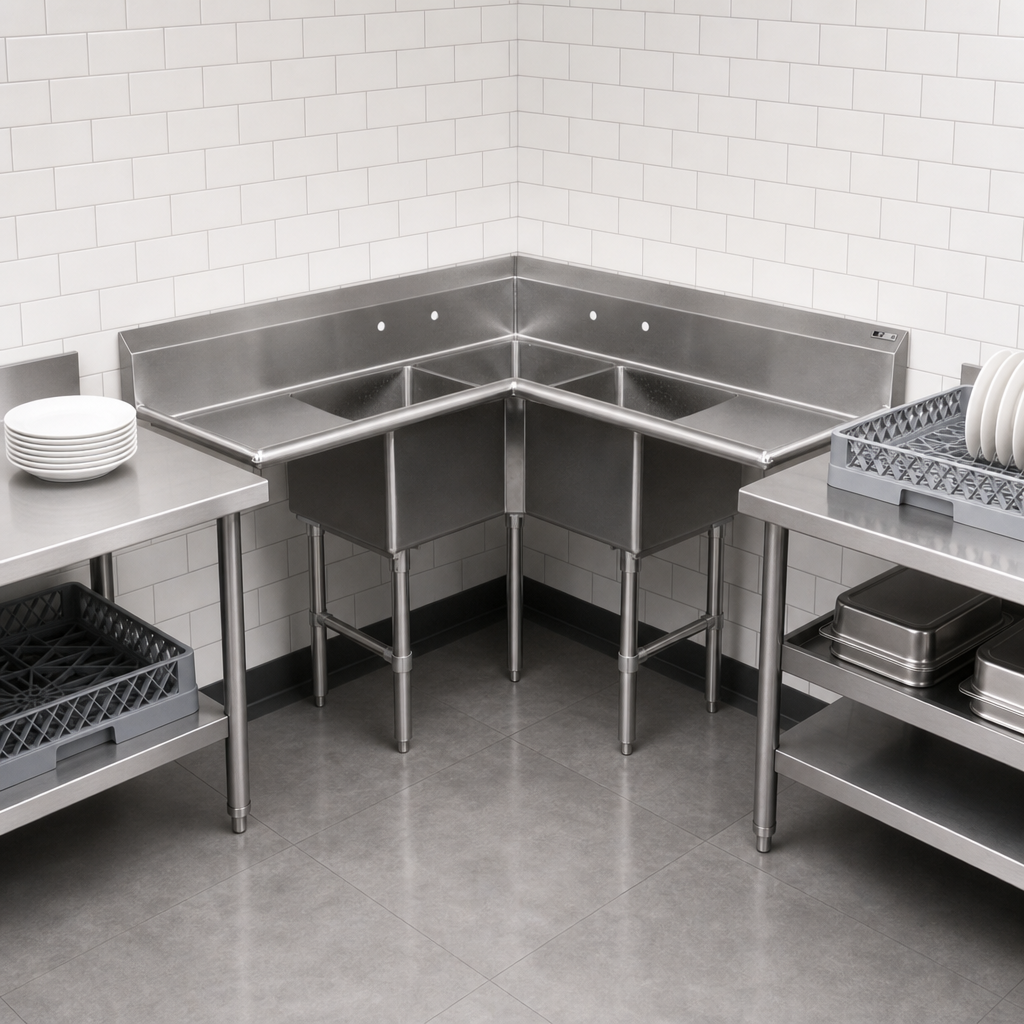

Why a Corner Sink?
- Turns unused corner space into a fully functional ware-washing station.
- Frees up straight-line wall runs for prep tables, refrigeration or shelving.
- Creates an ergonomic work triangle between wash, rinse and sanitize bowls.
Complete your installation with compatible faucets, basket strainers and pre-rinse sprayers—available in our Accessories collection.
