John Boos

John Boos Pro-Bowl 3-Compartment Corner Sink with Dual 36-Inch Drainboards, 16-Gauge Stainless Steel

SKU: 3PBCS1824-2D36
GTIN: 662969685577
$4,486.68
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 3-Compartment Corner Sink with Dual 36-Inch Drainboards, 16-Gauge Stainless Steel

Corner layout with 10-Inch boxed backsplash and splash mount faucet holes

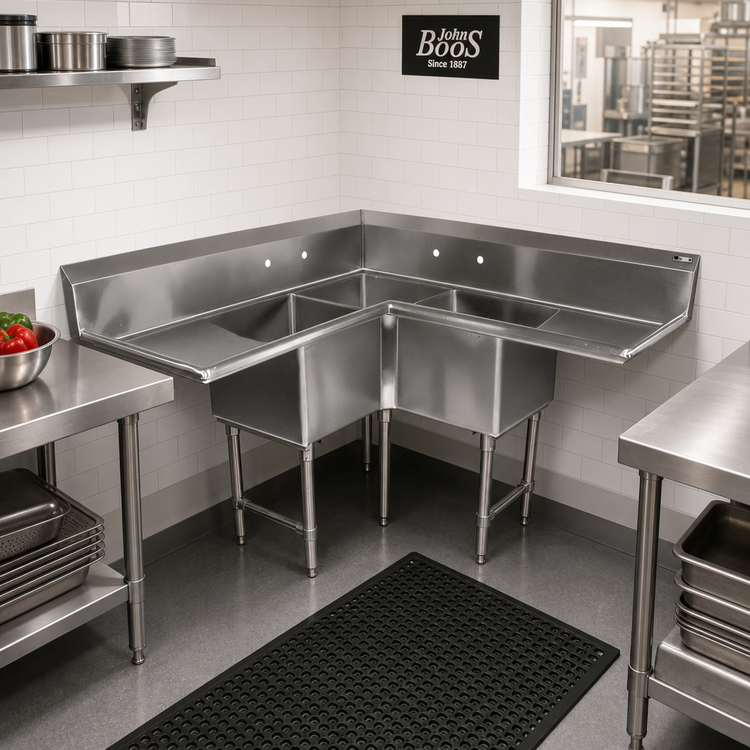

Designed to make the most of corner space, this rugged three-compartment sink combines generous drainboards, a high backsplash, and stainless steel construction for efficient dishroom workflow.

  • Corner design helps maximize usable wall space in busy dish areas.
  • Three compartments include two 18 x 24 x 12-inch basins and one 24 x 24 x 12-inch corner basin.
  • Two 36-inch drainboards provide staging space for washing and drying.
  • 10-inch boxed backsplash with a 45-degree top and 2-inch return helps contain splashes.
  • Built with 16/300 stainless steel and supported by stainless steel legs, bracing, and adjustable bullet feet.
  • Includes two sets of splash mount faucet holes with 8-inch centers and a 3-1/2-inch die-stamped drain opening.

Overall Dimensions:

82.5"W x 29.5"D x 44.06"H

Product Weight:

183.0 lb

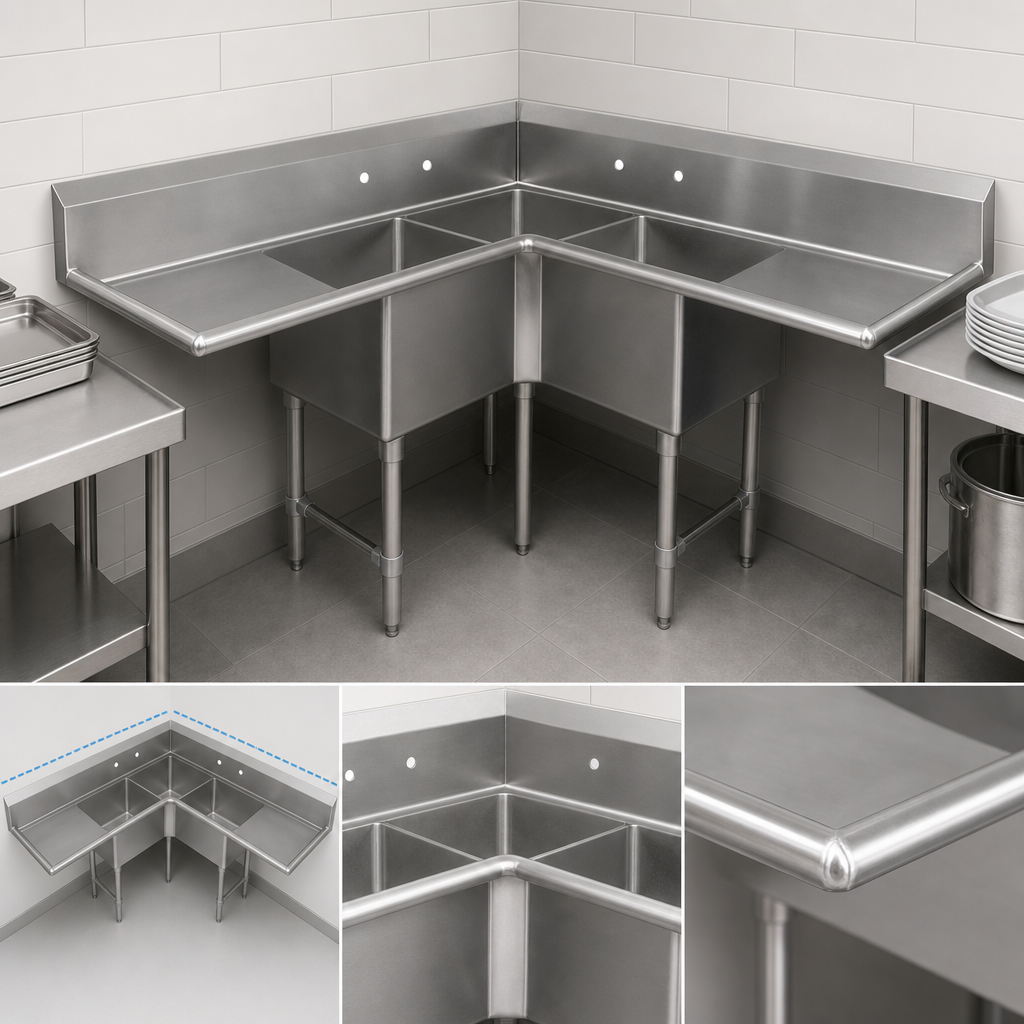

Corner Sink Configuration

Corner footprint is designed to fit along two walls and improve workflow in compact sink areas.

Three-Compartment Layout

Includes two 18-inch wide x 24-inch front-to-back x 12-inch deep compartments and one 24-inch wide x 24-inch front-to-back x 12-inch deep corner compartment.

Dual Drainboards

Two 36-inch left and right drainboards add landing space for dirty ware, rinsing, and sorting.

Boxed Backsplash

10-inch backsplash with a 45-degree top and 2-inch return helps reduce wall splash and improve cleanup.

Splash Mount Faucet Holes

Two sets of faucet holes with 8-inch centers are included for sink-side faucet installation.

Heavy-Duty Stainless Steel Construction

Built from 16/300 stainless steel for durability in commercial foodservice environments.

Stainless Steel Support Frame

Includes stainless steel legs and bracing with adjustable bullet feet for stable installation and leveling.

Die-Stamped Drain Opening

3-1/2-inch die-stamped drain opening supports standard sink drainage.

Type 3-Compartment Sink
Style Corner
Installation Type Floor Model
Compartments 3
Material Stainless Steel
Top Gauge 16 Gauge
Top Series 300 Series Stainless Steel
Backsplash Height 10 Inches
Drainboards 2
Drainboard Length 36 Inches
Drain Opening 3-1/2 Inches
Faucet Hole Centers 8 Inches
Shipping Width 83 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 183 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments: two 18-inch by 24-inch by 12-inch compartments and one 24-inch by 24-inch by 12-inch corner compartment.
Yes. It includes two 36-inch drainboards, one on the left and one on the right.
It has a 10-inch boxed backsplash with a 45-degree top and a 2-inch return.
Yes. The sink includes two sets of splash mount faucet holes with 8-inch centers.
It is constructed from 16/300 stainless steel and includes stainless steel legs, bracing, and adjustable bullet feet.
The sink has a 3-1/2-inch die-stamped drain opening.
