John Boos  |  Pro-Bowl  |  SKU: 3PBCS1824-2D30  |  UPC: 662969685515

John Boos 3PBCS1824-2D30 Pro-Bowl Compartment Sinks

$4,242.36
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Pro-Bowl™ 3-Compartment Corner Sink – 76 ½" x 76 ½"

John Boos | 16 ga Type 300 Stainless Steel | NSF & CSA-Sanitation

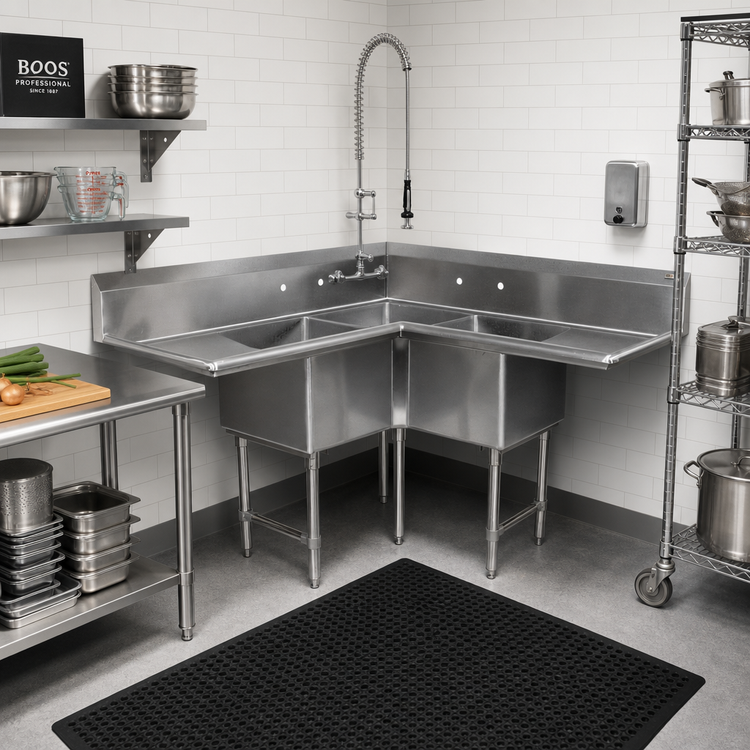

Turn an unused corner into a highly productive wash station. The Pro-Bowl corner sink combines three generous compartments, extra-long drainboards and a rock-solid 16-gauge stainless-steel frame—everything your high-volume kitchen needs to clean, rinse and sanitize faster.

Why you’ll love it

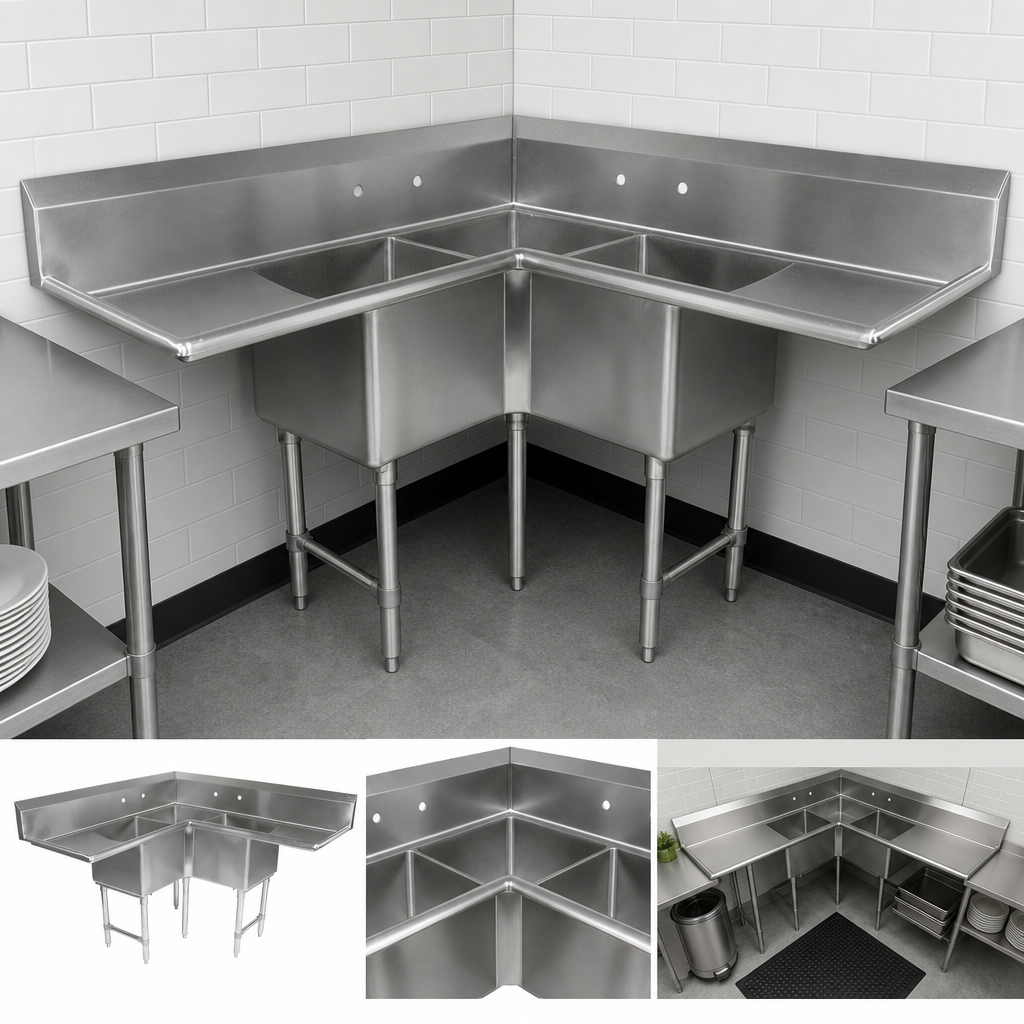

  • Space-saving corner “L” layout maximises workflow without sacrificing floor space.
  • (2) 18" W x 24" F/B x 12" D bowls for washing & rinsing + (1) 24" W x 24" F/B x 12" D centre bowl for sanitising or soaking.
  • (2) 30" drainboards—left and right—speed drying & landing.
  • 10" boxed backsplash with 45° return keeps walls dry & hygienic.
  • (2) sets of 8"-on-centre splash-mount faucet holes ready for pre-rinse & fill faucets.
  • 3 ½" die-stamped drain openings accept industry-standard strainers & disposers.
  • Fully TIG-welded, satin-polished Type 300 stainless steel resists corrosion & cleans easily.
  • 1 ⅝" O.D. stainless-steel legs with cross-bracing & adjustable bullet feet for rock-steady support.
  • NSF & CSA-Sanitation listed for safe use in commercial food-service operations.

At-a-glance specs

Overall dimensions 76 ½" W x 76 ½" D x 44 1⁄16" H (to top of backsplash)
Working height 34 1⁄16" – 36 5⁄16" (adjustable via bullet feet)
Compartments 3 total (see individual bowl sizes below)
Bowl sizes (2) 18" W x 24" F/B x 12" D
(1) 24" W x 24" F/B x 12" D (corner)
Drainboards (2) 30" L – left & right
Backsplash 10" H boxed with 2" return & 45° top edge
Faucet mounting (2) splash-mount sets, 8" centres (faucets sold separately)
Drain openings 3 ½" dia. die-stamped (per compartment)
Steel thickness 16 ga (0.0625")
Material Type 300 SS, #4 satin polish
Legs / bracing Stainless steel, TIG-welded, 1 ⅝" O.D.
Feet 1" dia. stainless adjustable bullet feet
Certifications NSF, CSA-Sanitation

Care & maintenance

  • Clean routinely with mild soap or Bar Keepers Friend; always wipe in the direction of the grain.
  • Avoid chlorine bleach or cleansers containing chlorides—rinse immediately if contact occurs.
  • Use soft cloths, sponges or plastic scouring pads; never use steel wool or metal scrapers.
  • Restore shine with John Boos Stainless Steel Cleaner or similar non-chloride polish.

Proper care preserves the passive protective film on stainless steel, preventing rust and extending service life.

Heads up: Faucets, drains and installation hardware are not included unless added above. Verify local plumbing codes for compliance before installation.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

76.5in

Depth

29.5in

Shipping Weight

174.0lbs

Compartment Width (side - side)

18"

Top Gauge

16 gauge

Top Stainless Series

300 series

Compartments

3 compartments

Overall Length

73" - 84"

Splash Height

10"

Compartment (front - back)

24"

Sink Depth (rim - drain)

12"

Base Construction

stainless steel

Specifications

Pro-Bowl Corner Sink, 3-compartment, 76-1/2"W x 76-1/2"D x 44-1/16"H overall size, (2) 18"W x 24" front-to-back x 12" deep compartments & (1) 24"W x 24" front-to-back x 12" deep compartment in corner, (2) 30" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, bracing, & adjustable bullet feet, NSF, CSA-Sanitation
