John Boos Pro-Bowl 3-Compartment Corner Sink with Dual Drainboards, 70-1/2" x 70-1/2"

SKU: 3PBCS1824-2D24
GTIN: 662969685478
$3,874.86
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

John Boos Pro-Bowl 3-Compartment Corner Sink with Dual Drainboards, 70-1/2" x 70-1/2"

16-Gauge, 300 Series Stainless Steel, 10" Backsplash

A space-saving corner sink with three compartments, dual drainboards, and durable stainless construction built for high-volume foodservice work.

  • Corner layout maximizes wall space while providing three wash compartments.
  • Includes two 24" drainboards for staging, drying, and workflow efficiency.
  • Built from 16-gauge, 300 series stainless steel with stainless steel legs, bracing, and adjustable bullet feet.
  • 10" boxed backsplash with a 45° top and 2" return helps contain splashes.
  • Pre-punched splash-mount faucet holes and a 3-1/2" die-stamped drain opening support installation.
  • Designed for commercial kitchens that need a rugged, easy-to-clean sink solution.

Overall Dimensions:

70.5"W x 29.5"D x 44.06"H

Product Weight:

165.0 lb

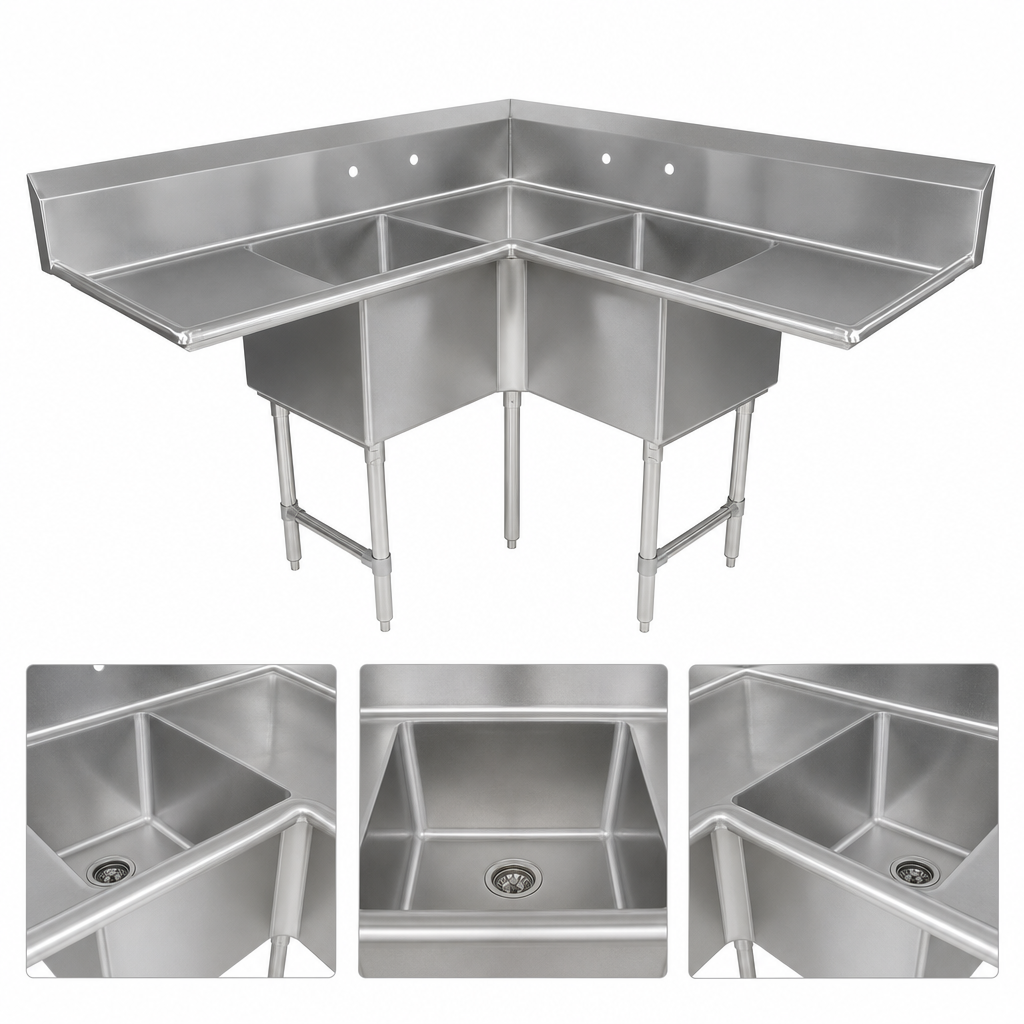

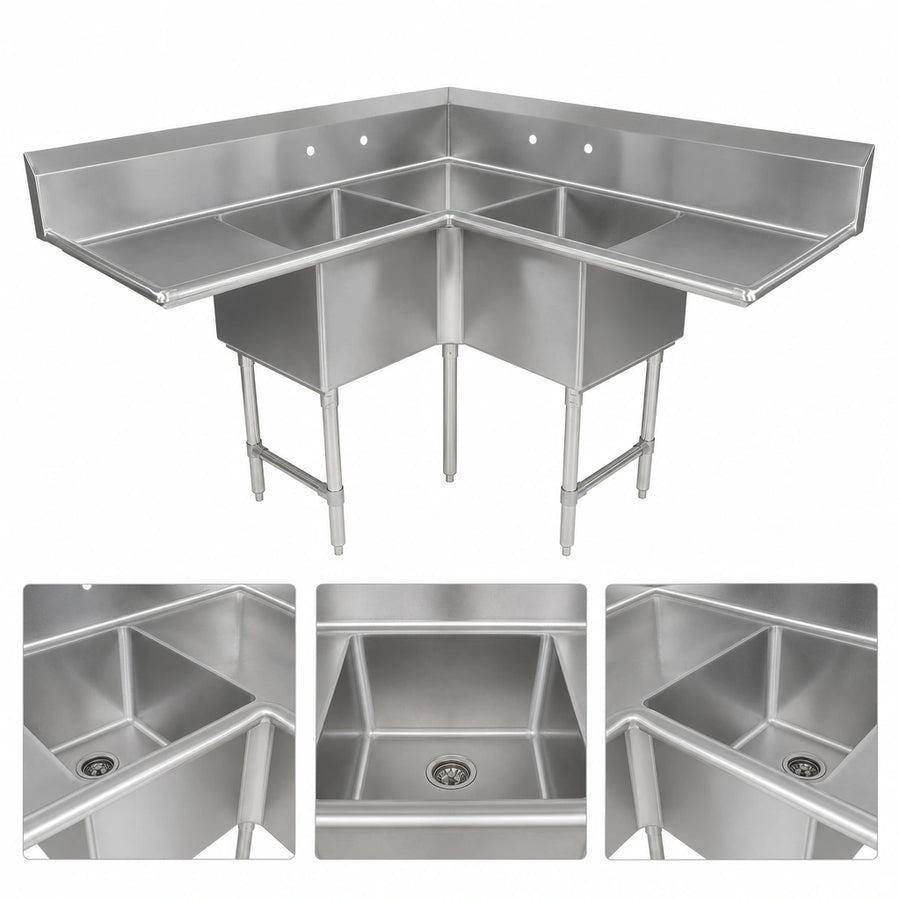

Three-Compartment Corner Design

Corner configuration includes three separate compartments to support washing, rinsing, and sanitizing tasks.

Dual 24-Inch Drainboards

Left and right drainboards provide extra landing space for dishes, utensils, and prep items.

16-Gauge Stainless Steel Construction

Heavy-duty stainless steel build is made for demanding commercial kitchen use.

10-Inch Boxed Backsplash

Tall backsplash includes a 45° top and 2-inch return to help reduce wall splatter.

Splash-Mount Faucet Holes

Two sets of faucet holes are spaced on 8-inch centers for compatible splash-mount faucets.

3-1/2-Inch Die-Stamped Drain Opening

Standard drain opening supports reliable drainage and easier installation.

Stainless Steel Legs and Adjustable Bullet Feet

Rigid support structure with adjustable feet helps stabilize the sink on uneven floors.

Oversized Corner Compartment

The corner wash area measures 24" wide by 24" front-to-back by 12" deep for larger ware.

Type Corner Sink
Style 3-Compartment
Installation Type Floor Model
Material 300 Series Stainless Steel
Gauge 16 Gauge
Compartments 3
Compartment Depth 12 Inches
Backsplash Height 10 Inches
Drainboard Length 24 Inches
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Shipping Width 71 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 165 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

The sink measures 70-1/2" W x 70-1/2" D x 44-1/16" H overall.
It has three compartments: two 18" W x 24" front-to-back x 12" deep compartments and one 24" W x 24" front-to-back x 12" deep corner compartment.
Yes. It includes two 24" drainboards, one on the left and one on the right.
It is constructed from 16-gauge, 300 series stainless steel and includes stainless steel legs, bracing, and adjustable bullet feet.
It includes two sets of splash-mount faucet holes with 8" centers and a 3-1/2" die-stamped drain opening.
