John Boos 3PBCS16204-2D18 Pro-Bowl Compartment Sinks
Description

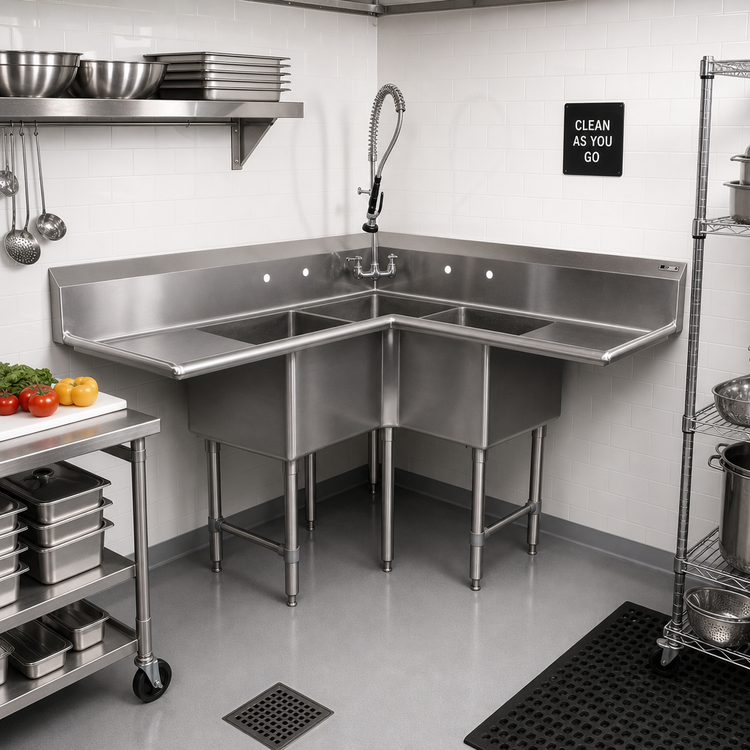

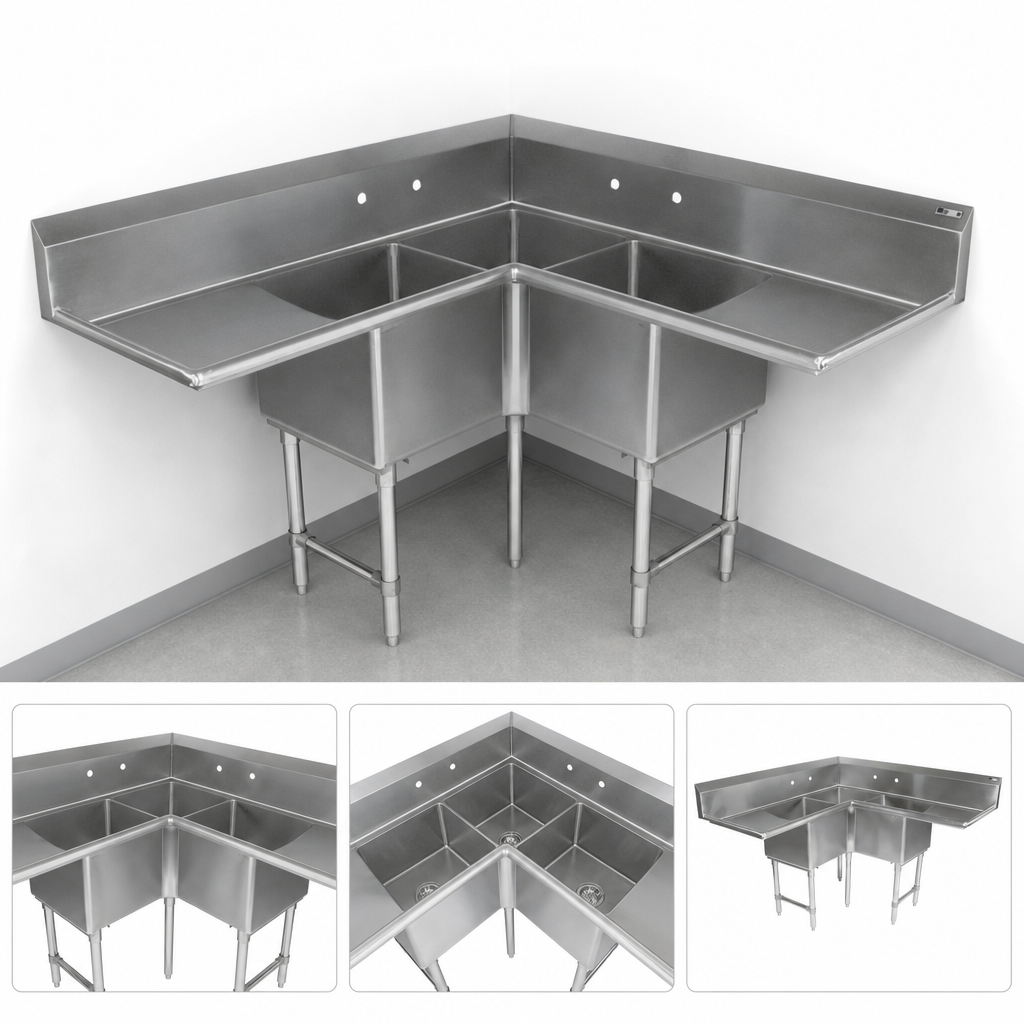

Pro-Bowl 3-Compartment Corner Sink
Model Series: “3PBCS” • John Boos & Co.Engineered to tuck neatly into a 90° corner, the Pro-Bowl Corner Sink delivers a full three-bay ware-washing station without stealing prime lineal wall space. Heavy-duty 16-gauge, type 300 stainless steel—complete with boxed backsplash, dual drainboards and rock-solid stainless base—makes it the professional choice for restaurants, commissaries and institutional kitchens that refuse to compromise on durability or sanitation.
Key Features
- Space-saving corner design: 58 ½" W × 58 ½" D footprint
- (2) 16" W × 20" F-to-B × 14" D bowls + (1) 20" W corner bowl
- (2) 18" left & right drainboards formed with positive pitch
- 10" high boxed backsplash with 45° return & 2" turn-down lip
- (2) sets of splash-mount faucet holes, 8" on-center
- 3 ½" die-stamped drain openings (one per bowl)
- 16-gauge, type 300 stainless steel – #4 satin polish finish
- Fully TIG-welded sink & base; exposed welds ground & polished
- 1 ⅝" Ø stainless steel legs with front-to-back & left-to-right bracing
- Adjustable 1" stainless steel bullet feet level on uneven floors
- All outside corners bull-nosed for a safe, easy-clean edge
- NSF & CSA-Sanitation certified
Specifications at a Glance
| Overall Footprint | 58 ½" W × 58 ½" D × 44 1⁄16" H (to top of backsplash) |
|---|---|
| Working Height | 34 1⁄16" (rim) • 36 5⁄16" (rolled) |
| Bowl (x2) | 16" W × 20" F-B × 14" D |
| Corner Bowl (x1) | 20" W × 20" F-B × 14" D |
| Drainboards | 18" left & right; integral with positive pitch |
| Material / Finish | 16-ga type 300 stainless w/ #4 satin polish |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet Mount | Splash-mount, 8" centers (two sets) |
| Drain Opening | 3 ½" dia. die-stamped (one per bowl) |
| Certifications | NSF, CSA-Sanitation |
Built to Outlast & Outperform
- Passivated stainless surface resists corrosion, staining and harsh cleaning chemicals.
- Generous ¾" interior corner radius speeds clean-up and eliminates grime-catching seams.
- TIG-welded construction provides industrial-grade strength with a seamless look.
- Bullet feet adjust independently—perfect for older buildings with sloped or tiled floors.
Care tip: For routine cleaning, wipe with a soft towel and a non-chloride cleanser such as Bar Keepers Friend. Rinse and dry to maintain the protective stainless film.
