John Boos 3PBCS1620-2D18 Pro-Bowl Compartment Sinks
Description
John Boos Pro-Bowl 3-Compartment Corner Sink
Model 3PBCS1620-2D18 | NSF & CSA-Sanitation ListedTurn an unused corner into a high-capacity ware-washing station. The John Boos Pro-Bowl corner sink delivers three full-size compartments, twin drainboards and legendary 16-gauge stainless-steel durability—all in a space-saving L-shaped footprint.

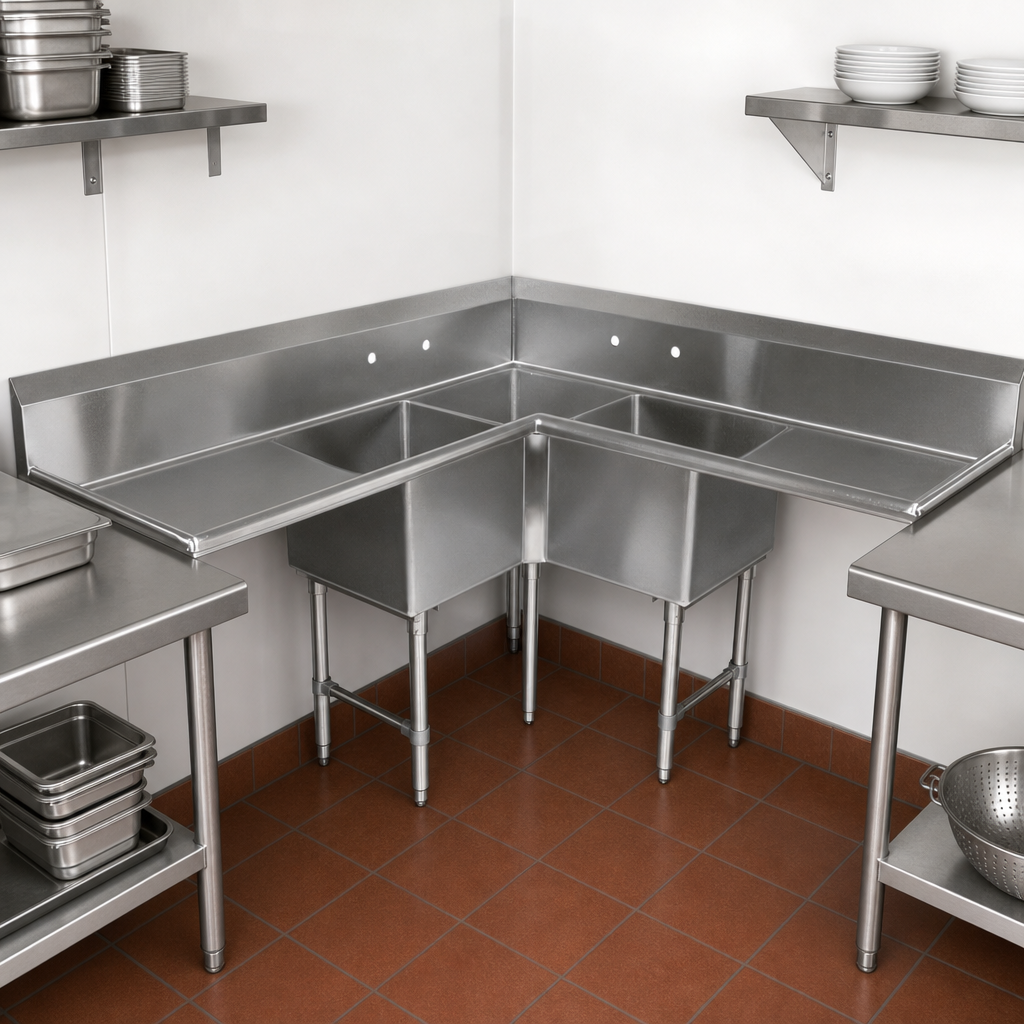

- Compact 90° layout: 58-1/2" W × 58-1/2" D × 44-1/16" H overall
- (2) 16" × 20" × 12" deep bowls for wash & rinse
- (1) 20" × 20" × 12" deep corner bowl for sanitize
- (2) 18" welded drainboards—ideal landing areas for dirty & clean ware
- 10" boxed backsplash with 2" return and 45° drip-deflecting top
- (2) sets of pre-drilled 8" on-center faucet holes (splash-mount)
- 3-1/2" die-stamped drain openings accept standard baskets & disposers
- 16 ga. Type 300 stainless steel, #4 satin polish—built for heavy commercial use
- 1-5/8" Ø stainless legs with front-to-back & side-to-side bracing
- Coved 3/4" interior corners and bull-nosed edges for quick, sanitary cleanup
- Fully TIG-welded; exposed welds blended to match surrounding finish
Quick Specs
| Overall dimensions (W × D × H) | 58-1/2" × 58-1/2" × 44-1/16" |
|---|---|
| Working height | 34-1/16" (36-5/16" to sink roll) |
| Bowl #1 & #2 size | 16" W × 20" F-B × 12" D |
| Bowl #3 (corner) size | 20" W × 20" F-B × 12" D |
| Drainboards | 18" left & right, integrally welded |
| Backsplash | 10" boxed with 2" return, 45° top |
| Faucet holes | (2) sets, 1" Ø, 8" centers |
| Material / gauge | 16 ga. Type 300 stainless steel |
| Approx. weight | 128 lb |
| Certifications | NSF, CSA-Sanitation |
Simple Stainless Care
Keep your sink looking showroom-new with routine maintenance:
- Clean daily with mild soap or Bar Keepers Friend and a soft cloth—always with the grain.
- Rinse and dry promptly; standing water or food acids can dull the finish.
- Avoid chlorine bleach, steel wool and abrasive cleaners.
- Finish with John Boos Stainless Steel Polisher for extra protection and shine.
