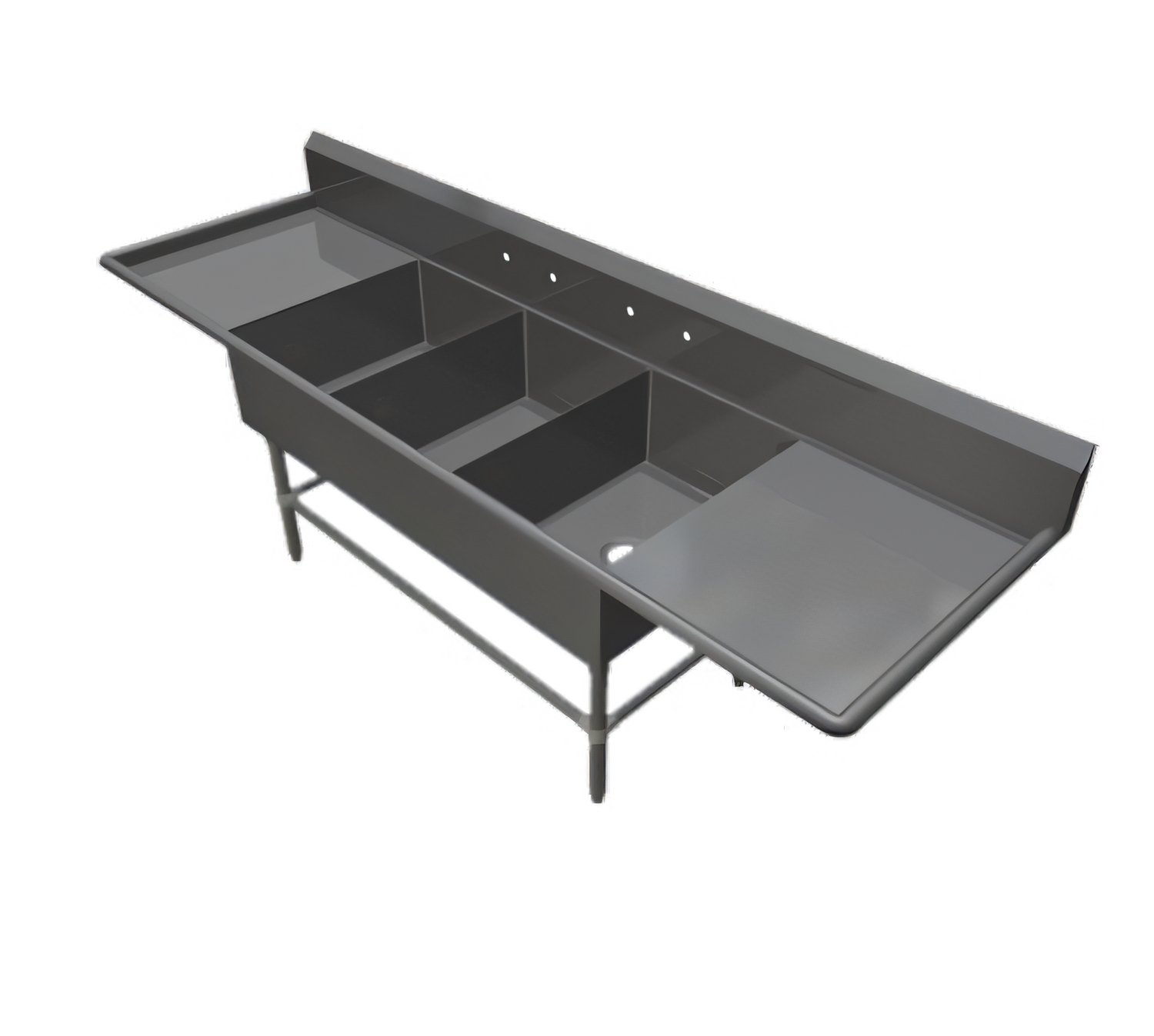

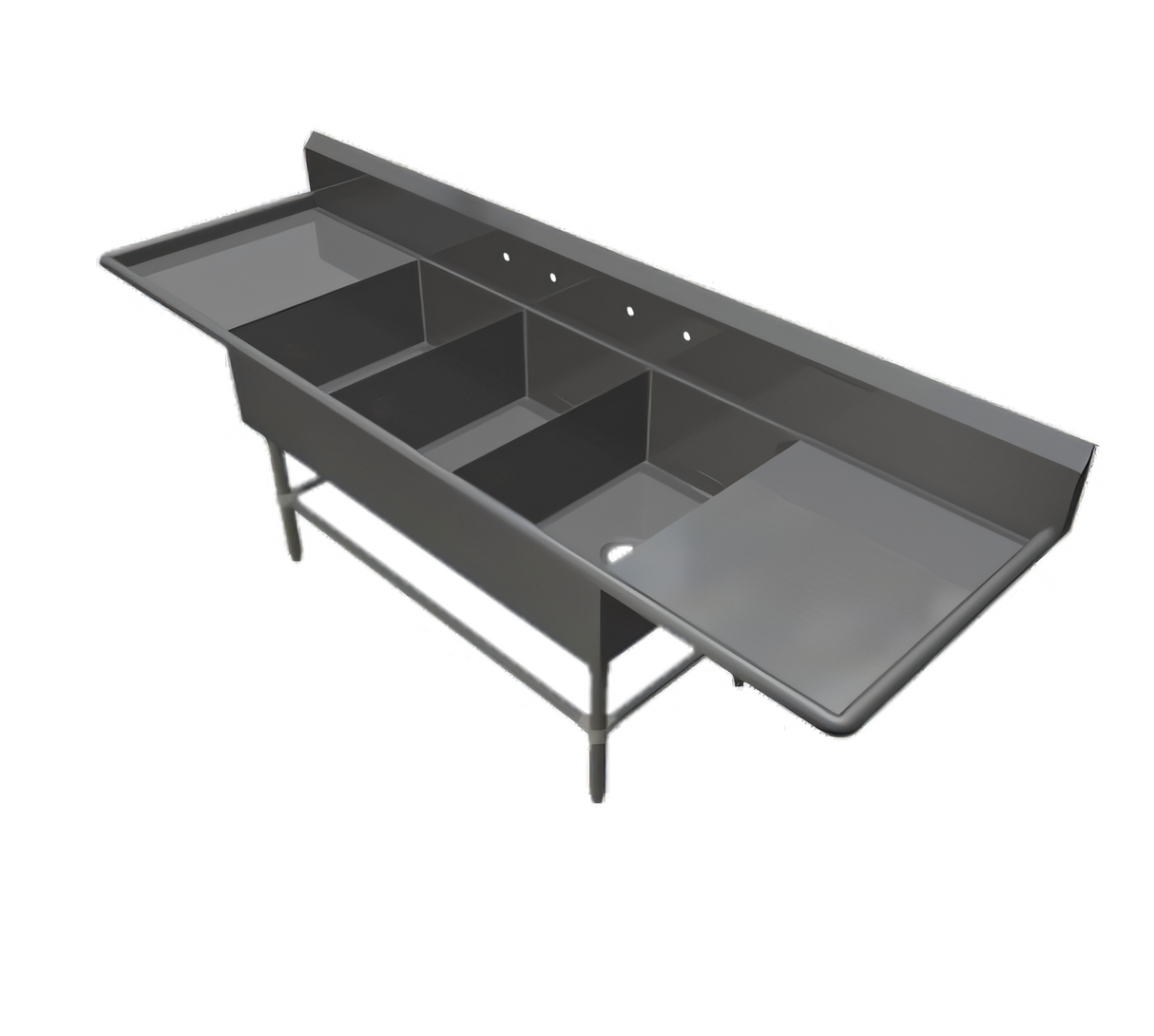

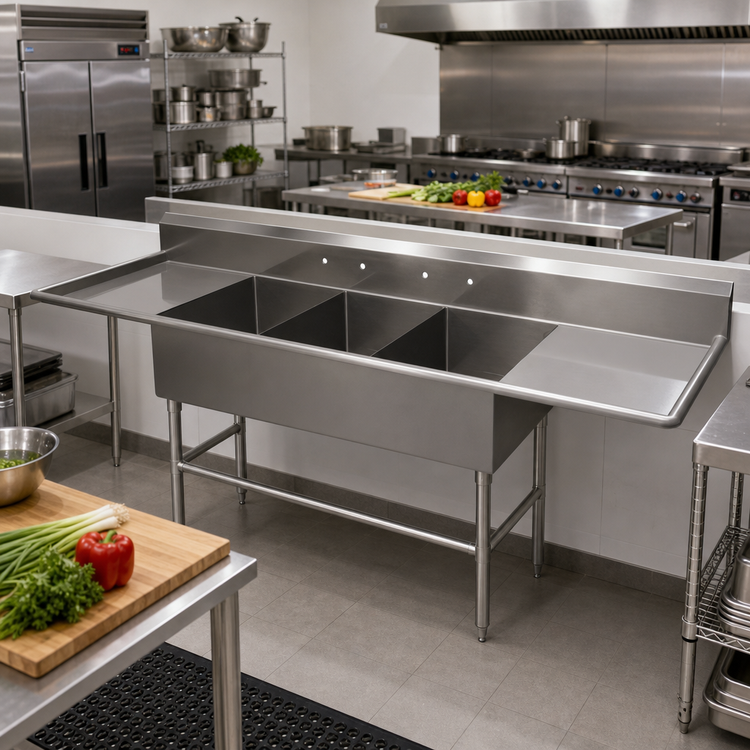

3-Compartment Stainless Steel Sink with Dual Drainboards, 12-Inch Deep Bowls

153-1/4 Inches Wide, Floor Model, 10-Inch Backsplash

Built for high-volume kitchens, this three-compartment sink combines dual drainboards, deep bowls, and a stainless steel base for efficient warewashing and prep.

  • Three 30-inch by 24-inch by 12-inch compartments support separate wash, rinse, and sanitize stations.
  • Left and right 30-inch drainboards provide convenient landing space on both sides of the sink.
  • A 10-inch boxed backsplash with a 45-degree top and 2-inch return helps protect the wall from splash.
  • 16-gauge 300 series stainless steel construction is built for demanding commercial use.
  • Adjustable stainless steel bullet feet and front-and-side bracing help simplify leveling and support.
  • Knock-down construction makes delivery and on-site assembly easier.

Overall Dimensions:

153.25"W x 29.5"D x 44.06"H

Product Weight:

202.0 lb

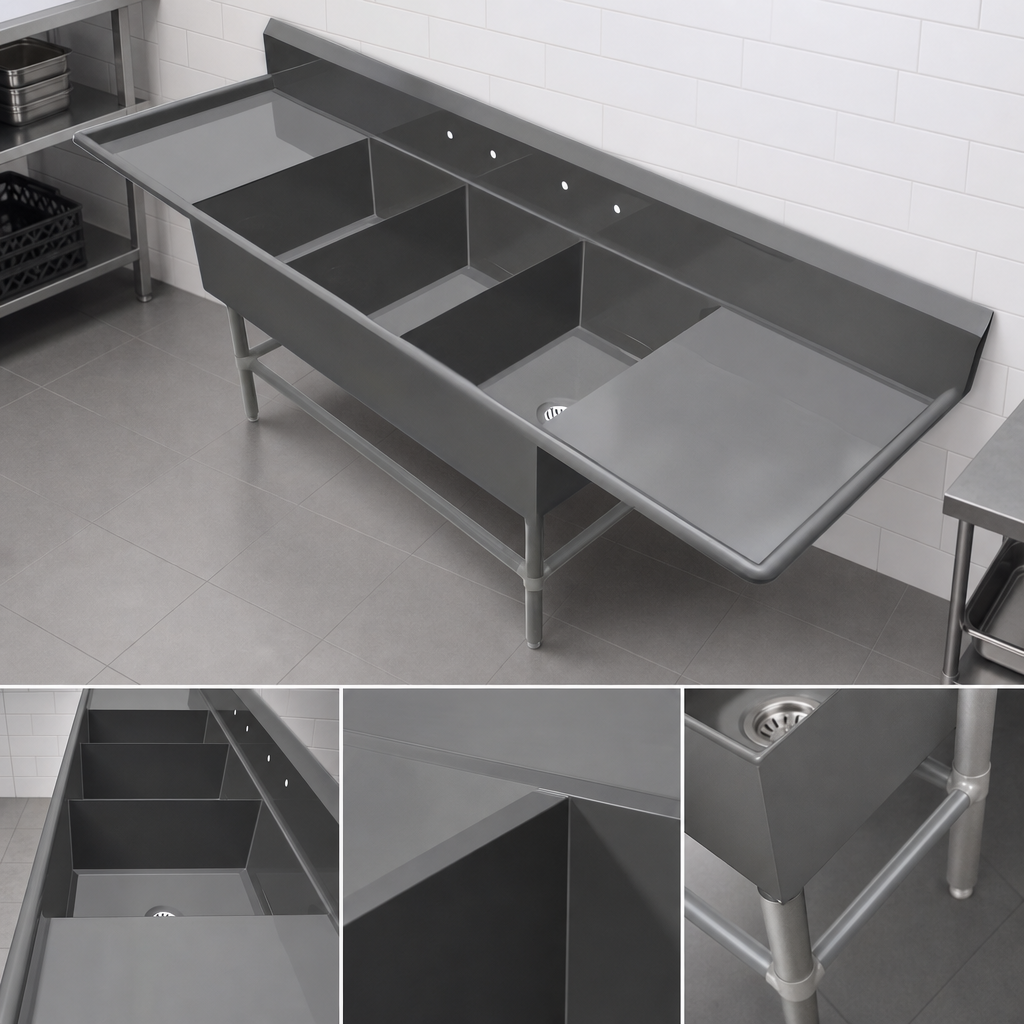

Three Deep Compartments

Includes three 30-inch wide by 24-inch front-to-back by 12-inch deep bowls for high-volume sink workflows.

Dual Drainboards

Left and right 30-inch drainboards add landing space for soiled or clean wares on both sides of the sink.

10-Inch Boxed Backsplash

The full-length backsplash helps protect the wall and includes a 45-degree top with a 2-inch return to wall.

Splash-Mount Faucet Holes

Two sets of splash-mount faucet holes are spaced on 8-inch centers for faucet installation.

16-Gauge Stainless Steel Construction

The sink top and bowls are made from 16-gauge Type 300 stainless steel for durability and corrosion resistance.

Stainless Steel Base With Bracing

Stainless steel legs, front and side bracing, and gussets provide a sturdy support structure.

Adjustable Bullet Feet

1-inch adjustable stainless steel bullet feet make leveling easier on uneven floors.

Die-Stamped Drain Openings

Each bowl is formed for drainage to a 3-1/2-inch die-stamped drain opening.

Knock-Down Shipment

Ships knocked down for easier handling and installation.

Type Compartment Sink
Style 3 Compartment Sink with Dual Drainboards
Installation Type Floor Model
Material 300 Series Stainless Steel
Finish Satin
Gauge 16 Gauge
Compartments 3
Compartment Width 30 Inches
Compartment Depth 24 Inches
Bowl Depth 12 Inches
Backsplash Height 10 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 154 Inches
Shipping Depth 30 Inches
Shipping Height 45 Inches
Shipping Weight 202 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Instructions PDF Download PDF Care & maintenance PDF Download

Frequently Asked Questions

This sink has 3 compartments.
Each compartment measures 30 inches wide by 24 inches front-to-back by 12 inches deep.
Yes. It includes 30-inch drainboards on both the left and right sides.
It has a 10-inch boxed backsplash with a 45-degree top and 2-inch return, plus two sets of splash-mount faucet holes on 8-inch centers.
No. It ships knocked down for on-site assembly.
