John Boos  |  Pro-Bowl  |  SKU: 3PB24-1D30L  |  UPC: 662969747107

John Boos 3PB24-1D30L Pro-Bowl Compartment Sinks

$3,187.86
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

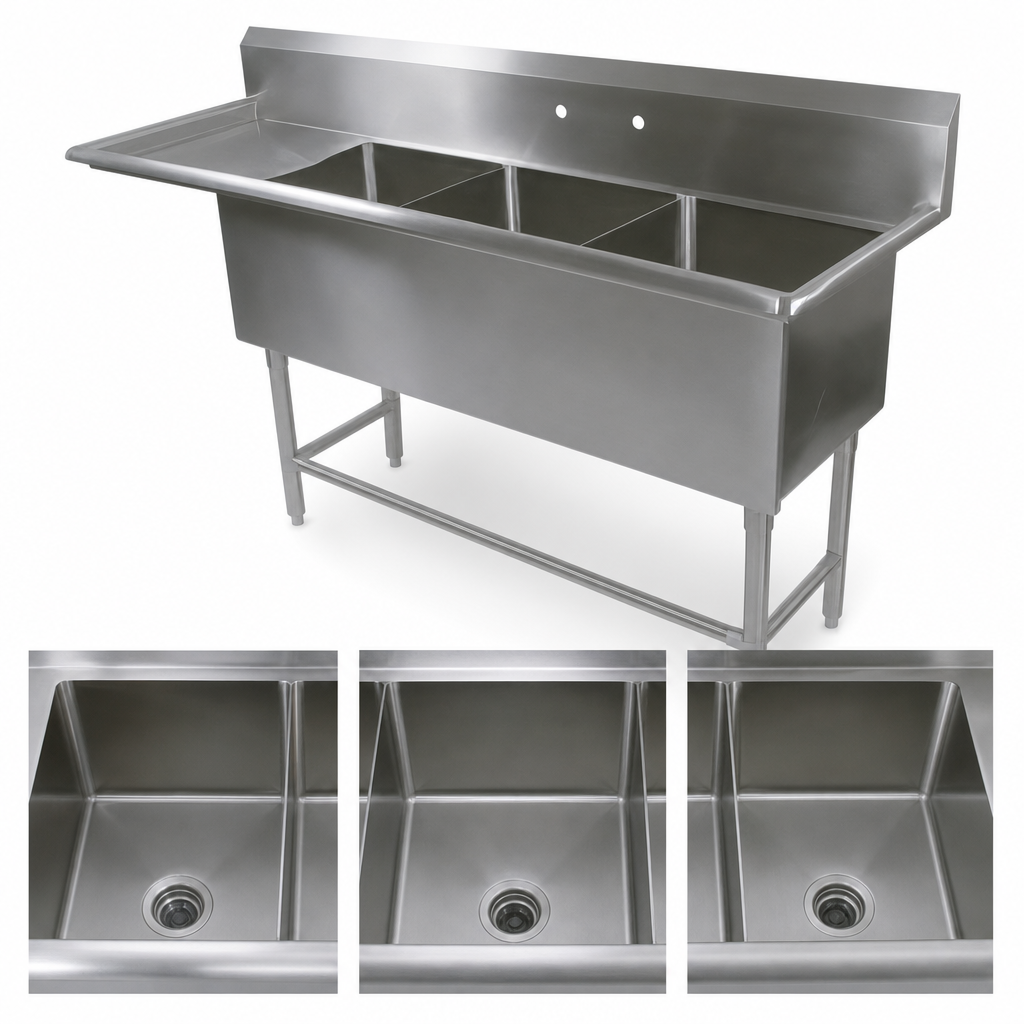

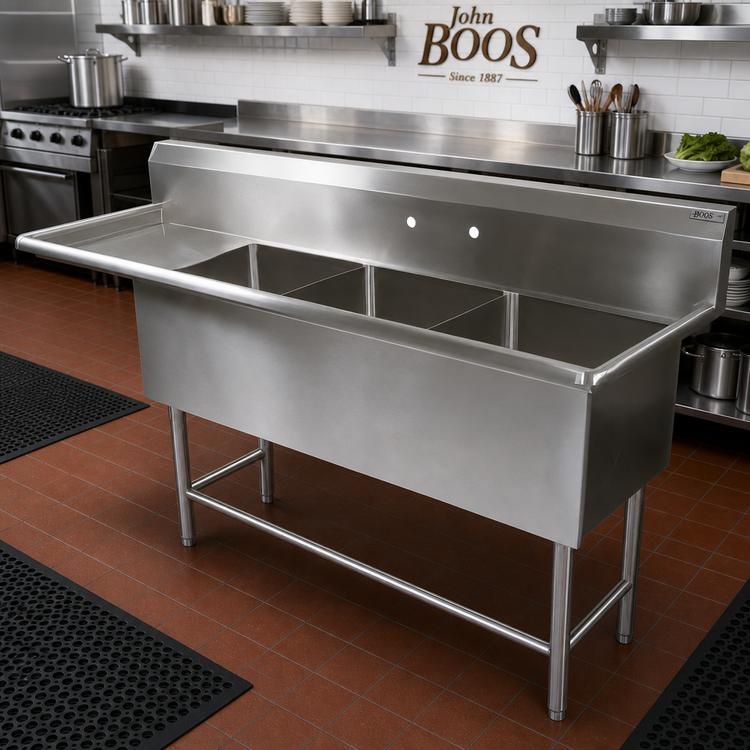

Pro-Bowl 3-Compartment Sink | 106"W with 30" Left Drainboard

John Boos – 16 ga 300-Series Stainless Steel, NSF & CSA-Sanitation

Built for the heaviest commercial loads, the John Boos Pro-Bowl series delivers exceptional durability, sanitation and ergonomic workflow. Three oversize bowls, a generous left drainboard and a high boxed backsplash make this sink the workhorse your kitchen, bakery or bar has been waiting for.

Key features

  • Overall size — 106 ⅛" W × 29 ½" D × 44 1⁄16" H (to backsplash top)
  • (3) 24" W × 24" F-B × 12" D bowls handle full-size sheet pans and stock pots
  • 30" left-hand drainboard speeds up drying and staging
  • 16 gauge, type 300 stainless steel top & bowls with #4 satin polish
  • 10" high boxed backsplash with 45° top & 2" return keeps walls clean
  • (2) sets of 8"-on-center splash-mount faucet holes (faucets sold separately)
  • 3 ½" die-stamped drain openings, bowls pitched for rapid drainage
  • 1 ⅝" Ø stainless legs, adjustable front & side cross-bracing
  • Stainless 1" adjustable bullet feet for quick leveling
  • Bull-nosed edges & ⅝" radius interior corners for easy wipe-down
  • Knocked-down (KD) design lowers freight costs and fits through tight doorways
  • NSF & CSA-Sanitation listed for food-service compliance

Technical specifications

Compartments (qty) 3
Compartment size 24" W × 24" F-B × 12" D
Drainboard 30" left-side, integrally welded
Backsplash 10" H boxed, 45° top, 2" return, ¾" turned-down lip
Faucet holes (2) sets, 8" centers, 1" Ø
Drain openings 3 ½" die-stamped
Material / finish 16 ga 300-series SS, #4 satin
Legs / bracing Stainless, 1 ⅝" Ø legs & 1 ¼" Ø side & front bracing
Feet 1" stainless bullet feet, height adjustable
Certifications NSF, CSA-Sanitation
Shipping KD (knocked-down) for on-site assembly

Optional accessories (sold separately)

  • 8" center deck- or splash-mount faucets
  • Pre-rinse spray units
  • Lever waste drains
  • Overshelves or pot racks
  • End splashes (left, right or both ends)

Care & maintenance tips

  • Clean daily with non-chloride detergents and a soft cloth or sponge
  • Avoid wire brushes or abrasive pads that can break the protective chromium film
  • Remove stubborn deposits with Bar Keepers Friend, always scrubbing with the grain
  • Rinse thoroughly and dry to prevent mineral spotting
  • Finish with John Boos Stainless Steel Cleaner to polish and protect

Following these steps keeps the stainless passive layer intact, maximizing the life of your investment.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

106.19in

Depth

29.5in

Shipping Weight

158.0lbs

Base Type

legs with front & side crossrails

Top Stainless Series

300 series

Overall Length

97" - 108"

Compartment Width (side - side)

24"

Drainboards

with left-hand drainboard

Base Construction

stainless steel

Splash Height

10"

Compartment (front - back)

24"

Sink Depth (rim - drain)

12"

Top Gauge

16 gauge

Specifications

Pro-Bowl Sink, 3-compartment, 106-3/16"W x 29-1/2"D x 44-1/16"H overall size, (3) 24"W x 24" front-to-back x 12" deep compartments, (1) 30" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
