John Boos  |  Pro-Bowl  |  SKU: 3PB24-1D24R  |  UPC: 662969125295

John Boos 3PB24-1D24R Pro-Bowl Compartment Sinks

$3,079.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

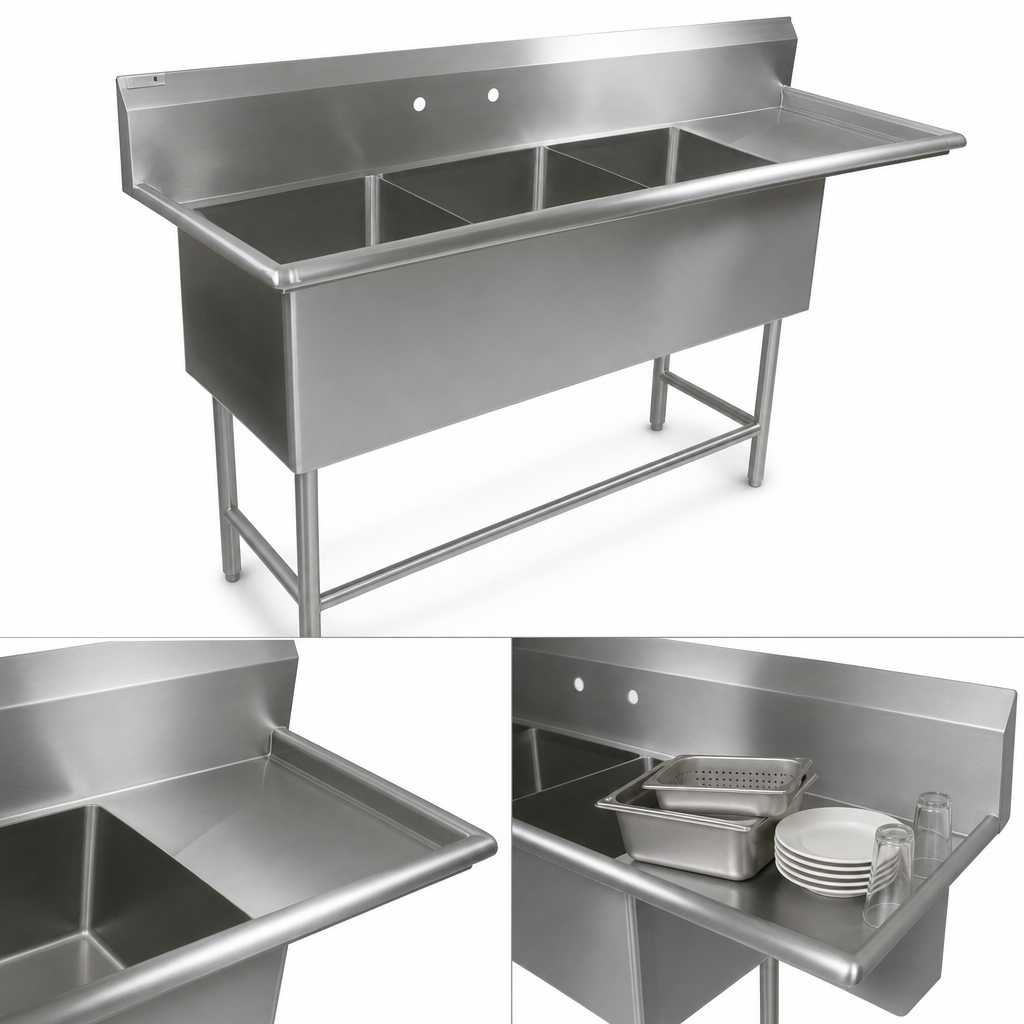

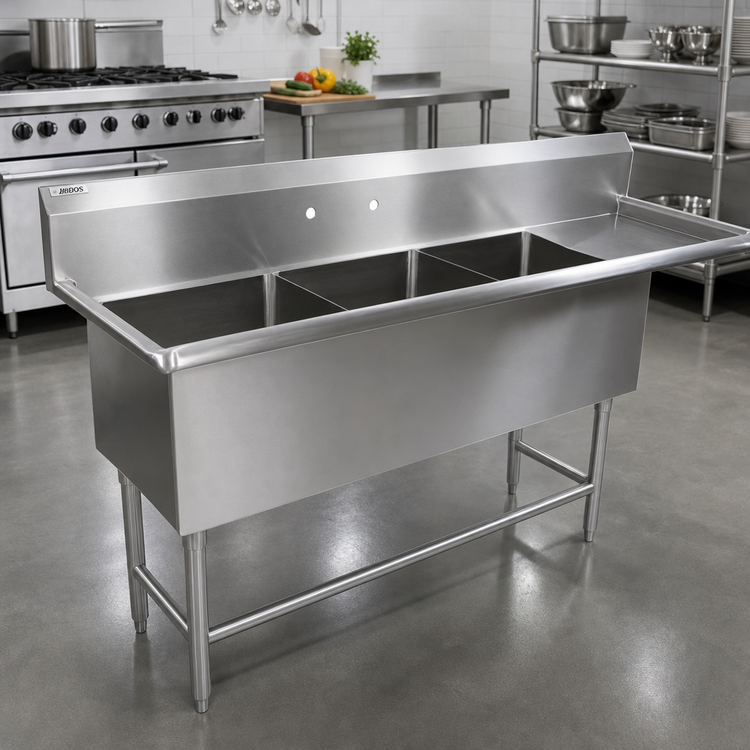

John Boos Pro-Bowl 3-Compartment Sink w/ 24" Right Drainboard

Model 3PB24-1D24R | 100-3/16" W × 29-1/2" D | NSF & CSA-Sanitation

Built to thrive in the busiest commercial kitchens, the Pro-Bowl series delivers rock-solid durability, fast sanitation, and ergonomic workflow in one heavy-duty package.

Key benefits

  • Food-safe 16 ga type 300 stainless steel with #4 satin polish for easy wipe-downs.
  • Three generous 24" × 24" × 12" bowls let you wash • rinse • sanitize without cross-contamination.
  • 24" right-hand drainboard keeps clean ware flowing toward your dish racks.
  • 10" boxed backsplash with 45 ° return protects your wall and simplifies cleanup.
  • (2) sets of 8" on-center faucet holes accept most splash-mount pre-rinse or gooseneck faucets.
  • Fully TIG-welded seams are ground & polished for a smooth, snag-free edge.
  • All-stainless legs, adjustable front/side bracing, and 1" bullet feet level the sink on uneven floors.
  • Ships knocked-down to lower freight cost; field assembly is quick & straightforward.

Perfect for

  • High-volume restaurant prep & dish rooms
  • School, hospital, and hotel kitchens
  • Breweries & commissaries that require strict 3-bay warewashing
  • Catering facilities and ghost kitchens needing rapid turnover

Technical specifications

Overall dimensions 100-3/16" W × 29-1/2" D × 44-1/16" H (to top of backsplash)
Bowl size (each) 24" W × 24" front-to-back × 12" deep
Number of compartments 3
Drainboard 24" right side, pitched for positive draining
Backsplash 10" boxed with 2" return & 3/4" rolled top edge
Faucet holes (2) sets, 8" on-center, 1" dia. splash-mount
Drain openings (3) 3-1/2" die-stamped
Material 16 ga 300-series stainless top, bowls & apron
Base construction 1-5/8" O.D. stainless legs | 1-1/4" O.D. stainless bracing | adjustable bullet feet
Finish #4 satin polish (interior & exterior)
Certifications NSF Listed, CSA-Sanitation
Shipping configuration Knocked-down (KD) for field assembly

Faucets, basket strainers, lever wastes, and other accessories are sold separately.

Care & maintenance

Maintain the stainless shine and corrosion resistance with simple daily care:

  • Rinse and wipe dry after every shift—standing water & food acids break down the protective film.
  • Clean with non-chloride cleaners like Bar Keepers Friend and a soft cloth or plastic pad.
  • Avoid steel wool, wire brushes, or harsh bleach—these scratch and discolor the surface.
  • Polish along the grain using John Boos Stainless Steel Cleaner to restore a like-new luster.
Installation reminder: Confirm local plumbing codes for indirect drains, floor sinks, and air gaps before ordering. Professional installation is recommended.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

100.19in

Depth

29.5in

Shipping Weight

153.0lbs

Base Type

legs with front & side crossrails

Top Gauge

16 gauge

Overall Length

97" - 108"

Top Stainless Series

300 series

Splash Height

10"

Compartment (front - back)

24"

Sink Depth (rim - drain)

12"

Compartment Width (side - side)

24"

Base Construction

stainless steel

Drainboards

with right-hand drainboard

Specifications

Pro-Bowl Sink, 3-compartment, 100-3/16"W x 29-1/2"D x 44-1/16"H overall size, (3) 24"W x 24" front-to-back x 12" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
