John Boos  |  Pro-Bowl  |  SKU: 3PB24-1D24L  |  UPC: 662969461553

John Boos 3PB24-1D24L Pro-Bowl Compartment Sinks

$3,079.24
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

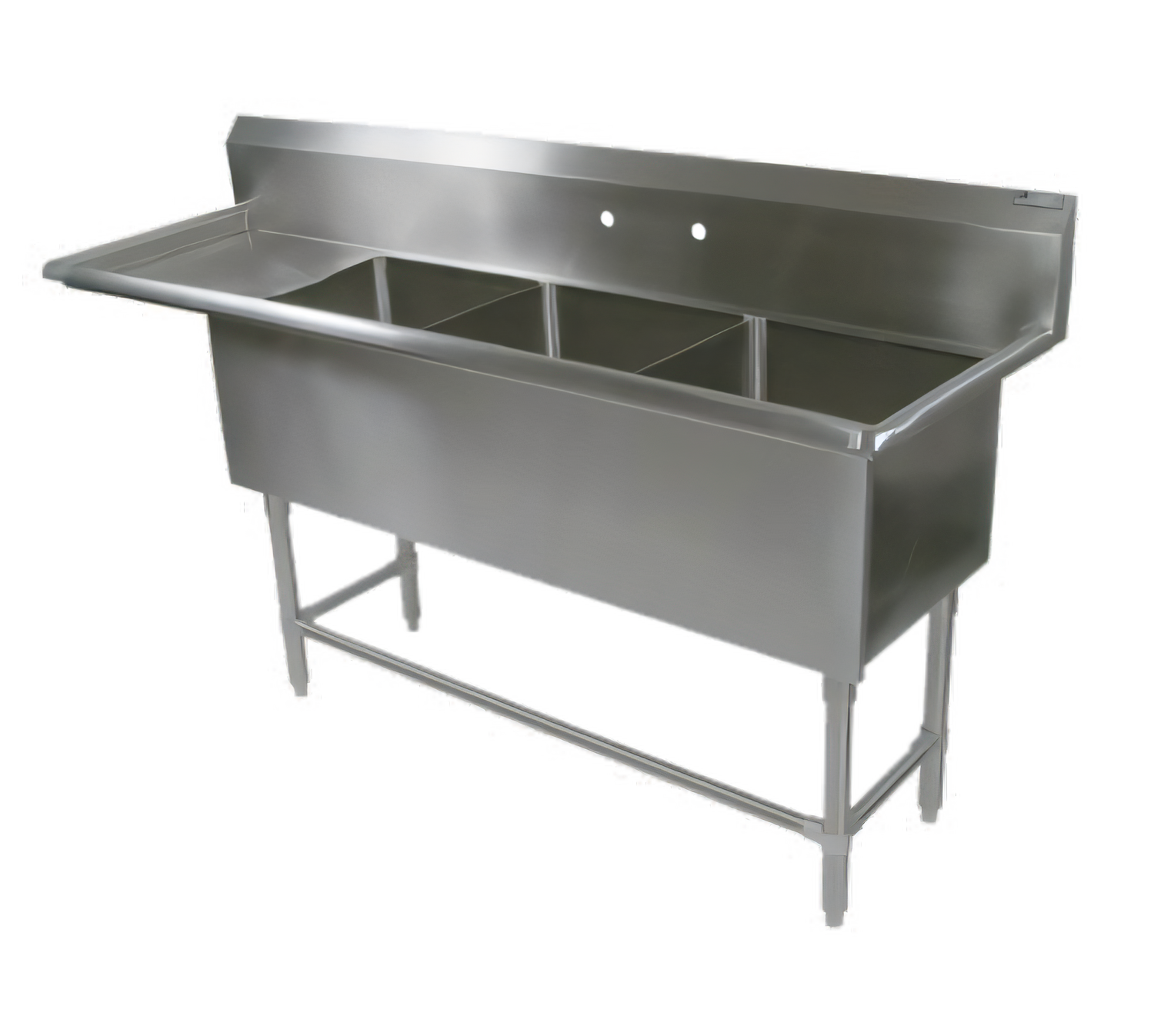

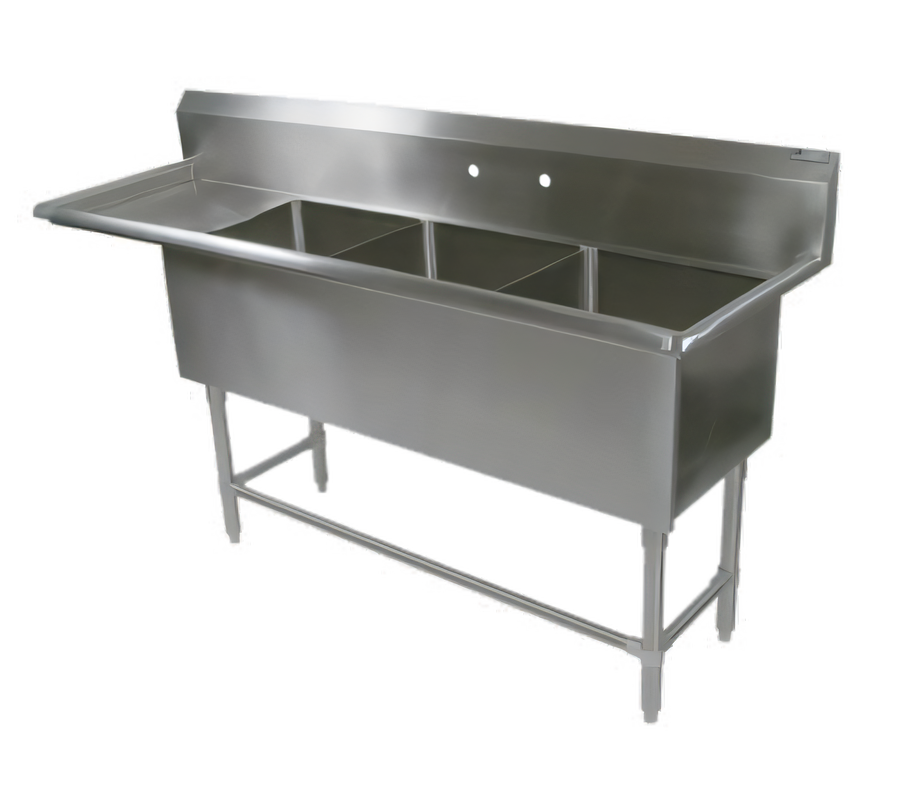

John Boos “Pro-Bowl” 3-Compartment Sink with 24″ Left Drainboard

Model 3PB24-1D24L • 100-3/16″ W × 29-1/2″ D × 44-1/16″ H • 16 GA Type 300 Stainless Steel

Purpose-built for busy commercial kitchens, this Pro-Bowl sink delivers the capacity, durability and sanitation you need to keep service flowing—even during the rush.

Key Features
  • Heavy-duty 16 gauge, 300 series stainless steel with #4 satin polish.

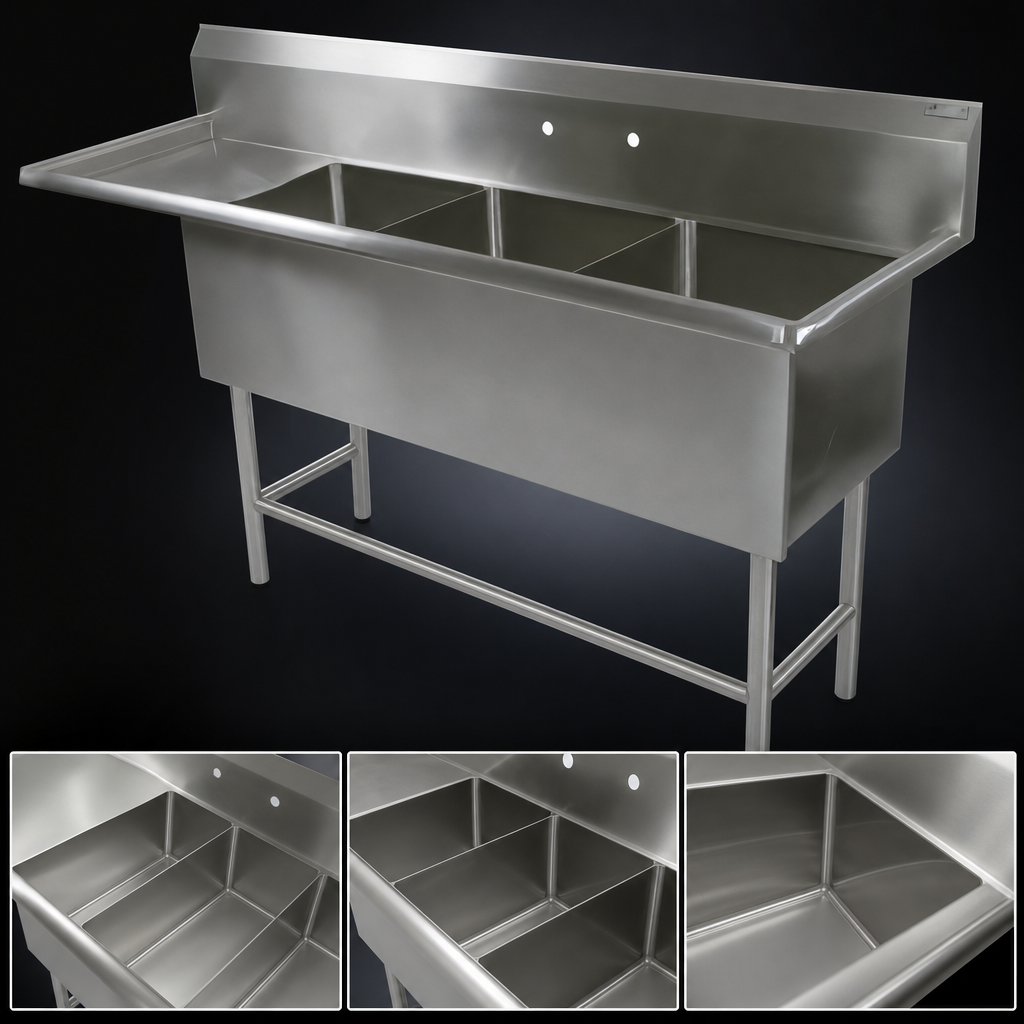

  • (3) spacious 24″ W × 24″ F/B × 12″ D compartments handle everything from sheet pans to stock pots.
  • 24″ left-side drainboard offers convenient landing and drying space.
  • 10″ high boxed backsplash with 2″ return and 45° top protects surrounding walls.
  • Two sets of 8″ on-center splash-mount faucet holes accommodate fill and pre-rinse faucets (sold separately).
  • 3-1/2″ die-stamped drain openings fit standard basket strainers or lever wastes.
  • TIG-welded construction with polished seams for a smooth, sanitary finish.
  • Bull-nosed front & side edges for operator comfort and safety.
  • 1-5/8″ stainless steel legs with adjustable front & side bracing for rock-solid stability.
  • Adjustable stainless steel bullet feet level the sink on uneven floors.
  • Ships knocked-down (KD) to minimize freight costs and ease installation.
  • NSF and CSA-Sanitation listed for full commercial compliance.
At-a-Glance Specifications
Overall width 100 3⁄16″ (2545 mm)
Overall depth 29 1⁄2″ (750 mm)
Overall height 44 1⁄16″ (1120 mm) to top of backsplash
Working height 36 5⁄16″ (923 mm) to sink roll
Compartments (3) 24″ W × 24″ F/B × 12″ D
Drainboard 24″ L (left-hand)
Backsplash 10″ H boxed, 2″ return, 45° top
Faucet holes (2) sets, 8″ on-center, 1″ Ø
Drain opening 3-1/2″ Ø die-stamped
Material / gauge 16 GA Type 300 stainless steel
Legs & feet 1-5/8″ round SS legs with adjustable bullet feet
Certifications NSF, CSA-Sanitation
Ship weight Approx. 153 lb
Assembly Knocked-down (some assembly required)
Recommended Applications
  • High-volume restaurants & cafeterias
  • Ghost and commissary kitchens
  • Institutional foodservice (schools, hospitals, corrections)
  • Catering & event prep areas
Care & Maintenance
  • Clean daily with a soft cloth and non-chloride stainless steel cleaner.
  • Always wipe in the direction of the grain to preserve the satin finish.
  • Avoid abrasive pads, steel wool and cleaners containing chlorides.
  • Rinse and dry after use to maintain the protective chromium oxide layer.
Important: Faucets, drains and lever waste assemblies are sold separately. Be sure to add the correct accessories to complete your installation.

Questions? Our product experts are ready to help you configure the perfect sink station.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

100.19in

Depth

29.5in

Shipping Weight

153.0lbs

Base Type

legs with front & side crossrails

Compartment Width (side - side)

24"

Overall Length

97" - 108"

Base Construction

stainless steel

Drainboards

with left-hand drainboard

Compartment (front - back)

24"

Splash Height

10"

Top Stainless Series

300 series

Top Gauge

16 gauge

Sink Depth (rim - drain)

12"

Specifications

Pro-Bowl Sink, 3-compartment, 100-3/16"W x 29-1/2"D x 44-1/16"H overall size, (3) 24"W x 24" front-to-back x 12" deep compartments, (1) 24" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
