Description

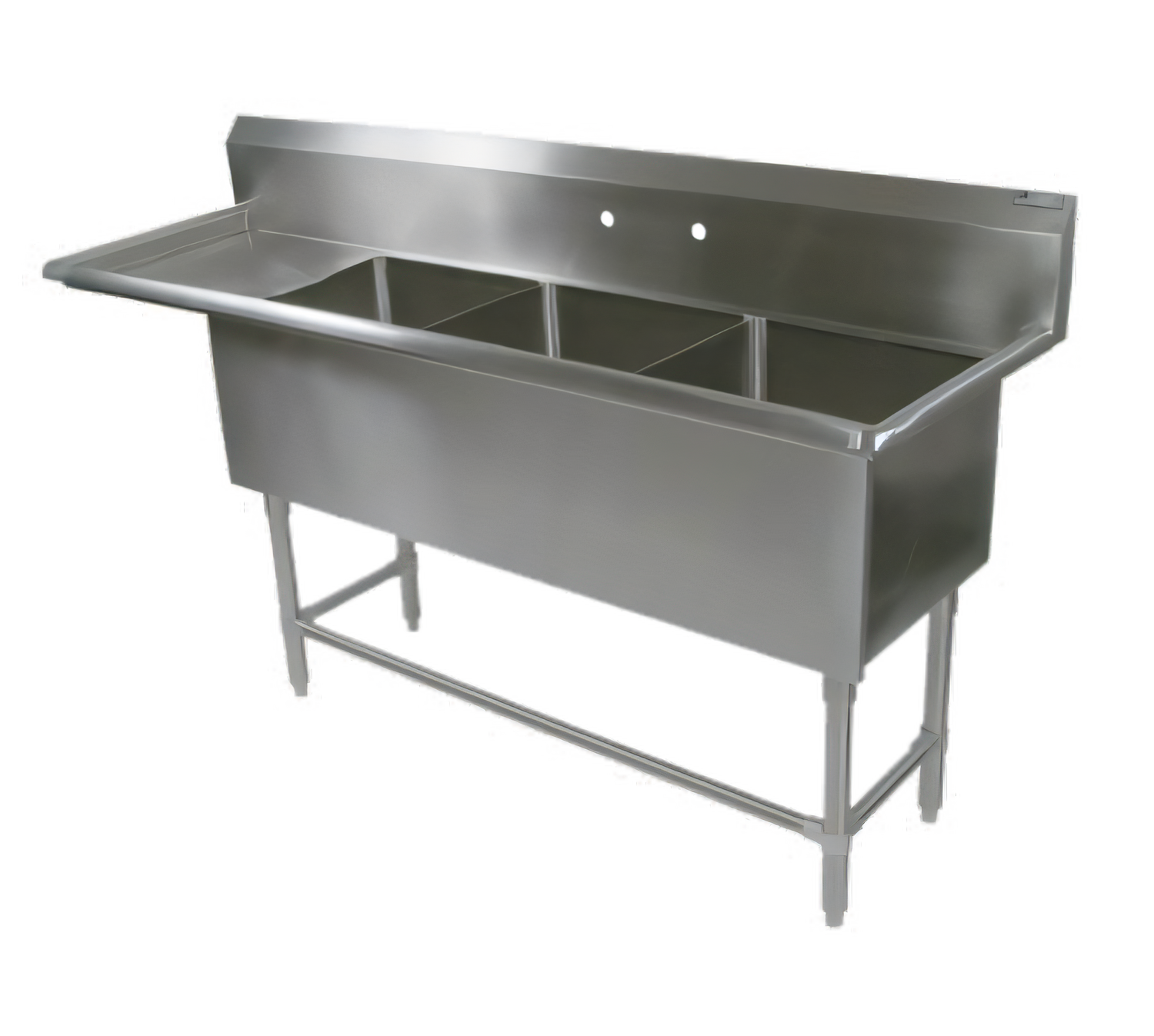

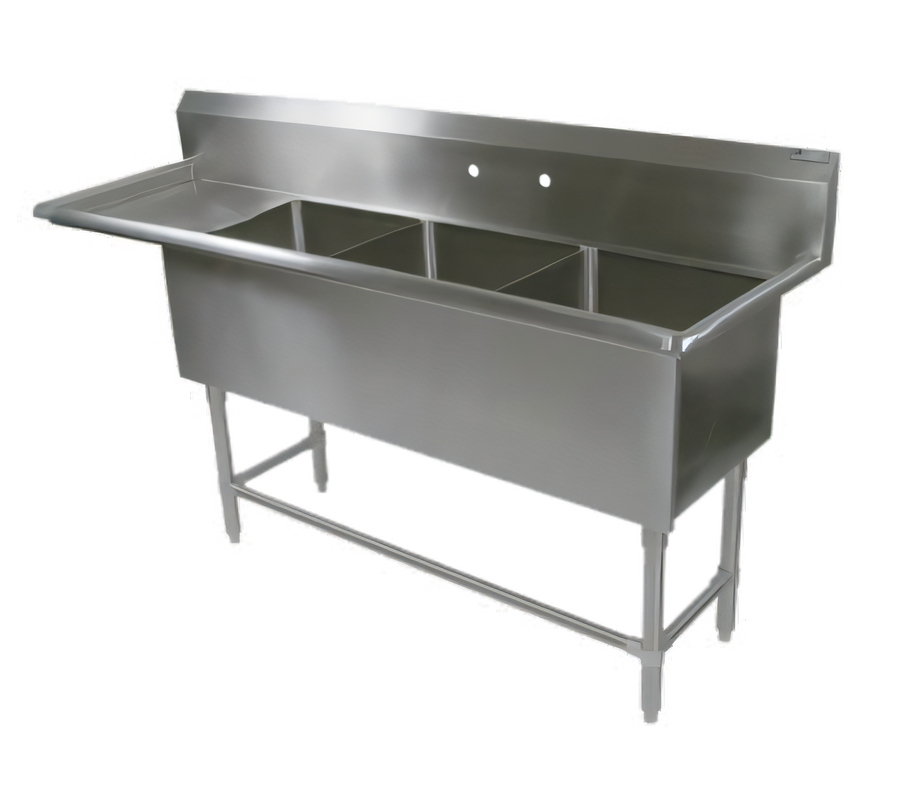

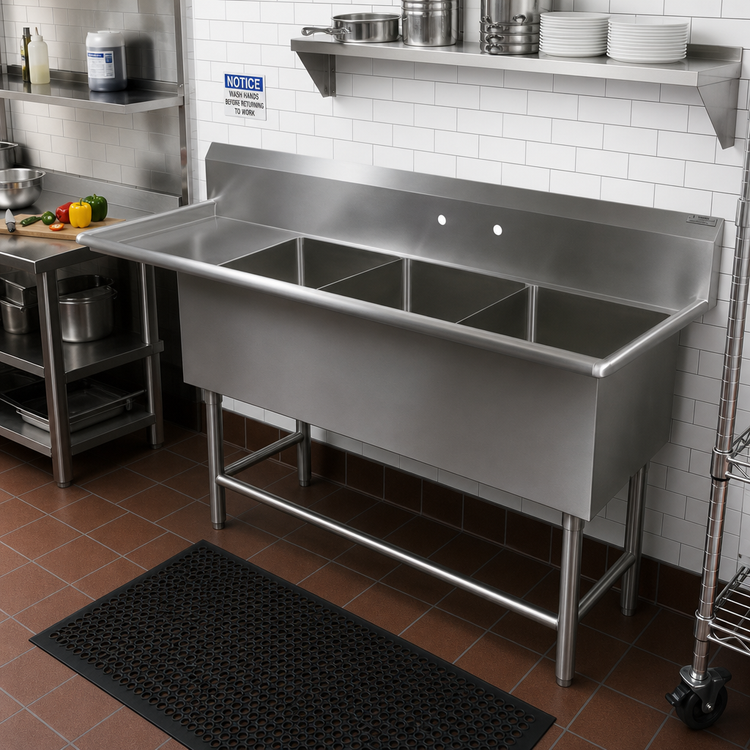

John Boos “Pro-Bowl” 3-Compartment Sink with 30" Left Drainboard
Model 3PB204-1D30L | 16 Gauge, Type 300 Stainless SteelEngineered for the punishing pace of high-volume kitchens, the John Boos Pro-Bowl series blends rock-solid construction with food-safe design details that make daily cleaning, sanitizing and workflow a breeze. From its seamless TIG-welded bowls to its generous 30-inch drainboard, this three-compartment powerhouse is ready for prep, wash, rinse and sanitize—shift after shift.
Why You’ll Love It
- Premium 16 GA (0.062") type 300 stainless steel top, bowls & apron with satin #4 finish.

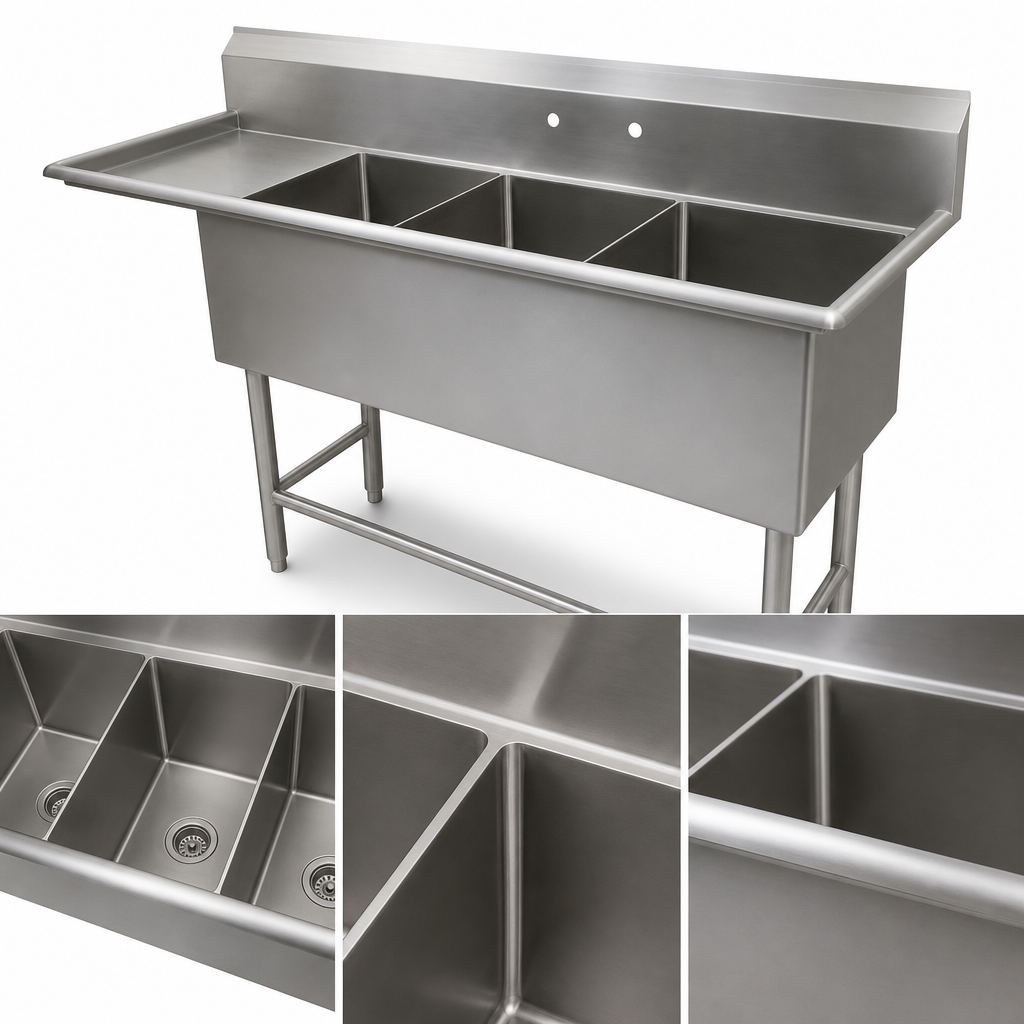

- Three spacious bowls—each 20" W x 20" front-to-back x 14" deep—handle sheet pans and large stock pots with ease.
- Full-length 10" boxed backsplash has a 45° top & 2" return to keep water where it belongs.
- Pre-punched 8"-on-center splash-mount faucet holes for fast, hassle-free tap installation.
- 30" left-hand drainboard speeds up drying and staging while freeing counter space.
- 5⁄8" radius coved bowl corners and bull-nosed outer edges promote rapid, thorough clean-ups.
- 1-5/8" O.D. stainless steel legs with adjustable bullet feet level the sink on uneven floors.
- Front & side stainless bracing (adjustable) stiffens the frame for rock-solid stability.
- NSF & CSA-Sanitation listed for code-compliant installations nationwide.
- Ships knock-down (KD) to cut freight costs and fit through tight doorways; assembles quickly on-site.
Technical Specifications
Overall Dimensions (W × D × H) | 94-3/16" × 25-1/2" × 44-1/16" |
---|---|
Working Height to Sink Roll | 36-5/16" |
Compartment Size (each) | 20" W × 20" F/B × 14" Deep |
Number of Compartments | 3 |
Drainboard | 30" Left Side (integral) |
Backsplash | 10" H boxed with 45° top & 2" return |
Faucet Holes | (1) set, 8" centers, 1" Ø (splash mount) |
Drain Openings | 3-1/2" die-stamped (one per bowl) |
Material Thickness | 16 GA (1.5 mm) stainless steel |
Legs / Feet | 1-5/8" O.D. SS legs with 1" adjustable bullet feet |
Bracing | 1-1/4" O.D. SS, front & side, adjustable |
Shipping Weight | Approx. 143 lb (KD) |
Certifications | NSF Listed, CSA-Sanitation |
Popular Add-Ons (sold separately)
- 8"-center swing or gooseneck faucets
- Pre-rinse spray units for heavy-soil dishware
- Lever-operated waste drains
- Stainless end splashes or overshelves for splash control & storage
- Pot-rack overshelf kits
