John Boos 3PB204-1D24R Pro-Bowl Compartment Sinks
Description

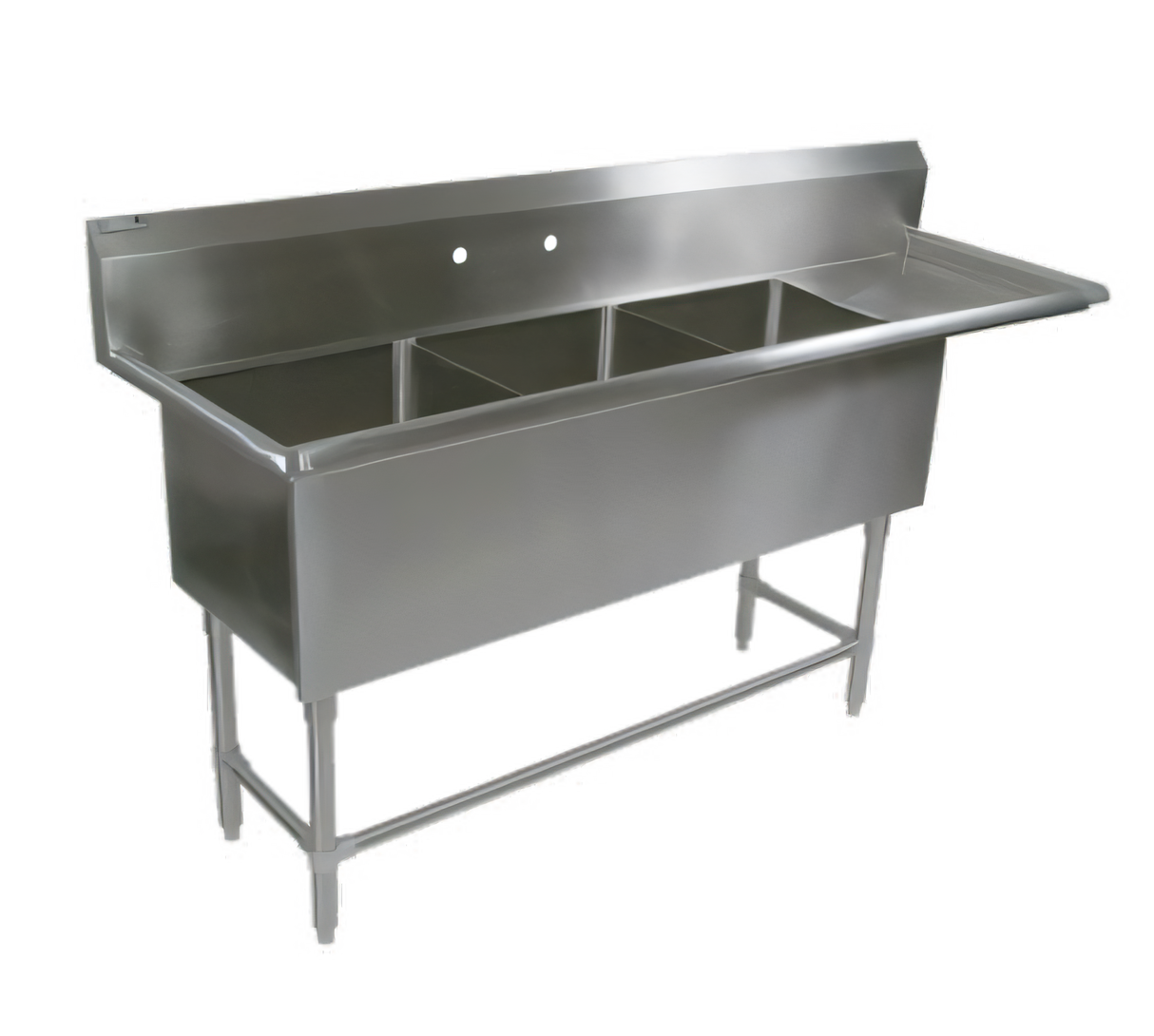

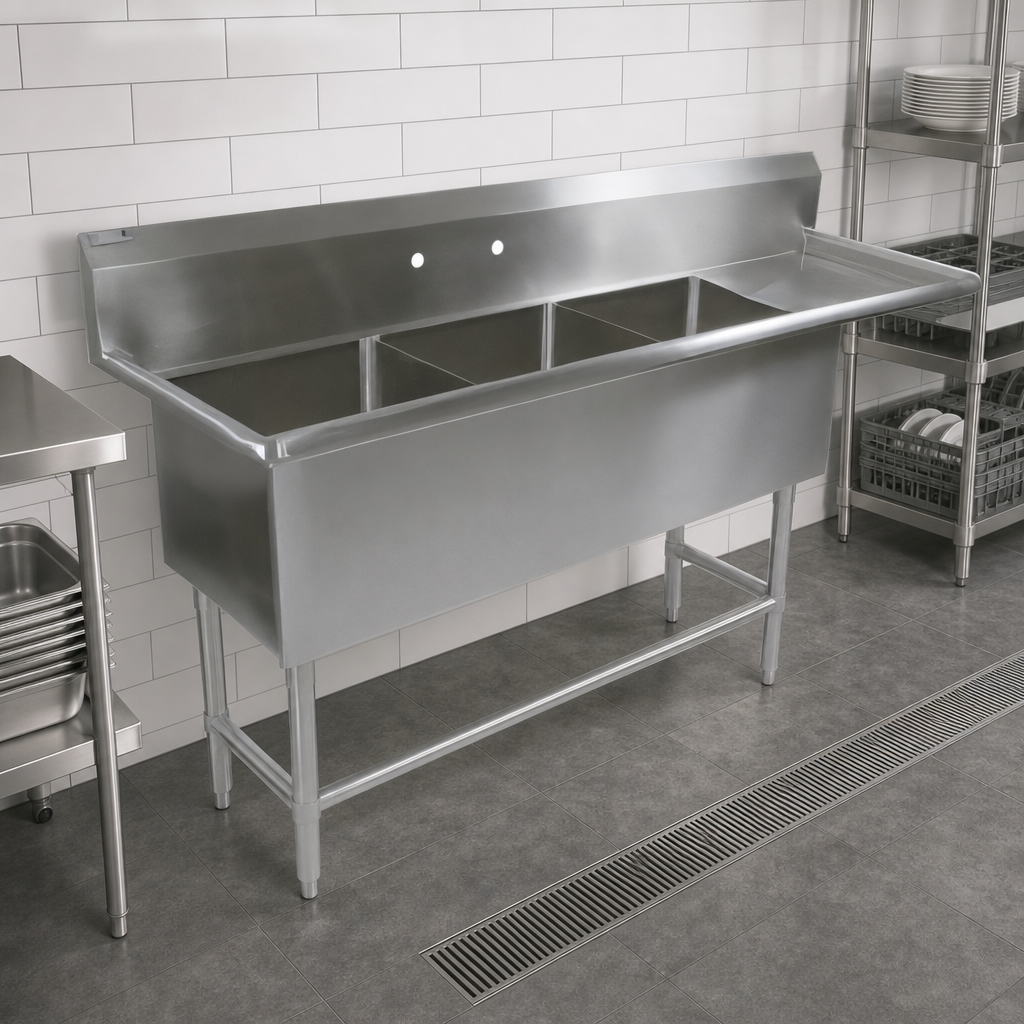

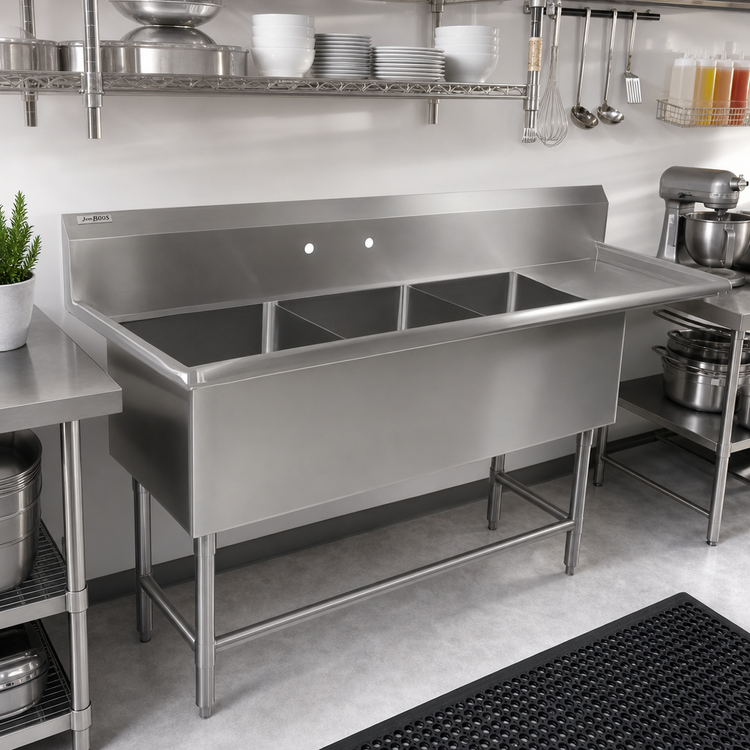

John Boos Pro-Bowl 3-Compartment Sink w/ 24" Right Drainboard
Model # 3PB204-1D24R • 16-Gauge Stainless Steel • NSF & CSA-SanitationBuilt for the rigors of busy commercial kitchens, the Pro-Bowl series pairs heavy-duty construction with operator-focused details that speed up your ware-washing workflow while exceeding health-code requirements.
Key Features
- (3) 20" W × 20" F-B × 14" D bowls for dedicated wash, rinse & sanitize stages.
- Integral 24" right-side drainboard keeps clean wares organized and off the work surface.
- 10" boxed backsplash with 45° top edge & 2" return protects surrounding walls.
- Splash-mount faucet ledge pre-punched for 8" on-center faucets (sold separately).
- 3-1/2" die-stamped drain openings accept standard strainers or lever waste assemblies.
- 16 GA Type 300 stainless steel with #4 satin polish—corrosion-resistant & easy to clean.
- All corners coved to a 5/8" radius; exposed TIG welds ground & polished for a seamless look.
- 1-5/8" Ø stainless steel legs with adjustable front & side bracing for rock-solid stability.
- Adjustable stainless steel bullet feet level the sink on uneven floors.
- Ships knocked-down (KD) to lower freight costs; simple bolt-up assembly on site.
Certifications
- NSF Listed
- CSA-Sanitation
Dimensions & Specifications
| Overall Width (L-R) | 88-3/16" |
|---|---|
| Front-to-Back Depth | 25-1/2" |
| Overall Height | 44-1/16" (36-5/16" to sink roll) |
| Compartment Size (each) | 20" W × 20" F-B × 14" D |
| Drainboard | 24" (right side) |
| Backsplash Height | 10" |
| Material / Gauge | 16 GA Type 300 stainless steel |
| Faucet Holes | 8" centers, 1" Ø, splash mount |
| Drain Opening | 3-1/2" Ø, die-stamped |
| Legs / Feet | 1-5/8" Ø stainless legs & adjustable bullet feet |
| Bracing | Adjustable front & side, stainless steel |
| Shipping Configuration | Knocked-Down (KD) |
Looking for a left-hand drainboard, overshelf or pre-rinse unit? Chat with our foodservice experts for fast quotes on all John Boos accessories. All dimensions are typical; manufacturing tolerance is ± 0.5".
