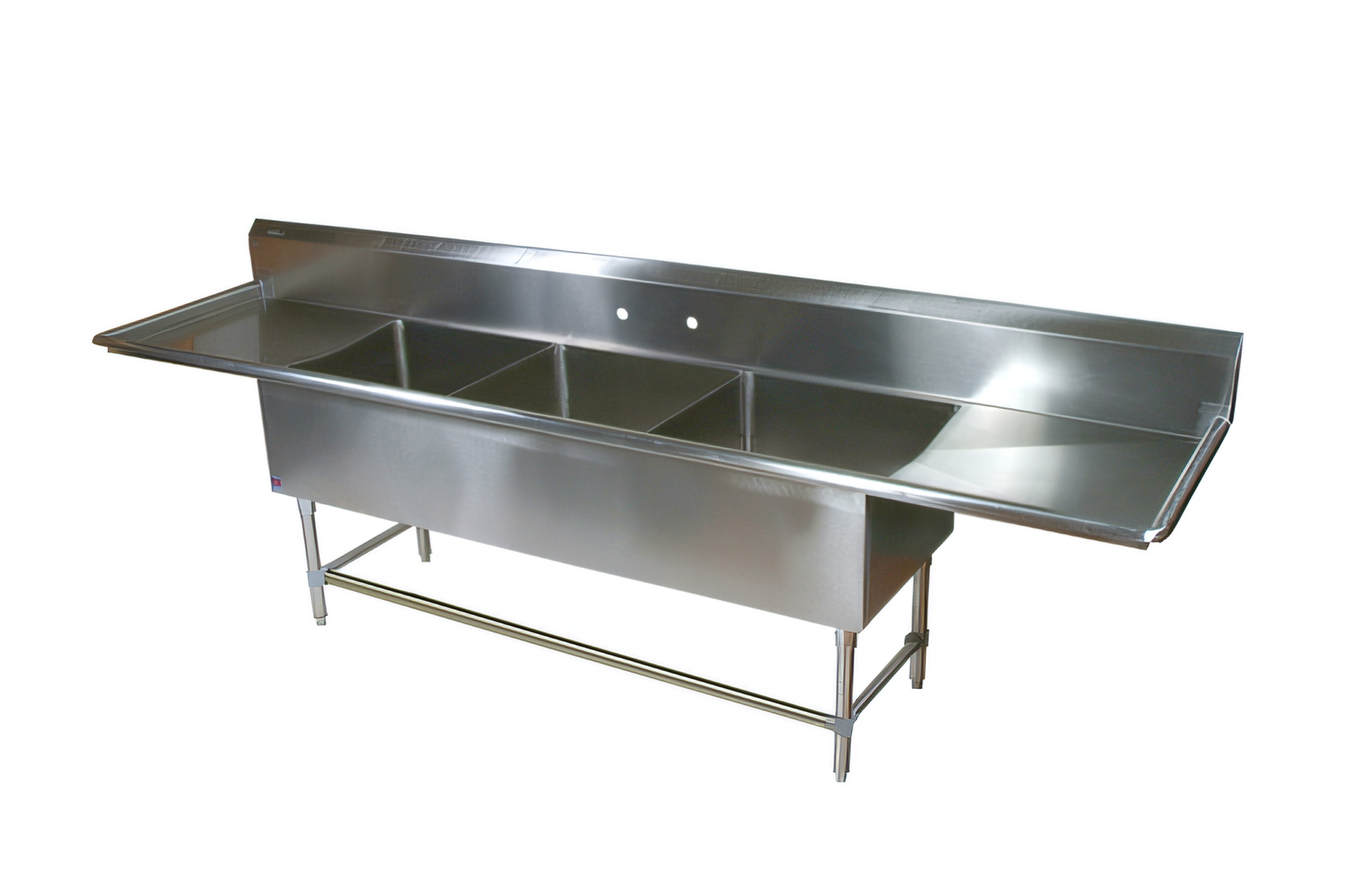

John Boos Pro-Bowl 3-Compartment Stainless Steel Sink with Left and Right Drainboards

123-1/4" W x 33-1/2" D x 44-1/16" H; 10" Backsplash; 8" Faucet Centers

A rugged three-compartment sink with dual drainboards, a tall backsplash, and stainless steel construction built for demanding prep and warewashing stations.

  • Three 20" x 28" x 14" compartments support washing, rinsing, and sanitizing workflows.
  • Two 30" drainboards provide landing space on both the left and right sides.
  • 10" boxed backsplash with a 45° top and 2" return helps contain splashes.
  • 16-gauge, 300-series stainless steel construction is built for heavy-duty kitchen use.
  • Stainless steel legs with adjustable front and side bracing and bullet feet add stability.
  • Splash-mount faucet holes with 8" centers and die-stamped drain openings simplify setup.

Overall Dimensions:

123.25"W x 33.5"D x 44.06"H

Product Weight:

200.0 lb

Three Compartment Bowl Layout

Includes three large wash compartments, each 20 inches wide x 28 inches front-to-back x 14 inches deep.

Dual Drainboards

30-inch drainboards on both the left and right sides add space for sorting, staging, and drying.

10-Inch Boxed Backsplash

The tall backsplash includes a 45° top and 2-inch return to help protect surrounding walls from water.

16-Gauge 300 Series Stainless Steel Top

Heavy-duty stainless steel construction is designed for long-term commercial durability.

Stainless Steel Leg Base

Stainless steel legs with adjustable front and side bracing and bullet feet provide a stable floor-standing base.

Faucet and Drain Provisions

Supplied with one set of splash-mount faucet holes on 8-inch centers and 3-1/2-inch die-stamped drain openings.

Knock-Down Design

KD construction helps simplify shipping and on-site assembly.

Type 3-Compartment Sink
Style Pro-Bowl
Installation Type Floor Model
Material Stainless Steel
Compartments 3
Compartment Width 20 Inches
Compartment Front-To-Back 28 Inches
Sink Depth 14 Inches
Splash Height 10 Inches
Drainboard Configuration Left and Right, 30 Inches Each
Top Gauge 16 Gauge
Top Series 300 Series
Faucet Hole Centers 8 Inches
Drain Opening Size 3-1/2 Inches
Base Type Legs with Front and Side Crossrails
Shipping Width 124 Inches
Shipping Depth 34 Inches
Shipping Height 45 Inches
Shipping Weight 200 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments, each measuring 20 inches wide x 28 inches front-to-back x 14 inches deep.
Yes. It includes 30-inch drainboards on both the left and right sides.
The sink has a 10-inch boxed backsplash with a 45° top and 2-inch return.
It includes one set of splash-mount faucet holes with 8-inch centers.
It is built from 16-gauge, 300-series stainless steel with stainless steel legs and adjustable bracing.
Yes. The unit is knock-down (KD) construction for simpler shipping and assembly.
