John Boos 3PB20284-1D30L Pro-Bowl Compartment Sinks
Description

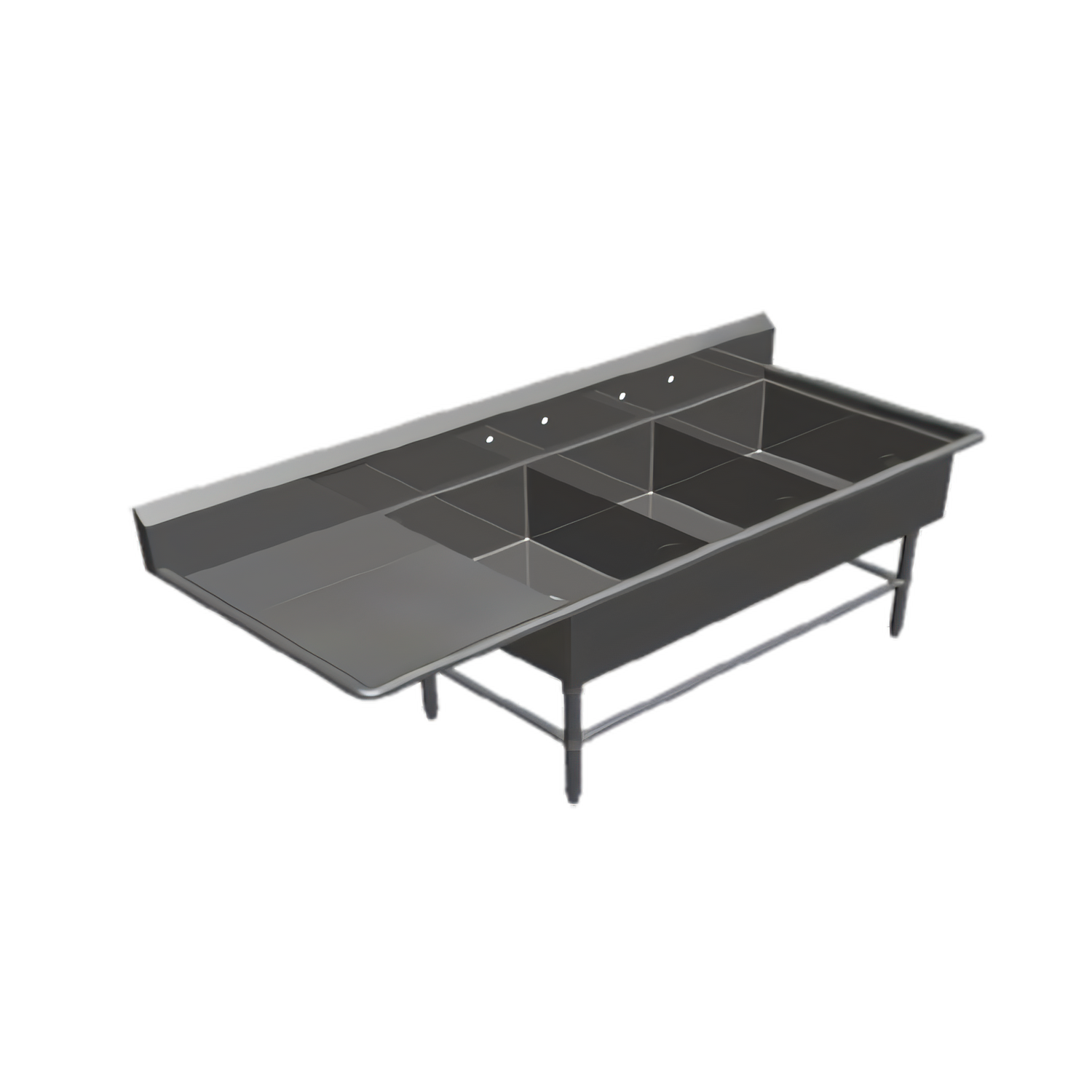

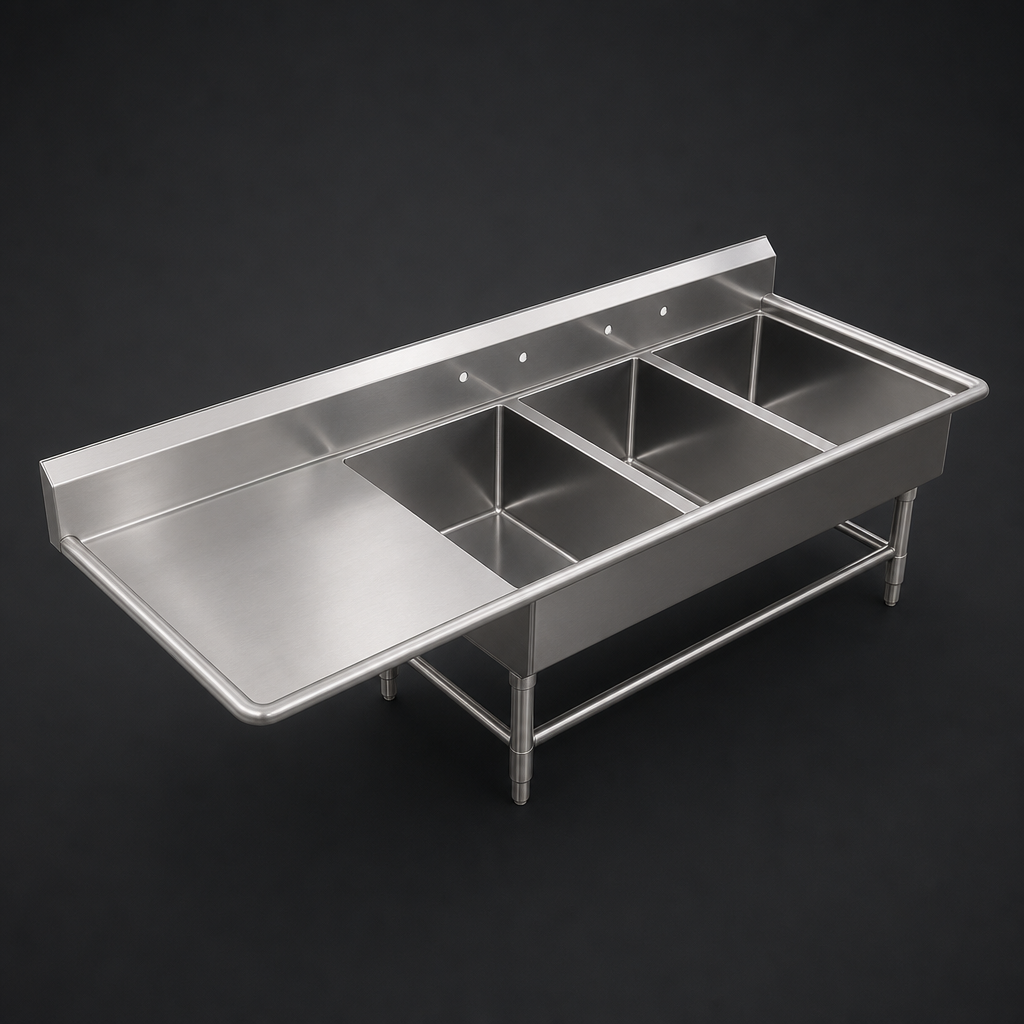

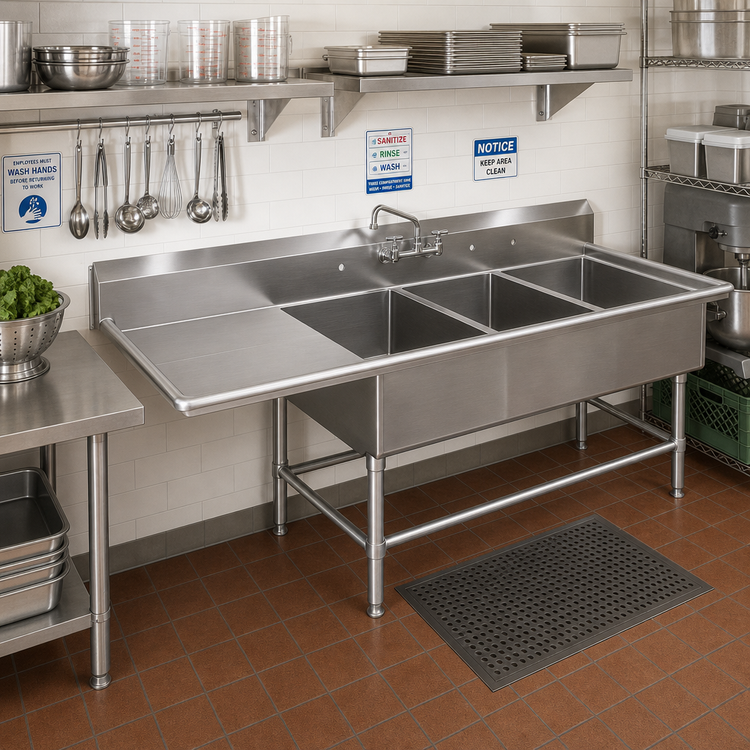

John Boos “Pro-Bowl” 3-Compartment Sink – 30" Left Drainboard
Model 3PB20284-1D30L | 16 GA Type 300 Stainless SteelBuilt for round-the-clock food-service demands, the John Boos Pro-Bowl series pairs heavy-duty 16-gauge stainless with workflow-boosting details such as spacious 14" deep bowls and an extra-wide 30" drainboard. From dough prep to deep-sink sanitizing, this certified workhorse keeps your kitchen moving smoothly while standing up to years of commercial abuse.
Key features & benefits
- Three 20" × 28" × 14" bowls handle large sheet pans and mixing bowls with ease.
- 30" left-side drainboard speeds up drying and staging without stealing basin space.
- 10" boxed backsplash with 45° 2" return protects walls and meets health-code requirements.
- One set of splash-mount faucet holes on 8" centers (1" Ø) – ready for most commercial faucets.
- 3-½" die-stamped drain openings for a positive, leak-free fit.
- 16-gauge, type 300 stainless steel with #4 satin polish resists corrosion and wipes clean fast.
- 1-5/8" O.D. stainless steel legs with 1" adjustable bullet feet level the sink on uneven floors.
- Front & side stainless bracing (knocked-down) adds rigidity without trapping debris.
- All exterior corners are bull-nosed for safer handling and a sleek, finished look.
- NSF & CSA-Sanitation listed for full commercial compliance.
Technical specifications
| Overall size (W × D × H) | 94-3/16" × 33-1/2" × 44-1/16" (height measured to top of backsplash) |
|---|---|
| Compartments | (3) 20" W × 28" F-B × 14" D |
| Drainboard | 30" left side (ribbed, welded) |
| Backsplash | 10" boxed, 45° top with 2" return & ¾" rolled edge |
| Faucet holes | (1) set, 8" on-center, 1" Ø |
| Drain openings | 3-½" die-stamped (per bowl) |
| Material / gauge | 16 GA type 300 stainless, #4 satin finish |
| Legs / feet | 1-5/8" O.D. stainless legs with 1" adjustable bullet feet |
| Bracing | 1-1/4" O.D. stainless, front & sides (adjustable) |
| Ship weight | ≈ 177 lb |
| Certifications | NSF, CSA-Sanitation |
| Assembly | Ships knocked-down (KD) – hardware included |
Popular add-ons (sold separately)
- Commercial faucets & pre-rinse sprays
- Lever waste drains & overflow kits
- Single or double overshelves & pot racks
- Left/right end splashes for additional splash protection
Stainless steel care
Preserve the Pro-Bowl’s like-new finish by cleaning with non-chloride cleansers and soft cloths. Avoid steel wool or bleach; rinse and dry after each shift for maximum corrosion resistance.
