John Boos 3PB20-2D30 Pro-Bowl Compartment Sinks
Description

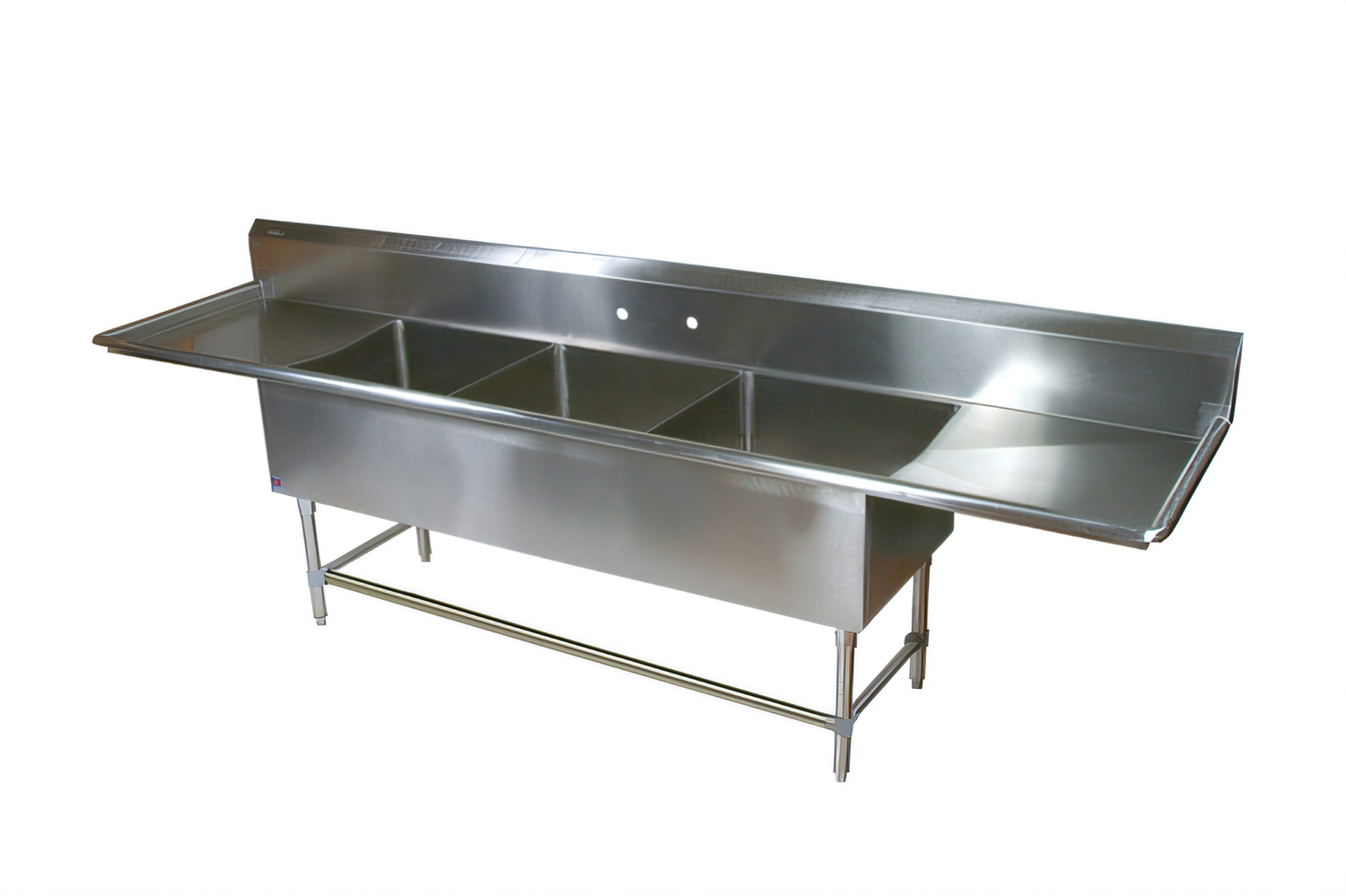

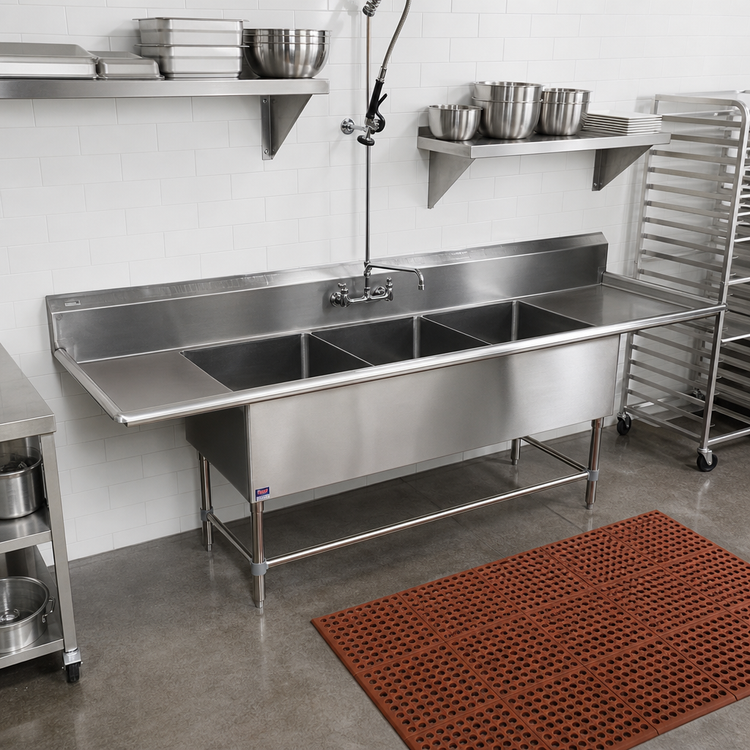

John Boos Pro-Bowl 3-Compartment Sink – 123-1/4" W with 30" Drainboards
Model 3PB20-2D30 | NSF & CSA-Sanitation CertifiedEngineered for high-volume food-service operations, the John Boos Pro-Bowl series combines heavy-duty stainless-steel construction with generous work space on both sides of the sink—keeping prep, wash, rinse, and sanitize stations moving smoothly.
Key Features

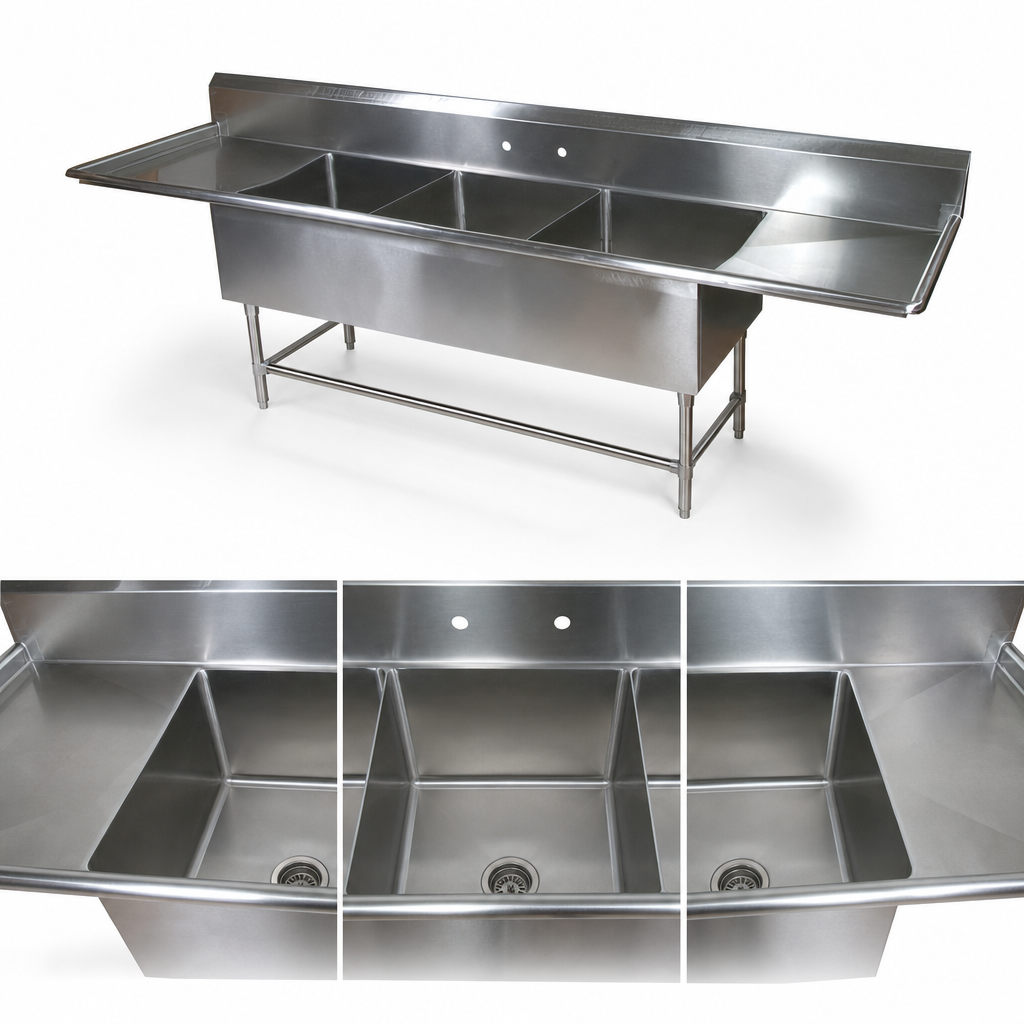

- Three 20" W x 20" F-B x 12" D bowls for efficient wash, rinse, sanitize workflow
- Dual 30" drainboards (left & right) for staging and air-drying ware
- 16-gauge, Type 300 stainless steel with #4 satin polish—built to resist corrosion
- Full-length 10" boxed backsplash with 45° top & 2" return contains splashes
- Pre-punched splash-mount faucet holes on 8" centers (1" diameter)
- 3-1/2" die-stamped drain openings fit standard basket strainers & waste valves
- 1-5/8" O.D. stainless-steel legs with adjustable bullet feet for exact leveling
- Adjustable 1-1/4" O.D. front & side bracing adds extra rigidity
- 5/8" radius coved corners for quick, thorough cleaning
- Ships knocked-down (KD) to lower freight costs; easy field assembly
At-a-Glance Specifications
| Overall Dimensions (W × D × H) | 123-1/4" × 25-1/2" × 44-1/16" |
|---|---|
| Compartment Size | (3) 20" W × 20" F-B × 12" D |
| Drainboard Length | 30" left & right |
| Backsplash Height | 10" boxed with 45° canted top |
| Faucet Holes | 1 set, 8" centers, 1" Ø |
| Drain Openings | 3-1/2" die-stamped |
| Material / Finish | 16-ga Type 300 stainless steel, #4 satin |
| Legs / Feet | Stainless steel legs & adjustable bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping Format | Knocked-Down (KD) |
Optional Accessories (sold separately)
- End splashes (left, right, or both)
- Deck- or wall-mount faucets & pre-rinse units
- Add-a-faucet modules
- Lever or twist waste drains
- Single- or double-tier overshelves & pot racks
Looking for a different bowl size or drainboard length? Ask us about additional Pro-Bowl models and custom configurations from John Boos.
