John Boos 3PB20-1D30L Pro-Bowl Compartment Sinks
$2,739.10
Unit price
/
Unavailable
Description
John Boos Pro-Bowl 3-Compartment Sink with 30" Left Drainboard – 94" × 25-1/2"
Model 3PB20-1D30L | 16 Gauge Type 300 Stainless SteelEngineered for demanding food-service environments, the John Boos Pro-Bowl 3-compartment sink combines rugged 16-gauge stainless steel construction, time-saving ergonomics and NSF-certified sanitation. Perfect for high-volume wash, rinse and sanitize workflows.
Key Features

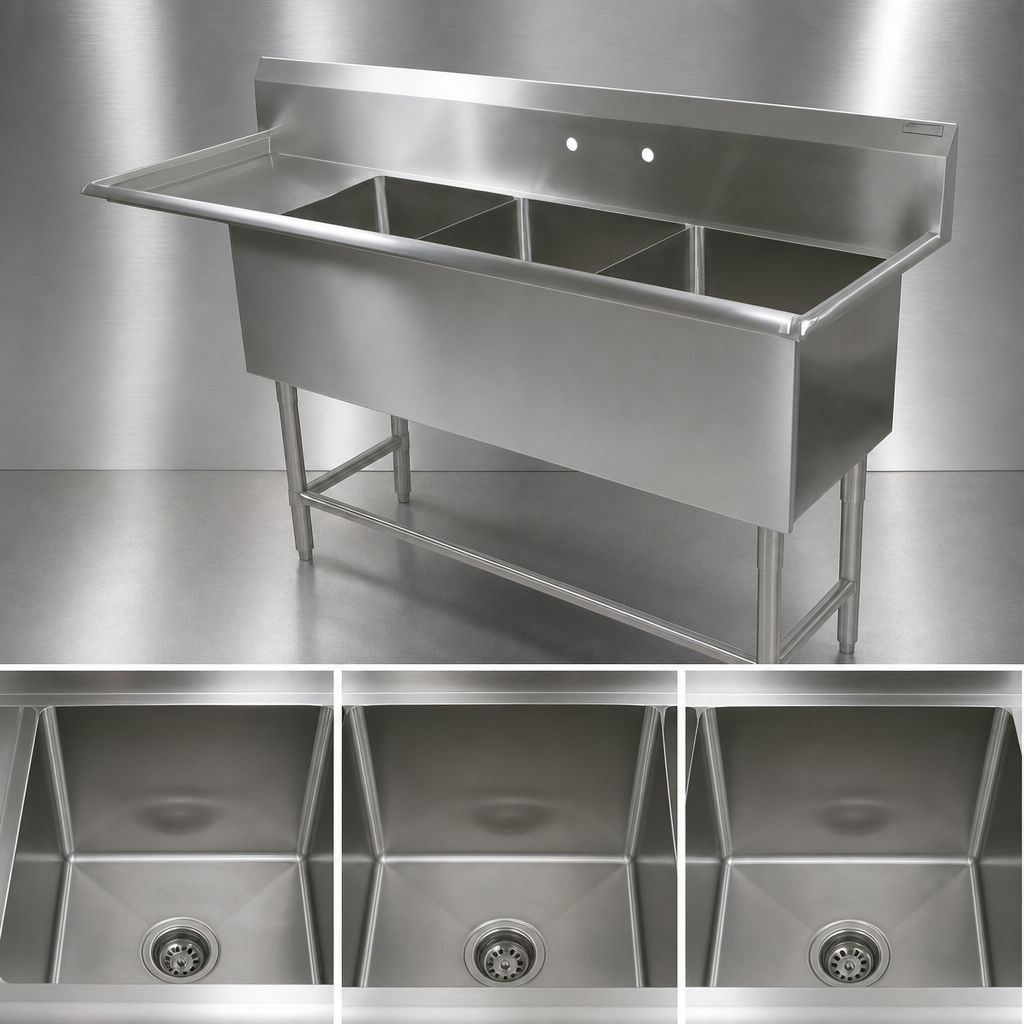

- (3) 20" W × 20" front-to-back × 12" deep bowls for efficient triple-sink operation
- 30" left-hand drainboard pitched for rapid water run-off and quick air-drying
- 10" boxed backsplash with 45° top and 2" wall return guards against splashes
- Splash-mount faucet holes on 8" centers (1" Ø) for fast, code-compliant faucet installation
- 3-1/2" die-stamped drain openings accept standard strainers or lever-waste assemblies
- One-piece 16 GA Type 300 stainless steel top with #4 satin polish resists corrosion and wipes clean
- 5/8" radius coved bowl corners and bull-nosed exterior edges enhance safety and sanitation
- Stainless steel base: 1-5/8" round legs with adjustable bullet feet and adjustable 1-1/4" front & side bracing
- TIG-welded construction; exposed seams are ground & polished to match surrounding surfaces
- NSF & CSA-Sanitation listed for nationwide health-department compliance
Specifications at a Glance
| Overall length | 94-3/16" |
|---|---|
| Overall width (front-to-back) | 25-1/2" |
| Overall height | 44-1/16" |
| Bowl count / size | (3) 20" W × 20" F/B × 12" D |
| Drainboard | 30" (left side) |
| Backsplash height | 10" |
| Faucet centers | 8" |
| Drain opening | 3-1/2" Ø (die-stamped) |
| Material / finish | 16 GA Type 300 stainless steel / #4 satin polish |
| Approx. weight | 135 lb |
| Certifications | NSF; CSA-Sanitation |
Popular Accessories (sold separately)
- Splash-mount or deck-mount faucets (8" centers)
- Add-A-Faucet spout extensions
- Pre-rinse spray units
- Lever-waste drains & basket strainers
- Left, right or double end-splashes
- Stainless steel overshelves & pot racks
Heads up! This sink ships knocked-down (legs and bracing require on-site assembly). Faucets, drains and accessories are not included unless added to your order.
John Boos & Co. reserves the right to modify specifications without prior notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
94.19in
Depth
25.5in
Shipping Weight
135.0lbs
Compartment (front - back)
20"
Sink Depth (rim - drain)
12"
Overall Length
85" - 96"
Top Gauge
16 gauge
Splash Height
10"
Compartment Width (side - side)
20"
Base Type
legs with front & side crossrails
Base Construction
stainless steel
Drainboards
with left-hand drainboard
Top Stainless Series
300 series
Specifications
Pro-Bowl Sink, 3-compartment, 94-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12" deep compartments, (1) 30" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
