John Boos  |  Pro-Bowl  |  SKU: 3PB20-1D24R  |  UPC: 662969707071

John Boos 3PB20-1D24R Pro-Bowl Compartment Sinks

$2,676.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

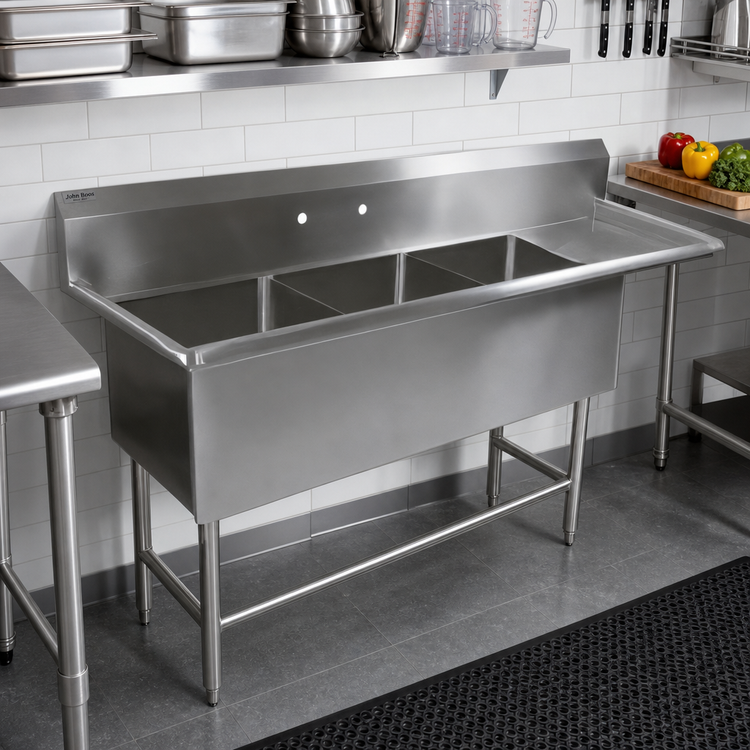

John Boos Pro-Bowl 88" 3-Compartment Sink with 24" Right Drainboard

Model 3PB20-1D24R | 16-Gauge Type 300 Stainless Steel

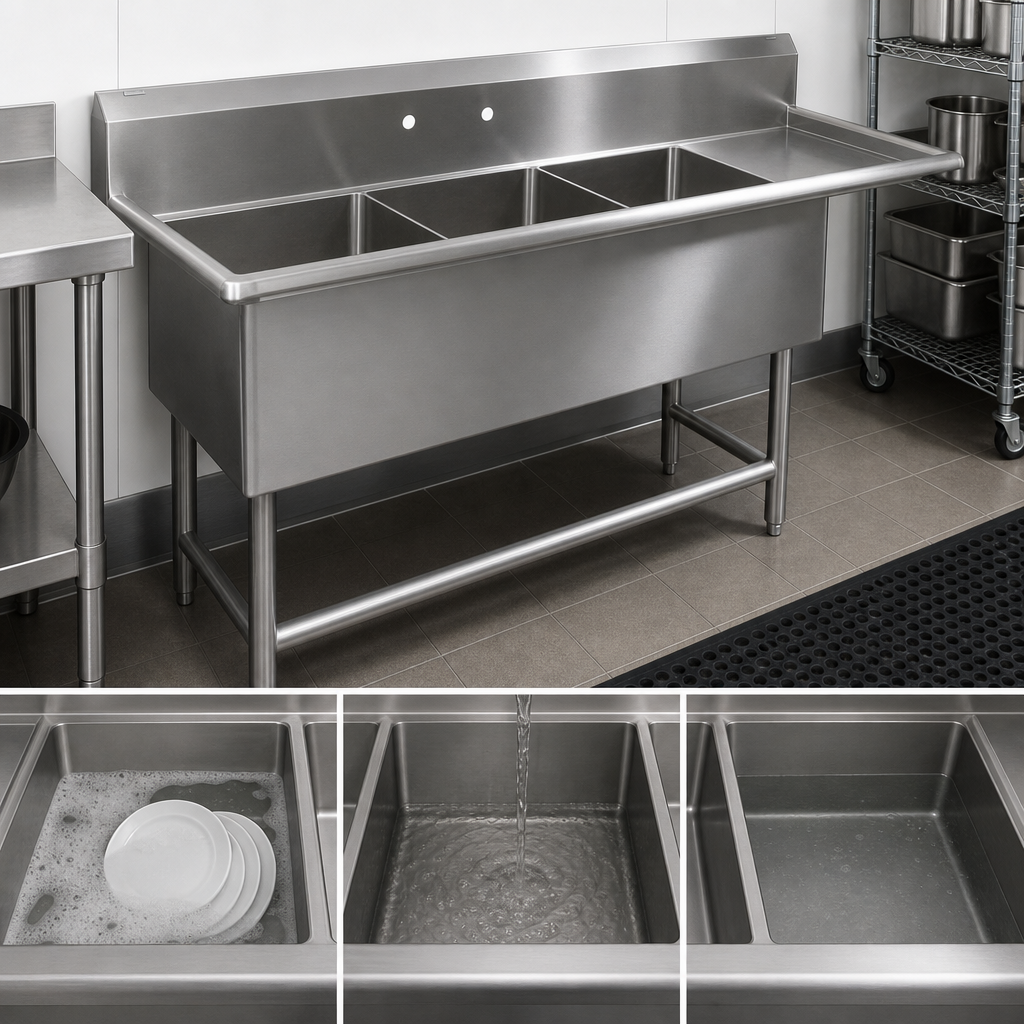

Streamline ware-washing and boost sanitation with the John Boos Pro-Bowl compartment sink. Three spacious bowls handle the classic wash-rinse-sanitize workflow, while a generous right-side drainboard keeps dishrooms organized and efficient.

Key benefits
  • Rugged 16-ga Type 300 stainless steel with #4 satin polish stands up to daily abuse.
  • (3) 20" × 20" × 12" bowls accommodate full-size sheet pans and stock pots.
  • 24" right drainboard is ribbed and pitched for rapid drying and water runoff.
  • 10" boxed backsplash with 2" 45° return contains splashes and protects walls.
  • Pre-punched 8" on-center faucet holes accept most splash-mount faucets (faucet sold separately).
  • 3-1/2" die-stamped drain openings ensure positive sealing with common basket strainers.
  • Bull-nosed edges and 5/8" coved bowl corners wipe clean in seconds—no sharp edges.
  • Stainless legs, adjustable bracing and bullet feet deliver rock-solid stability on uneven floors.
  • Ships knocked down to reduce freight costs; quick, no-weld assembly on site.
  • NSF & CSA-Sanitation listed for worry-free code compliance.
Specifications
Overall dimensions (W × D × H) 88-3/16" × 25-1/2" × 44-1/16"
Bowl interior (each) 20" W × 20" F-B × 12" D
Drainboard 24" right side
Backsplash 10" boxed, 45° top, 2" return
Faucet mounting 8" on-center splash-mount holes
Drain openings 3-1/2" die-stamped (1 per bowl)
Material / gauge 16-ga Type 300 stainless steel
Legs & bracing 1-5/8" O.D. SS legs with 1-1/4" O.D. SS front & side bracing
Feet Adjustable stainless steel bullet feet
Certifications NSF, CSA-Sanitation
Shipping Knocked Down (KD)
Manufacturer John Boos & Co., Effingham IL USA

Looking for lever wastes, pre-rinse faucets, overshelves or a left-hand drainboard version? Contact our team for custom options and accessories.

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

88.19in

Depth

25.5in

Shipping Weight

131.0lbs

Drainboards

with right-hand drainboard

Base Type

legs with front & side crossrails

Compartment Width (side - side)

20"

Splash Height

10"

Top Gauge

16 gauge

Overall Length

85" - 96"

Sink Depth (rim - drain)

12"

Compartment (front - back)

20"

Top Stainless Series

300 series

Base Construction

stainless steel

Specifications

Pro-Bowl Sink, 3-compartment, 88-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
