John Boos 3PB20-1D24L Pro-Bowl Compartment Sinks
$2,676.50
Unit price
/
Unavailable
Description

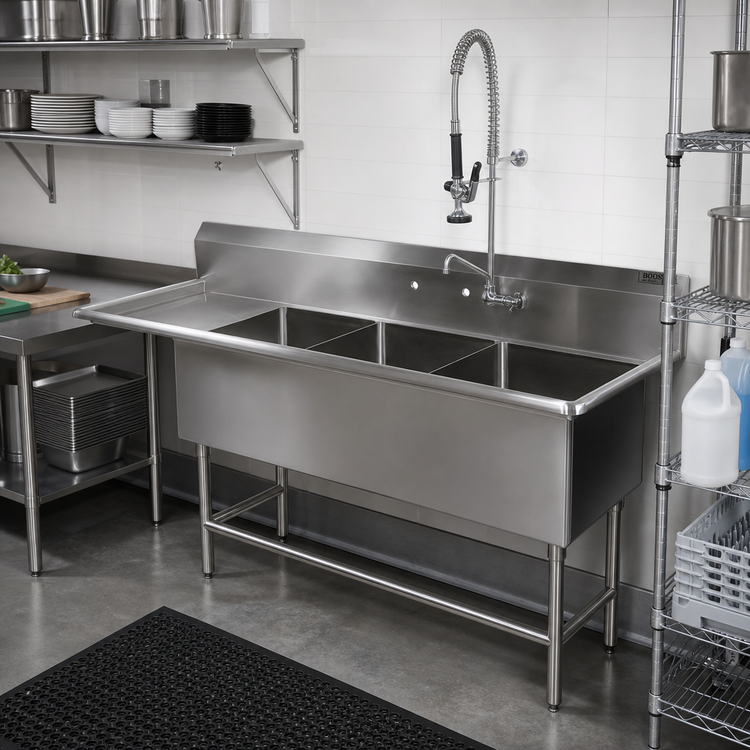

John Boos “Pro-Bowl” 3-Compartment Sink with 24" Left Drainboard
Model 3PB20-1D24L | 88-3/16" W × 25-1/2" D × 44-1/16" HBuilt for the daily grind of busy commercial kitchens, the John Boos Pro-Bowl 3-compartment sink delivers rugged durability, effortless cleanup and NSF-approved hygiene in one hardworking workstation.
Key Features
- Rugged 16-gauge Type 300 stainless steel top, bowls & backsplash with #4 satin polish

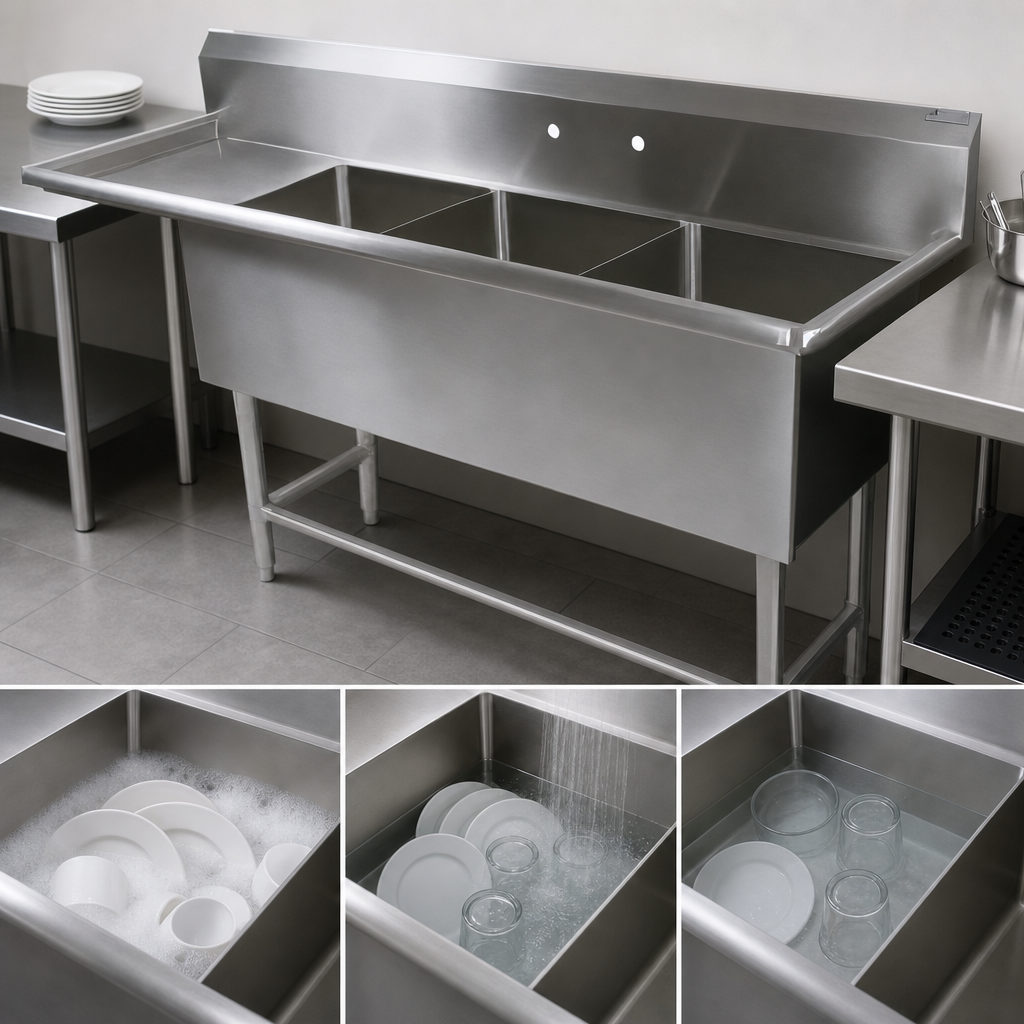

- (3) spacious bowls — 20" W × 20" F-B × 12" D — ideal for the classic wash-rinse-sanitize cycle
- Integrated 24" left-side drainboard keeps dishes organized and speeds drying
- 10" boxed backsplash with 45° top edge and 2" return keeps splashes off the wall
- Pre-punched splash-mount faucet holes on 8" centers (1" Ø)
- 3-1/2" die-stamped drain openings; 5/8" radius coved corners for fast, complete clean-up
- 1-5/8" Ø stainless steel legs with adjustable front & side bracing for rock-solid stability
- 1" adjustable stainless steel bullet feet level the unit on uneven floors
- TIG-welded construction; all exposed welds polished to match adjacent surfaces
- NSF & CSA-Sanitation listed — built to meet the latest health-department codes
- Ships knocked down (KD) to lower freight costs and simplify doorway clearance
At-a-Glance Specifications
| Model | 3PB20-1D24L |
|---|---|
| Compartments | (3) 20" W × 20" F-B × 12" D |
| Drainboard | 24" (left side) |
| Overall Dimensions | 88-3/16" W × 25-1/2" D × 44-1/16" H (to backsplash top) |
| Backsplash Height | 10" |
| Material | 16-gauge Type 300 stainless steel, #4 satin finish |
| Faucet Holes | (1) set, 8" centers, 1" Ø |
| Drain Opening | 3-1/2" Ø, die-stamped |
| Legs / Bracing | 1-5/8" Ø SS legs / 1-1/4" Ø SS adjustable bracing |
| Feet | 1" adjustable stainless steel bullet feet |
| Shipping Weight | ≈ 131 lb |
| Certifications | NSF, CSA-Sanitation |
Looking for a right-hand drainboard or deeper 14" bowls? Browse the full Pro-Bowl line ›
Important: Faucet, drain baskets, lever waste assemblies, pre-rinse units and other accessories are sold separately. Be sure to select compatible 8" center splash-mount hardware for a turnkey installation.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
88.19in
Depth
25.5in
Shipping Weight
131.0lbs
Sink Depth (rim - drain)
12"
Compartment (front - back)
20"
Top Gauge
16 gauge
Overall Length
85" - 96"
Compartment Width (side - side)
20"
Splash Height
10"
Base Construction
stainless steel
Base Type
legs with front & side crossrails
Top Stainless Series
300 series
Drainboards
with left-hand drainboard
Specifications
Pro-Bowl Sink, 3-compartment, 88-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12" deep compartments, (1) 24" left drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
