John Boos 3PB20-1D18R Pro-Bowl Compartment Sinks
$2,577.54
Unit price
/
Unavailable
Description

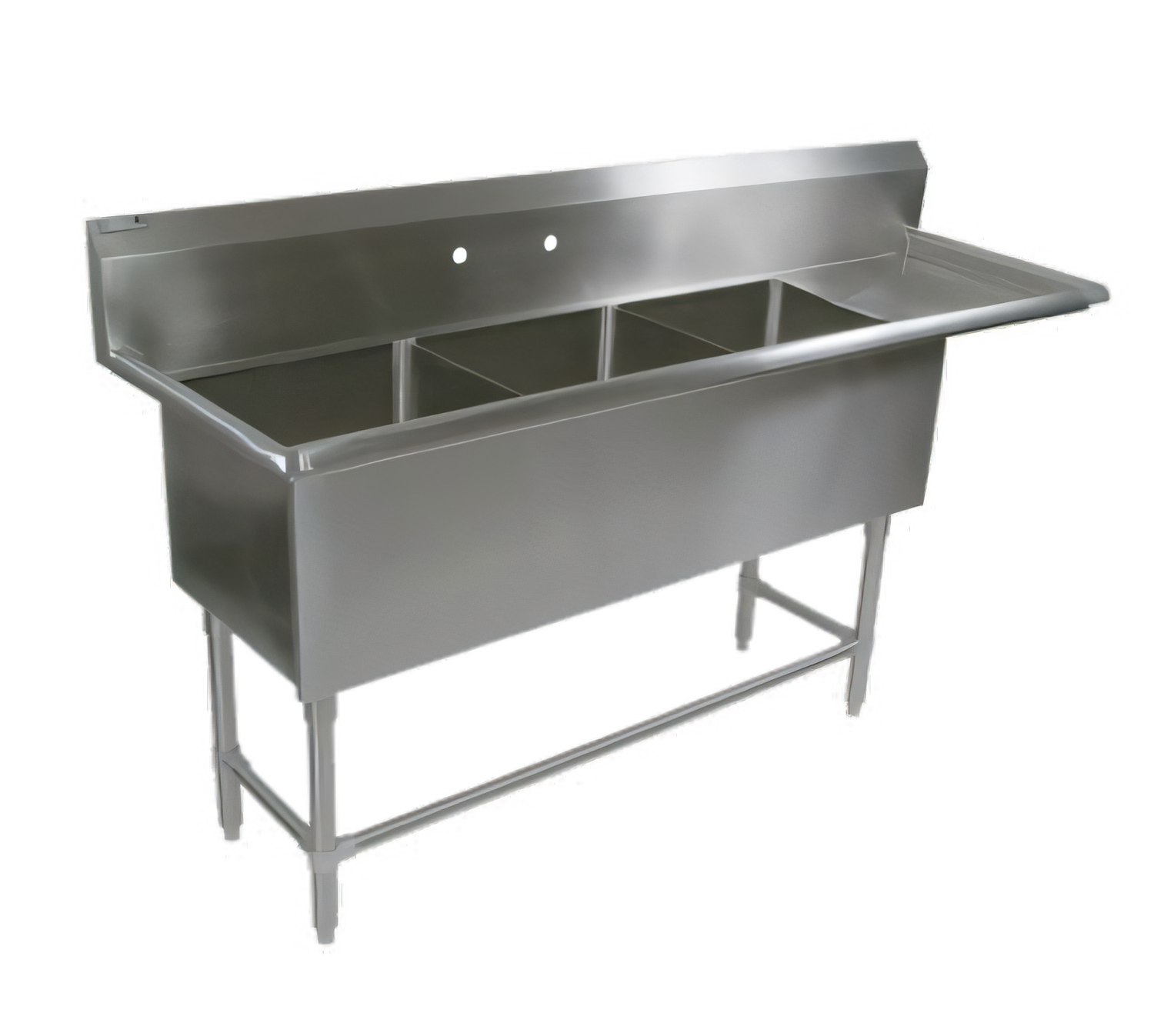

John Boos Pro-Bowl 3-Compartment Sink — 82" with 18" Right Drainboard
Model: 3PB1620-1D18R | 16 GA Type 300 Stainless SteelEngineered for high-volume commercial kitchens, the John Boos Pro-Bowl series combines rock-solid durability with food-safe design. Three generous compartments and an integrated drainboard keep wash-rinse-sanitize cycles moving quickly so your team can focus on service, not the sink.

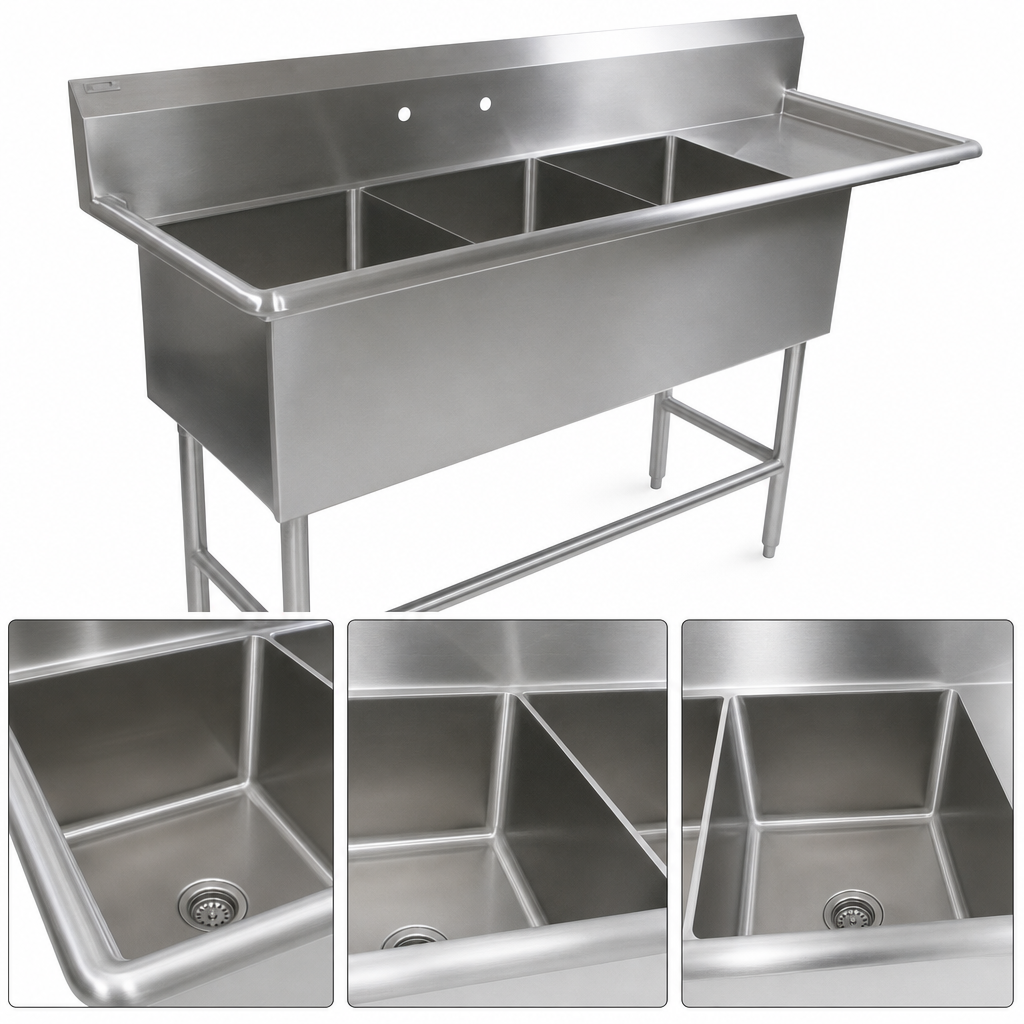

- (3) 20" × 20" × 12" deep bowls — perfect for wash, rinse & sanitize workflow
- 16-gauge, #4 satin-polished Type 300 stainless steel top, bowls & apron
- 18" right-hand drainboard slopes toward the bowl for fast, mess-free drainage
- 10" boxed backsplash with 45° top & 2" wall return prevents moisture damage
- (2) 1" faucet holes, 8" on-center, punched for splash-mount faucets
- 3-½" die-stamped drain openings speed water evacuation
- 1-5/8" O.D. stainless steel legs with 1-¼" cross-bracing for rock-solid stability
- Adjustable stainless steel bullet feet level the sink on uneven floors
- TIG-welded construction; exposed welds are ground & polished to match the surrounding finish
- Ships knocked-down (KD) for lower freight costs; easy field assembly
- NSF & CSA-Sanitation listed for nationwide code compliance
Detailed Specifications
| Overall dimensions | 82-3/16" W × 25-1/2" D × 44-1/16" H (to top of backsplash) |
|---|---|
| Compartment size (3) | 20" W × 20" F/B × 12" D |
| Drainboard | 18" right-hand, stamped & pitched for positive drainage |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet holes | (2) 1" dia., 8" on-center (splash-mount) |
| Drain openings | (3) 3-½" dia. die-stamped |
| Material thickness | 16 gauge (1.6 mm) stainless steel |
| Finish | #4 satin polish |
| Legs & bracing | 1-5/8" O.D. legs with 1-¼" cross-bracing — stainless steel |
| Feet | Adjustable stainless steel bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping | Knocked-down (KD), palletized |
Compatible Accessories (sold separately)
- 8" splash-mount swing-nozzle or add-a-faucet assemblies
- Pre-rinse spray units for heavy-duty pot & pan stations
- Lever waste drains for hands-free emptying
- Left, right or dual end-splashes to contain overspray
- Wall-mount overshelves & pot racks to maximize vertical space
Important: Faucet, drains and plumbing fittings are not included. Verify local code
requirements and select compatible accessories before installation.
Specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
82.19in
Depth
25.5in
Shipping Weight
127.0lbs
Splash Height
10"
Top Gauge
16 gauge
Base Type
legs with front & side crossrails
Overall Length
73" - 84"
Compartment (front - back)
20"
Drainboards
with right-hand drainboard
Sink Depth (rim - drain)
12"
Compartment Width (side - side)
20"
Base Construction
stainless steel
Top Stainless Series
300 series
Specifications
Pro-Bowl Sink, 3-compartment, 82-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12" deep compartments, (1) 18" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
