John Boos 3PB20-1D18L Pro-Bowl Compartment Sinks
Description

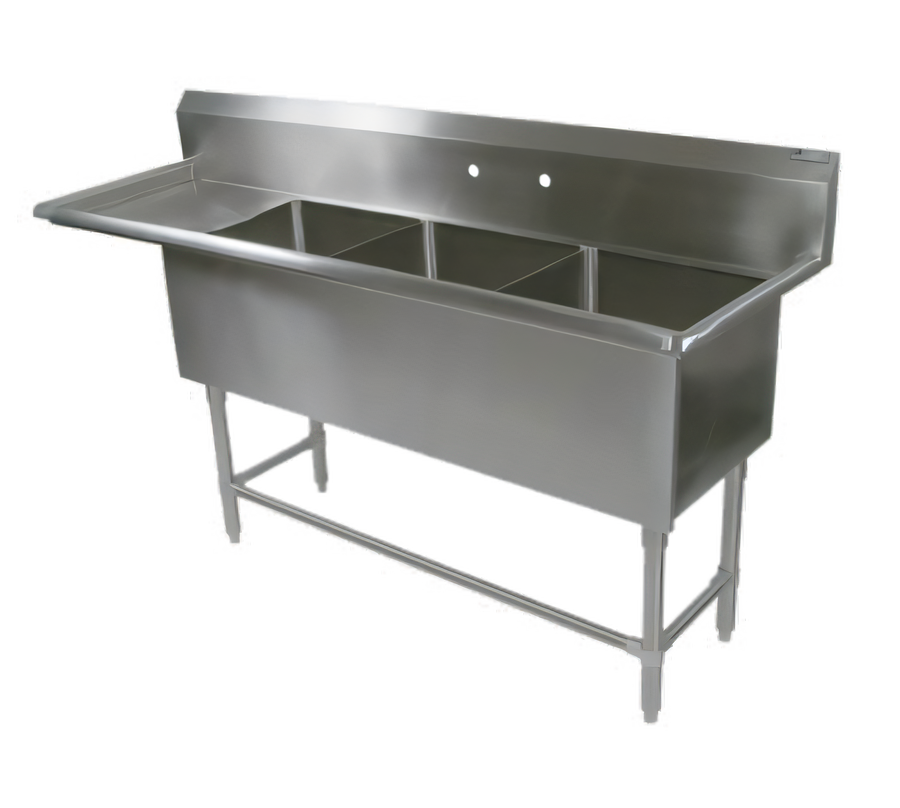

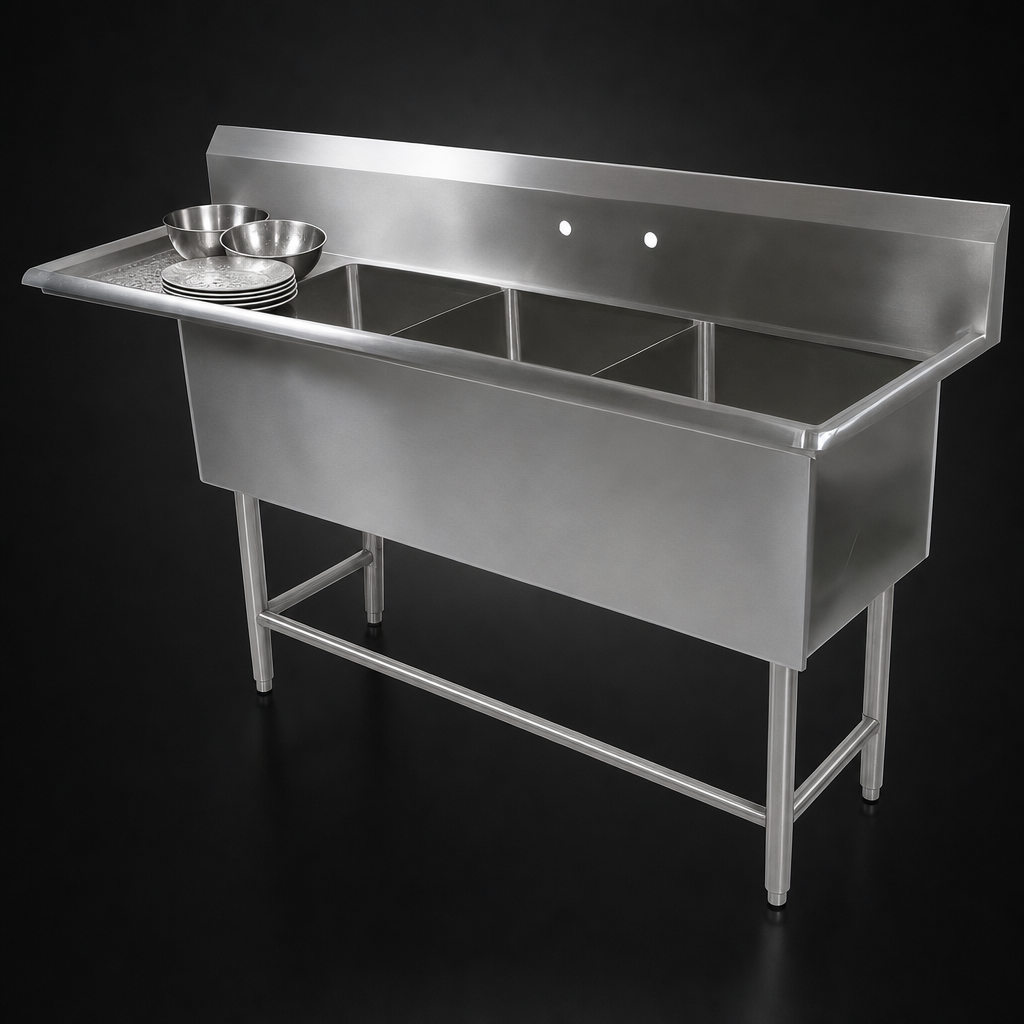

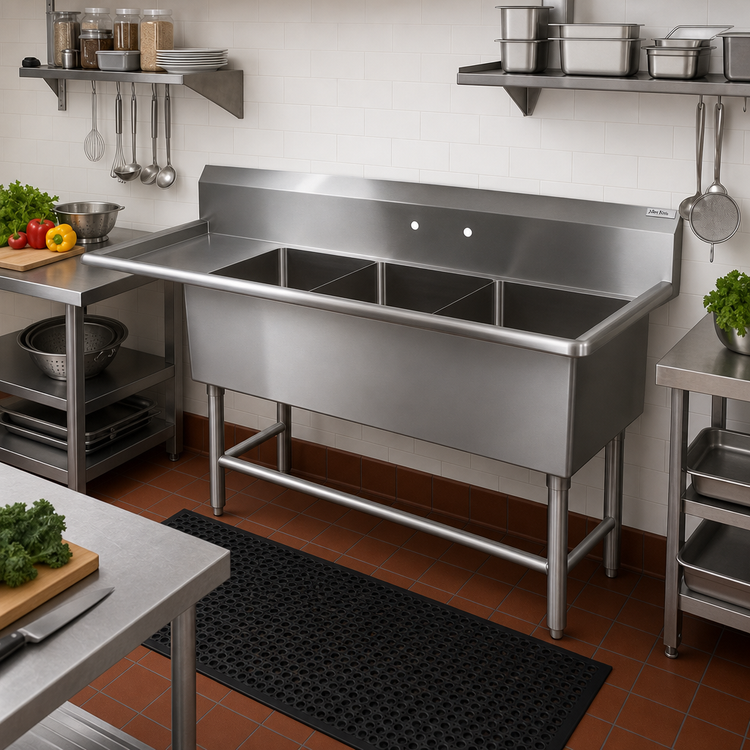

John Boos “Pro-Bowl” 3-Compartment Sink – 82 in. w/ Left Drainboard
Model: 3PB-20-1D18L (KD)Engineered for demanding commercial kitchens, the John Boos Pro-Bowl series delivers rock-solid durability, smooth sanitation, and installer-friendly knock-down construction. This 82-inch, three-compartment sink combines generous 20" x 20" bowls with an 18" left-side drainboard—perfect for high-volume washing, rinsing & sanitizing lines.
Key Features
- Three 20" W x 20" F/B x 12" D compartments for efficient wash-rinse-sanitize workflow
- 18" left drainboard slopes for positive drainage
- 10" high boxed backsplash with 45° top & 2" return helps keep walls dry
- Pre-punched splash-mount faucet holes on 8" centers (1" dia.)
- 3-1/2" die-stamped drain openings—accepts standard strainers & lever wastes
- Heavy-duty 16 GA Type 300 stainless steel, #4 satin finish
- 1-5/8" round stainless steel legs with adjustable front & side bracing
- Stainless steel bullet feet—height adjustable for a level install
- All vertical & horizontal corners coved with 5/8" radius for easy cleaning
- Bull-nosed front & end edges for operator safety
- NSF & CSA-Sanitation listed
- Ships knocked down (KD) to reduce freight costs; simple field assembly
Technical Specifications
| Overall size (L × W × H) | 82 3/16" × 25 1/2" × 44 1/16" |
|---|---|
| Bowl interior (each) | 20" × 20" × 12" deep |
| Number of compartments | 3 |
| Drainboard | 18" – left side, integrally welded & pitched |
| Backsplash | 10" boxed, 45° top, 2" return |
| Faucet mounting | Splash-mount, 8" on-center holes |
| Drain openings | (3) 3-1/2" dia. die-stamped |
| Material & finish | 16 GA Type 300 stainless steel, #4 satin |
| Legs / bracing | 1-5/8" Ø stainless legs, 1-1/4" Ø stainless side & front bracing |
| Feet | Adjustable stainless bullet feet |
| Certifications | NSF, CSA-Sanitation |
| Shipping configuration | Knocked-down (some assembly required) |
Ideal Applications
- Restaurants & cafeterias
- Catering & commissary kitchens
- Breweries, distilleries & wineries
- School & hospital foodservice
Need a right-hand drainboard or lever wastes? Contact our team—many John Boos options are factory-customizable.
