John Boos 3PB184-2D30 Pro-Bowl Compartment Sinks
John Boos 3PB184-2D30 Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 3PB184-2D30 Pro-Bowl Compartment Sinks
Description

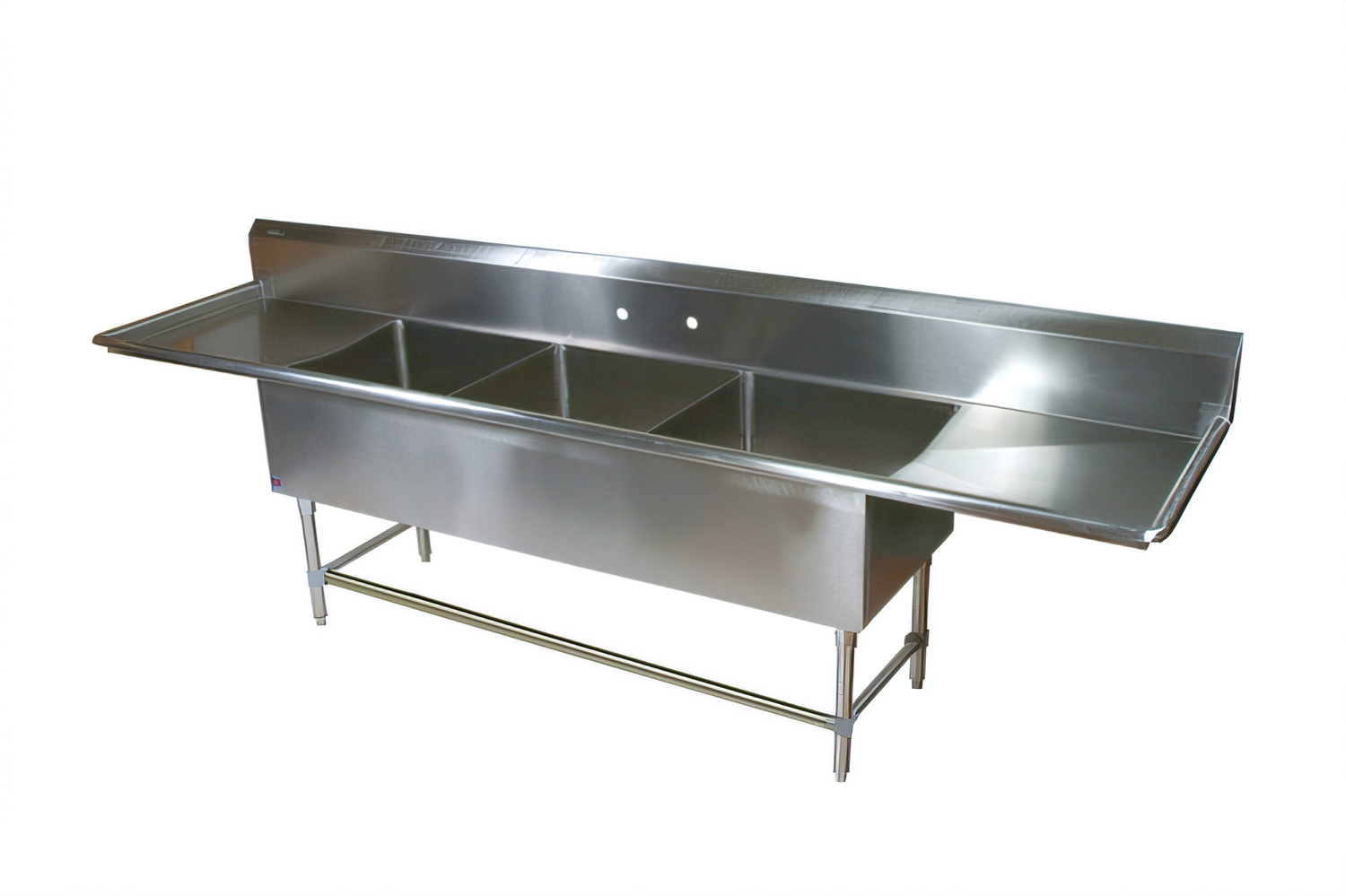

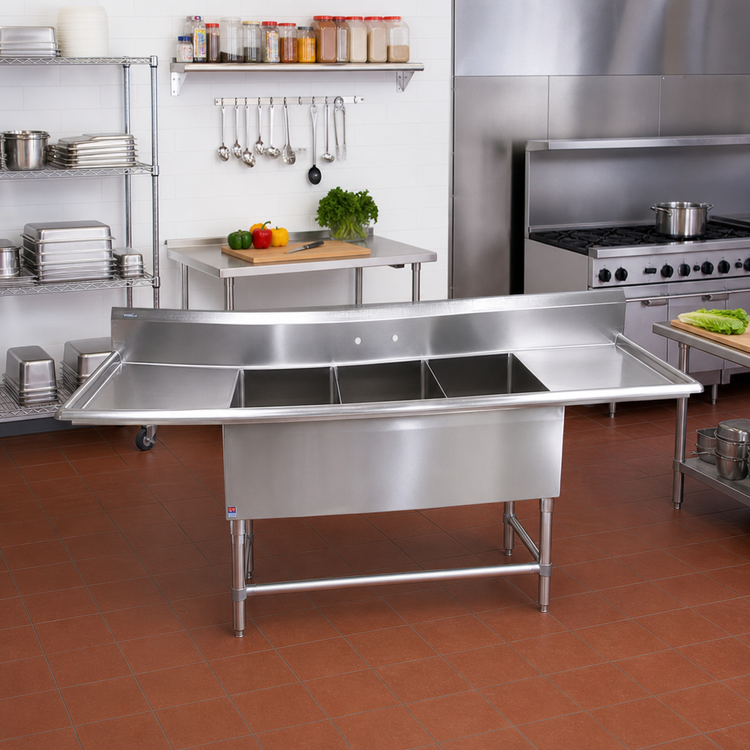

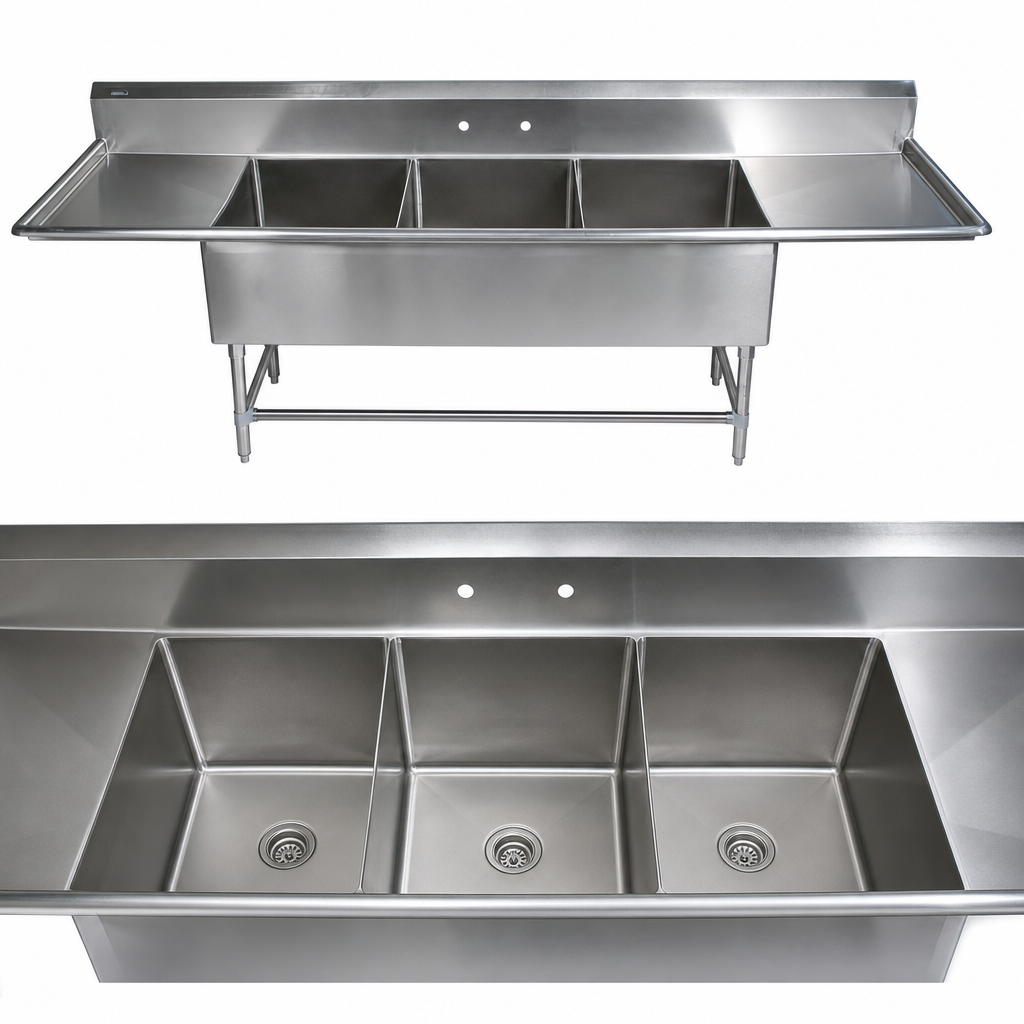

John Boos “Pro-Bowl” 3-Compartment Sink w/ (2) 30" Drainboards
Model 3PB184-2D30 • 117-1/4" W x 23-1/2" D x 44-1/16" HBuilt for high-volume food-service, the John Boos Pro-Bowl series delivers the rugged durability, workflow efficiency, and sanitary performance professionals demand. Three generous 18" x 18" x 14" bowls, extra-long 30" drainboards on both sides, and a full 10" boxed backsplash keep dishes moving and messes contained—so your kitchen stays productive and compliant.
Key Features
- 16 ga. Type 300 stainless steel top & bowls with #4 satin polish
- (3) compartment design: 18" W x 18" F/B x 14" D each
- (2) 30" drainboards—one left, one right—for efficient loading & unloading
- 10" high boxed backsplash with 2" return and easy-clean 45° top edge
- 8" on-center splash-mount faucet holes, 1" diameter
- 3-1/2" die-stamped drain openings, coved 5/8" radius corners for fast rinsing
- Stainless steel legs with adjustable front & side bracing
- Adjustable stainless steel bullet feet level the sink on uneven floors
- TIG-welded construction; exposed welds polished to match adjacent surfaces
- Knocked-down (KD) base ships efficiently and assembles quickly on site
At-a-Glance Specifications
| Overall width (left → right) | 117-1/4" |
|---|---|
| Overall depth (front → back) | 23-1/2" |
| Overall height | 44-1/16" (to top of backsplash) |
| Work-height to sink roll | 36-5/16" |
| Compartment interior (x3) | 18" W x 18" F/B x 14" D |
| Drainboard length | 30" (left) & 30" (right) |
| Backsplash | 10" H boxed, 2" return, 45° top |
| Faucet mounting | 1 set, 8" centers, 1" holes (splash mount) |
| Drain openings | 3-1/2" dia., die-stamped |
| Gauge / material | 16 ga. 300-series stainless steel |
| Legs / bracing | 1-5/8" O.D. SS legs 1-1/4" O.D. SS adjustable bracing |
| Feet | Adjustable stainless steel bullet feet |
| Approx. shipping weight | 146 lb. |
| Certifications | NSF, CSA-Sanitation |
Why Choose John Boos?
- Since 1887—over 135 years of American stainless & butcher-block craftsmanship
- All outside edges are bull-nosed for a safe, polished, professional finish
- Strict quality control for long service life and low total cost of ownership
Recommended Accessories (sold separately)
- 8" center deck or splash-mount faucets & add-a-faucets
- Lever waste drains for hands-free emptying
- Pre-rinse units to speed up dishwashing
- End splashes or overshelves to customize your workflow
Need a different bowl size or drainboard length? Contact us for custom Pro-Bowl configurations direct from John Boos.
