John Boos 3PB184-1D30L Pro-Bowl Compartment Sinks
Description

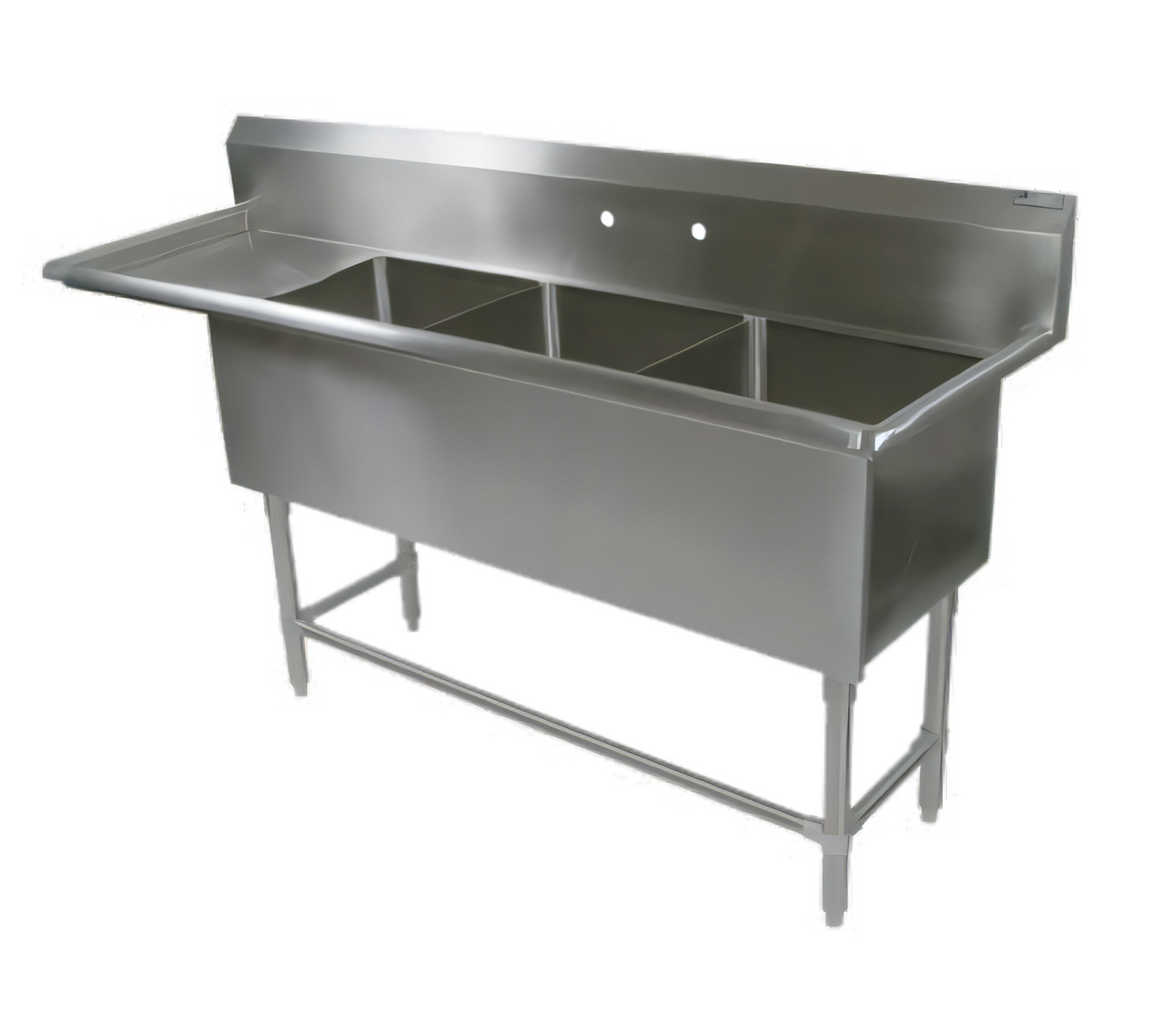

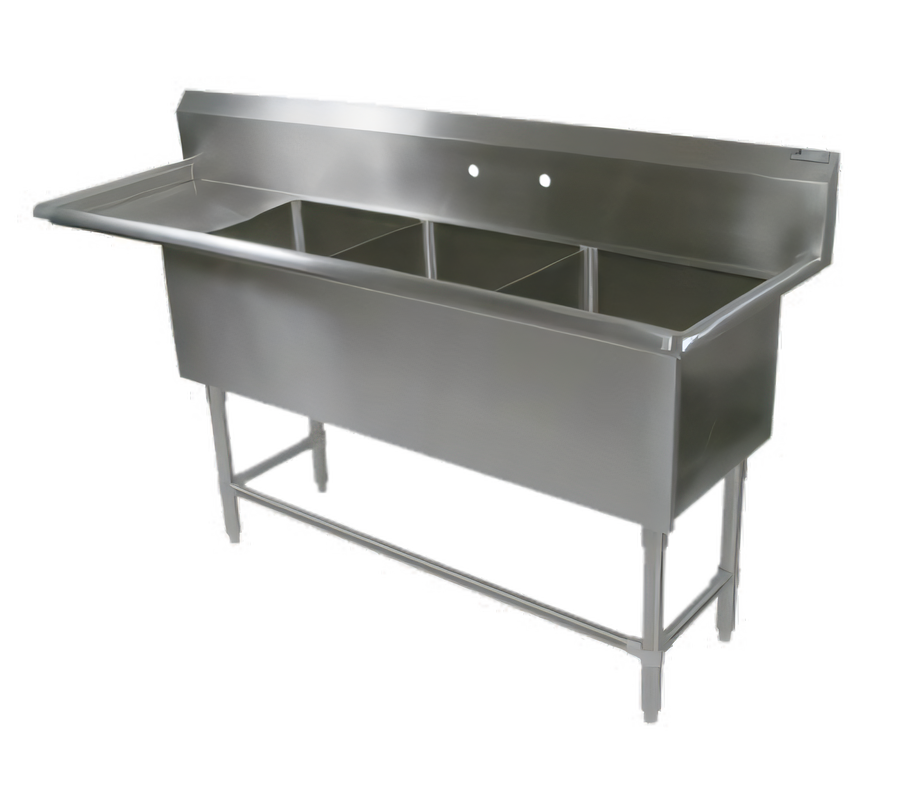

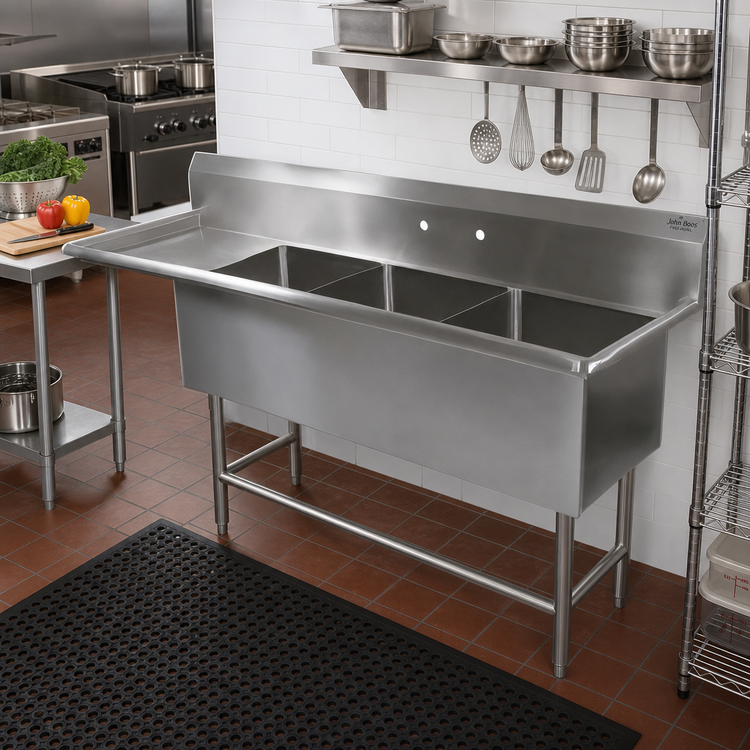

John Boos Pro-Bowl 3-Compartment Sink with 30" Left Drainboard
Model 3PB184-1D30L | 16 Gauge Type 300 Stainless SteelBuilt for the daily rigors of high-volume kitchens, this Pro-Bowl series sink combines three oversized wash compartments with an extra-long drainboard to keep your ware-washing line moving smoothly. Heavy-duty, fully TIG-welded 16 GA stainless steel and NSF/CSA sanitation listings make it a dependable, code-compliant choice for restaurants, cafeterias, commissaries, and bars.
Key Advantages

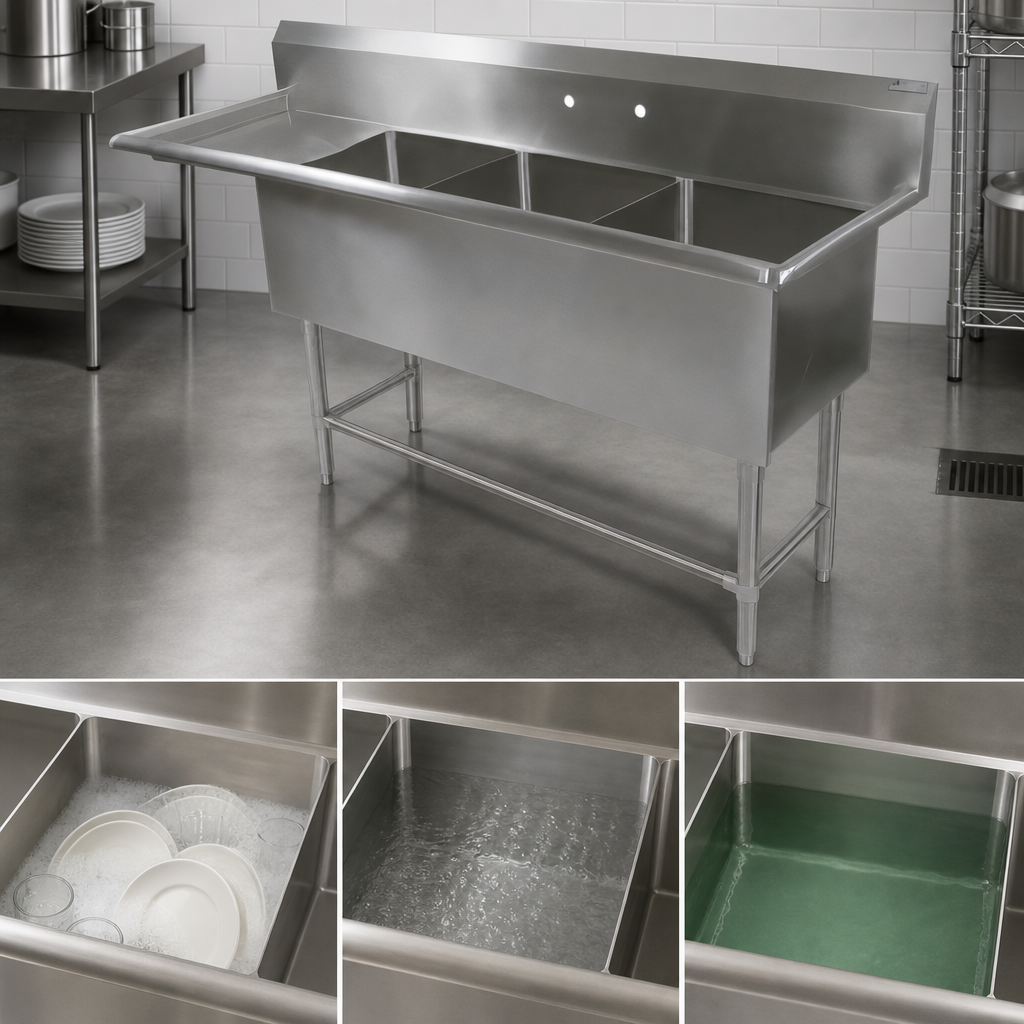

- Three 18" x 18" x 14" deep bowls handle large stock pots and sheet pans.
- 30" left-side drainboard speeds drying and staging.
- 10" boxed backsplash with 45° return helps contain splashes and meets health codes.
- Pre-punched 8"-center splash-mount faucet holes—just add your faucet and you’re ready to plumb.
- 3-1/2" die-stamped drain openings accept standard basket or lever wastes.
- Round-bullnosed edges and 5/8" radius interior corners for easy cleaning and safer handling.
- Adjustable stainless steel front & side bracing plus bullet feet level the sink on uneven floors.
- Knocked-down (KD) design reduces freight costs and fits through tight doorways.
Technical Specifications
| Overall dimensions | 88 3/16"W × 23 1/2"D × 44 1/16"H* |
|---|---|
| Compartment size (3) | 18"W × 18"F-B × 14"D |
| Drainboard | 30" L (left-hand) |
| Backsplash | 10"H boxed, 2" return, 45° top |
| Faucet mounting | 1 set of 8"-on-center holes, splash mount |
| Drain openings | 3 × 3 1/2" die-stamped |
| Material & finish | 16 GA Type 300 stainless steel, #4 satin polish |
| Base construction | Stainless steel legs, 1 5/8" O.D. 1 1/4" O.D. front & side bracing (adjustable) |
| Feet | 1" adjustable stainless steel bullet feet |
| Certifications | NSF Listed, CSA-Sanitation |
| Shipping configuration | Ships knocked-down (assembly required) |
*44 1/16" H measured to top of backsplash; 36 5/16" H to sink roll.
Recommended Accessories (sold separately)
- Wall or deck-mount faucets (8" centers)
- Lever waste drains for hands-free emptying
- Overshelves or pot racks to maximize vertical storage
- End splashes (left, right, or both) for added side protection
Care & Maintenance
- Clean daily with mild, non-chloride detergents and a soft cloth or sponge.
- Avoid abrasive pads, wire brushes, or cleaners containing quaternary salts.
- Rinse and dry after use to maintain the protective passive film on stainless steel.
- Restore sheen with John Boos Stainless Steel Cleaner or Bar Keepers Friend as needed.
