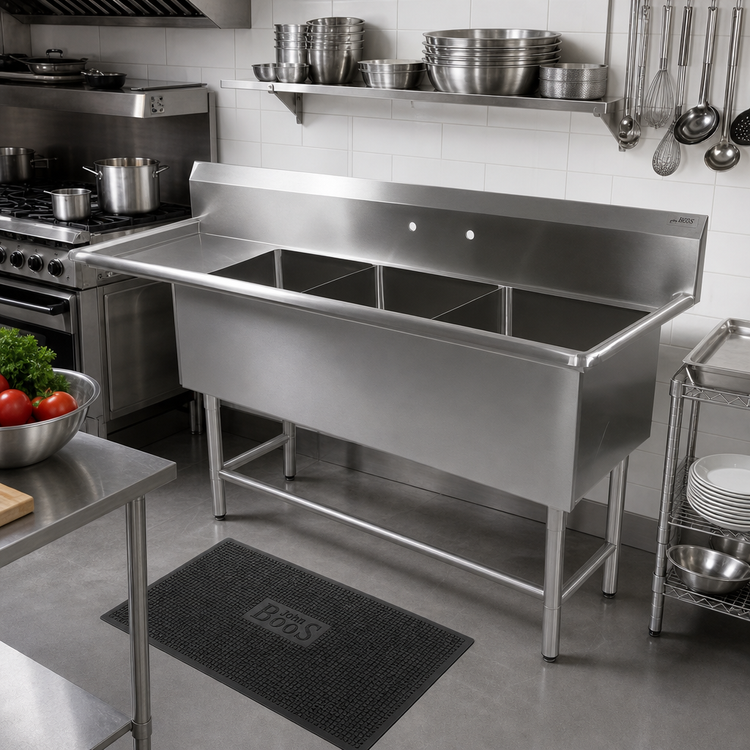

John Boos Pro-Bowl 3-Compartment Sink with 24-Inch Left Drainboard, 14-Inch Deep Bowls, 16-Gauge Stainless Steel

82-3/16-Inch Overall Length, 10-Inch Boxed Backsplash, Stainless Steel Legs

A rugged freestanding sink station with three deep compartments, a left drainboard, and a stainless steel base built for busy dish areas.

  • Three 18 by 18 by 14-inch compartments support a wash-rinse-sanitize workflow.
  • 24-inch left drainboard provides extra landing and drying space.
  • 16-gauge Type 300 stainless steel construction is built for demanding commercial use.
  • 10-inch boxed backsplash with 8-inch faucet hole centers helps simplify installation and splash control.
  • Stainless steel legs, front and side bracing, and adjustable bullet feet add stability and leveling support.

Overall Dimensions:

82.17"W x 23.5"D x 44.06"H

Product Weight:

123.0 lb

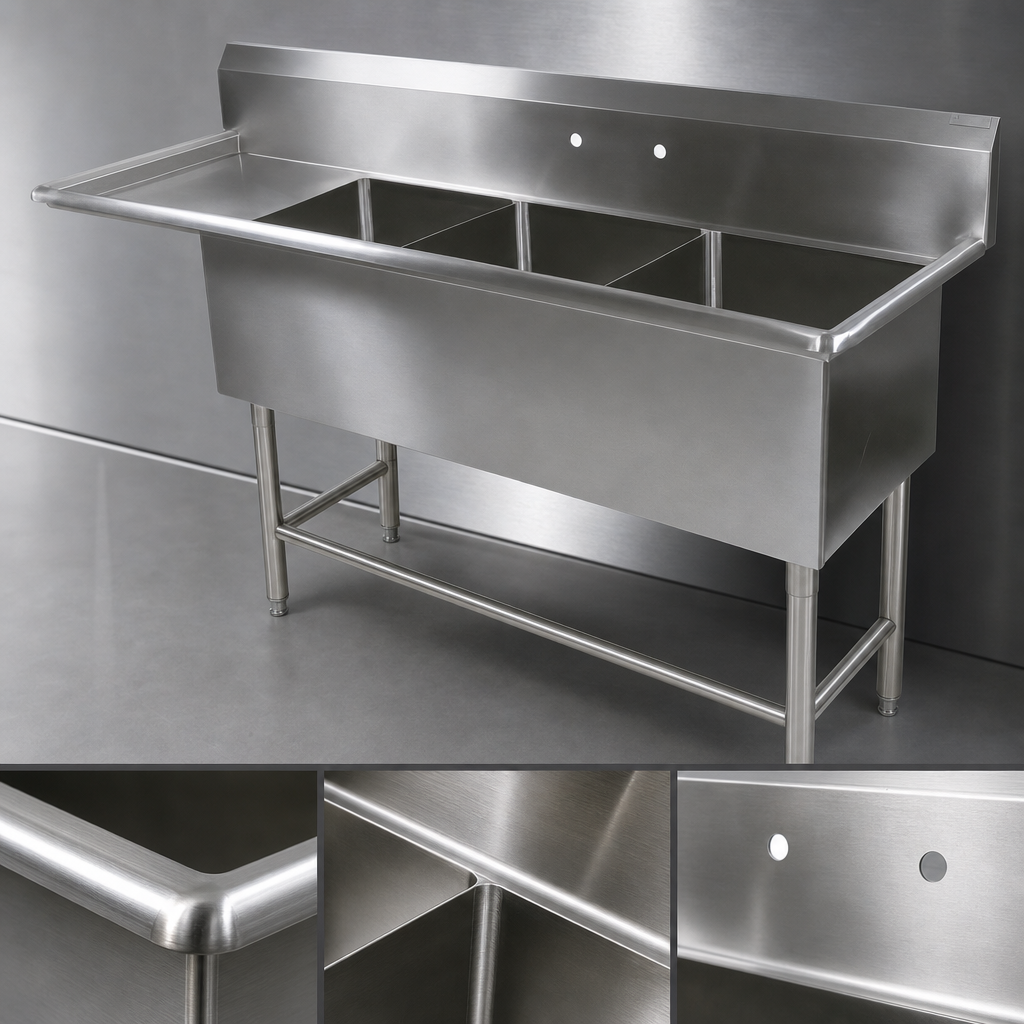

16-Gauge Type 300 Stainless Steel Construction

Top and bowls are made from 16-gauge Type 300 stainless steel with a #4 polish satin finish.

Three Deep Compartments

Includes three 18-inch by 18-inch by 14-inch deep compartments for multi-stage warewashing.

24-Inch Left Drainboard

Left-hand drainboard adds convenient staging space for clean or dirty items.

10-Inch Boxed Backsplash

Full-length backsplash includes a 45-degree top and 2-inch return to the wall for better splash protection.

Splash-Mount Faucet Holes

Backsplash is drilled with one set of 8-inch on-center, 1-inch faucet holes.

Stainless Steel Leg Base

Stainless steel legs, front and side bracing, and gussets provide a stable freestanding base.

Adjustable Bullet Feet

1-inch adjustable stainless steel bullet feet help level the sink on uneven floors.

Sanitary Construction Details

Coved bowl corners, bullnosed outside corners, and die-stamped drain openings support easier cleaning and drainage.

Knocked-Down Shipment

Ships standard knocked-down for easier freight handling and on-site assembly.

Type 3-Compartment Sink
Style Left Drainboard
Installation Type Freestanding
Material Stainless Steel
Finish Satin Finish
Compartments 3
Shipping Width 83 Inches
Shipping Depth 24 Inches
Shipping Height 45 Inches
Shipping Weight 123 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

This model has a left-hand drainboard. The series requires specifying left or right when ordering.
The sink includes three compartments, each measuring 18 inches wide by 18 inches front-to-back by 14 inches deep.
It has a 10-inch high boxed backsplash with a 45-degree top and a 2-inch return to the wall.
The backsplash has one set of splash-mount faucet holes on 8-inch centers.
No. The base is standard knocked-down for shipping and assembly.
