John Boos 3PB1824-1D24R Pro-Bowl Compartment Sinks
John Boos 3PB1824-1D24R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 3PB1824-1D24R Pro-Bowl Compartment Sinks
Description

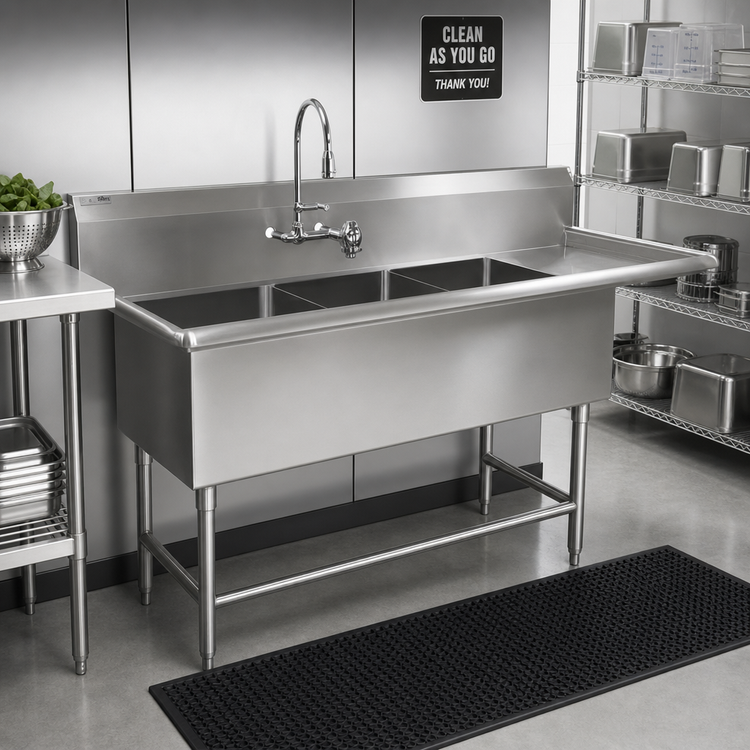

John Boos Pro-Bowl 3-Compartment Sink w/ 24" Right Drainboard

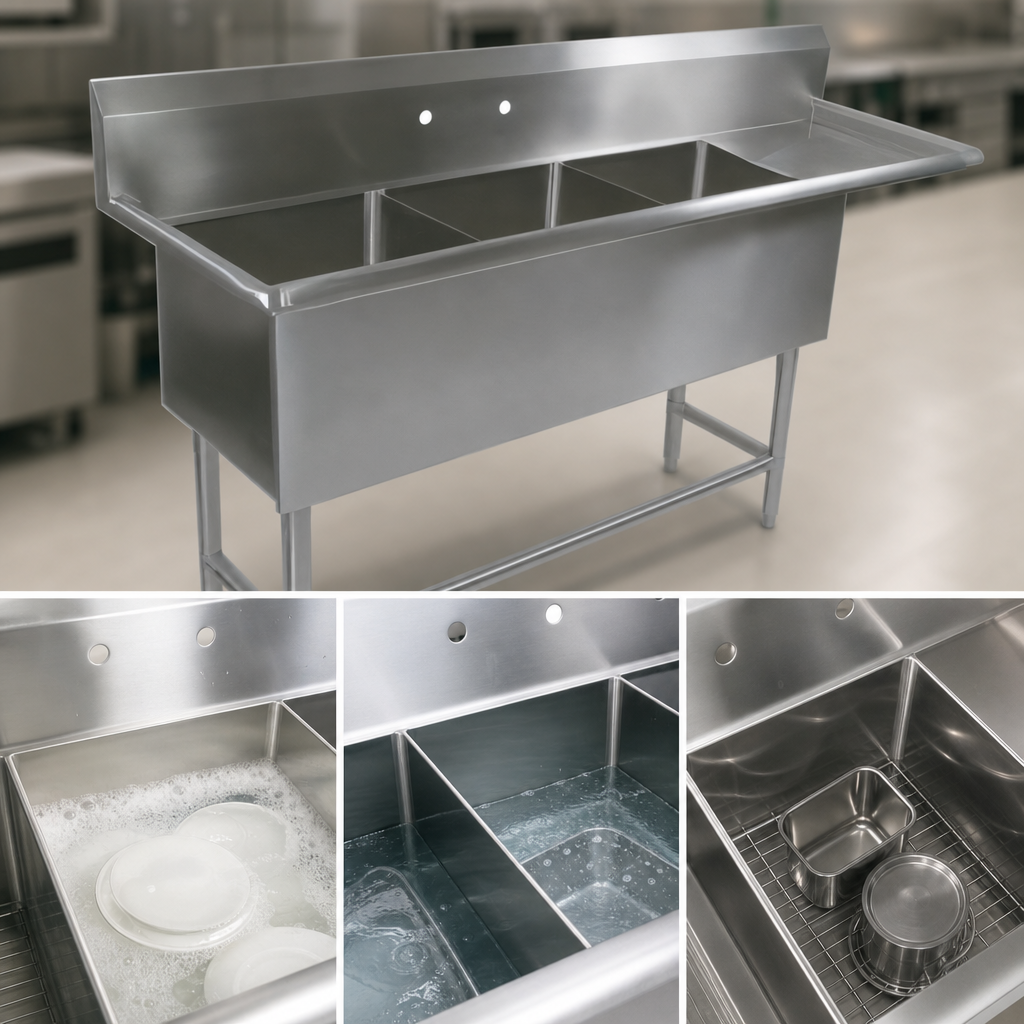

Model 3PB1824-1D24R | 16 GA Type 300 Stainless SteelBuilt to thrive in the busiest commercial kitchens, the John Boos Pro-Bowl series delivers rock-solid durability, easy sanitation, and the thoughtful details professionals demand. Three spacious bowls keep wash–rinse–sanitize operations moving, while the integrated 24" right-hand drainboard offers ample landing space for clean ware.
Key Features
- (3) 18" W × 24" D × 12" H bowls for efficient, code-compliant ware-washing
- 24" right drainboard with pitched surface for quick water run-off
- 10" boxed backsplash with 45° top edge & 2" return to protect surrounding walls
- Splash-mount faucet holes: 8" on-center, 1" Ø (faucet not included)
- 3-1/2" die-stamped drain openings accept standard basket strainers
- Heavy-duty 16-gauge, Type 300 stainless steel top & bowls, #4 satin finish
- 1-5/8" round stainless legs with 1" adjustable bullet feet for stable leveling
- Adjustable front & side stainless bracing for extra rigidity
- Bull-nosed edges and 5/8" coved bowl corners for safer, easier cleaning
- Knocked-down (KD) base ships economically and assembles quickly on site
Specification Sheet
| Overall size | 82-3/16" W × 29-1/2" D × 44-1/16" H (to top of backsplash) |
|---|---|
| Bowl size (each) | 18" W × 24" F/B × 12" D |
| Drainboard | 24" L – right side |
| Backsplash height | 10" |
| Faucet holes | (1) set, 8" centers, 1" Ø |
| Material thickness | 16-gauge (≈1.5 mm) |
| Construction | TIG-welded, polished to match adjacent surfaces |
| Legs / feet | Stainless, 1-5/8" Ø / 1" adjustable bullet feet |
| Approx. weight | 131 lb |
| Certifications | NSF Listed, CSA-Sanitation |
In the Box
- Sink top with integral drainboard & backsplash
- Stainless steel legs (knocked down)
- Front & side adjustable bracing
- Assembly hardware & instructions
Faucet, drains, and other accessories are sold separately.
Care & Maintenance Tips
- Wash with warm water and a soft cloth; follow the grain of the steel.
- Remove tough stains with Bar Keepers Friend, then rinse thoroughly.
- Polish periodically with John Boos Stainless Steel Cleaner to restore luster.
- Avoid prolonged contact with salty, acidic, or chlorinated solutions.
Put the legendary quality of John Boos behind your dishroom or prep line— the Pro-Bowl compartment sink is a proven workhorse that meets today’s sanitation codes and tomorrow’s workload.
