John Boos 3PB16204-1D24R Pro-Bowl Compartment Sinks
$2,746.46
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
John Boos 3PB16204-1D24R Pro-Bowl Compartment Sinks is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
John Boos 3PB16204-1D24R Pro-Bowl Compartment Sinks
$2,746.46
Unit price
/
Unavailable
Description

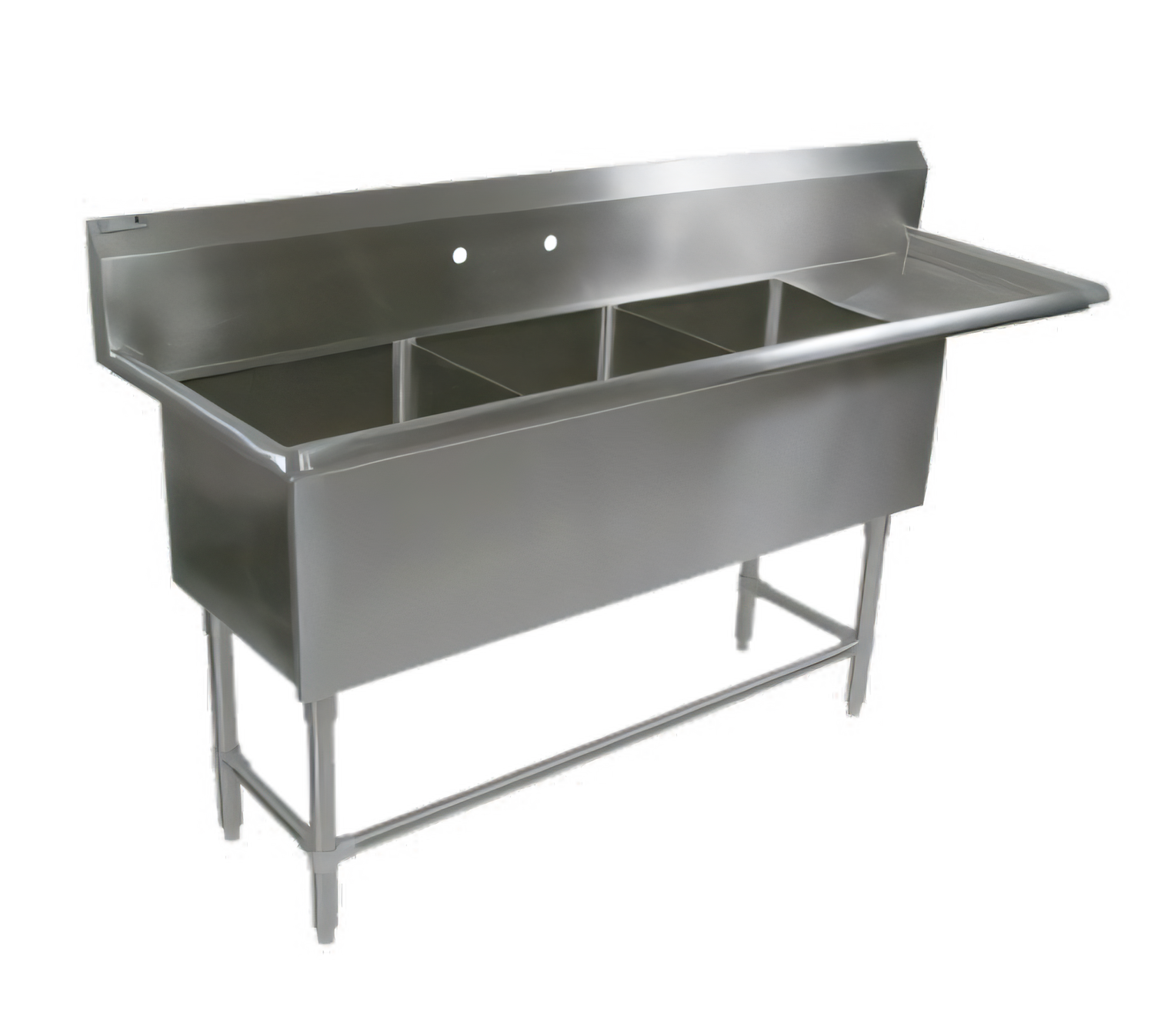

Pro-Bowl 3-Compartment Sink w/ 24" Right Drainboard
John Boos Model 3PB16204-1D24R • 16 GA Type 300 Stainless SteelEngineered for high-volume kitchens, the John Boos Pro-Bowl series combines rugged 16-gauge stainless steel with smart ergonomics that boost productivity and keep your dish area running smoothly.
Why This Sink Beats the Rush- Three 16" W x 20" F-to-B x 14" D compartments handle intensive wash, rinse & sanitize cycles.

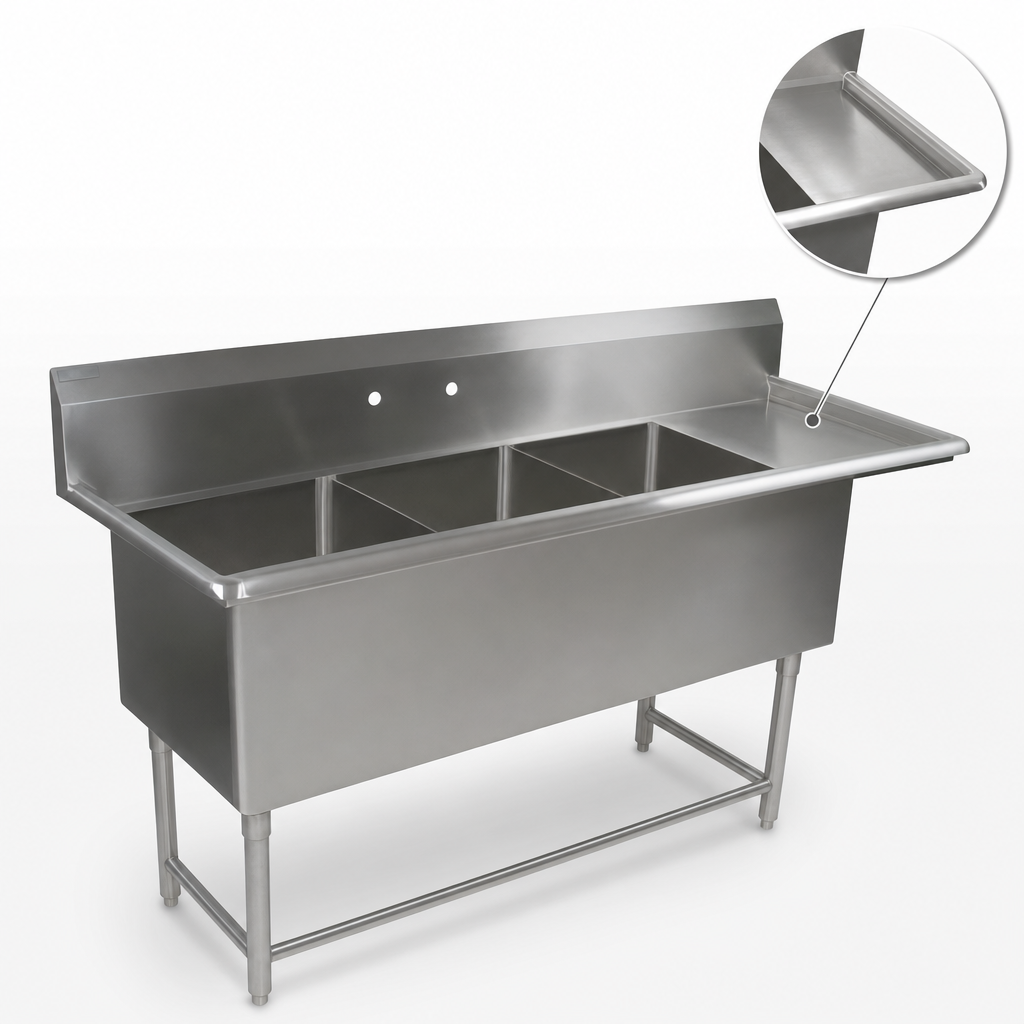

- 24" right-side drainboard gives you a generous landing zone for dirtyware or air-drying.
- 10" boxed backsplash with 45° rolled top and 2" return keeps walls spotless.
- Splash-mount faucet deck drilled on 8" centers for fast, industry-standard installation.
- 3-1/2" die-stamped drain openings in every bowl speed drainage and accept common basket strainers.
- TIG-welded seams ground and polished to a #4 satin finish—easy to wipe, hard to scratch.
- All-stainless base: 1-5/8" Ø legs, 1-1/4" Ø adjustable front & side bracing, and heavy-duty bullet feet for a rock-solid stance on uneven floors.
- NSF & CSA-Sanitation listed for worry-free health-department approvals.
- 16-gauge (1.5 mm) Type 300 stainless steel top, bowls & apron.
- All exposed edges are bull-nosed—comfortable, snag-free and safer for staff.
- Knocked-down (KD) design reduces freight costs; field assembly takes minutes.
| Overall size (W × D × H) | 76-3/16" × 25-1/2" × 44-1/16" (to top of backsplash) |
|---|---|
| Work height | 36-5/16" to sink roll |
| Compartment size (each) | 16" W × 20" F-B × 14" D |
| Drainboard | 24" — right side (standard) |
| Backsplash | 10" H boxed, 45° top, 2" return |
| Faucet holes | 8" centers, 1" Ø (splash mount) |
| Drain openings | 3-1/2" die-stamped (one per bowl) |
| Material thickness | 16 GA (.0625") |
| Stainless grade & finish | Type 300, #4 satin polish |
| Certifications | NSF, CSA-Sanitation |
| Ships | Knocked-down (KD) |
- Clean daily with a non-chloride stainless cleaner or mild soap and water.
- Always wipe in the direction of the grain to preserve the satin finish.
- Avoid bleach and abrasive pads; use Bar Keepers Friend® or Boos Stainless Steel Cleaner for tough spots.
Following these guidelines preserves the passive protective film on Type 300 stainless steel and prevents corrosion.
Shipping Note: Unit ships knocked-down to reduce freight costs. Basic field assembly (legs & bracing) required.
Features & Specs
Features & Specs
Manufacturer
John Boos
Brand_name
Pro-Bowl
Certifications
NSF, CSA-Sanitation
Height
44.06in
Width
76.18in
Depth
25.5in
Shipping Weight
121.0lbs
Overall Length
73" - 84"
Compartment (front - back)
20"
Drainboards
with right-hand drainboard
Base Type
legs with front & side crossrails
Base Construction
stainless steel
Sink Depth (rim - drain)
14"
Top Gauge
16 gauge
Splash Height
10"
Top Stainless Series
300 series
Compartment Width (side - side)
16"
Specifications
Pro-Bowl Sink, 3-compartment, 76-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 16"W x 20" front-to-back x 14" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
