John Boos Pro-Bowl 3-Compartment Sink with Left and Right Drainboards, 16" x 20" x 12" Bowls

SKU: 3PB1620-2D24
GTIN: 662969631192
$3,063.59
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

3-compartment Sinks Best Sellers Commercial Plumbing Supplies Commercial Sinks Compartment Sinks John Boos New Arrivals Restaurant Equipment Sinks & Handwashing Stations

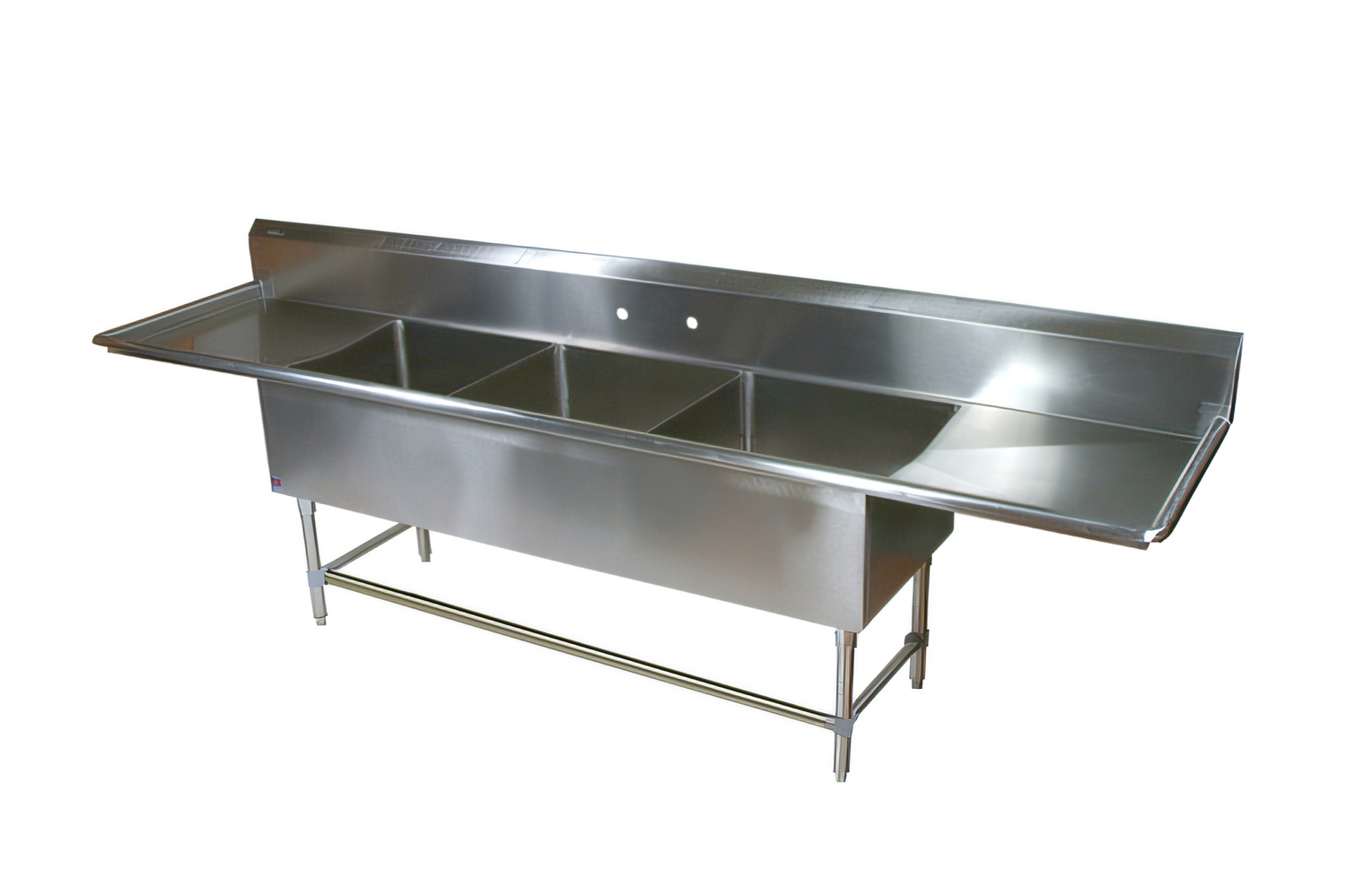

John Boos Pro-Bowl 3-Compartment Sink with Left and Right Drainboards, 16" x 20" x 12" Bowls

24" Drainboards, 10" Boxed Backsplash, 16-Gauge 300 Series Stainless Steel, Legs

Give your warewashing station plenty of room to work with a heavy-duty three-compartment sink that combines deep stainless steel bowls, dual drainboards, and a rugged leg base.

  • Three 16" x 20" x 12" deep compartments support wash, rinse, and sanitize workflows.
  • Left and right 24" drainboards provide staging space on both sides of the sink.
  • 16-gauge Type 300 stainless steel top and bowls with a satin #4 polish finish.
  • 10" boxed backsplash with 2" return and 8" on-center splash-mount faucet holes.
  • Stainless steel legs, front and side bracing, adjustable bullet feet, and KD construction.
  • 3-1/2" die-stamped drain openings and coved bowl corners help improve drainage and cleanup.

Overall Dimensions:

99.25"W x 25.5"D x 44.06"H

Product Weight:

129.0 lb

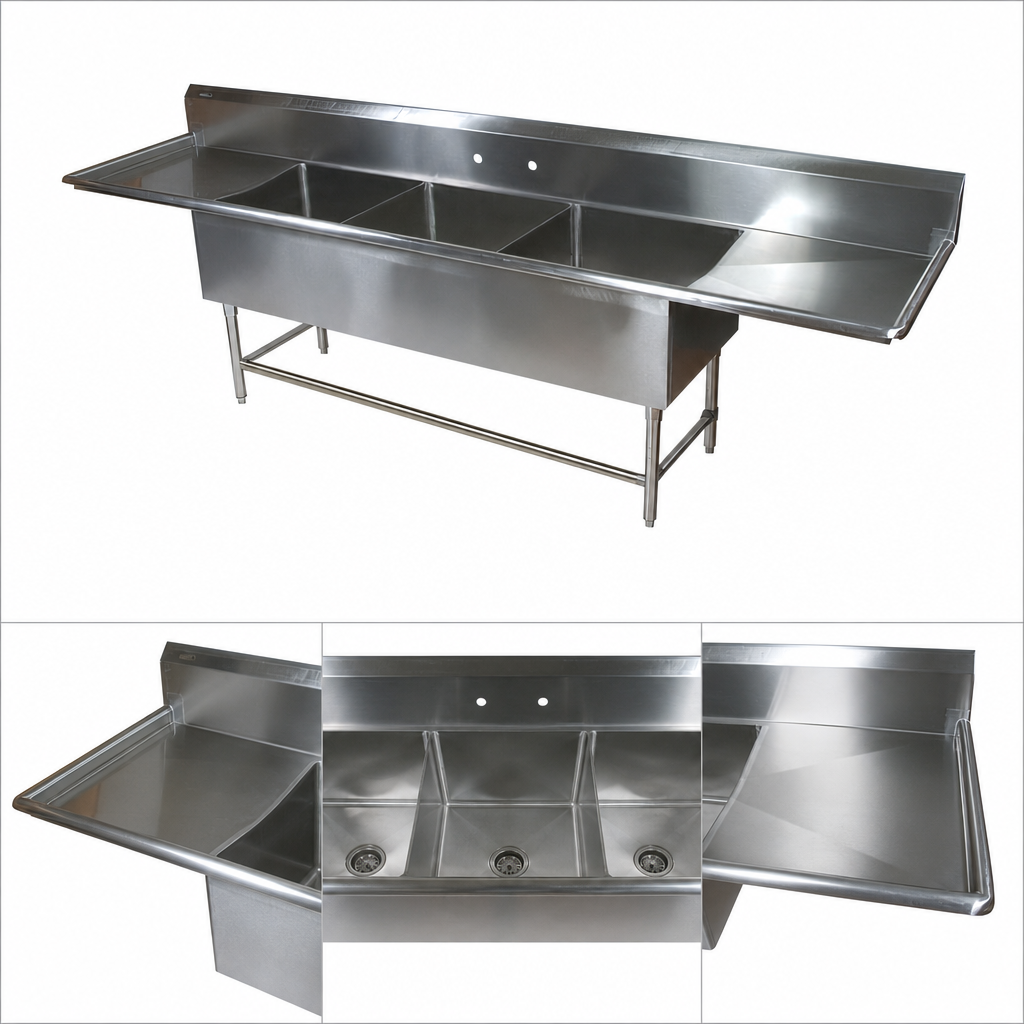

Three-Compartment Layout

Provides three separate bowls for multi-step warewashing, prep, or utility use.

Dual Drainboards

24-inch left and right drainboards add space for sorting, stacking, and draining dishware.

Heavy-Duty Stainless Steel Construction

Made from 16-gauge Type 300 stainless steel with a #4 polish and satin finish.

Deep Coved Bowls

12-inch deep bowls with coved corners and sloped bottoms help direct water to the drain.

Boxed Backsplash

10-inch high backsplash includes a 2-inch return to the wall and a 45° top.

Faucet Hole Layout

Splash-mount faucet holes are spaced 8 inches on center and sized at 1 inch.

Stainless Steel Base

Includes stainless steel legs, front and side bracing, and adjustable bullet feet for stability.

Knocked-Down Construction

Ships KD for easier handling and transport.

Type 3-Compartment Sink
Style With Left And Right Drainboards
Installation Type Floor Model
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Satin
Top Gauge 16 Gauge
Compartments 3
Drainboards 2
Compartment Width 16 Inches
Compartment Depth 20 Inches
Bowl Depth 12 Inches
Backsplash Height 10 Inches
Backsplash Return 2 Inches
Faucet Hole Centers 8 Inches
Faucet Hole Size 1 Inch
Drain Opening 3-1/2 Inches
Base Type Legs With Front & Side Crossrails
Base Construction Stainless Steel
Shipping Width 100 Inches
Shipping Depth 26 Inches
Shipping Height 45 Inches
Shipping Weight 129 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Care & maintenance PDF Download PDF Instructions PDF Download

Frequently Asked Questions

It has three compartments and two drainboards, one on the left and one on the right.
Each compartment measures 16 inches side-to-side, 20 inches front-to-back, and 12 inches deep.
The sink is made from 16-gauge Type 300 stainless steel with a satin finish.
Yes. It includes a 10-inch boxed backsplash with a 2-inch return and splash-mount faucet holes spaced 8 inches on center.
It uses stainless steel legs with front and side bracing, plus adjustable stainless steel bullet feet.
