Description

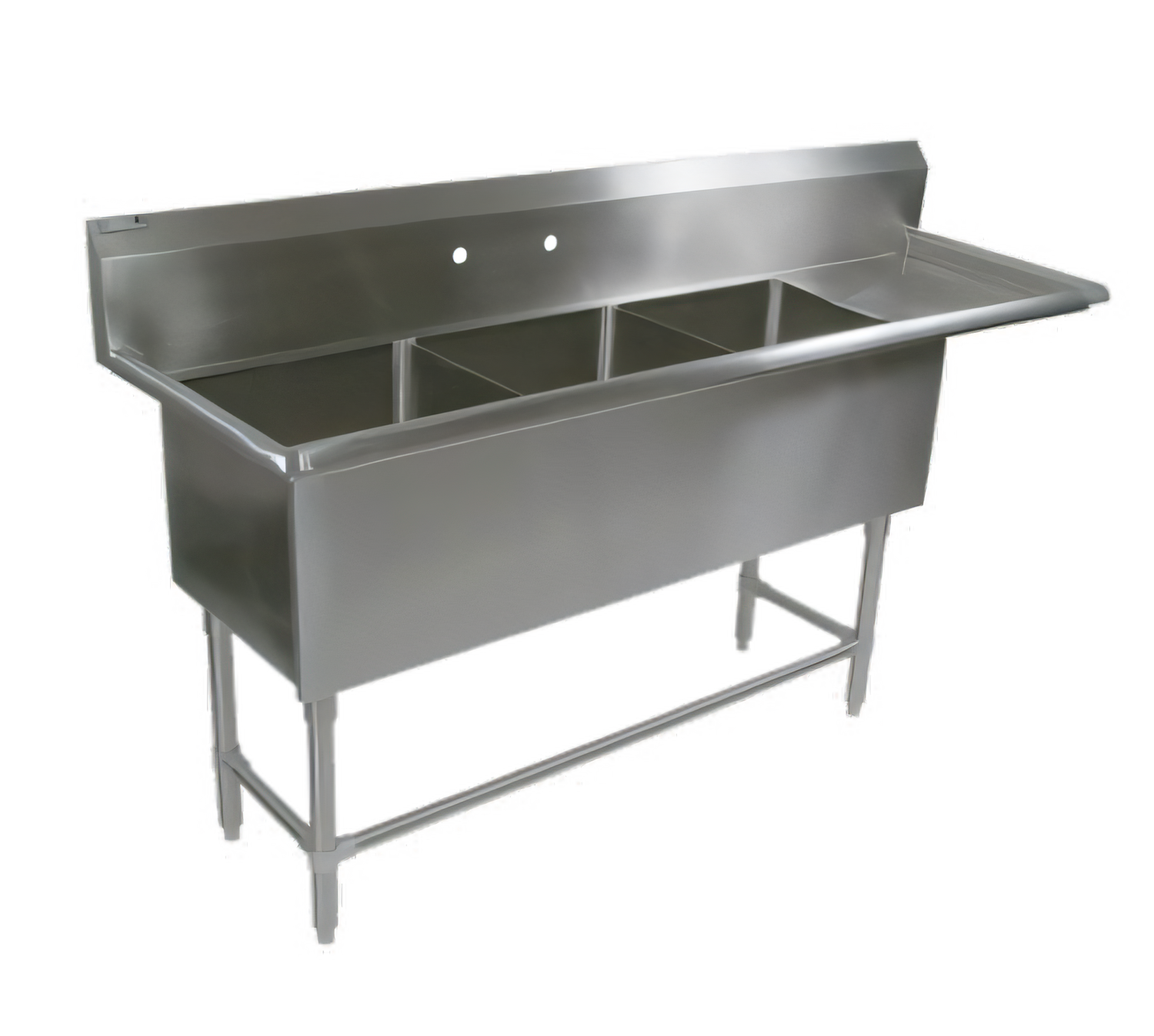

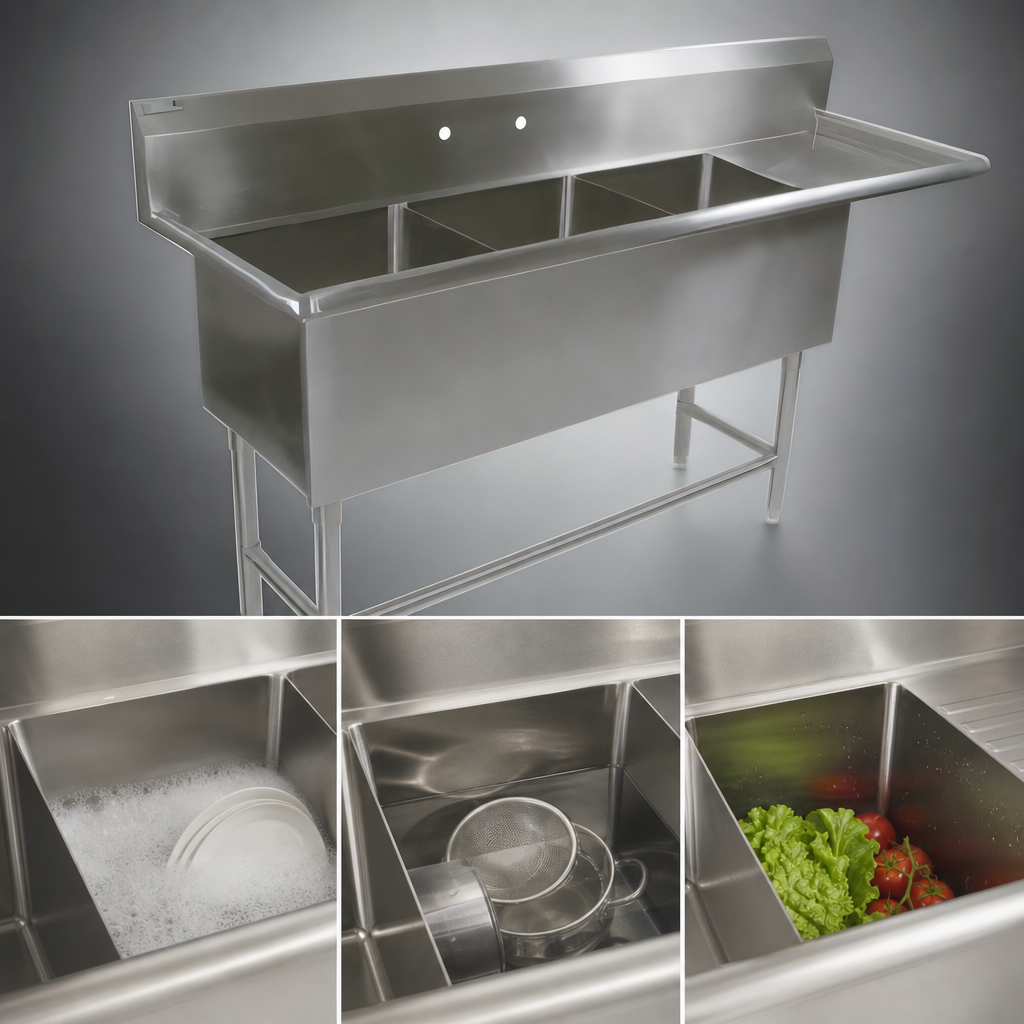

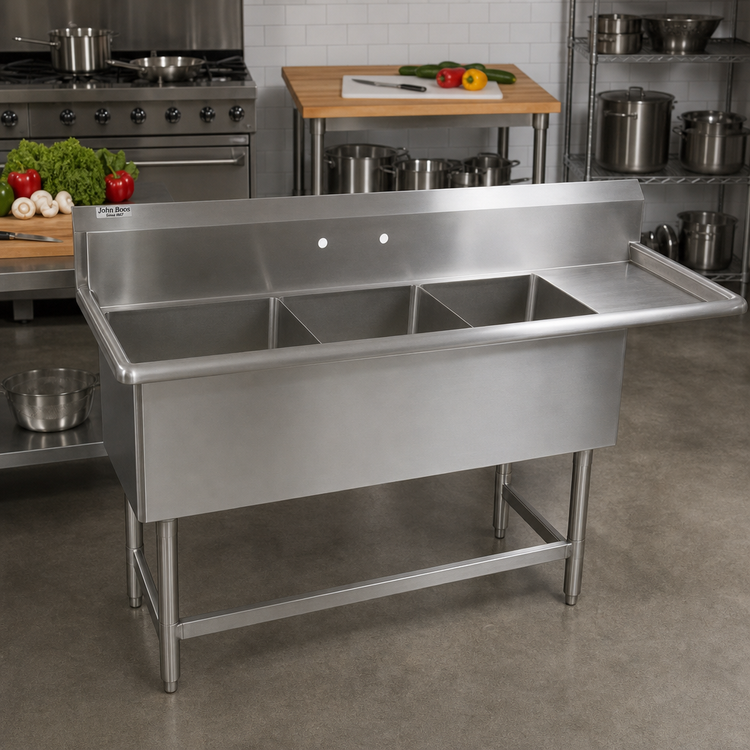

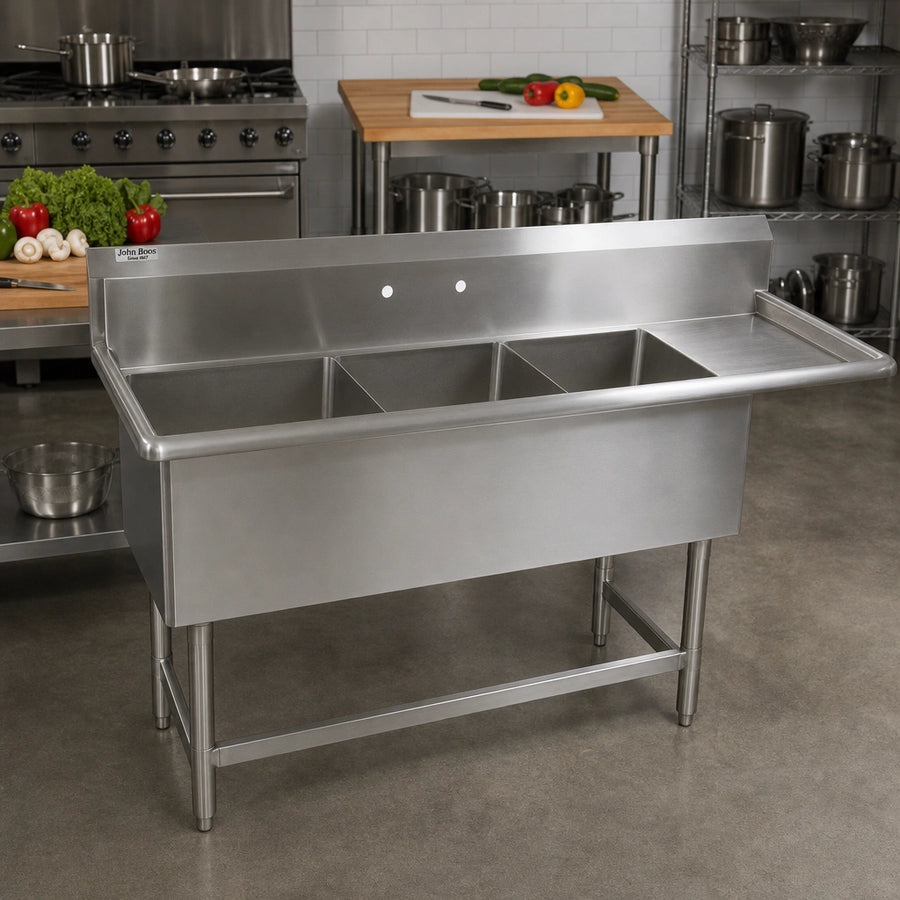

John Boos Pro-Bowl 3-Compartment Sink with 24" Right Drainboard

Model 3PB1620-1D24R  |  Heavy-Duty 16-Gauge Type 300 Stainless Steel

Built for the rigors of commercial kitchens, the John Boos Pro-Bowl sink streamlines your wash-rinse-sanitize workflow while standing up to years of constant use. Premium materials, sanitary design details and NSF certification make this the worry-free choice for restaurants, bars, cafeterias and food-service operations that demand the best.

Why you’ll love it

  • 16-gauge Type 300 stainless steel with #4 satin finish resists dents, corrosion and chemicals.
  • (3) roomy 16" x 20" x 12" deep bowls with 5/8" radius coved corners for fast, thorough cleaning.
  • Generous 24" right-side drainboard keeps dishes and utensils organized and off the worktop.
  • 10" boxed backsplash (45° top, 2" return) protects walls and contains splashes.
  • Pre-punched splash-mount faucet holes (8" on-center) for quick installation of your preferred fixture.
  • TIG-welded seams, polished to match adjacent surfaces; bull-nosed edges for operator safety.
  • 1-5/8" Ø stainless steel legs with adjustable front & side bracing deliver rock-solid stability.
  • Adjustable stainless steel bullet feet level the sink on uneven floors.
  • NSF and CSA-Sanitation listed for guaranteed code compliance.

At-a-glance specifications

Overall dimensions 76-3/16" W × 25-1/2" D × 44-1/16" H
Compartment size (3) 16" W × 20" F-B × 12" D
Drainboard 24" Right side
Backsplash 10" H boxed, 45° top, 2" return to wall
Faucet mounting (1) set of 8" on-center splash-mount holes
Drain openings 3-1/2" die-stamped (one per bowl)
Steel gauge / finish 16-GA Type 300 SS, #4 satin
Legs & bracing 1-5/8" Ø SS legs  |  1-1/4" Ø SS adjustable bracing
Feet 1" adjustable stainless steel bullet feet
Construction Ships knocked-down (KD) for easier handling
Certifications NSF | CSA-Sanitation

Looking for a different layout? Pro-Bowl sinks are also available with left-hand drainboards, other bowl sizes and optional accessories.

Important: Faucets, drains and overflow assemblies are sold separately unless added to your order.

Care & maintenance tips

  • Clean daily with a soft cloth or sponge and non-chloride detergent.
  • Rinse thoroughly and wipe dry to preserve the stainless steel’s protective film.
  • Avoid abrasive pads, wire brushes, steel wool or cleaners containing chlorides.
  • Restore shine with John Boos Stainless Steel Cleaner (sold separately).

Features & Specs

Manufacturer

John Boos

Brand_name

Pro-Bowl

Certifications

NSF, CSA-Sanitation

Height

44.06in

Width

76.18in

Depth

25.5in

Shipping Weight

114.0lbs

Compartment (front - back)

20"

Drainboards

with right-hand drainboard

Base Type

legs with front & side crossrails

Overall Length

73" - 84"

Compartment Width (side - side)

16"

Top Gauge

16 gauge

Splash Height

10"

Sink Depth (rim - drain)

12"

Top Stainless Series

300 series

Base Construction

stainless steel

Specifications

Pro-Bowl Sink, 3-compartment, 76-3/16"W x 25-1/2"D x 44-1/16"H overall size, (3) 16"W x 20" front-to-back x 12" deep compartments, (1) 24" right drainboard, 10"H boxed backsplash with 45° top & 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
